P0133 on 2015-2016 Ram ProMaster City: O2 Sensor Slow Response Causes & Fixes

What's Unique About the 2015-2016 Ram PROMASTER CITY

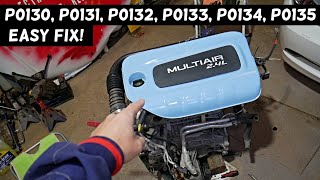

For the 2015-2016 Ram ProMaster City, which is equipped with the 2.4L Tigershark engine, the P0133 code has a very specific history. 🎬 Watch: How to fix P0133 and related codes on your ProMaster. Ram issued multiple Technical Service Bulletins (TSBs) indicating that the original PCM software was too sensitive and could incorrectly set this code, often along with several other unrelated codes like P0456 (EVAP Leak) and P0335 (Crankshaft Position Sensor). Therefore, unlike many other vehicles where P0133 almost always points to a bad sensor, on this specific platform, an outdated PCM software is a primary suspect and should be checked first.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Decreased fuel economy
• Possible rough idle or hesitation
• Failing an emissions test
• A cluster of seemingly unrelated trouble codes appearing at the same time as P0133.

Most Likely Causes

1. Outdated Powertrain Control Module (PCM) Software 🔴 High Probability → Shop Engine Control Module (ECM) Multiple manufacturer TSBs (#18-063-17 REV. A, #18-008-16 REV. B, #18-030-16, etc.) were released to correct overly sensitive diagnostic parameters that cause this code to set improperly, often with other codes.
   How to confirm: A Ram dealership or a qualified shop with access to the wiTECH diagnostic tool can check your vehicle's VIN to see if the relevant TSB software updates have been performed. The presence of multiple codes like P0456, P0335, and P2610 alongside P0133 is a strong indicator that the software update is needed.
   Typical fix: The PCM must be 'flashed' or reprogrammed with the updated software. This requires a wiTECH scan tool and a stable power supply to the vehicle during the process. This must be done by a dealer or properly equipped independent shop. Forum users report this is the most common and permanent fix.
   Est. part cost: $0
2. Failing or Contaminated Upstream Oxygen Sensor 🔴 High Probability → Shop Oxygen Sensor Oxygen sensors are wear-and-tear items that degrade over time from heat and contaminants in the exhaust. They are expected to be replaced as part of regular high-mileage maintenance.
   How to confirm: Use a scan tool to graph the Bank 1 Sensor 1 voltage. A healthy sensor's voltage should fluctuate rapidly between approximately 0.1V and 0.9V. A slow, lazy waveform indicates a failing sensor. This should only be the primary diagnosis after confirming the PCM software is up-to-date.
   Typical fix: Replace the Bank 1, Sensor 1 oxygen sensor. It is located on the exhaust manifold before the catalytic converter and is accessible from the top of the engine bay. An oxygen sensor socket is recommended for removal.
   Est. part cost: $50-$150
3. Exhaust System Leak 🟡 Medium Probability
   How to confirm: Visually inspect the exhaust manifold and pipes leading to the O2 sensor for cracks, rust, or loose connections. Listen for ticking or hissing sounds when the engine is cold. A smoke test is the most definitive way to identify small leaks that can introduce oxygen and fool the sensor.
   Typical fix: Repair the leak by replacing the faulty gasket, flex pipe, or exhaust component.
   Est. part cost: $20-$200
4. Wiring or Connector Issue ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness and connector for the upstream O2 sensor. Look for any signs of melting from contact with hot exhaust components, corrosion in the connector pins, chafing, or loose pins.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Low Fuel Pressure or Vacuum Leaks: While not common, issues that significantly alter the air-fuel mixture, like a vacuum leak or incorrect fuel pressure, can sometimes cause the O2 sensor to respond in a way the PCM interprets as 'slow'.

Diagnosis Steps

1. Connect an OBD-II scanner to confirm P0133 is the active code and check for any other stored codes. Note if a cluster of codes listed in the TSBs are present.
2. Contact a Ram dealership with your VIN to determine if the software updates from TSBs #18-063-17 REV. A, #18-008-16 REV. B, or other related bulletins have been performed. If not, this is the most likely solution.
3. If the software is up-to-date, use the scanner's live data function to monitor the Bank 1 Sensor 1 voltage at operating temperature. The voltage should switch rapidly. A slow, lazy response confirms the sensor is not performing correctly.
4. Inspect the exhaust system from the engine to the catalytic converter for any signs of black soot, cracks, or audible leaks, especially when the engine is cold.
5. Inspect the O2 sensor's wiring harness and connector for any physical damage, melting from contact with the exhaust, or corrosion.
6. If all other checks pass and the software is current, the oxygen sensor itself is the most likely culprit and should be replaced.

Parts You'll Likely Need

• Upstream Oxygen Sensor (Bank 1, Sensor 1) (OEM #68195741AA) — If the PCM software is current, the sensor itself is the most common component to fail, as it is a standard wear item.
  Trusted brands: Mopar, Denso (e.g., 234-4545), Bosch, NGK/NTK
  OEM price range: $95-$150
  Aftermarket price range: $40-$90

Related Codes That Often Appear With This One

• P0456 — EVAP System Small Leak. This code is frequently listed alongside P0133 in the same TSBs, suggesting the PCM software update addresses both. [Bulletin #18-008-16 REV. B, #18-063-17 REV. A]
• P0335 — Crankshaft Position Sensor Circuit. Also mentioned in the same TSBs as P0133, indicating a potential software fix for multiple codes at once. [Bulletin #18-063-17 REV. A, #18-008-16 REV. B]
• P2610 — PCM Internal Engine Off Timer Performance. Another code often resolved by the same PCM flash that fixes P0133. [Bulletin #18-008-16]
• P0171 — Fuel System 1/1 Lean. This can be related as an exhaust leak or sensor issue can affect fuel trim, and it is also mentioned in TSB #18-063-17 REV. A.

Technical Service Bulletins (TSBs) & Recalls

• 18-063-17 REV. A: Mentions P0133 and a large cluster of other codes (P0171, P0441, P050D, P0335, P0456, etc.) that can be resolved with a PCM software update. Also includes enhancements to allow the catalytic converter to operate cooler.
• 18-008-16 REV. B: Lists P0133 as one of several DTCs (P0335, P0456, P2610, etc.) addressed by a PCM re-flash for vehicles built on or before March 10, 2016.
• 18-008-16: An earlier version of a bulletin to update PCM software for P0133 and other codes.
• 18-030-16: Cites P0133 among a list of codes that may be set, with the solution being a software update.
• 1801416REVA: Also lists P0133 as a code that may be found and addressed via software.

Platform-Specific Known Issues

• A primary issue for the 2015-2016 ProMaster City is the factory PCM software being overly sensitive, leading to false P0133 codes. Multiple TSBs were issued by Ram to correct this, making a software check a mandatory first step in diagnosis. [Bulletin #18-063-17 REV. A, #18-008-16 REV. B, #18-008-16, #18-030-16, #1801416REVA]
• Owner forums are filled with reports of mechanics unnecessarily replacing the O2 sensor, only for the code to return. The issue was then permanently resolved by a dealer performing the PCM software flash.

Mechanic-Grade Diagnostic Values

• Upstream O2 Sensor (B1S1) Voltage - Live Data — expected: Rapidly fluctuating between ~0.1V (lean) and ~0.9V (rich) when the engine is in closed loop.. Failure: Voltage is slow to change, flat, or stuck at a specific value (e.g., ~0.45V). The switch from rich to lean or vice-versa should take less than 100 milliseconds.
• O2 Sensor Heater Circuit Resistance — expected: Typically between 4 and 6 Ohms at 20°C (68°F) for similar 2.4L Tigershark engine applications.. Failure: Resistance is significantly higher than the specification, or shows an open circuit (infinite resistance) when measured across the two heater pins on the sensor connector.
• O2 Sensor Heater Circuit Voltage Supply — expected: Battery voltage (~12V) should be present at the vehicle-side harness connector for the heater circuit with the ignition on.. Failure: No voltage or low voltage indicates a problem with the wiring, fuse, or the PCM's control of the heater relay.

Scan Tool Commands That Help

• wiTECH or equivalent professional scan tool: O2 Sensor Heater Actuation Test — This bidirectional command allows the technician to manually turn the O2 sensor's internal heater on and off. It is used to verify the integrity of the heater circuit (wiring, fuse, relay, and PCM driver) independently of the sensor itself.
• wiTECH or equivalent professional scan tool: Live Data Graphing for O2S11 (or B1S1) — This is the primary method to visually confirm a 'slow response'. A healthy sensor's waveform will look like a rapid, sharp sine wave. A failing sensor will have a lazy, rounded, or delayed wave, confirming the P0133 condition after verifying the PCM software is up-to-date.

Wiring & Ground Locations

• Engine Ground Strap — While not specific to the ProMaster City in the search results, similar Ram vehicles have a critical ground strap running from the engine block (often near the starter or on the back of the cylinder head) to the chassis/frame.. A poor engine ground can cause a host of electrical issues and erratic sensor readings. The O2 sensor relies on a stable ground reference to produce an accurate voltage signal. If the ground path is compromised, the PCM can receive noisy or skewed data, which could potentially be misinterpreted as a slow response.
• O2 Sensor Connector (Upstream) — On the 2.4L Tigershark engine, the upstream O2 sensor is located on the exhaust manifold, accessible from the top-rear of the engine bay. The connector is typically clipped to a bracket nearby to keep it away from hot exhaust components.. The connector is a common failure point. Visual inspection for melted plastic from contact with the exhaust, corrosion on the pins, or backed-out terminals is a critical step. Wiggle-testing the connector while monitoring live data can reveal intermittent connections.

Real Owner Repair Stories

• promasterforum.com user report (2016 Ram ProMaster City) — Check Engine Light on with code P0133. Sometimes accompanied by other codes like P0456.
  ❌ Tried (didn't work) Replacing the upstream O2 sensor. The code returned shortly after replacement.
  ✅ What actually fixed it Taking the vehicle to a Ram dealership to have the Powertrain Control Module (PCM) software updated ('flashed') as per the TSBs. The code did not return after the software update.

OEM Part Supersession History

• N/A → 68195741AA — This is the current and widely cited OEM part number for the upstream oxygen sensor for the 2015-2020 Ram ProMaster City with the 2.4L engine. Earlier part numbers like 68087364AA are listed as interchanges but 68195741AA is the primary replacement.
  Heads up: Using a non-OEM sensor before performing the PCM software update is not recommended, as the new software is calibrated for the characteristics of the OEM sensor.

Model Year Variations Within This Range

• 2015-2016: There are no significant mechanical differences between the 2015 and 2016 models regarding the 2.4L Tigershark engine or its emissions components that would affect the diagnosis of P0133. Both model years are covered by the same TSBs related to the PCM software update for this code.
