P0141 on 2015-2016 Fiat 500L: O2 Sensor Heater Fault Causes and Fixes

What's Unique About the 2015-2016 Fiat 500L

For the Fiat 500L and its platform mates with the 1.4L MultiAir Turbo engine, P0141 is not always a simple sensor failure. Fiat Chrysler Automobiles (FCA) has issued multiple Technical Service Bulletins (TSBs) that link this code to powertrain software issues. These bulletins suggest the code can be set falsely due to overly sensitive diagnostic logic, sometimes alongside a variety of other seemingly unrelated faults (like oil pressure or throttle control codes). In some documented cases, this fault can contribute to a crank-no-start condition in extreme cold. Therefore, verifying if a PCM software update is needed is a critical first step before replacing parts, as many owners report the code returning after sensor replacement until the software is flashed.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle fails emissions testing
• Slightly reduced fuel economy
• In rare cases, a crank-no-start condition in extreme cold temperatures of -4°F (-20°C), as noted in TSB #18-105-15.

Most Likely Causes

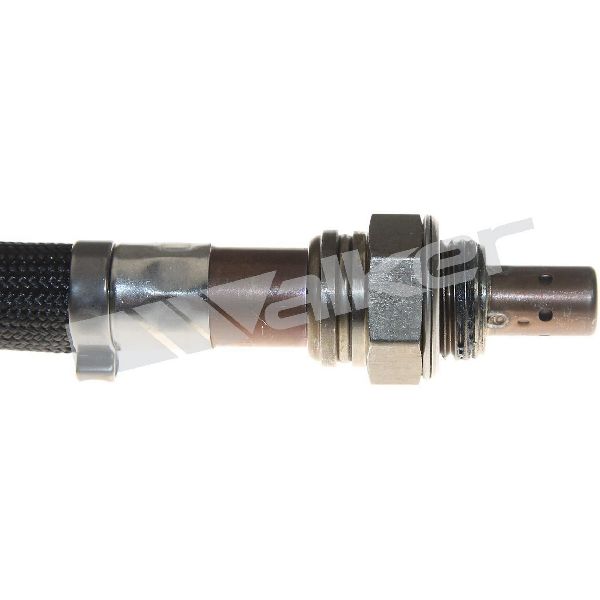

1. Failed Downstream Oxygen Sensor 🔴 High Probability → Shop Oxygen Sensor The internal heater element is a common failure point over time due to constant, extreme heat cycles. It's a resistive element that can burn out like a lightbulb filament.

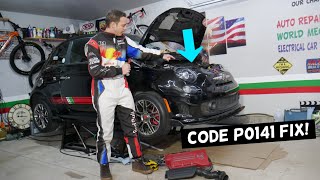

   How to confirm: After checking fuses and wiring, test the resistance of the heater circuit at the sensor's electrical connector using a multimeter. Disconnect the sensor and probe the two same-colored wires. A healthy sensor should read between 4 and 10 ohms when cold. An open circuit (infinite resistance) or a reading far outside this range indicates a failed heater element. 🎬 See how to test and replace a heated oxygen sensor.

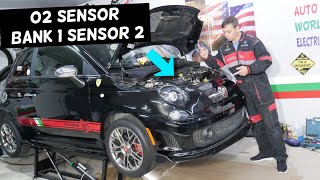

   Typical fix: Replace the Bank 1, Sensor 2 (downstream) oxygen sensor. A special 22mm slotted oxygen sensor socket is recommended for removal. 🎬 Watch this walkthrough to find and replace the downstream sensor.
   Est. part cost: $55-$120
2. Outdated Powertrain Control Module (PCM) Software 🟡 Medium Probability → Shop Engine Control Module (ECM) Manufacturer TSBs #18-105-15 and #18-084-17 specifically call out P0141 as a code that can be resolved with a PCM software update. The diagnostic logic in the original software may be overly sensitive, falsely triggering the code. The fact that TSBs bundle this fix with other unrelated codes points to a logic error rather than a hardware fault.
   How to confirm: A Fiat dealership or a qualified shop with access to OEM software tools (like wiTECH) can check your vehicle's VIN against the TSBs to see if a software update is pending.
   Typical fix: Reprogram (flash) the PCM with the latest available software. This is a dealer or specialty shop procedure.
   Est. part cost: $0 if under warranty, otherwise $150-$250 for labor.
3. Damaged Wiring or Connector ⚪ Low Probability The sensor's wiring is routed under the vehicle and is exposed to road debris, moisture, and extreme exhaust heat, which can cause the wiring to melt, chafe, or break over time. The connector itself can also corrode.
   How to confirm: Visually inspect the entire wiring harness leading from the downstream O2 sensor up to where it connects to the main harness. Look for any signs of melting, chafing, or breaks. Check the connector for corrosion, pushed-out pins, or moisture.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $10-$50
4. Blown Fuse ⚪ Low Probability A short circuit in the heater circuit wiring or within the sensor itself can cause the corresponding fuse to blow as a protective measure.
   How to confirm: Consult the owner's manual to locate the fuse for the O2 sensor heater circuit in the under-hood fuse box and visually inspect it. Test with a multimeter if necessary.
   Typical fix: Replace the blown fuse. If it blows again immediately, a short circuit in the wiring or sensor must be diagnosed and fixed first.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. All other possibilities, especially the sensor, wiring, and required software updates, should be exhausted before considering PCM replacement. Sometimes, issues appearing to be a faulty PCM are actually due to poor battery terminal connections or bad ground straps.

Diagnosis Steps

1. Check for any available Technical Service Bulletins (TSBs) or software updates for your vehicle's VIN. This is a critical first step for this specific vehicle, specifically TSB #18-105-15 and #18-084-17.
2. Scan the PCM for any other stored trouble codes. The presence of other codes, like those listed in TSB #18-084-17, reinforces the possibility of a software issue.
3. Locate and inspect the fuse for the O2 sensor heater circuit in the under-hood fuse box. Replace if blown.
4. Visually inspect the downstream O2 sensor's wiring harness and connector for any signs of damage, melting, or corrosion.
5. Disconnect the sensor and use a multimeter set to Ohms to test the resistance of the heater circuit on the sensor side (usually across the two same-colored wires). Compare the reading to the manufacturer's specification, which is typically 4-10 Ohms. An open circuit (infinite resistance) or short (near-zero Ohms) confirms a bad sensor.
6. With the key on and engine off, use a multimeter to check for battery voltage (approx. 12V) and a good ground at the harness-side connector for the heater circuit. Lack of voltage points to a wiring or fuse issue upstream.
7. If the fuse, wiring, and software are all good but the code persists, replace the downstream oxygen sensor.
8. After repairs, clear the code with a scanner and perform a complete drive cycle, including cold starts, to ensure the fault does not return.

Parts You'll Likely Need

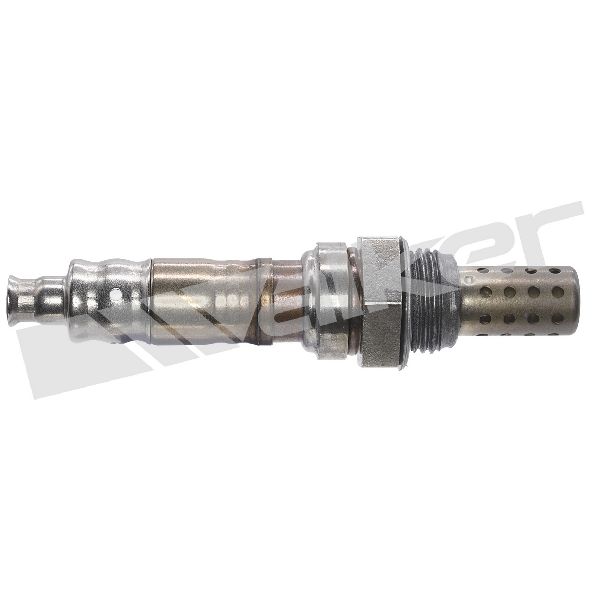

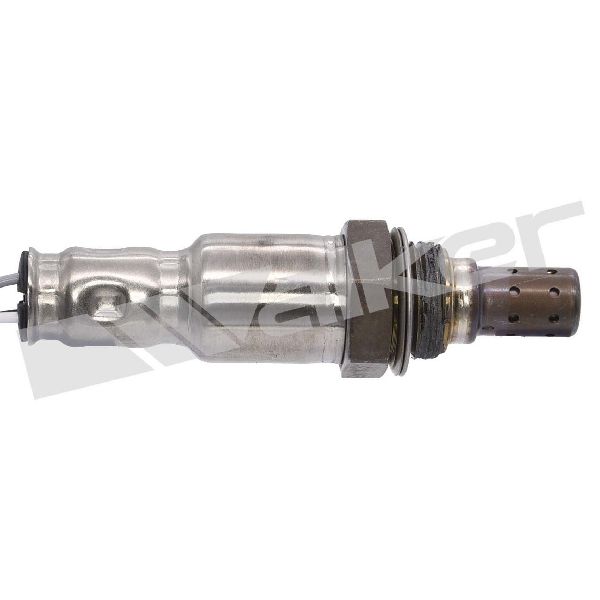

• Downstream Oxygen Sensor (Bank 1, Sensor 2) (OEM #68070702AB) — The internal heater element is the most common hardware failure point that triggers code P0141.
  Trusted brands: Mopar, Bosch (e.g., 15510), NTK / NGK (e.g., 23163, 22535), Denso, Walker Products (e.g., 250-241045)
  OEM price range: $120-$180
  Aftermarket price range: $55-$120

Related Codes That Often Appear With This One

• P1D7F-00 — Listed together in TSB #18-084-17 and #18-042-21, suggesting a PCM software update may resolve multiple codes at once.
• P1523-00 — Listed together in TSB #18-084-17 and #18-042-21, suggesting a PCM software update may resolve multiple codes at once.
• P1524-00 — Listed together in TSB #18-084-17 and #18-042-21, suggesting a PCM software update may resolve multiple codes at once.
• P1046 — Listed together in TSB #18-084-17, suggesting a PCM software update may resolve multiple codes at once.

Technical Service Bulletins (TSBs) & Recalls

• 18-105-15: Links P0141 to potential cold-start issues on 2016 500L models and specifies a PCM reflash as the solution.
• 18-084-17: Lists P0141 among a group of DTCs for 2015 500L models that can be resolved by a single PCM software update.

Platform-Specific Known Issues

• TSB #18-105-15 indicates that P0141 can be associated with a crank-no-start condition in extreme cold (-4°F / -20°C) on 2016 models built on or before Nov 18, 2015. A PCM software update is the specified fix.
• TSB #18-084-17 groups P0141 with several other engine and oil pressure-related DTCs for the 2015 model year, indicating that a single PCM software update is designed to fix all of them, pointing to a logic issue rather than multiple hardware failures.
• Owners frequently report the P0141 code returning after replacing the sensor, only to be permanently fixed by a dealer-performed PCM software update, confirming the TSBs are a critical part of the diagnosis.

Mechanic-Grade Diagnostic Values

• O2 Sensor Heater Element Resistance — expected: 4-10 Ohms when cold. Failure: Infinite resistance (open circuit) or near-zero resistance (short circuit).
• Voltage at Heater Power Wire (Harness Side) — expected: Approximately 12V (Battery Voltage) with Key On, Engine Off. Failure: 0V indicates a blown fuse or an open in the power supply wire.
• Voltage at Heater Ground Wire (Harness Side) — expected: A pulsing ground signal (verifiable with a test light connected to B+) when the engine is running and the PCM is commanding the heater on.. Failure: A steady 0V or steady 12V indicates a problem with the PCM driver or the wiring to the PCM.

Scan Tool Commands That Help

• wiTECH (or equivalent): ECU Flash / Reprogramming — Used to apply the software updates specified in TSBs #18-105-15 and #18-084-17, which is a common fix for a false P0141 on this vehicle.
• wiTECH (or equivalent): View Live Data / Actuation Tests — Allows a technician to monitor the status of the O2 heater circuit as commanded by the PCM and may offer a specific actuation test to turn the heater on/off manually to verify circuit integrity.

Wiring & Ground Locations

• Powertrain Control Module (PCM/ECU) — Located in the engine bay, mounted to the battery tray assembly. The battery must be removed to access and disconnect the PCM connectors.. The PCM provides the switched ground that controls the O2 sensor heater. Any wiring tests for the ground control circuit will lead back to this module. A poor connection at the main PCM connectors could also cause this fault.
• Downstream O2 Sensor Heater Wires — On a typical four-wire universal sensor, the two wires of the same color (often white or black) are for the heater circuit. The other two (e.g., grey and black) are for the sensor signal and ground.. Correctly identifying the heater circuit wires at the sensor connector is essential for performing resistance and voltage tests.

Real Owner Repair Stories

• fiat500owners.com forum (2015 Fiat 500L) — Check Engine Light with code P0141.
  ❌ Tried (didn't work) Replacing the downstream O2 sensor.
  ✅ What actually fixed it The user reported that after replacing the sensor did not fix the issue, a PCM software update performed by the dealership finally resolved the code, aligning with the official TSBs.

OEM Part Supersession History

• 68070702AB → N/A — This part number appears to be the current and consistent OEM part for the specified vehicle range.

Model Year Variations Within This Range

• 2016 (built on or before Nov 18, 2015): TSB #18-105-15 specifically calls out these models for a potential crank-no-start condition in extreme cold related to P0141, with the fix being a PCM software update.
• 2015: TSB #18-084-17 applies to this model year, grouping P0141 with other DTCs that are resolved by a PCM software update, strongly suggesting a software logic issue for this year.
