P0141 on 2003-2008 Honda Pilot: O2 Sensor Heater Circuit Causes and Fixes

What's Unique About the 2003-2008 Honda Pilot

On the first-generation Honda Pilot with the J35A V6 engine, this code is straightforward. There are no common pattern failures with the wiring or computer that mimic this code. The issue is almost always isolated to the sensor itself. Owners report that the internal heater element simply wears out from age and heat cycles. The location on the rear bank makes access a bit tighter than the front, but it is still a very common and manageable DIY repair, as documented in numerous owner forums.

Symptoms You May Notice

• Check Engine Light is on
• Inability to pass an emissions/smog test.
• Slightly decreased fuel economy (often not noticeable by the driver)

Most Likely Causes

1. Failed Oxygen Sensor 🔴 High Probability → Shop Oxygen Sensor The internal heater element is a common point of failure due to age and constant exposure to extreme exhaust temperatures. It's considered a standard wear-and-tear item on the J35A engine.
   How to confirm: Disconnect the sensor and measure the resistance between the two same-colored wires (usually black) on the sensor's connector. A reading of 'OL' (over-limit/open) or infinite resistance means the heater is burned out. A healthy heater circuit should read between 5 and 20 ohms, with many Honda-specific sensors having a tighter specification of 5.0-6.4 ohms.
   Typical fix: Replace the Bank 1, Sensor 2 oxygen sensor. 🎬 See a breakdown of common causes and fixes for P0141. Using an OEM-supplier brand like Denso or NTK is highly recommended.
   Est. part cost: $60-$110
2. Blown Fuse ⚪ Low Probability
   How to confirm: Check the under-hood fuse box for a blown fuse. On this platform, it is typically a 15A fuse labeled 'A/F HEATER'. If the fuse is blown, replace it. If it blows again immediately, a short circuit exists in the wiring harness.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it indicates a short circuit in the wiring that must be found and repaired.
   Est. part cost: $1-$5
3. Damaged Wiring or Connector ⚪ Low Probability The wiring harness runs near hot exhaust components and is exposed to road debris, which can cause it to melt, chafe, or corrode over time.
   How to confirm: Visually inspect the wiring harness leading to the oxygen sensor for any signs of melting, fraying, or breaks. Check the electrical connector for corrosion, moisture, or pushed-out pins.
   Typical fix: Repair the damaged section of wire or clean/replace the connector.
   Est. part cost: $5-$25

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. Before considering the PCM, all other possibilities (sensor, fuse, wiring) must be exhaustively ruled out. A PCM failure would typically be accompanied by other trouble codes as well.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0141 is the only code present.

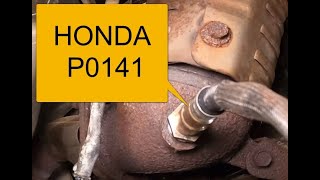

2. Locate the Bank 1, Sensor 2 oxygen sensor. It is on the rear cylinder bank (closest to the firewall), downstream of the catalytic converter, accessible from under the vehicle.
🎬 Watch this guide on fixing Honda-specific P0141 sensor codes.
3. Visually inspect the sensor's wiring and connector for any obvious damage, such as melting, chafing, or corrosion.
4. Check the fuse for the oxygen sensor heater circuit. This is typically a 15A fuse labeled 'A/F Heater' in the under-hood fuse box.
5. If the fuse and wiring appear intact, disconnect the sensor's electrical connector.
6. Using a multimeter set to Ohms (Ω), measure the resistance across the two same-colored pins (usually black) on the SENSOR side of the connector.
7. If the multimeter reads infinite resistance or 'OL', the heater element inside the sensor is broken, and the sensor must be replaced. A good sensor should read between 5-20 Ohms, with a more precise reading of 5.0-6.4 Ohms being common for Honda sensors.
8. If the resistance is within spec, the problem may be in the vehicle's wiring. With the key on and engine off, use the multimeter to check for 12-volt power and a good ground on the HARNESS side of the connector.
9. If power or ground is missing, the wiring harness between the fuse box/PCM and the sensor needs to be traced and repaired.

Parts You'll Likely Need

• Oxygen Sensor (Bank 1, Sensor 2) (OEM #36542-RCJ-A01) — This is the downstream (post-catalyst) sensor for the rear cylinder bank. The internal heater element is the component that fails, triggering the P0141 code.
  Trusted brands: Denso, NTK
  OEM price range: $110-$155
  Aftermarket price range: $60-$110

Platform-Specific Known Issues

• Real-World Repair Story: A 2005 Pilot owner on YouTube documented the repair for an O2 sensor code. The process involved disconnecting the electrical connector from the top of the engine bay, removing a 10mm bolt holding the wire bracket, and then using a 22mm O2 sensor socket with a breaker bar from below to remove the sensor. The replacement sensor came with anti-seize on the threads and was installed to hand-tight plus an additional 1/4 to 1/2 turn. This is a typical experience for this repair.
🎬 Watch this step-by-step 2005 Honda Pilot oxygen sensor replacement.

Mechanic-Grade Diagnostic Values

• O2 Sensor Heater Element Resistance — expected: 5.0 to 6.4 ohms at ambient temperature. Some general sources state a wider 5-20 ohm range is acceptable.. Failure: A multimeter reading of 'OL' (Open Loop) or infinite resistance indicates a burned-out heater element.
• Heater Circuit Power Supply Voltage (at harness connector) — expected: Battery voltage (~12V) with Key On, Engine Off.. Failure: 0V or significantly low voltage points to a blown 'A/F Heater' fuse or a break in the power supply wire from the relay.
• Heater Circuit Ground Control (at harness connector) — expected: The PCM provides a pulsed ground signal *only when the engine is running*. A test light connected between the power and ground pins on the harness connector should illuminate or pulse after the engine starts.. Failure: If 12V power is present but the test light never illuminates with the engine running, it indicates a break in the ground wire to the PCM or a faulty PCM driver.

Scan Tool Commands That Help

• Honda HDS (or equivalent professional scanner): Heater Circuit Functional Test / Actuation Test — This bidirectional command is used to manually force the PCM to activate the O2 sensor's heater circuit. It's useful for confirming the integrity of the wiring and the PCM's driver circuit after verifying the sensor's resistance is good. If the command is sent but no current flows (monitored via live data or an amp clamp), the fault is in the wiring or PCM.

Wiring & Ground Locations

• G101 — On the thermostat housing, located on the top front of the engine.. G101 serves as the main power and logic ground termination point for the ECU/PCM. While a poor connection here typically causes more severe issues like no-start or stalling, an intermittent or high-resistance ground at this point can cause a variety of unpredictable electrical faults, including issues with sensor circuits controlled by the PCM.
• B1S2 Heater Circuit Wires — Within the 4-wire connector for the rear downstream oxygen sensor.. On Honda sensors, the two wires of the same color (typically black) are for the heater circuit. One wire is the 12V+ power feed from the A/F heater relay/fuse, and the other is the ground control wire that goes to the PCM. All voltage and resistance tests for this code are performed on these two wires.

OEM Part Supersession History

• 36542-RCA-A01 → 36542-RCJ-A01 — Part number update for later model years within the generation. The parts are generally interchangeable for this application.
  Heads up: The original part number 36542-RCA-A01 is still listed for 2003-2005 models, while 36542-RCJ-A01 is listed for the 2006-2008 facelift models. However, aftermarket suppliers like Denso and NTK list the same part for all 2003-2008 years, indicating functional compatibility.

Model Year Variations Within This Range

• 2006-2008: The Honda Pilot received a mid-cycle refresh for the 2006 model year. While the engine (J35A) and the fundamental cause of P0141 remained the same, there were minor changes to part numbers, such as the O2 sensor itself (from 36542-RCA-A01 to 36542-RCJ-A01). The diagnostic and repair procedure is identical across the entire 2003-2008 range.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Automatic Transmission Failure 🔴 High — Very common, especially in 2003-2005 models. Can occur from 90,000 miles onward. Symptoms include slipping, jerking, and complete failure. (Ref: Multiple class-action lawsuits have been filed regarding Honda's V6 transmissions from this era.)
• Torn Front Lower Control Arm 'Compliance' Bushings 🟠 Medium — Extremely common wear item. Often fails by 100,000 miles, causing clunking over bumps, loose steering feel, and uneven tire wear.
• Takata Airbag Inflator Recall 🔴 High — Affects all model years from 2003-2008. This is a critical safety recall that should be addressed immediately. (Ref: NHTSA Campaign Numbers include 19V182000 and others. Owners should check their VIN on the NHTSA website.)
• Power Steering System Whine and Leaks 🟡 Low — Common complaint. A whining or groaning noise when turning the wheel is often caused by air entering the system through a faulty O-ring on the power steering pump inlet.
• Water Leaks into Cabin 🟡 Low — Reported by many owners. Can be caused by clogged sunroof drains, deteriorated windshield seals, or clogged A/C evaporator drains, leading to wet carpets.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, buying a used oxygen sensor is strongly discouraged. O2 sensors are wear-and-tear items with a finite lifespan. The cost savings of a used part are minimal and not worth the risk of premature failure and having to repeat the labor.

Donor-vehicle mileage cap: roughly under 30000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If forced to use a junkyard part in an emergency, select one from the lowest-mileage vehicle possible.
• Inspect the wiring and connector for any signs of brittleness, melting, or corrosion.
• Avoid sensors that are physically damaged or heavily coated in soot or oil.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', using an OEM-supplier brand is critical for oxygen sensors on Honda vehicles.

Aftermarket brands forum-validated for this vehicle:

• Denso (e.g., 234-4359)
• NTK/NGK (e.g., 24302)

Brands owners have reported issues with on this vehicle:

• Generic, unbranded, or 'universal' (splice-in) oxygen sensors. These often have incorrect heater resistance values or slower response times, which can lead to persistent codes or other performance issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0138 — High voltage circuit code for the same Bank 1 Sensor 2 oxygen sensor; often appears alongside P0141 when the sensor fails.
• P0139 — Slow response circuit code for the Bank 1 Sensor 2 oxygen sensor; frequently cited as a companion code to P0141 in J-series engine diagnostics.

Frequently Asked Questions
