P0141 on 2011-2012 Ram 2500 5.7L Hemi: O2 Sensor Heater Fault Causes and Fixes

What's Unique About the 2011-2012 Ram 2500

For the Ram 2500 with the 5.7L Hemi engine, the location of Bank 1 is consistently identified as the driver's side, which is crucial for correct diagnosis. The oxygen sensors on these trucks are located underneath the vehicle and are exposed to road debris, moisture, and significant heat from the exhaust. This environment makes damage to the sensor's wiring or connector a notable possibility, in addition to the common internal failure of the sensor's heater element. Some TSBs, like #25-003-13, list P0141 as a code that may be resolved with a PCM software update, indicating a known pattern recognized by the manufacturer.

Symptoms You May Notice

• Check Engine Light is on
• Failing an emissions test
• Slight decrease in fuel economy over time (often not immediately noticeable)
🎬 Watch: Overview of P0141 symptoms, causes, and common fixes

Most Likely Causes

1. Failed Oxygen Sensor (Bank 1, Sensor 2) 🔴 High Probability → Shop Oxygen Sensor The internal heater element is a common failure point in all oxygen sensors due to constant heating and cooling cycles, eventually burning out like a light bulb filament. The sensor's exposed location under the truck can also contribute to a shorter lifespan.
   How to confirm: Disconnect the sensor and measure the resistance across the two heater wires (usually the two same-colored wires) with a multimeter. 🎬 See this guide on how to test O2 heater circuits An infinite resistance reading (open circuit) or a short (near zero ohms) confirms the heater has failed. A good sensor typically has a resistance between 4 and 9 ohms when cold.
   Typical fix: Replace the Bank 1, Sensor 2 oxygen sensor. It is highly recommended by owners to use a quality OEM (Mopar) or reputable aftermarket brand like NTK/NGK or Denso, as cheaper sensors are known to cause recurring codes.
   Est. part cost: $50-$150
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness for the downstream O2 sensor is routed under the vehicle, making it susceptible to damage from road debris, heat from the exhaust, or corrosion from water and road salt. Wires can melt on the exhaust pipe or chafe against the frame.
   How to confirm: Visually inspect the entire length of the wiring harness from the sensor to the main connection point. Look for frayed wires, melted insulation, or corrosion inside the connector pins. Pay close attention to where the harness might rub against the driveshaft or frame.
   Typical fix: Repair the damaged section of wire or replace the connector pigtail.
   Est. part cost: $10-$40
3. Blown Fuse or Faulty Relay ⚪ Low Probability
   How to confirm: Consult the owner's manual or the fuse box diagram to locate the fuse for the O2 sensor heaters in the Power Distribution Center under the hood. While there may not be a single dedicated fuse, check fuses F21, F22, F57, F64, F72, F77, and F78. Visually inspect the fuse and test for continuity. If multiple heater codes (e.g., P0141 and P0161) are present, a shared fuse or relay is more likely the cause.
   Typical fix: Replace the blown fuse. If the fuse blows again immediately, it indicates a short circuit in the wiring or sensor that must be found.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare and should only be considered after all other possibilities, including the sensor, wiring, and fuses, have been definitively ruled out. TSB #25-003-13 does note that a PCM software update can sometimes resolve this code, suggesting a software glitch is more likely than a hardware failure.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0141 is the active fault.
2. Visually inspect the Bank 1, Sensor 2 oxygen sensor, which is on the driver's side, after the catalytic converter. Check its electrical connector and wiring for any signs of melting, chafing, corrosion, or physical damage.
3. Locate and check the relevant fuses in the under-hood Power Distribution Center. Check fuses F21, F22, F57, F64, F72, F77, and F78. If a fuse is blown, replace it and see if the code returns.
4. If the wiring and fuse are okay, disconnect the sensor. Use a multimeter to measure the resistance between the two heater circuit pins on the sensor side (typically the two wires of the same color). A reading of infinite ohms (OL) or near zero indicates a broken heater element, and the sensor must be replaced. 🎬 Watch: Step-by-step walkthrough for replacing a faulty O2 sensor A good reading is typically between 4 and 9 ohms.
5. If the sensor's resistance is good, check for power and ground at the vehicle-side connector. With the ignition on, one pin should have 12V power. The PCM provides a pulsed ground to control the heater, which can be checked with a test light connected to battery positive while the engine is cold.
6. If there is no 12V power at the connector, trace the wiring back to the fuse box to find the open circuit. If power is present but the ground signal is not, there may be a wiring issue back to the PCM or a rare PCM fault.

Parts You'll Likely Need

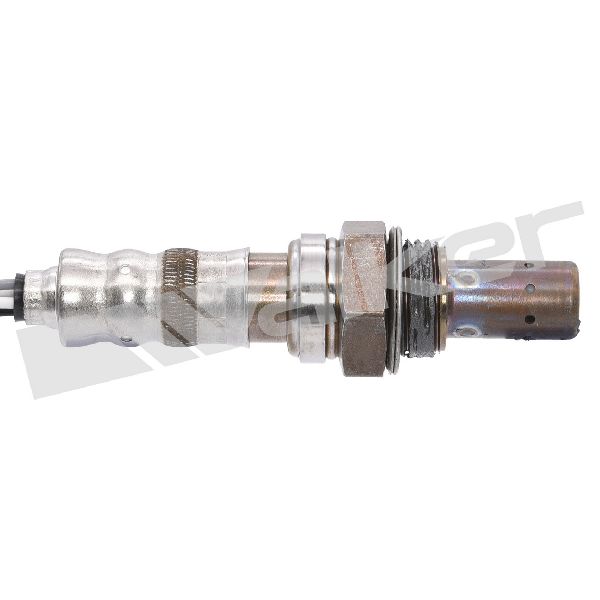

• Oxygen Sensor (Bank 1, Sensor 2) (OEM #56029049AA) — This is the most common cause of a P0141 code, as the internal heater element fails over time. This Mopar part is used across many 5.7L applications.
  Trusted brands: Mopar, NTK, Denso, Bosch
  OEM price range: $100-$180
  Aftermarket price range: $50-$120

Related Codes That Often Appear With This One

• P0161 — This is the heater circuit code for Bank 2, Sensor 2 (passenger side downstream). If both appear together, it strongly suggests a problem with a shared power source, like a fuse (e.g., M10 on some models) or relay that controls both downstream sensor heaters.
• P0137 / P0138 — These codes for low or high voltage on the same sensor (Bank 1, Sensor 2) can appear alongside P0141, often indicating a general failure of the sensor unit or a wiring issue affecting multiple circuits for that sensor.
• P0135 — This is the heater circuit code for the upstream sensor on the same bank (Bank 1, Sensor 1). If seen together, it could point to a wiring harness issue specific to Bank 1 or a shared power supply problem.

Technical Service Bulletins (TSBs) & Recalls

• TSB #25-003-13: Mentions that a PCM software update may resolve P0141, among other O2 sensor codes, suggesting a potential software anomaly as a cause.
• TSB Bulletin #25-004-12: Specifically identifies P0141 as "O2 Sensor 1/2 Heater Performance" and notes it can occur alongside related codes like P0137 and P0138.
• TSB Bulletin #25-002-14: Lists P0141 as a diagnostic code for O2 Sensor 1/2 Heater Performance, often appearing with P113C regarding power supply circuit performance.

Platform-Specific Known Issues

• Aftermarket Sensor Compatibility: Many owners on forums like RamForum.com report that using cheaper, non-OEM or non-NTK brand oxygen sensors can lead to the P0141 code returning shortly after replacement. It is strongly recommended to use Mopar (56029049AA) or NTK sensors for this repair to ensure compatibility with the Chrysler PCM.
• Potential for PCM Software Update: TSB #25-003-13 lists P0141 as one of several O2 sensor codes that may be resolved with a PCM software update. If the sensor and wiring test good, checking with a dealer for available updates is a valid next step before considering PCM replacement.

Mechanic-Grade Diagnostic Values

• O2 Sensor Heater Element Resistance — expected: 4 - 10 Ohms at ambient temperature. Some sources state a wider acceptable range of 2.0 to 30.0 Ohms.. Failure: A reading of infinite Ohms (OL) indicates an open circuit, while a reading near zero Ohms indicates a short circuit.
• Voltage at Heater Power Wire (Harness Side, KOEO) — expected: Approximately 12 Volts (battery voltage) at Pin 1 (Pink/Yellow wire) of the C119 connector.. Failure: Zero or very low voltage indicates a problem with the fuse, TIPM relay, or the power supply wire.
• Heater Ground Control Signal (Harness Side) — expected: A pulsing ground signal from the PCM at Pin 2 (Dark Blue/Orange wire) when the engine is running. A test light connected to battery positive should flash or light up steadily.. Failure: If the test light does not light, there is no ground signal from the PCM, indicating a wiring issue back to the PCM or a faulty PCM driver.

Scan Tool Commands That Help

• Mopar wiTECH or equivalent professional scan tool: O2 Heater Actuator Test / System Test — This function allows a technician to manually command the O2 sensor heater circuit ON and OFF. It is used to verify that the PCM driver, wiring, and power supply (fuse/relay) are all functioning correctly without needing to perform a cold start. The technician can command the heater 'ON' and directly measure voltage at the sensor connector to confirm the entire control circuit is intact.

Wiring & Ground Locations

• O2 Sensor 1/2 Connector (C119) — On the driver's side exhaust pipe, after the catalytic converter. This is the 4-pin connector for the sensor in question.. This is the primary location for all electrical tests (resistance, voltage, ground). The pinout is: Pin 1 (PNK/YEL) = Fused Power, Pin 2 (DK BLU/ORG) = Heater Control from PCM, Pin 3 (BLK) = Sensor Ground, Pin 4 (BRN/DK GRN) = O2 Signal.
• Ground Point G108 — Located on the right rear of the engine compartment.. This is the chassis ground point for the O2 sensor's signal ground wire (Pin 3, Black). While a poor connection here is more likely to cause sensor performance codes (like P0137/P0138) rather than a specific P0141 heater code, it is a key part of the overall sensor circuit integrity.
• Technician Note: Connector Grease — At any O2 sensor electrical connector.. A Mopar service document explicitly warns NOT to use any grease on O2 sensor circuits. Grease can migrate through the wire strands via capillary action and contaminate the sensor's reference air passage, causing false readings and repeat failures. This is a critical, non-obvious instruction.

Real Owner Repair Stories

• RamForum.com user (4th Gen Ram 5.7L Hemi) — Check Engine Light with O2 heater circuit code (P0052, Bank 2 Sensor 1 High). Sensor voltage on scan tool was stuck at 1.27v for a long time after startup, indicating it wasn't heating.
  ❌ Tried (didn't work) Replacing the O2 sensor with a new NGK sensor., Cleaning all engine bay grounds., Verifying continuity of the heater control wire from the sensor connector to the PCM connector.
  ✅ What actually fixed it The user confirmed the PCM was not sending 12V power to the heater circuit. As a workaround, they spliced the heater power wire from the problematic sensor into the power wire for the adjacent, working sensor (B2S2). This provided power and resolved the code, confirming the PCM's internal driver for that circuit had failed. The ultimate proper fix would be PCM replacement.

OEM Part Supersession History

• 56029049AA → 05149171AA, 56029084AA, 56041698AA, 68144248AA — Standard part number updates and revisions by the manufacturer over time.
  Heads up: While superseded, 56029049AA is still widely referenced and sold as the correct part for this application. Ensure any replacement, regardless of part number, is specified for the correct position (downstream, driver's side).

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0161 — O2 Sensor Heater Circuit Bank 2 Sensor 2. This is the companion code for the downstream sensor on the opposite bank. It often appears alongside P0141 if a shared fuse (like F21, F22, F57, etc.) in the Power Distribution Center has blown.
• P0135 — O2 Sensor Heater Circuit Bank 1 Sensor 1. Relates to the upstream sensor on the same bank. Can trigger simultaneously with P0141 if there is a broader wiring harness issue or a shared power supply failure.
• P0155 — O2 Sensor Heater Circuit Bank 2 Sensor 1. Relates to the upstream sensor on the opposite bank. Like P0161, it can appear with P0141 if a common fuse or relay fails.
• P0420 — Catalyst System Efficiency Below Threshold (Bank 1). Because Bank 1 Sensor 2 monitors the catalytic converter, a failed heater circuit (P0141) can prevent the sensor from reaching operating temperature, sometimes leading to inaccurate readings and a false P0420 code.
