P0147 on 2013-2016 Jaguar XF: O2 Heater Circuit Fixes & Part Numbers

What's Unique About the 2013-2016 Jaguar XF

For the 2013-2015 Jaguar XF, this code is frequently not due to a bad sensor but a software glitch in the Powertrain Control Module (PCM). Jaguar issued Technical Service Bulletins (JTB00392NAS1, SSM72477) acknowledging that a wide range of O2 sensor codes, including P0147, can be falsely triggered. Before replacing any parts, it's critical to consider if the vehicle's software has been updated, as this TSB-documented issue can lead to unnecessary sensor replacements. Additionally, Jaguar Land Rover North America extended the warranty on O2 sensors for many of these vehicles to 10 years or 150,000 miles, which may cover the repair at no cost.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the end of the first generation (X250, 2013-2015) and the start of the second (X260, from 2016). The key Technical Service Bulletins regarding a software fix specifically apply to the 2013-2015 X250 models. While the diagnostic principles are the same for the 2016 X260, the software issue is less likely to be the cause. The extended O2 sensor warranty may apply to both generations.

Symptoms You May Notice

• Check Engine Light is illuminated.
• Vehicle may fail an emissions test.
• Potential for slightly reduced fuel economy over time.

Most Likely Causes

1. Faulty Oxygen Sensor (Bank 1, Sensor 3) 🔴 High Probability → Shop Oxygen Sensor The internal heater element is a common failure point on oxygen sensors as they age. Forum users report these sensors failing frequently enough that Jaguar extended the warranty.
   How to confirm: Disconnect the sensor and measure the resistance across the two heater circuit pins using a multimeter. A reading of 'OL' (over-limit) or infinite resistance indicates an open circuit and a failed heater. A typical good sensor has a low resistance, often between 5-15 ohms. 🎬 Watch: How to test the heater circuit with a multimeter
   Typical fix: Replace the Bank 1, Sensor 3 oxygen sensor. 🎬 See this walkthrough for replacing a Jaguar oxygen sensor Check for warranty coverage before paying for the part.
   Est. part cost: $70-$150
2. Powertrain Control Module (PCM) Software Error 🔴 High Probability → Shop Engine Control Module (ECM) Jaguar released TSB JTB00392NAS1 specifically for this issue on 2013-2015 models, stating a software error can cause false HO2S codes, including P0147. This is a widely discussed issue in owner forums.
   How to confirm: A Jaguar dealer or a specialized shop with access to Jaguar's SDD software can check the vehicle's software calibration level against the TSB. If the software is outdated, this is the likely cause. Owners often must specifically request the TSB check.
   Typical fix: Update the Powertrain Control Module (PCM) software to the latest version. Dealer labor costs for this can range from one hour of labor to over $250 if not covered by warranty.
   Est. part cost: $0-$250 (Labor for programming)
3. Damaged Wiring or Corroded Connector 🟡 Medium Probability The sensor wiring runs underneath the vehicle and is exposed to road debris, heat, and moisture, which can lead to chafing, breaks, or corrosion in the connector pins. A forum user noted corrosion is common on the aft connectors.
   How to confirm: Visually inspect the wiring harness leading to the sensor for any signs of damage. Unplug the connector and check for corrosion, moisture, or bent pins. Check for battery voltage at the heater power wire in the harness-side connector with the key on.
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the connector.
   Est. part cost: $10-$50

Rare But Worth Checking

• Blown Fuse or Faulty Relay: The O2 sensor heater circuits are protected by a fuse. It's a quick and easy check that can save you the cost of a new sensor. Check your owner's manual for the fuse location, which is often in the engine bay fuse box. On some S-Type models, this was fuse #14 in the right-hand engine fuse box.

Diagnosis Steps

1. Read the code with an OBD-II scanner and confirm P0147 is present.

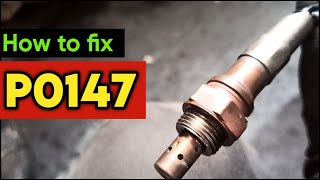

🎬 Watch: A quick overview of diagnosing the P0147 code
2. (Crucial First Step) Contact a Jaguar dealer with your VIN to check for open recalls and see if your vehicle is covered by the O2 Sensor Extended Warranty. This could result in a no-cost repair.
3. (Crucial for 2013-2015 models) If not covered by warranty, ask the dealer or a specialist to check if TSB JTB00392NAS1 applies and if the PCM software is up to date. If not, this is the most likely fix.
4. If software is up to date, perform a visual inspection of the Bank 1 Sensor 3 (passenger side, rearmost) wiring and connector for any obvious damage, melting, or corrosion.
5. Disconnect the sensor and test the heater element's resistance with a multimeter. An open circuit (infinite resistance) or a value outside the 5-15 ohm range confirms the sensor has failed.
6. With the key on (engine off), check for battery voltage at the heater power wire on the vehicle's harness connector. It should be between 10-14 volts.
7. Check the associated fuse for the O2 sensor heater circuit in the engine bay fuse box.
8. If the sensor, wiring, and fuse are all good, the fault may be an intermittent connection or a rare PCM driver failure.

Parts You'll Likely Need

• Oxygen Sensor (Bank 1, Sensor 3) (OEM #C2D54165) — This is the rearmost sensor on the passenger side. Its internal heater element is the most common hardware component to fail, triggering code P0147. This part number may also be listed as fitting left or right sides.
  Trusted brands: Jaguar (OEM), Bosch, Denso, NGK
  OEM price range: $120-$180
  Aftermarket price range: $70-$120

Related Codes That Often Appear With This One

• P0036, P0056, P0141, P0161, etc. — The Jaguar TSBs list a large family of O2 sensor heater circuit codes that can be triggered by the same software glitch. If you have multiple O2 heater codes stored, a software issue is even more likely.

Technical Service Bulletins (TSBs) & Recalls

• JTB00392NAS1: States that a 'POST-CATALYST HEATED OXYGEN SENSORS (HO2S) SOFTWARE ERROR' can cause P0147 and a host of other O2 sensor codes. The fix is a PCM software update.
• SSM72477: Also notes that customers may observe a Check Engine Light with one or more HO2S codes stored, pointing towards a common, non-hardware issue that can be resolved with a software update.

Platform-Specific Known Issues

• A software error in the Powertrain Control Module is a well-documented cause for this code on 2013-2015 models, as outlined in Jaguar TSB JTB00392NAS1.
• An extended warranty for O2 sensors (10 years / 150,000 miles) was issued by Jaguar Land Rover North America, potentially covering the cost of diagnosis and replacement for affected vehicles.

Mechanic-Grade Diagnostic Values

• O2 Sensor Heater Element Resistance — expected: 5 Ω to 15 Ω when cold.. Failure: Infinite resistance (open circuit) or less than 1 Ω (short circuit).
• Voltage at Heater Circuit Power Wire (harness side) — expected: 10 to 14 Volts with ignition on, engine off.. Failure: A reading below 9V suggests a supply issue; 0V indicates an open circuit in the power feed or a blown fuse.

Scan Tool Commands That Help

• Jaguar SDD (Symptom Driven Diagnostics): Oxygen Sensor Heater Actuation Test / Unrelated Events DTC Check — After confirming basic wiring and sensor resistance are good, a technician can use the SDD software to command the heater circuit on and off to verify PCM driver function. Additionally, checking for 'Unrelated Events' in SDD can reveal stored codes that are not directly linked to the reported symptoms but may be relevant.

Wiring & Ground Locations

• Bank 1 Sensor 3 Connector — On the passenger side of the vehicle (for US models), following the exhaust pipe downstream past the catalytic converter. A forum member described it as 'past the Cat on the passenger side' and in a 'tight work area'.. This is the primary connection point for testing the sensor and the vehicle-side harness. Corrosion or damage here is a common cause of P0147.
• O2 Sensor Heater Fuse — Typically located in the engine compartment fuse box (also called Battery Junction Box). On a similar Jaguar platform, it was identified as a 10-amp fuse.. This fuse provides power to the heater circuit. A blown fuse will cause an open circuit fault and trigger P0147. It is a simple and critical check before replacing more expensive components.

Real Owner Repair Stories

• JaguarForums.com user 'valuefresh' (2013-2015 Jaguar XF) — Check Engine Light with an O2 sensor code.
  ✅ What actually fixed it The user confirmed that their Jaguar dealer in Virginia replaced the faulty oxygen sensor at no charge under the extended warranty program. The repair would have otherwise cost $450. The dealer stated the vehicle needed to be under 150,000 miles to qualify.

OEM Part Supersession History

• C2D24757, C2D27350 → C2D54165 — Standard part revision and consolidation by the manufacturer.
  Heads up: While physically similar, upstream (wideband) and downstream (narrowband) sensors are not interchangeable. Using an upstream sensor in a downstream position (or vice-versa) will not work, even if it fits.

Model Year Variations Within This Range

• 2013-2015: These model years are specifically mentioned in TSBs JTB00392NAS1 and SSM72477 as being prone to false O2 sensor codes due to a PCM software error. A software update is the prescribed fix.
• 2013-2020 (3.0L V6): Some 3.0L V6 engines may be equipped with six oxygen sensors (three per bank) instead of the more common four. This means there is a Sensor 1 (upstream), Sensor 2 (mid-catalyst), and Sensor 3 (post-catalyst). P0147 specifically refers to the final sensor in the chain, Sensor 3.
