P0172 on 2017-2019 Toyota Tundra: Rich Fuel Causes and Fixes

What's Unique About the 2017-2019 Toyota TUNDRA

The second-generation Tundra, especially with the 5.7L Flex Fuel (3UR-FBE) engine, is known for being sensitive to the alcohol content in gasoline. The ECM can incorrectly estimate a high percentage of alcohol, causing it to inject too much fuel. This often happens after a series of short trips where the engine doesn't fully warm up, which skews the 'Alcohol Density Learning' value. This can lead to hard starting along with the P0172 code. Toyota addressed this specific problem with a Technical Service Bulletin (TSB) that involves a software update. Some owners with advanced scan tools can perform a temporary 'Fuel Density Learning Value Reset' to resolve the issue before it requires a dealer visit.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Decreased fuel economy
• Smell of unburnt fuel from the exhaust
• Rough idle
• Engine hesitation or sputtering
• Hard starting or long crank times, especially on Flex Fuel models
• Black smoke from the exhaust

Most Likely Causes

1. Dirty Mass Airflow (MAF) Sensor 🔴 High Probability → Shop Fuel Injection Air Flow Meter The MAF sensor is sensitive to dirt, oil, and debris. Oiled aftermarket air filters (e.g., K&N) are a frequently cited cause of contamination on Tundra forums. It's a very common first point of failure for rich/lean codes on many vehicles, including the Tundra.
   How to confirm: Inspect the MAF sensor wires (located in the intake tube after the air filter box) for any grime or debris. A scan tool can also show erratic MAF readings, or a reading that is not near zero with the engine off and key on.
   Typical fix: Clean the sensor using a dedicated MAF sensor cleaner spray. 🎬 Watch this quick guide on cleaning your Tundra's MAF sensor. Do not touch the delicate wires. Let it dry completely before reinstalling. If cleaning doesn't work, the sensor must be replaced, preferably with a Denso part.
   Est. part cost: $10-$15 for cleaner, $70-$200 for a new sensor
2. ECU Software Calibration (Flex Fuel Models) 🔴 High Probability Specifically affects 2009-2019 Tundras with the 3UR-FBE (5.7L Flex Fuel) engine. The ECU incorrectly estimates high alcohol content in the fuel, leading to a rich command.
   How to confirm: This issue is documented in Toyota TSB T-SB-0166-19_Rev. A dealer can check if the calibration update has been applied to your vehicle's VIN. Symptoms often include hard starting and codes P0172, P0175, and P1604. A scan tool can also reveal a high 'Fuel Alcohol Content' percentage (e.g., 85%) despite using regular gasoline.
   Typical fix: A Toyota dealership must perform an ECU software update (reflash). The TSB also calls for replacing the fuel pump assembly in some cases. This repair is covered under the Toyota Federal Emission Warranty for 96 months or 80,000 miles. Owners outside of warranty have been quoted $1400-$1700 for the repair.
   Est. part cost: $0 if under warranty, $200 for ECU flash, up to $1700+ if the fuel pump is replaced out-of-pocket at a dealership.
3. Faulty Air/Fuel Ratio Sensor (Oxygen Sensor) 🟡 Medium Probability → Shop Oxygen Sensor The upstream oxygen sensor (called an Air/Fuel Ratio Sensor by Toyota) is the primary sensor for measuring the air-fuel mixture. A lazy or failing sensor can send incorrect (rich) signals to the ECU. If it fails, it often defaults to a rich condition.
   How to confirm: Use a scan tool to monitor the Bank 1, Sensor 1 voltage. At idle, it should fluctuate rapidly. A sensor that is stuck or is very slow to respond indicates a problem. The normal voltage range should fluctuate between 0.1 and 0.9 volts. 🎬 Watch: How to replace a faulty Air/Fuel ratio sensor.
   Typical fix: Replace the Bank 1 Sensor 1 Air/Fuel Ratio Sensor. Using an OEM brand like Denso is highly recommended by owners to avoid compatibility issues.
   Est. part cost: $100-$250
4. Leaking Fuel Injector(s) ⚪ Low Probability → Shop Fuel Injector An injector can get stuck partially open or have a worn seal, allowing excess fuel to drip into a cylinder on Bank 1.
   How to confirm: This is more difficult to diagnose. It may require a fuel pressure leak-down test or sending the injectors out for professional cleaning and flow testing. A DIY method is to pull the spark plugs on Bank 1; a fuel-fouled, black appearance indicates a rich condition in that cylinder.
   Typical fix: Replace the faulty fuel injector(s) on Bank 1.
   Est. part cost: $50-$150 per injector

Rare But Worth Checking

• High Fuel Pressure: A faulty fuel pressure regulator or a clogged fuel return line can cause system-wide high fuel pressure, leading to rich codes on both banks (P0172 and P0175). On Tundras, the regulator is part of the fuel pump assembly in the tank.
• Stuck Open Thermostat: If the thermostat is stuck open, the engine may not reach its proper operating temperature. The ECU will intentionally run a richer mixture to compensate, which can trigger a P0172 code, especially in cold weather.
• Malfunctioning Aftermarket Part: In some documented cases, aftermarket components like secondary air injection system (SAIS) bypass kits have been known to malfunction and cause P0172/P0175 codes.
• Stuck Open EVAP Purge Valve: → Shop Vapor Canister If the EVAP purge valve (solenoid) sticks open, it can allow unmetered fuel vapors from the charcoal canister to enter the intake manifold, creating a rich condition.

Diagnosis Steps

1. Read the code(s) with an OBD-II scanner and check for any other pending or stored codes, especially P0175 or P1604.
2. Check for Technical Service Bulletins (TSBs) for your VIN, especially T-SB-0166-19 if you have a 5.7L Flex Fuel engine.
3. Inspect the air filter and intake tube for blockages or dirt. Check for oil residue if using an aftermarket oiled filter.
4. Locate the MAF sensor in the intake tube. Disconnect it, remove it (usually two Phillips screws), and clean it carefully with dedicated MAF sensor cleaner. Do not touch the internal wires. Let it dry completely before reinstalling.
5. Clear the codes, disconnect the battery for 15 minutes to reset fuel trims, and drive the vehicle to see if the code returns. If it does not, the dirty MAF was the likely cause.
6. If the code returns, use a scan tool to monitor live data. Check the long-term (LTFT) and short-term (STFT) fuel trims for Bank 1. A combined value that is consistently very negative (e.g., -20% or more) confirms the rich condition.
7. For Flex Fuel models, check the 'Alcohol Density' or 'Fuel Alcohol Content' PID. If it shows a high percentage (e.g., >15%) but you are using standard E10 gasoline, this strongly suggests the TSB issue.
8. Monitor the voltage of the Bank 1, Sensor 1 Air/Fuel Ratio sensor. It should fluctuate rapidly at idle. If it's stuck high or is very slow to respond, it is likely faulty.
9. Check fuel pressure to ensure it is within the manufacturer's specification (approx. 38-44 psi at idle for the 4.7L/5.7L). Note that Tundras do not have a Schrader valve, requiring a special banjo bolt adapter to test at the fuel rail.
10. If all else fails, consider a professional diagnosis for leaking fuel injectors or an ECU reflash at a dealership.

Parts You'll Likely Need

• Mass Airflow (MAF) Sensor Cleaner — This is the most common and cheapest first step. A dirty MAF sensor, often from an oiled air filter, is a very frequent cause of P0172 on the Tundra.
  Trusted brands: CRC, WD-40 Specialist
  Aftermarket price range: $10-$15
• Mass Airflow (MAF) Sensor (OEM #22204-0F030) — If cleaning the MAF sensor doesn't resolve the issue, the sensor itself may have failed. This is the correct part number for many 2nd gen Tundras. Using the OEM Denso sensor is recommended.
  Trusted brands: Denso (OEM), Hitachi
  OEM price range: $140-$190
  Aftermarket price range: $70-$120
• Air/Fuel Ratio Sensor (Bank 1, Sensor 1) (OEM #89467-0C050) — This is the primary sensor that detects the rich condition. If it fails, it can send incorrect data to the ECU, causing the code. Bank 1 is the passenger side.
  Trusted brands: Denso (OEM)
  OEM price range: $180-$250
  Aftermarket price range: $100-$160

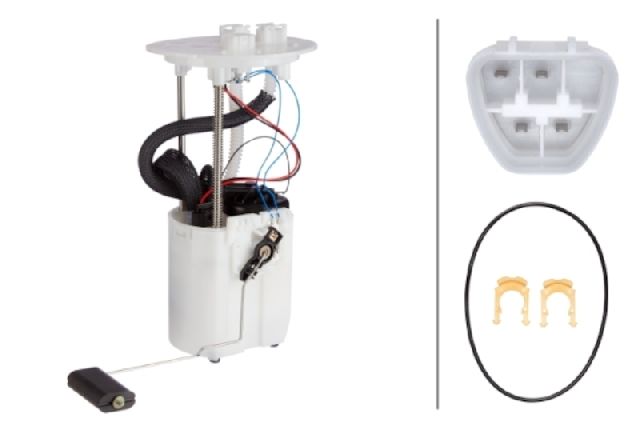

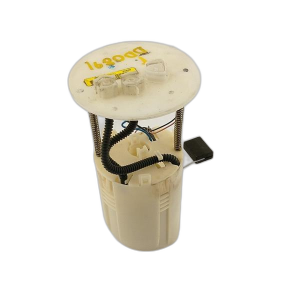

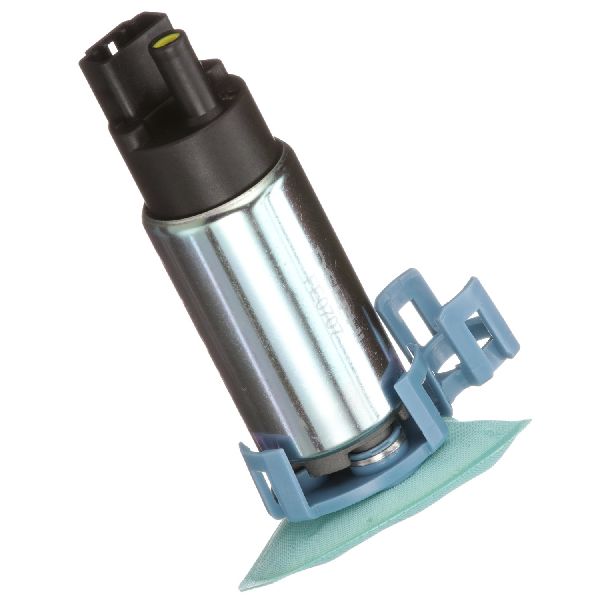

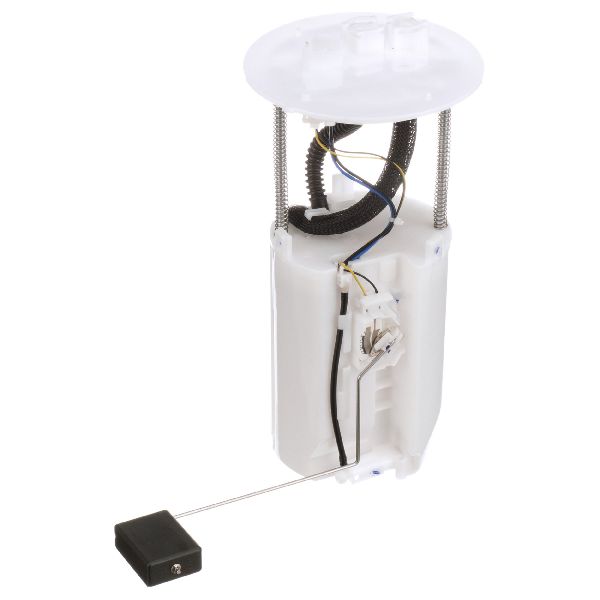

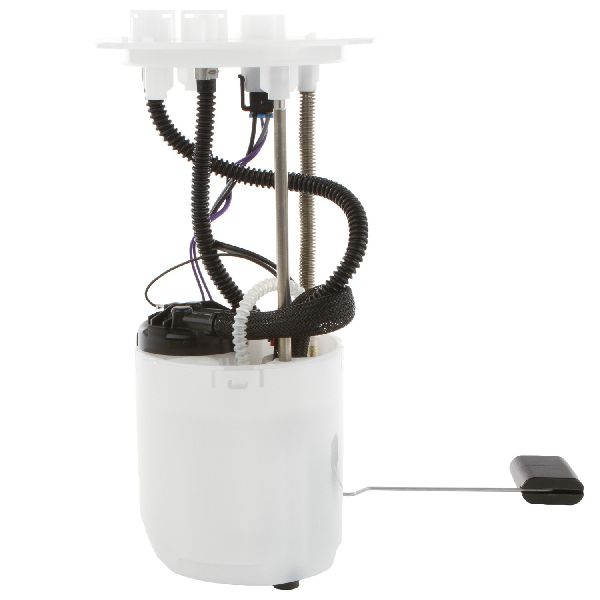

• Fuel Pump Assembly (OEM #77020-0C090, 77020-0C120, or 77020-0C170) — May be required as part of the repair procedure for TSB T-SB-0166-19 on Flex Fuel models to permanently fix the alcohol density calculation issue.
  Trusted brands: Toyota (OEM)
  OEM price range: $600-$900

Related Codes That Often Appear With This One

• P0175 — System Too Rich (Bank 2). If both P0172 and P0175 are present, the cause is likely a component that affects both engine banks, such as the MAF sensor, fuel pressure, or the ECU software issue on Flex Fuel models.
• P1604 — Startability Malfunction. This code is specifically mentioned in TSB T-SB-0166-19 along with the rich codes, pointing to the Flex Fuel ECU calibration issue.

Technical Service Bulletins (TSBs) & Recalls

• T-SB-0166-19_Rev: Addresses a hard start and/or MIL ON with rich or lean codes (P0171, P0174, P0172, P0175) on 2009-2019 Tundras and Sequoias with the 3UR-FBE Flex Fuel engine, caused by an incorrect alcohol density estimate. The fix involves an ECU reflash and sometimes a fuel pump replacement. This bulletin supersedes T-SB-0058-13.

Platform-Specific Known Issues

• On 2009-2019 Tundras with the 5.7L (3UR-FBE) Flex Fuel engine, a known issue can cause the ECU to miscalculate the fuel's alcohol content, leading to a rich condition, hard starts, and codes P0172 and P0175. This is addressed by TSB T-SB-0166-19_Rev.

Mechanic-Grade Diagnostic Values

• Fuel Pressure at Idle — expected: 38-44 psi. Failure: Significantly higher pressure could indicate a faulty regulator; lower pressure could be a weak pump.
• Long Term Fuel Trim (LTFT) + Short Term Fuel Trim (STFT) — expected: Between -10% and +10%. Failure: For P0172, a combined value that is consistently -20% or more negative confirms the rich condition. One service manual states the malfunction threshold is when the average fuel trim learning value is -35% or less.
• Alcohol Density PID (Flex Fuel Models) — expected: Near 0-10% when using standard E10 gasoline.. Failure: A reading of 15% or higher (often seen as high as 85%) while using standard gasoline is a definitive indicator of the TSB-related ECU issue.
• A/F Ratio Sensor (Bank 1, Sensor 1) Voltage — expected: Fluctuating between 0.1 and 0.9 volts at idle.. Failure: A sensor that is stuck at a high voltage or responds very slowly to throttle changes is likely faulty.

Scan Tool Commands That Help

• Toyota Techstream: Fuel Density Learning Value Reset — This is the specific function required by Toyota's TSBs to fix an incorrect alcohol density reading on Flex Fuel models after a software update or as a temporary fix. It is found under 'Powertrain / Engine and ECT / Utility'.
• Launch CRP919E / XTool D7/D8 / Autel: Fuel Density Learning Value Reset — These aftermarket bidirectional scan tools have been confirmed by users to perform the same alcohol density reset as Techstream, providing a DIY solution to the common Flex Fuel issue without a dealer visit.
• Toyota Techstream: Read 'Alcohol Density' Value — This is a critical diagnostic step on Flex Fuel models. Before attempting any repairs for a P0172 code, checking this value can quickly confirm if the common ECU software issue is the cause.

Wiring & Ground Locations

• A1, A2, A3, A4 — These are primary engine compartment ground points. A1 and A2 are on the left (driver's) side of the engine compartment, while A3 and A4 are on the right (passenger's) side.. The Engine Control Module (ECM) and its related sensors (A/F, MAF) rely on solid ground connections. A corroded or loose ground at these points can cause erratic sensor readings, leading to incorrect fuel calculations and codes like P0172.
• ECM Ground — The ECM itself is grounded at multiple points, typically designated in wiring diagrams. For a 2012 Tundra, the ECM is an element tied into the ground distribution circuit.. A poor ground directly at the ECM can cause a host of unpredictable issues, including misinterpretation of sensor data leading to fuel trim problems.

Real Owner Repair Stories

• Tundras.com forum user (2013 Tundra 5.7L Flex Fuel, 67,500 miles) — Hard starting, poor gas mileage, P0172 code.
  ❌ Tried (didn't work) Considering a dealer visit which was quoted at $1200.
  ✅ What actually fixed it The owner purchased a Launch CRP919E scan tool, found the 'Alcohol Fuel Density' reading was at 85%, and used the 'Fuel Density Learning Value Reset' special function. This reset the value to zero and immediately fixed the starting and running issues.
• Tundras.com forum user (1st Gen Tundra (2000-2006 model, but relevant principle)) — P0172 and P0175 codes.
  ❌ Tried (didn't work) Replacing MAF sensor and fuel injectors with parts from Amazon/eBay., Cleaning original MAF sensor.
  ✅ What actually fixed it The dealer diagnosed the issue as being caused by a faulty aftermarket SAIS (Secondary Air Injection System) bypass kit. After disconnecting the kit, the fuel trims returned to normal and the rich codes were resolved.

OEM Part Supersession History

• 22204-75030 → 22204-0F030 — Part update/revision by Toyota.
  Heads up: While other MAF sensors might physically fit, using the specific Denso OEM part or its direct supersession is critical for accurate readings on these vehicles.
