P0174 on 2003-2010 Porsche Cayenne: Lean Condition Causes and Fixes

What's Unique About the 2003-2010 Porsche Cayenne

The first-generation Cayenne's V8 engines use two Mass Air Flow (MAF) sensors—one for each bank—while the V6 uses a single sensor. This is a critical diagnostic clue: if you have a V8 and only the P0174 code, the problem is isolated to Bank 2 and could be its specific MAF sensor, a Bank 2-specific vacuum leak (like an intake manifold gasket), or a Bank 2 fuel delivery issue. If you have both P0171 and P0174, the cause is something common to both banks, like a large vacuum leak before the intake splits or a fuel supply problem. These engines are notorious for brittle plastic vacuum lines, PCV/AOS components, and intake manifold vent hoses that crack with age and heat cycles, making vacuum leaks the most probable cause.

Generation note: This covers the first generation Cayenne (E1), which includes the pre-facelift 955 (2003-2006) and facelift 957 (2008-2010). The 957 models introduced Direct Fuel Injection (DFI) on V8s, which operate at much higher fuel pressures. While many causes are the same (vacuum leaks), fuel system diagnosis will differ significantly between port-injected (955) and DFI (957) engines.

Symptoms You May Notice

• Check Engine Light is on
• Rough or unstable idle, especially when cold.
• Engine hesitation or stumbling during acceleration.
• Reduced engine power
• Noticeable decrease in fuel economy.
• A hissing noise from the engine bay if a vacuum leak is large.
• Difficulty starting the engine.
• Whining noise from the fuel tank area, indicating a failing fuel pump.

Most Likely Causes

1. Vacuum Leak (Unmetered Air) 🔴 High Probability The plastic hoses, T-fittings, and PCV/AOS (Air-Oil Separator) system components in the engine bay become extremely brittle over time due to heat and age, leading to cracks. A very common failure point is the crankcase vent hose that runs across the top of the engine. The oil filler cap seal is another overlooked source of leaks.

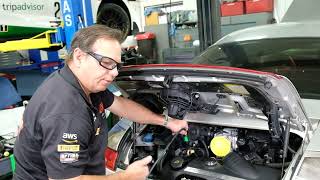

   How to confirm: Perform a smoke test. Introduce smoke into the intake system after the MAF sensor(s) with the engine off. Visually trace the smoke to find the source of the leak. Common spots include the PCV/AOS hoses, the vent hose between valve covers, intake manifold gaskets, and small vacuum lines at the rear of the manifold. A simple test is to remove the oil filler cap while the engine is running; if the idle doesn't change or drop, a significant vacuum leak is likely present.
   Typical fix: Replace the cracked hose, gasket, or fitting. The crankcase vent hose is a frequent culprit. 🎬 See how to replace the air oil separator diaphragm yourself. Some owners have performed DIY repairs on cracked plastic lines using epoxy or couplings as a temporary fix.
   Est. part cost: $10-$200
2. Dirty or Faulty Mass Air Flow (MAF) Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter Oil from aftermarket air filters or fine dust can contaminate the delicate sensor wire, causing it to misread the amount of incoming air. V8 models have two sensors, one for each bank, making a single-bank code less likely to be a MAF unless that specific sensor has failed.

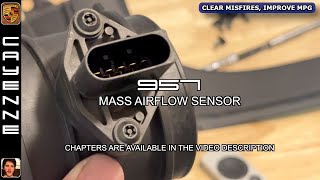

   How to confirm: First, try cleaning the sensor with dedicated MAF sensor cleaner spray. 🎬 Watch: Step-by-step guide to cleaning your MAF sensor safely. If the problem persists on a V8 model, swap the Bank 1 and Bank 2 MAF sensors. Clear the codes and drive. If the code changes to P0171 (System Too Lean, Bank 1), the MAF sensor is faulty. On V6 models, you can monitor the sensor's readings with a scan tool.
   Typical fix: Clean the sensor with MAF cleaner. If cleaning doesn't work, replace the faulty sensor. It is highly recommended to use Bosch OEM sensors and replace V8 sensors in pairs to ensure balanced readings.
   Est. part cost: $75-$250 per sensor
3. Clogged Fuel Filter or Weak Fuel Pump ⚪ Low Probability → Shop Fuel Pump The Cayenne has two in-tank fuel pumps, a primary and a secondary. The fuel filter is integrated with the pump assembly on the driver's side. These pumps can weaken with age, reducing fuel pressure and volume. A failure of the pump feeding Bank 2 could theoretically cause a P0174, though issues affecting both banks are more common.
   How to confirm: Connect a fuel pressure gauge to the fuel rail and check the pressure against Porsche's specifications for your specific engine (port-injected vs. DFI). Pressure should remain stable under load. A significant drop in pressure during acceleration points to a weak pump or clogged filter.
   Typical fix: Replacement of the failing fuel filter/pump assembly. The pumps are located inside the fuel tank under the rear seats and require significant labor to access.
   Est. part cost: $300-$800 for the assembly
4. Faulty Bank 2 Oxygen (O2) Sensor ⚪ Low Probability → Shop Oxygen Sensor O2 sensors are wear items and their performance degrades over time. A sensor that is failing or 'stuck' lean will incorrectly tell the ECM that the engine is lean, causing the code. However, this is often misdiagnosed when the real issue is a vacuum leak.
   How to confirm: Use a scan tool to graph the voltage of the Bank 2, Sensor 1 (pre-catalytic converter) O2 sensor. It should fluctuate rapidly between approximately 0.1V and 0.9V. If it is flat, slow to respond, or stuck at a low voltage, it is likely faulty.
   Typical fix: Replace the Bank 2, Sensor 1 oxygen sensor. It is often recommended to replace O2 sensors in pairs (both upstream sensors at the same time) to ensure matched performance.
   Est. part cost: $100-$250

Rare But Worth Checking

• Clogged Bank 2 Fuel Injector(s): → Shop Fuel Injector If a lean condition is isolated to one bank and all other causes are ruled out, one or more injectors on that bank could be restricted, preventing enough fuel from being delivered.
• Exhaust Leak: A leak in the exhaust manifold or downpipe before the primary O2 sensor can draw in outside air, making the sensor read a false lean condition. You will typically hear an exhaust leak.
• Faulty EVAP Purge Valve (N80 Valve): → Shop Vapor Canister The EVAP purge valve controls the flow of fuel vapors from the charcoal canister to the intake manifold. If it sticks open, it can create a vacuum leak, leading to lean codes. This can sometimes cause P0171 and P0174 together.
🎬 Watch: A complete walkthrough for fixing P0171 and P0174 codes.
• Leaking Intake Manifold Gasket: → Shop Engine Intake Manifold A leak in the intake manifold gasket specific to a cylinder on Bank 2 can cause a single-bank lean code. This would typically be found with a smoke test. The gaskets should always be replaced when the intake manifold is removed.

Diagnosis Steps

1. Read the codes with an OBD-II scanner. Note if P0174 is alone or present with P0171.
2. Visually inspect the engine bay for any obvious disconnected hoses, cracked plastic lines (especially the upper crankcase vent hose), or damage to the intake air tube.
3. Use a scan tool to monitor long-term fuel trims (LTFT) at idle and at 2500 RPM. High positive trims at idle that decrease with RPM strongly suggest a vacuum leak. High trims at all RPMs point more towards a MAF or fuel delivery issue.
4. Perform a smoke test to definitively check for vacuum leaks. Introduce smoke into the intake boot and look for smoke escaping from gaskets, hoses (especially PCV/AOS lines), the oil filler cap, and the intake manifold itself.
5. If you have a V8, swap the MAF sensors between Bank 1 and Bank 2. Clear the codes and drive. If the code returns as P0171, the MAF sensor you moved is bad.
6. Clean the MAF sensor(s) with dedicated MAF cleaner spray. Do not touch the sensor element.
7. Test the EVAP purge solenoid to ensure it is not stuck open, causing an unmetered air leak.
8. Check fuel pressure at the fuel rail using a pressure gauge to rule out a weak fuel pump or clogged filter.
9. As a final step, test the Bank 2, Sensor 1 oxygen sensor using a scan tool to ensure its voltage is fluctuating correctly and it is not stuck lean.

Parts You'll Likely Need

• Vacuum Hose / PCV Hose / Breather Hose

Related Codes That Often Appear With This One

• P0171 — If P0171 (System Too Lean, Bank 1) appears with P0174, it indicates a problem affecting both engine banks, such as a major vacuum leak before the intake splits, a faulty MAF on a V6, or a fuel delivery issue.
• P0300, P0305, P0306, P0307, P0308 — A lean condition can cause misfires. P0300 is a random misfire code, while P0305-P0308 would indicate misfires on the individual cylinders of Bank 2.
• P0507 — Idle Air Control System RPM Higher Than Expected. This can be caused by a vacuum leak, which is also a primary cause of P0174.

Platform-Specific Known Issues

• On V8 models, a P0174 code by itself strongly points to a problem isolated to Bank 2, such as the Bank 2 MAF sensor, a Bank 2 intake gasket leak, or the Bank 2 O2 sensor.
• The PCV / Air-Oil Separator (AOS) diaphragm can tear, creating a large vacuum leak. A sign of this is a strong suction when trying to remove the oil filler cap with the engine running.

Mechanic-Grade Diagnostic Values

• Low-Pressure Fuel System (955 Port-Injected Models) — expected: ~58 psi / 4 bar. Failure: Pressure significantly below spec, or pressure that drops under load, indicates a weak in-tank pump or clogged filter.
• Low-Pressure Fuel System (957 DFI Models) — expected: ~80 psi / 5.5 bar. Failure: Pressure significantly below this higher spec indicates an issue with the in-tank pumps. The DFI system requires this higher feed pressure.
• High-Pressure Fuel System (957 DFI Models) — expected: Idle: ~580 psi / 40 bar. Under Load: Up to 1740 psi / 120 bar.. Failure: Using a scan tool like Durametric or PIWIS, if the 'actual value' for high pressure cannot follow the 'set point value' (e.g., actual is 30 bar when set point is 120 bar), the High Pressure Fuel Pump (HPFP) is failing.
• Upstream (Pre-Cat) O2 Sensor Voltage — expected: Rapidly fluctuating between ~0.1V (lean) and ~0.9V (rich). The average should be around 0.45V.. Failure: A sensor that is stuck at a low voltage (e.g., <0.2V) is reading lean, which could be the cause of the code if it's a faulty sensor. If it's stuck high, it's not the cause of a lean code.
• Long Term Fuel Trim (LTFT) — expected: Within +/- 5% at idle and 2500 RPM.. Failure: High positive values (e.g., +10% to +25%) indicate the ECM is adding fuel to compensate for a lean condition. If trims are high at idle but normalize at higher RPM, it strongly suggests a vacuum leak. If trims are high across all RPMs, it points more to a MAF or fuel delivery issue.

Scan Tool Commands That Help

• PIWIS / Durametric: Live Data Monitoring: 'Fuel high pressure set point' vs. 'Fuel high pressure actual value' — This is critical for diagnosing a failing High Pressure Fuel Pump (HPFP) on 957 DFI models. A large discrepancy between the requested pressure and the actual pressure under load confirms an HPFP issue.
• PIWIS: Tank Leak Test / Tank Vent Short Test — If an EVAP system leak is suspected as the cause of the unmetered air (often accompanied by P0456), the PIWIS tester can run automated tests to pressurize the system and check for leaks, which is more precise than a manual smoke test for the EVAP side.
• PIWIS / Advanced Scanners: Read All Fault Memories / VAL (Vehicle Analysis Log) — Before starting diagnosis, it's crucial to read codes from all modules, not just the DME (engine computer). Porsche-specific scanners can pull manufacturer-specific codes and provide a complete vehicle health snapshot that generic OBD-II readers miss.

Wiring & Ground Locations

• Engine Ground Points — There are several key grounds. One is on the back of the engine. Two are located behind the oil filler cap area, one larger ground on the engine and a smaller one on the bell housing, though access can be difficult without removing the intake manifold.. A poor ground connection for the engine block or sensors on Bank 2 can cause incorrect readings from the O2 sensor or MAF sensor, leading to false lean codes. All German vehicles use brown wires for ground circuits.
• Main Chassis Ground — A primary ground point is located under the carpet in front of the driver's seat, accessible via a small carpet door.. While less likely to cause a single-bank code, corrosion or looseness at this main ground can create a host of bizarre electrical issues and sensor reading problems throughout the vehicle.

Real Owner Repair Stories

• RennTech.org user 'adream8' (Porsche Cayenne (year/model not specified, but within 955/957 generation)) — P0171 and P0174 codes present.
  ❌ Tried (didn't work) Considered MAF cleaning/replacement, smoke test for vacuum leaks, and checking fuel pressure.
  ✅ What actually fixed it The Air-Oil Separator (AOS) diaphragm had a tear. This created a massive unmetered vacuum leak within the crankcase. A key symptom was a very strong vacuum at the oil filler cap when the engine was running, making it difficult to remove. Replacing the AOS resolved the codes and restored normal performance.
• Rennlist user 'TRINITONY' (Porsche Cayenne (955/957)) — P0174 code only (no P0171), with a rough idle when cold.
  ❌ Tried (didn't work) MAF sensors were recently replaced., A basic smoke test using a vape did not reveal any leaks., The AOS diaphragm was checked and found to have no tears.
  ✅ What actually fixed it The final fix was replacing the left side (Bank 2) oil separator unit, along with the cam seal and valve cover gasket. This indicates the leak was specific to the Bank 2 crankcase ventilation system components, not just the main AOS diaphragm.
• Rennlist user (2008 3.6L V6 Cayenne (957)) — A constant 'puffing' or 'pfft' noise from the left side of the engine bay near the throttle body.
  ❌ Tried (didn't work) Tightening visible hoses., Replacing serpentine belt and tensioner.
  ✅ What actually fixed it The brake vacuum booster hose had become brittle from heat and had cracked in several places, creating a vacuum leak. Replacing the hose eliminated the noise and the associated lean condition.

"I Checked Everything" — The Actual Cause

• A torn diaphragm in the Air-Oil Separator (AOS) can create a massive internal vacuum leak that a smoke test on the intake tract might not reveal. The tell-tale sign is a very strong vacuum at the oil filler cap when the engine is running.
• A leak in the vacuum line going to the brake booster. This line can become brittle and crack, causing a hissing sound and a lean condition. Since this is part of the brake system, it's often overlooked during a standard intake smoke test.
• A failing tandem pump (on models equipped with PDCC) can have internal vacuum leaks that affect the brake booster circuit, which can manifest as a lean code. This is an uncommon but possible source of unmetered air.

OEM Part Supersession History

• 94810721552 → Unknown, but this is a known failure point. — Crankcase breather hose for 2003-2006 Cayenne Turbo models. These plastic hoses become brittle and crack, causing major vacuum leaks.
• 94810721702 → Unknown, but this is a known failure point. — Crankcase breather hose for 2003-2006 Cayenne S (4.5L V8) models. Prone to cracking from heat and age.
• 94810724553 → Unknown, but this is a known failure point. — Crankcase breather hose for 2008-2010 Cayenne Turbo/Turbo S (957) models. Connects valve cover to the oil separator.
  Heads up: Part is VIN-specific and should be verified before ordering.

Model Year Variations Within This Range

• 2003-2006 (955 Models): These models use a port-injected fuel system. Fuel pressure diagnosis is straightforward, checking the low-pressure side at the fuel rail for approximately 58 psi (4 bar). Vacuum leaks are the most dominant cause.
• 2008-2010 (957 Models): These models use Direct Fuel Injection (DFI). This adds a High Pressure Fuel Pump (HPFP) driven by the camshaft. Diagnosis is more complex, requiring checks of both the low-pressure system (which now runs at a higher 80 psi / 5.5 bar) and the high-pressure system (up to 1740 psi / 120 bar) using an advanced scan tool. An HPFP failure can cause lean codes that might be mistaken for vacuum leaks.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0171 — System Too Lean (Bank 1). Often appears alongside P0174 if the vacuum leak, fuel delivery issue, or AOS failure affects both engine banks rather than being isolated to Bank 2.
• P0151 — O2 Sensor Circuit Low Voltage (Bank 2 Sensor 1). Related to the Bank 2 upstream oxygen sensor being stuck lean, which the ECM interprets as a lean condition, triggering P0174.
• P0441 — Evaporative Emission Control System Incorrect Purge Flow. Related to the EVAP purge solenoid, which if stuck open, can cause an unmetered air leak leading to a lean condition.
• P0102 — Mass or Volume Air Flow Circuit Low Input. Directly related to a failing or dirty MAF sensor, which is a primary cause of lean codes on the Cayenne.
