P0191 on 2016-2018 GMC Sierra 3500: Fuel Rail Pressure Sensor Causes and Fixes

What's Unique About the 2016-2018 Gmc SIERRA 3500

The 2016-2018 Sierra 3500 presents two very different scenarios for P0191 depending on the engine. For the 6.0L gas engine, the issue is often related to a corroded Fuel Pump Control Module (FPCM) on the frame rail or fuel contamination, as noted in GM TSBs. For the diesel engine, there's a critical split: the 2016 model uses the LML Duramax with the failure-prone Bosch CP4 high-pressure fuel pump. For the LML, P0191 can be the first sign of catastrophic pump failure, where the pump disintegrates and sends metal shavings throughout the entire fuel system. The 2017-2018 models use the more reliable L5P Duramax with a Denso HP4 fuel pump, where this code is more likely a sensor or wiring connector issue, though pump problems are still possible.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Engine is hard to start or will not start
• Rough idle or stalling
• Hesitation or stumbling during acceleration
• Reduced engine power (limp mode).
• Noticeable decrease in fuel economy
• Truck feels gutless or 'falls on its face' when towing or accelerating hard.

Most Likely Causes

1. Failing Fuel Rail Pressure Sensor (FRPS) 🔴 High Probability → Shop Fuel Pressure Sensor Applies to both gas and diesel engines. The sensor is a common failure point due to heat cycles and vibration. On L5P Duramax (2017-2018), the connector pigtail is also a known failure point. 🎬 See how to diagnose reduced engine power on L5P models.
   How to confirm: Use a scan tool to monitor fuel rail pressure. Compare the sensor's reading to a mechanical fuel pressure gauge. If the readings differ significantly, the sensor is likely faulty. For Duramax engines, at idle, desired and actual pressure should both be around 4,000-6,000 PSI; a large discrepancy points to a problem.
   Typical fix: Replace the fuel rail pressure sensor. On L5P models, it is often recommended to replace the connector pigtail at the same time, soldering the connections instead of using butt connectors for better reliability.
   Est. part cost: $50-$200
2. Failing High-Pressure Fuel Pump (CP4) (2016 6.6L LML Duramax ONLY) 🔴 High Probability → Shop Fuel Pump The Bosch CP4 pump used on the 2011-2016 LML Duramax is known to fail internally, often due to a lack of lubricity in US diesel fuel. The internal rollers can shatter, contaminating the entire fuel system with metal debris. This is the most critical potential cause for this specific model year.
   How to confirm: Check the fuel filter for metallic shavings (looks like glitter). Monitor desired vs. actual fuel rail pressure with a scan tool while driving under load; a large discrepancy (2,000+ PSI) indicates the pump cannot keep up.
   Typical fix: If metal is found, the entire fuel system (pump, injectors, rails, lines, tank) must be replaced to prevent repeat failure. A common preventative upgrade is to convert to a more robust CP3-style pump.
   Est. part cost: $2000-$10000+
3. Corroded Fuel Pump Control Module (FPCM) (6.0L Gas Engine) 🟡 Medium Probability → Shop Fuel Pump The FPCM is mounted on the frame rail near the spare tire, where it is highly exposed to moisture, road salt, and corrosion, leading to electrical failure.
   How to confirm: Visually inspect the FPCM and its connector for swelling, corrosion (white or green powder), or physical damage. Check for related codes like P069E or loss of communication with the module.
   Typical fix: Replace the Fuel Pump Control Module and its connector if corroded. The new module may require programming. Ensure the ground wire connection is clean and tight.
   Est. part cost: $80-$250
4. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness to the fuel rail pressure sensor can become brittle or damaged from engine heat and vibration. Corrosion at the connector is also common, particularly on the L5P Duramax.
   How to confirm: Inspect the wiring and connector pins at the fuel rail pressure sensor for any signs of corrosion (green or black residue), loose pins, or frayed wires. A TSB for later models (20-NA-197) highlights this issue.
   Typical fix: Clean the connector terminals or replace the connector pigtail if damaged. Solder and heat-shrink the connections for a durable repair. Repair any damaged sections of the wiring harness.
   Est. part cost: $20-$100
5. Fuel Contamination (Gas & Diesel Engines) ⚪ Low Probability As noted in TSB #PIP5151F, contaminants like water, dirt, gasoline, or Diesel Exhaust Fluid (DEF) in the diesel tank can cause erratic fuel pressure readings and damage components.
   How to confirm: Take a fuel sample from the tank and inspect it for water (separation), debris, or unusual color/smell. For diesel, check the fuel pressure regulator screen for rust or crystalline deposits from DEF.
   Typical fix: If contamination is found, the entire fuel system must be drained and cleaned, including the tank, lines, and rails. The fuel filter must be replaced. Repairs for damage caused by contamination are typically not covered by warranty.
   Est. part cost: $0 (if draining fuel) to $500+ (for professional cleaning)
6. Weak In-Tank Lift Pump or Clogged Fuel Filter (Diesel Engines) ⚪ Low Probability → Shop Fuel Filter A failing lift pump or a clogged filter can starve the high-pressure pump, preventing it from reaching the commanded pressure under load. This is a common first step in diagnosis.
   How to confirm: Always start by replacing the fuel filter with a quality OEM-spec brand (e.g., ACDelco, Racor). Test the lift pump pressure to ensure it meets specifications. A cracked fuel filter housing can also introduce air into the system.
   Typical fix: Replace the fuel filter. If the issue persists, replace the in-tank fuel pump assembly.
   Est. part cost: $40-$400

Rare But Worth Checking

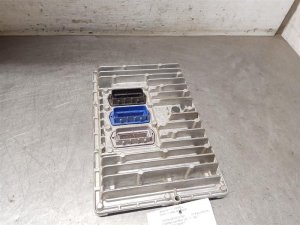

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM should only be considered after all other possibilities, including wiring, sensors, and mechanical fuel system components, have been exhaustively tested and ruled out.
• Failing Fuel Pressure Relief Valve (Diesel): A weak spring in the fuel pressure relief valve on the rail can cause it to bleed off pressure under high demand (like towing), triggering P0191. Some owners replace it with a solid plug (a 'race plug') as a fix.

Diagnosis Steps

1. Scan for all DTCs. Note any other codes that appear alongside P0191, as they can provide critical clues (e.g., P0087, P069E).
2. (2016 LML Diesel Only) Immediately inspect the fuel filter for metallic particles ('glitter'). If any are found, stop diagnosis. The CP4 pump has failed, and a full fuel system replacement is required.
3. Using a scan tool, observe the live data for 'Desired Fuel Rail Pressure' and 'Actual Fuel Rail Pressure' at idle and while driving. At idle on a Duramax, they should be nearly identical around 4,000-6,000 PSI. Under heavy acceleration, the actual pressure should not drop more than 2,000 PSI below desired.
4. (6.0L Gas Engine) Visually inspect the Fuel Pump Control Module (FPCM) on the frame rail and its connector for corrosion or damage. Use a scan tool to check for communication with the FPCM and look for code P069E.
5. (2017-2018 L5P Diesel) Carefully inspect the electrical connector and wiring at the fuel rail pressure sensor for corrosion, damage, or loose pins. This is a very common failure point noted in TSB 20-NA-197.
6. Test the Fuel Rail Pressure Sensor (FRPS) electrical circuit. Check for a stable 5V reference, a good ground (<1 Ω), and a signal that changes with pressure.
7. (All Engines) If fuel pressure is confirmed low, replace the fuel filter as a first step. If the issue persists, test the low-pressure/lift pump to ensure it is supplying adequate fuel to the high-pressure pump (diesel) or engine (gas).
8. (Diesel Only) If scan tool data shows actual pressure cannot meet desired pressure under load, and the lift pump is good, suspect a failing high-pressure pump (CP4 on LML, HP4 on L5P) or a leaking fuel pressure relief valve (LML).

Parts You'll Likely Need

• Fuel Rail Pressure Sensor (OEM #12635273) — This sensor is a frequent failure point on both gas and diesel engines, causing incorrect readings to be sent to the ECM.
  Trusted brands: ACDelco, Bosch
  OEM price range: $80-$150
  Aftermarket price range: $40-$90
• High-Pressure Fuel Pump (CP4) — This is the most likely cause of P0191 on a 2016 LML Duramax. Failure is common and can destroy the entire fuel system. Often replaced with a more reliable CP3 conversion kit.
  Trusted brands: Bosch, S&S Diesel Motorsport (for CP3 conversions)
  OEM price range: $800-$1500
  Aftermarket price range: $500-$1200
• Fuel Pump Control Module (FPCM) (OEM #23382215) — Specific to the 6.0L gas engine, this module fails due to corrosion from its exposed mounting location on the frame.
  Trusted brands: ACDelco, Dorman
  OEM price range: $120-$200
  Aftermarket price range: $80-$150

Related Codes That Often Appear With This One

• P0087 — This code means "Fuel Rail/System Pressure - Too Low" and often appears with P0191 when a failing pump, restriction, or leak is causing a loss of pressure. The TSB #PIP5151F also lists them together.
• P0088 — This code means "Fuel Rail/System Pressure - Too High" and can appear with P0191 if a faulty regulator or sensor is causing pressure spikes. The TSB #PIP5151F also lists them together.
• P069E — This code indicates an issue with the Fuel Pump Control Module and is a strong clue that the FPCM is the root cause on gasoline models.
• P128E — This is a GM-specific code related to fuel rail pressure that is also cited in TSB #PIP5151F, indicating a shared root cause, often contamination.

Technical Service Bulletins (TSBs) & Recalls

• PIP5151F: Addresses hard start, no start, and fuel pressure DTCs (P0087, P0088, P0191, P128E) caused by fuel system contamination in both gas and diesel engines.
• 20-NA-197: Notes that corrosion on the fuel pressure sensor electrical connector can cause P0191 (mentioned for later models but relevant).
• PIP4372B: Mentions P0191 can set if fuel rail pressure does not drop quickly enough after engine shutoff.

Platform-Specific Known Issues

• 2016 LML Duramax: Catastrophic CP4 Failure: The Bosch CP4 high-pressure fuel pump is the single biggest liability for this model year. It is prone to sudden, catastrophic failure where it sends metal debris through the entire fuel system. P0191 is a primary symptom of the pump beginning to fail and struggling to maintain pressure. Immediate inspection for metal in the fuel filter is critical.
• 2017-2018 L5P Duramax: FRPS Connector Failure: Unlike the LML, the L5P uses a more reliable Denso HP4 fuel pump. For these model years, P0191 is more commonly caused by a poor connection at the fuel rail pressure sensor. Owners and technicians report that replacing the connector pigtail, often by soldering it for a secure connection, resolves the intermittent limp mode and code.
• 6.0L V8 Gas: FPCM Corrosion: For the gasoline engine, a very common cause is the Fuel Pump Control Module (FPCM) corroding. It is mounted on a frame crossmember near the spare tire, exposing it to water and road salt, which damages the module and its electrical connector, leading to erratic fuel pressure and the P0191 code.

Mechanic-Grade Diagnostic Values

• Fuel Rail Pressure Sensor (FRPS) 5V Reference Circuit (All Engines) — expected: 4.8 - 5.2 Volts with key on, engine off.. Failure: A reading outside this range suggests a wiring issue or a fault in the ECM.
• Fuel Rail Pressure Sensor (FRPS) Low Reference Circuit Resistance to Ground (All Engines) — expected: Less than 1.0 Ω.. Failure: Higher resistance indicates a poor ground connection, which can cause erratic sensor readings.
• Low-Pressure Fuel System Pressure (6.0L Gas Engine) — expected: 55 - 62 PSI at idle.. Failure: Pressure that is low or fluctuates wildly points to a failing in-tank pump or a faulty FPCM.
• High-Pressure Fuel Pump Vacuum Test (2016 LML Duramax) — expected: At least 12 inches of Hg vacuum when cranking for 15 seconds with the fuel outlet capped.. Failure: Low vacuum suggests the high-pressure pump is weak and unable to draw sufficient fuel.
• Fuel Pressure Regulator #2 Return Flow Test (2017-2018 L5P Duramax) — expected: 15 ml or less of fuel returned during a 15-second engine crank.. Failure: Excessive return flow indicates the regulator is leaking pressure internally, requiring replacement of the fuel rail.

Hidden / Shadow Codes Worth Checking

• Grouped DTCs per TSB 20-NA-197: On L5P Duramax engines, P0191 is often set alongside a group of other codes (P0087, P0089, P026C, P026D, P1089, etc.). While not 'hidden', their simultaneous appearance strongly points to a single root cause: a corroded fuel pressure sensor electrical connector, rather than multiple separate system faults. (see via Standard OBD-II scanner. The key is recognizing the pattern of codes, not just P0191 in isolation.)

Scan Tool Commands That Help

• GDS2 / Tech2: Fuel Pump On/Off Command — For 6.0L gas engines, this bidirectional command manually activates the in-tank fuel pump. If the pump runs, it helps confirm the integrity of the Fuel Pump Control Module (FPCM), the pump itself, and the wiring between them, shifting focus to the sensor or ECM command signal.
• GDS2 or equivalent professional scan tool: Fuel Rail Pressure Control Test — For Duramax engines, this test allows a technician to command a specific fuel rail pressure (e.g., 60 MPa) and observe if the actual pressure reading matches. This directly tests the high-pressure pump's ability to build pressure and the regulator's ability to control it.

Wiring & Ground Locations

• Fuel Pump Control Module (FPCM) — On the driver's side frame rail, often near the spare tire (6.0L Gas Engine).. This location makes the module and its ground connection highly susceptible to corrosion from road salt and moisture, which is a primary cause of P0191 on gas models.
• Fuel Rail Pressure Sensor (FRPS) — On the passenger side fuel rail, located behind the throttle body at the front of the engine (2017-2018 L5P Duramax).. The connector at this location is a known high-failure item due to poor terminal tension or corrosion, as documented in TSB 20-NA-197. Access requires removing the intake tube and cold side charge pipe.

Real Owner Repair Stories

• Reddit user 'Wcearp' on r/Duramax (2018 L5P Duramax) — Intermittent P0191 code and limp mode. Clearing the code or cycling the key would make it run fine for a day or sometimes weeks.
  ❌ Tried (didn't work) Clearing the code (temporary fix)
  ✅ What actually fixed it Replacing the fuel rail pressure sensor connector pigtail. The user reported no problems for 6 months and 10,000 miles after the repair.
• Reddit user on r/Duramax (2015.5 LML Duramax (pre-dates range but identical LML engine to 2016 model)) — P0191 and limp mode only when towing a load uphill. Scan data showed actual rail pressure dropping ~1000 PSI below desired under full throttle.
  ❌ Tried (didn't work) Replacing MAP sensor, Replacing MAF sensor, Replacing fuel rail pressure sensor
  ✅ What actually fixed it Another user suggested the cause was a weak spring in the stock fuel pressure relief valve on the rail, which bleeds off pressure under high demand. The recommended fix was to replace the stock valve with a solid 'race plug'.
• YouTube user comment on Denny Diesel video (2017 L5P Duramax) — Randomly set low fuel pressure codes and went into limp mode, especially when under high load (towing with a tuner).
  ❌ Tried (didn't work) Clearing codes, Disconnecting performance tuner
  ✅ What actually fixed it The owner researched and found the TSB related to the fuel rail pressure sensor. They replaced the fuel rail pressure sensor itself in a hotel parking lot, which resolved the issue.

"I Checked Everything" — The Actual Cause

• On a 2016 LML Duramax, standard pressure tests at idle or during a light test drive may show no issues. However, the true cause can be a weak fuel pressure relief valve on the rail that only bleeds off pressure under the high-demand conditions of towing or hard acceleration, causing P0191 to set when the truck is under heavy load.

OEM Part Supersession History

• 12611873 → 12651990 — Updated fuel rail pressure sensor for 2011-2016 LML Duramax engines.
• 19331705, 19367009, ACDelco PT3744 → 85518225 — Updated fuel pressure sensor connector pigtail kit for 2017-2025 L5P Duramax, per TSB 20-NA-197, to address corrosion and terminal tension issues.
• 13594614 (FPCM for Gas Engine) → 13534187 — Part update/replacement. Note: Some parts catalogs may incorrectly label this part as a Body Control Module (BCM), but for this application, it functions as the Fuel Pump Control Module.

Model Year Variations Within This Range

• 2017-2018 (L5P Engine): The fuel rail pressure sensor connector is a significantly more common failure point compared to the 2016 LML. GM issued TSB 20-NA-197 specifically addressing corrosion and poor terminal fit at this connector, providing an updated pigtail kit for the repair.
• 2016 (LML Engine): This engine uses a mechanical fuel pressure relief valve on the fuel rail that is known to weaken over time. This part is not present in the same form on the 2017-2018 L5P fuel system, which uses two electronic regulators.
