P0196 on 2008-2016 Hyundai Genesis 3.8L: Engine Oil Temperature Sensor Guide

What's Unique About the 2008-2016 Hyundai Genesis

On the 3.8L Lambda V6, Hyundai placed several key sensors, including the Engine Oil Temperature (EOT) sensor and the oil pressure sensor, deep in the 'V' of the engine valley, underneath the entire upper and lower intake manifold assembly. This design choice turns what would be a simple sensor swap on many other engines into a significant, labor-intensive job requiring 4-6 hours of work. Owners are often surprised by the high labor cost for what seems like a minor part replacement. Because the failure-prone oil pressure sensor shares this exact difficult-to-access location, it is standard practice and highly recommended to replace both the EOT sensor and the oil pressure sensor (along with its heat-sensitive harness) at the same time to avoid paying for the same high labor cost twice.

Generation note: This guide covers both the first generation (BH, 2008-2013) and second generation (DH, 2014-2016) Hyundai Genesis sedan. The 3.8L V6 engine was updated from Multi-Port Injection (MPI) to Gasoline Direct Injection (GDI) around 2012. While the P0196 code's meaning and the sensor part number are consistent, the intake manifold design and removal procedure differ slightly between the MPI and GDI versions, affecting the repair process. 🎬 See: How to remove the GDI intake manifold GDI engines are also susceptible to carbon buildup on intake valves, which requires manifold removal to clean, making it a good 'while you're in there' service.

Symptoms You May Notice

• Check Engine Light is on
• Engine may hesitate or run rough
• Reduced fuel economy
• Vehicle may enter 'limp mode,' limiting engine RPM and speed
• Inaccurate oil temperature readings on the dashboard, if equipped

Most Likely Causes

1. Faulty Engine Oil Temperature (EOT) Sensor 🔴 High Probability The sensor is located in the hot engine valley, which can lead to a shorter lifespan due to constant extreme heat exposure.
   How to confirm: After a cold soak of 5+ hours, use an OBD-II scanner to compare live data for Engine Oil Temp, Coolant Temp, and Intake Air Temp. If the oil temp is more than 35°C (63°F) different from the other two, the sensor is almost certainly bad. Another test involves checking the sensor's resistance with a multimeter. At 20°C (68°F), the resistance should be approximately 2.45 kΩ. This requires removing the sensor first. 🎬 Watch: Step-by-step oil pressure sensor removal guide
   Typical fix: Replace the Engine Oil Temperature sensor. Due to the high labor involved, it is highly recommended to use a genuine OEM Hyundai part to avoid repeat repairs.
   Est. part cost: $40-$65
2. Wiring or Connector Issue 🟡 Medium Probability The wiring harness in the engine valley is exposed to extreme heat, which can make wires brittle and insulation crack over time. The connector itself can become oil-soaked and fail, especially the harness for the nearby oil pressure sensor.
   How to confirm: Once the intake manifold is removed to access the sensor, visually inspect the connector and wiring for any signs of damage, melting, or corrosion. With the key on and sensor disconnected, check for a 5V reference voltage at one pin and a good ground at the other using a multimeter.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. It is common practice to replace the oil pressure sensor harness (P/N 94760-3C801) when performing this repair.
   Est. part cost: $15-$40
3. Low or Degraded Engine Oil ⚪ Low Probability The Lambda V6 engine family can be prone to oil consumption, especially at higher mileage. If the oil level drops too low, it can cause temperature fluctuations and trigger this code.
   How to confirm: Check the engine oil level and condition. If the oil is very low, black, or sludgy, it can affect temperature readings and overall engine health.
   Typical fix: Perform an oil and filter change using the correct viscosity oil (refer to your owner's manual). Clearing the code and monitoring if it returns is the next step.
   Est. part cost: $50-$100

Rare But Worth Checking

• Faulty Engine Control Module (ECM): This is very rare. The ECM should only be considered after all other possibilities, including the sensor and its wiring, have been thoroughly ruled out.

Diagnosis Steps

1. Check Engine Oil Level and Condition: Before any complex diagnosis, ensure the oil is at the proper level and isn't excessively dirty or sludgy. Top off or change the oil if necessary. This platform can consume oil, so this is a critical first step.
2. Cold Soak Rationality Test: Let the vehicle sit for at least 5-8 hours until the engine is completely cold. Turn the ignition to 'ON' (without starting the engine).
3. Scan Tool Data Comparison: Use an OBD-II scanner to view live data. Compare the readings for 'Engine Oil Temperature', 'Engine Coolant Temperature', and 'Intake Air Temperature'. All three should be within a few degrees of each other and ambient air temperature. If the EOT reading is skewed by more than 35°C (63°F), the sensor is the primary suspect.
4. Plan for Full Repair: Given the confirmed location under the intake manifold, diagnosis beyond the scan tool test is impractical. If the rationality test fails, the most efficient course of action is to plan for the replacement of the EOT sensor, oil pressure sensor, and associated gaskets.
5. Wiring Inspection (During Repair): Once the intake manifold is removed, seize the opportunity to thoroughly inspect the sensor's wiring harness and connector for any signs of heat damage, oil saturation, corrosion, or loose pins before installing the new parts.

Parts You'll Likely Need

• Engine Oil Temperature Sensor (OEM #39220-3C100) — This is the most common failure point for code P0196. Its reading becomes irrational compared to other engine sensors.
  Trusted brands: Hyundai (OEM)
  OEM price range: $45-$65
  Aftermarket price range: $25-$40
• Intake Manifold Gaskets (Plenum Gasket) (OEM #29215-3CFA1 (for GDI, may vary for MPI)) — These are single-use gaskets that must be replaced whenever the upper and lower intake manifolds are removed to access the sensors.
  Trusted brands: Hyundai (OEM), Fel-Pro, Mahle
  OEM price range: $50-$80
  Aftermarket price range: $30-$50
• WHILE YOU'RE IN THERE: Oil Pressure Sensor (OEM #94750-2A000) — This is another extremely common failure point located right next to the EOT sensor. It is highly advised to replace it proactively to avoid a second, identical, 🎬 Watch: Fixing the common oil light issue high-labor repair in the near future. A user on a Reddit forum recommended using only the OEM part as their aftermarket one failed.
  Trusted brands: Hyundai (OEM)
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• WHILE YOU'RE IN THERE: Oil Pressure Sensor Harness (OEM #94760-3C801) — The wiring harness for the pressure sensor is prone to heat damage and oil saturation. Replacing it with the sensor is cheap insurance.
  Trusted brands: Hyundai (OEM)
  OEM price range: $15-$25

Related Codes That Often Appear With This One

• P0197 — This code indicates 'Engine Oil Temperature Sensor Circuit Low,' which can be triggered by the same failing sensor or a wiring short.
• P0198 — This code indicates 'Engine Oil Temperature Sensor Circuit High,' which can be triggered by the same failing sensor or an open circuit in the wiring.
• P0524 — This code for 'Engine Oil Pressure Too Low' is often seen because the oil pressure sensor is located right next to the EOT sensor and is another very common failure point. It is highly recommended to replace both sensors and the pressure sensor harness at the same time.

Platform-Specific Known Issues

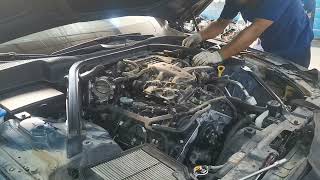

• Owner Repair Experience & Parts List: A user on Reddit with a 2016 Genesis 3.8L sedan, while chasing an oil pressure light, documented the full list of parts required for a repair in the same location as the EOT sensor. Their list included the oil pressure sensor (94750-2A000), harness (94760-3C801), and various intake and fuel injector gaskets, providing a real-world shopping list for anyone tackling this job. They specifically warned against using an aftermarket oil pressure sensor as it failed on them.

Mechanic-Grade Diagnostic Values

• EOT Sensor Resistance vs. Temperature — expected: At 20°C (68°F): ~2.45 kΩ. At 40°C (104°F): ~1.11 kΩ. At 80°C (176°F): ~0.29 kΩ. Resistance should decrease smoothly as temperature increases.. Failure: Resistance is infinite (open circuit), near zero (short circuit), or does not change smoothly with temperature.
• Cold Soak Temperature Rationality Check (Live Data) — expected: After a soak of 5+ hours, Engine Oil Temp, Coolant Temp, and Intake Air Temp should all be within a few degrees of each other.. Failure: The difference between the oil temperature and either the coolant or intake air temperature is greater than 35°C (63°F) at startup.
• EOT Sensor Connector Voltage (Key On, Engine Off) — expected: One pin should show a 5V reference signal from the ECM, and the other should show a good ground (< 0.1V).. Failure: Absence of 5V reference or a high voltage reading on the ground pin indicates a wiring or ECM issue, not a sensor failure.

Scan Tool Commands That Help

• Hyundai GDS (Global Diagnostic System): DTC Analysis & Live Data (Current Data) — Use the OEM scan tool to view live data for the EOT sensor, ECT sensor, and IAT sensor simultaneously. The GDS provides the most reliable data stream and also links directly to workshop manuals and component locations for troubleshooting the circuit.
• Hyundai GDS (Global Diagnostic System): ETM (Electrical Troubleshooting Manual) — If a wiring issue is suspected after testing the sensor, the ETM function within GDS provides detailed wiring diagrams, connector pinouts, and ground locations specific to the vehicle's VIN, which is essential for tracing the circuit back to the ECM.

Wiring & Ground Locations

• Main Engine Ground Strap — Typically runs from the engine block (often near an engine mount or starter bolt) to the chassis frame rail.. A poor or corroded main engine ground can cause floating voltages and erratic readings on multiple sensors, including the EOT sensor. Ensuring this connection is clean and tight is a crucial step in diagnosing any electrical gremlin.
• Injector / Sensor Ground Point — On the 3.8L, there are several ground points on the intake manifold itself where various sensor grounds are consolidated before connecting to the main harness.. Since the EOT sensor is located under the intake manifold, its ground path is tied in with other sensors in this hot, vibration-prone area. A loose ground bolt on the manifold can directly impact the EOT sensor's reading.
• ECU Ground — The Engine Control Unit (ECU/ECM) has its own ground points, typically located on the chassis in the engine bay near the ECU's mounting location.. The EOT sensor circuit is completed at the ECU. A faulty ECU ground can affect the reference voltage and signal interpretation for all engine sensors, potentially mimicking a sensor failure.

OEM Part Supersession History

• 39220-3C100 → 39220-3C100 (current) — This part number has remained consistent for a wide range of Hyundai/Kia models over many years, indicating a stable design with no major revisions.
  Heads up: While the part number is stable, some aftermarket listings incorrectly label it as an Engine Coolant Temperature sensor. Ensure the part is specified as the Oil Temperature sensor, as they are not interchangeable despite potentially similar appearances.

Model Year Variations Within This Range

• 2008-2012 (approx.): Engines from this period are typically Multi-Port Injection (MPI). The intake manifold is a composite material and its removal process is slightly less complex than the GDI version. The intake valves are naturally cleaned by fuel spray.
• 2012-2016 (approx.): Engines from this period are Gasoline Direct Injection (GDI). The intake manifold design is different to accommodate the high-pressure fuel pump and direct injectors. These engines are prone to carbon buildup on the intake valves, which can only be cleaned by removing the intake manifold. Performing a walnut blast cleaning service while replacing the EOT sensor is a highly recommended and cost-effective procedure.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption & Rod Bearing Failure 🔴 High — More common on higher mileage engines or those with infrequent oil changes. Sticking oil scraper rings are a suspected cause, leading to low oil levels and potential catastrophic rod bearing failure.
• Timing Chain Tensioner & Guide Wear 🔴 High — A startup rattle that quickly disappears is a common symptom. The timing chain and its guides are known to wear, with some failing before 150,000 km. Replacement is a very labor-intensive and expensive job, with dealer quotes sometimes reaching thousands of dollars.
• Carbon Buildup on Intake Valves (GDI Models) 🟠 Medium — Applies to the GDI engines (approx. 2012+). Over time, carbon deposits can build up on the back of intake valves, leading to rough idling, hesitation, and reduced performance.
• Leaking Valve Cover Gaskets 🟡 Low — The plastic valve covers are prone to developing oil leaks over time, which is a common maintenance item for this engine.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, using a used part is not recommended. The primary failure part is an electronic sensor located in a high-heat, high-labor area. The risk of a used sensor failing shortly after installation far outweighs the small cost savings over a new part.

What to inspect on the donor part:

• Not applicable, as used sensors are not advised.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Temperature Sensor (39220-3C100)
• Oil Pressure Sensor (94750-2A000)
• Oil Pressure Sensor Harness (94760-3C801)

Aftermarket brands forum-validated for this vehicle:

• For gaskets, Fel-Pro and Mahle are generally considered reliable alternatives to OEM.

Brands owners have reported issues with on this vehicle:

• Forum users have specifically warned against using non-OEM electronic sensors (EOT, Oil Pressure) in this location due to high rates of premature failure, which necessitates repeating the entire expensive labor process.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0197 — Engine Oil Temperature Sensor Circuit Low; often appears alongside P0196 when the sensor or wiring in the engine valley fails.
• P0198 — Engine Oil Temperature Sensor Circuit High; explicitly listed in service documentation for the 3.8L Lambda engine as a related diagnostic trouble code.
