P0201 on 2021-2022 Cadillac Escalade: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2021-2022 Cadillac ESCALADE

For this specific generation of Cadillac Escalade and its GM T1 platform siblings, injector circuit codes like P0201 🎬 Watch: A quick guide to P0201 causes and fixes. are a known issue with documented factory solutions. General Motors has released several Technical Service Bulletins (TSBs) addressing this. For the 3.0L LM2 Duramax, TSB #22-NA-087 points to a broken terminal pin inside the injector harness connector as a likely cause, advising replacement of both the injector and the harness. For both the diesel and the 6.2L L87 V8, TSB #21-NA-149 details multiple locations where the main engine harness can chafe against chassis or engine components (like the ECM bracket or shock tower), causing an open or short in the injector circuit. Because of these documented problems, diagnosis must extend beyond the injector to a mandatory inspection of the related harnesses.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaking idle
• Engine misfire (may feel like a vibration)
• Reduced engine power and poor acceleration
• Increased fuel consumption
• Engine may stall
• Vehicle may enter 'limp mode' with restricted speed

Most Likely Causes

1. Faulty Cylinder 1 Fuel Injector 🔴 High Probability → Shop Fuel Injector Multiple GM Technical Service Bulletins (including #22-NA-087 for the diesel and #PIP5891C for the V8) identify faulty injectors as a primary cause for this code on this platform, indicating a higher-than-normal failure rate.
   How to confirm: A technician can perform a resistance test on the injector. For the 6.2L L87, the resistance is very low, around 1.5-2.2 Ω. For the 3.0L LM2, it's much higher, around 160k-190k Ω. A definitive DIY test is to swap the cylinder 1 injector with another cylinder's injector (e.g., cylinder 3). If the code changes to P0203, the injector is faulty.
   Typical fix: Replace the cylinder 1 fuel injector. On 3.0L diesel models, GM TSB #22-NA-087 explicitly recommends replacing the injector wiring harness at the same time.
   Est. part cost: $80-$300
2. Damaged Engine Wiring Harness or Connector 🔴 High Probability → Shop Engine Wiring Harness TSB #22-NA-087 specifically mentions a broken terminal pin inside an injector harness connector as the cause for the 3.0L diesel. TSB #21-NA-149 details multiple chafe points for both engines where the harness can rub against the ECM bracket, upper control arm, or shock tower, causing shorts or open circuits. This was sometimes caused by a harness retaining clip being left off during production.
   How to confirm: Visually inspect the wiring harness leading to the cylinder 1 injector for any signs of rubbing, melting, or damage, especially at the points noted in TSB #21-NA-149. Check the connector for corrosion, backed-out pins, or a brown/black powder residue from arcing. Gently pulling on individual wires at the connector may reveal a broken wire inside the insulation.
   Typical fix: Repair the damaged section of the wire or replace the injector pigtail connector. If chafing is found, repair the wires and secure the harness away from the contact point using protective sleeves and zip ties. For the 3.0L diesel, the official fix per TSB #22-NA-087 is to replace the entire injector sub-harness.
   Est. part cost: $20-$250

Rare But Worth Checking

• Powertrain Control Module (PCM) Failure: → Shop Engine Control Module (ECM) This is very rare. The PCM's internal driver for the injector circuit can fail. This should only be considered after all other possibilities (injector, wiring) have been exhaustively ruled out. TSBs for this platform specifically advise against replacing the ECM until all harness and injector issues are eliminated.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0201 and any other related codes (like P0301).
2. Perform a visual inspection of the cylinder 1 fuel injector wiring and connector. Cylinder 1 is at the front of the engine on the driver's side. Look for any signs of damage, corrosion, or loose connections. Pay close attention to known chafe points mentioned in TSB #21-NA-149, such as near the ECM bracket, upper control arm, and shock tower.
3. Use a noid light to test the injector circuit. Disconnect the injector and plug in the noid light. Crank the engine; a flashing light indicates the PCM is sending a signal. If it doesn't flash, the problem is in the wiring or PCM.
4. If the noid light flashes, test the fuel injector itself. Measure the internal resistance of the injector with a multimeter. Compare it to the manufacturer's specification (approx. 1.5-2.2 Ω for the 6.2L L87, 160k-190k Ω for the 3.0L LM2).
5. For a definitive test, swap the cylinder 1 injector with an injector from another cylinder. Clear the codes and run the engine. If the fault code moves to the cylinder you swapped with (e.g., P0203), the injector is bad.
6. If the noid light does not flash, check for continuity and shorts in the wiring harness between the injector connector and the PCM. A gentle pull test on the wires at the connector can sometimes reveal an internal break.
7. If the injector and wiring are confirmed to be good, the issue may be with the PCM, though this is rare and should be the last resort.

Parts You'll Likely Need

• Fuel Injector (6.2L L87 V8) (OEM #12721479) — This is one of the two most common failure points for code P0201, as identified in multiple service bulletins for this vehicle.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $150-$300
  Aftermarket price range: $70-$180
• Fuel Injector (3.0L LM2 Diesel) (OEM #55506244) — TSB #22-NA-087 specifically calls for replacing the injector on the diesel models to resolve this code.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $150-$250
  Aftermarket price range: $100-$180
• Fuel Injector Wiring Harness (3.0L LM2 Diesel) (OEM #55513485) — GM TSB #22-NA-087 explicitly calls for replacing the harness along with the injector on diesel models due to known issues with broken connector pins. This part number is superseded by 40009605.
  Trusted brands: ACDelco
  OEM price range: $60-$150
  Aftermarket price range: $50-$100

Related Codes That Often Appear With This One

• P0301 — P0301 means "Cylinder 1 Misfire Detected." Since P0201 indicates an electrical problem with the fuel supply to cylinder 1, it directly causes a misfire.
• P0202, P0203, P0204, etc. — When multiple injector circuit codes appear together, it strongly points to a systemic issue like a chafed wiring harness that is common to all affected cylinders, rather than multiple injectors failing at once.
• P0216 — This code for "Injection Timing Control Circuit" can appear with injector codes on the 3.0L Duramax engine, as noted in TSB #22-NA-087, suggesting a broader harness or control issue.

Technical Service Bulletins (TSBs) & Recalls

• 22-NA-087: Recommends replacing the fuel injector and wiring harness to correct MIL illumination with DTCs P0201-P0206 and/or P0216 on 3.0L LM2 engines.
• 21-NA-149: Details multiple engine wiring harness chafe points and repair procedures for both 6.2L L87 and 3.0L LM2 engines that can cause various DTCs, including injector circuit faults.

Platform-Specific Known Issues

• TSB #22-NA-087: For the 3.0L LM2 Diesel engine, GM issued this bulletin for a Malfunction Indicator Lamp with codes P0201-P0206 and/or P0216. It states the cause may be a broken terminal pin inside an injector harness connector and advises replacing the affected fuel injector (P/N 55506244) and the wiring harness (P/N 55513485).
• TSB #21-NA-149: This comprehensive bulletin applies to both the 6.2L V8 and 3.0L Diesel engines and details several potential engine wiring harness chafe points. Key inspection areas include where the harness may contact the ECM/TCM bracket, the driver's side upper control arm, and the shock tower. It provides specific repair procedures using protective sleeves and zip ties to prevent recurrence.

Mechanic-Grade Diagnostic Values

• Injector Pulse Width at Idle (Scan Tool) — expected: ~2.0 - 4.0 milliseconds (ms). Failure: A value of 0 ms for cylinder 1, or a value significantly different from the other cylinders.
• Low-Pressure Fuel System Pressure (Key On, Engine Off) — expected: 48 - 52 psi (L87 V8) / 60 - 70 psi (LM2 Diesel). Failure: Pressure below spec suggests a weak in-tank lift pump, which is a separate issue from the P0201 electrical fault but important for overall diagnosis.
• High-Pressure Fuel Rail Pressure (Direct Injection) — expected: Up to 36,250 psi / 2,500 bar (LM2 Diesel). Failure: While not a direct cause of P0201, erratic high-pressure readings could point to other fuel system issues.
• Injector Circuit Wire Continuity — expected: < 0.5 Ω. Failure: A high resistance or open reading (OL) indicates a break in the wire between the PCM and the injector connector.
• Injector Inductive Kick (Lab Scope) — expected: A sharp voltage spike, potentially over 50V, immediately after the PCM commands the injector off.. Failure: A missing, weak, or rounded-off spike suggests a shorted injector coil or a wiring issue, even if resistance tests pass.

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Fuel Injector Balance Test — This bidirectional command allows a technician to disable individual injectors one at a time while monitoring engine RPM drop. If disabling cylinder 1 causes no change in RPM, it confirms that cylinder is not contributing, which is expected with a P0201. It helps verify the mechanical effect of the electrical fault.

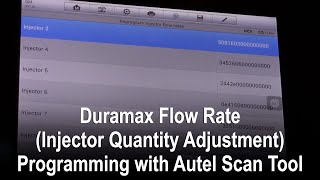

• GDS2 or compatible high-level scan tool (e.g., Autel): Injector Flow Rate Programming (IQA - Injection Quantity Adjustment) — This is REQUIRED after replacing a fuel injector on the 3.0L LM2 Duramax diesel. Each new injector has a unique 7-digit flow rate code printed on it that must be programmed into the ECM and Glow Plug Control Module. Failure to do so can result in rough running, poor performance, and emission system issues.

Wiring & Ground Locations

• Cylinder 1 Injector Connector — Front-most injector on the driver's side of the engine for both L87 V8 and LM2 Diesel.. This is the primary connection point for the fault. TSB #22-NA-087 specifically notes that a broken terminal pin inside this connector is a common cause on the LM2 diesel. A 'wiggle test' here while the engine is running can help identify an intermittent connection.
• Harness Connector X160 — Large engine harness connector, inspection for poor terminal tension is recommended in TSB #21-NA-149.. This is a major junction for multiple engine circuits, including the injector controls. Poor pin tension or corrosion here can cause intermittent faults for one or more injectors.
• Injector Power and Control Wires — Within the engine harness between the PCM and the injector.. On GM harnesses, the power supply wire to the injector is typically Pink (or varies by specific harness). The control wire, which the PCM pulses to ground, is specific to the cylinder. A continuity test from the specific pin at the PCM connector to the pin at the injector connector is the definitive wiring test.

Real Owner Repair Stories

• Reddit user comment in r/Silverado (2022 Silverado with 5.3L engine (L84, similar architecture to L87)) — Check Engine Light, implied misfire.
  ❌ Tried (didn't work) Not specified, but the failure occurred at very low mileage.
  ✅ What actually fixed it The dealer replaced a 'bad injector' under warranty at only 2,000 miles. This confirms that while wiring is a very common issue on this platform, direct part failure of the injector itself can and does happen, even on nearly new vehicles.

OEM Part Supersession History

• 55513485 → 40009605 — The original fuel injector wiring harness for the 3.0L LM2 diesel was superseded. While the exact reason isn't officially published, parts are typically updated to improve durability, such as using stronger terminal pins or better insulation to prevent the very failures described in TSB #22-NA-087.
