P0201 on 2009-2014 GMC Acadia: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2009-2014 Gmc ACADIA

For the first-generation GMC Acadia with the 3.6L direct-injection engine 🎬 Watch: Troubleshooting common causes for a Cylinder 1 misfire, this code is frequently linked to wiring harness problems. GM issued Technical Service Bulletin #PIP4924D specifically for these vehicles (and their platform mates like the Buick Enclave and Chevy Traverse), warning technicians to inspect the fuel injector wiring harness for damage where it might rub against the intake plenum, valve covers, fuel lines, or the EVAP purge solenoid bracket. 🎬 See how to diagnose and fix injector circuit malfunctions This suggests that before replacing the injector itself, a thorough visual and physical inspection of the wiring is a critical, money-saving first step.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaking idle
• Engine misfire (often accompanied by a P0301 code)
• Poor acceleration and loss of power
• Reduced fuel economy
• Engine may stall
• "Service Stabilitrak" message may appear on the dash

Most Likely Causes

1. Damaged Fuel Injector Wiring Harness 🔴 High Probability → Shop Engine Wiring Harness GM TSB #PIP4924D specifically calls out this issue, noting common chafe points against the intake, valve covers, and fuel lines. Owners have reported finding wires rubbed through near the EVAP purge solenoid bracket. Rodent damage to the soy-based wiring insulation is also a possible cause.
   How to confirm: Visually inspect the entire fuel injector wiring harness, especially around cylinder 1, for any signs of rubbing, melting, or breaks. Pay close attention to the areas mentioned in the TSB. A 'wiggle test' is highly effective: with the engine idling, carefully wiggle the harness section leading to injector 1. If the engine's idle changes or stumbles, you've likely found the location of the fault.
   Typical fix: Repair the damaged section of wire with a new connector pigtail or by soldering and heat-shrinking the broken wire. If damage is extensive, the harness may need replacement.
   Est. part cost: $15-$50 for a pigtail, $150-$300 for a harness
2. Faulty Cylinder 1 Fuel Injector 🔴 High Probability → Shop Fuel Injector Direct injectors operate under high pressure and can fail electrically (open or shorted coil). It is a common failure point for this code across all vehicles.
   How to confirm: Check the injector's resistance with a multimeter. Disconnect the injector and measure across its two pins. For the 3.6L DI engine, the reading should be between 1.5 - 2.5 ohms. A reading of 0 ohms (short) or infinite/OL (open) confirms a bad injector. Alternatively, swap the cylinder 1 fuel injector with one from another cylinder (e.g., cylinder 3). Clear the codes and run the engine. If the code changes to P0203 (Cylinder 3 Injector Circuit), the injector is confirmed to be faulty.
   Typical fix: Replace the faulty fuel injector. It is often recommended to replace all injectors on the same bank, or all six, if they are original and have high mileage. New Teflon seals are required and must be installed correctly.
   Est. part cost: $80-$160 per injector
3. Loose or Corroded Injector Connector 🟡 Medium Probability Engine vibration and heat cycles can cause the connector to become loose or the internal pins to lose tension or corrode over time, leading to an intermittent open circuit.
   How to confirm: Disconnect the connector for the cylinder 1 injector and inspect the terminals for green/white corrosion or damage. Ensure it clicks securely back into place. Use a noid light to confirm the connector is receiving a pulse from the PCM. The light should flash consistently when the engine is cranked or running.
   Typical fix: Clean the connector terminals with electrical contact cleaner. If the connector is damaged or won't stay secure, replace it with a new pigtail connector, such as Dorman 645-925 or Standard Motor Products S-1024.
   Est. part cost: $15-$50

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is rare. The internal driver circuit for the injector can fail. This should only be considered after all other possibilities (injector, wiring, connectors) have been exhaustively ruled out. A diagnostic procedure in a service manual can confirm this by testing the driver circuit directly.

Diagnosis Steps

1. Read all fault codes using an OBD-II scanner. Note any other codes present, especially misfire (P0301) or other injector codes.
2. Perform a thorough visual inspection of the fuel injector wiring harness for cylinder 1. Look for chafing, melting, or broken wires, especially where the harness may contact the engine, fuel lines, or the EVAP purge solenoid bracket, as per TSB #PIP4924D.
3. With the engine idling, carefully wiggle the wiring harness leading to the cylinder 1 injector. If the misfire changes or worsens, it strongly indicates a wiring fault in that area.
4. Inspect the electrical connector at the cylinder 1 fuel injector for damage, corrosion, or a loose fit.
5. Use a 'noid light' to test the injector connector. The light should flash when the engine is cranked or running, indicating the PCM is sending a signal. If it doesn't flash, the problem is in the wiring or the PCM.
6. If the noid light flashes, the wiring is likely okay. Turn off the engine and check the resistance of the fuel injector with a multimeter. A reading outside the 1.5-2.5 ohm specification indicates a bad injector.
7. If diagnostic tools are unavailable, swap the cylinder 1 injector with another cylinder's injector (e.g., cylinder 3). Clear the codes and run the engine. If the fault code moves to P0203, the injector is bad. If P0201 returns, the issue is in the wiring or PCM.
8. If the wiring and injector are confirmed to be good, the final step is to test the injector driver circuit in the PCM, which usually requires a professional technician.

Parts You'll Likely Need

• Fuel Injector (OEM #12669384 (supersedes 12638530)) — The injector itself can fail electrically. This is a very common cause for a P0201 code.
  Trusted brands: ACDelco, Bosch, Standard Motor Products
  OEM price range: $120-$160
  Aftermarket price range: $80-$120
• Fuel Injector Wiring Harness Connector (Pigtail) (OEM #ACDelco PT2160) — If the wiring is damaged right at the connector, replacing the connector pigtail is the standard repair.
  Trusted brands: ACDelco, Dorman (645-925), Standard Motor Products (S-1024)
  OEM price range: $25-$50
  Aftermarket price range: $15-$30
• Intake Manifold Gaskets (OEM #ACDelco 12679529 (Upper Set)) — These must be replaced anytime the intake manifold is removed to access the fuel injectors on the 3.6L V6 engine.
  Trusted brands: ACDelco, Fel-Pro, Mahle
  OEM price range: $40-$60
  Aftermarket price range: $20-$40
• Fuel Injector Seal Kit (OEM #ACDelco 12623113) — Direct injectors use single-use Teflon seals that must be replaced. They require a special sizing tool for proper installation to prevent high-pressure fuel leaks.
  Trusted brands: ACDelco, Fel-Pro
  OEM price range: $8-$15 per injector
  Aftermarket price range: $5-$10 per injector

Related Codes That Often Appear With This One

• P0301 — This code means 'Cylinder 1 Misfire Detected'. Since P0201 indicates a problem with the fuel injector circuit for cylinder 1, that cylinder isn't getting the right amount of fuel, which directly causes a misfire.
• P0202, P0203, P0204, P0205, P0206 — If multiple injector circuit codes are present, it strongly suggests a widespread wiring harness issue (like the chafing mentioned in TSB #PIP4924D) or a problem with the PCM's injector driver circuits.
• P2146, P2149, P2152, P2155 — These codes relate to the fuel injector group voltage supply circuits. Seeing them alongside P0201 points towards a more systemic electrical problem, likely in the wiring harness or PCM, affecting an entire bank of injectors.

Technical Service Bulletins (TSBs) & Recalls

• PIP4924D: Advises technicians to carefully inspect the fuel injector wiring harness for chafing that can cause open/short circuits and trigger various injector codes.

Platform-Specific Known Issues

• TSB #PIP4924D: General Motors issued this bulletin due to a high frequency of injector-related codes (including P0201) caused by the fuel injector wiring harness rubbing through its insulation. Common chafe points are against the intake plenum, valve cover bolts, fuel lines, and the metal bracket for the EVAP purge solenoid.

Mechanic-Grade Diagnostic Values

• Direct Fuel Injector Resistance — expected: 1.5 - 2.5 ohms. Failure: A reading of OL (infinite) indicates an open coil, while a reading near 0 ohms indicates a shorted coil.
• Low-Side Fuel Pressure (Key On, Engine Off) — expected: 345–414 kPa (50–60 psi). Failure: Pressure below this range points to a weak in-tank fuel pump or FPCM issue, but would not directly cause a P0201 circuit code.
• Scan Tool 'Fuel Injector Balance Test' Pressure Drop — expected: Pressure drop should be within 1.5 PSI (10 kPa) of the average of the other injectors.. Failure: A cylinder with significantly more or less pressure drop than the others indicates a faulty (leaking, clogged, or electrically failed) injector.
• Injector Connector Voltage (Key On, Engine Off) — expected: 12.0 V ± 0.5 V on the power supply wire.. Failure: Low or no voltage indicates a problem in the power supply circuit from the fuse block/PCM.

Scan Tool Commands That Help

• GDS2 / Tech 2: Fuel Injector Balance Test / Cylinder Power Balance — This bidirectional test is the definitive way to identify a malfunctioning injector without removing it. The tool commands each injector off one by one while the engine is running; a cylinder that produces no change in engine roughness or RPM when its injector is disabled is the source of the misfire. For direct injection, the tool may measure the fuel pressure drop for each injector, with an inconsistent drop indicating a fault.
• GDS2 / Tech 2: AFIT (Active Fuel Injector Test) — This is a comprehensive test suite that can check the injector coil electrically and also perform flow/balance tests to confirm if the injector is the root cause of the P0201 code.

Wiring & Ground Locations

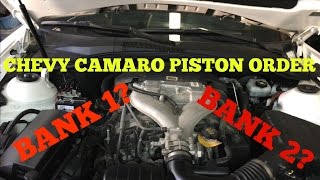

• Cylinder 1 Location — The rear bank of cylinders (closer to the firewall) is Bank 1. Cylinder 1 is on this bank, closest to the driver's side of the vehicle.. Correctly identifying the physical location of cylinder 1 is the first step to visually inspecting the correct wiring and injector.
• Connector X160 — A multi-way harness connector located at the rear of the intake manifold.. This is an intermediate connector between the main engine harness and the injector sub-harness. Service documents note to check here for poor terminal tension or damage, as a fault here can cause an open circuit to the injector.
• G113 — A primary engine ground located on the left side of the engine, at an engine-to-transmission stud.. While P0201 is a specific circuit code, a poor main engine ground can cause a host of intermittent and difficult-to-diagnose electrical issues, including problems with PCM drivers. Verifying this ground is clean and tight is a fundamental step.
• G103 — Located at the left rear of the engine compartment on the cowl, often above the brake booster.. This is a major chassis and module ground point. A problem here can affect the Body Control Module (BCM) and Engine Control Module (ECM), potentially causing erroneous codes.

"I Checked Everything" — The Actual Cause

• A smoke test is not applicable for this electrical code. However, a similar diagnostic dead-end occurs when a noid light flashes (indicating a signal from the PCM) and the injector resistance tests as good, yet the P0201 code persists. In this scenario, the actual cause is often an intermittent short or open in the wiring that only manifests with engine vibration and heat. This aligns with GM's TSB #PIP4924D, which points to harness chafing that may not be visible or fail a static continuity test. Performing a 'wiggle test' on the harness while the engine is running is crucial to expose this type of hidden fault.

OEM Part Supersession History

• 12611545, 12632255, 12638530 → 12669384 — Standard part evolution for improved reliability or manufacturing process changes.
  Heads up: No known incompatibilities; 12669384 is the correct service replacement for all prior numbers on this engine.

Model Year Variations Within This Range

• 2009-2012 vs. 2013-2014: The 2009-2012 models primarily used the 3.6L LLT V6 engine. For the 2013 model year refresh, the Acadia was updated to the 3.6L LFX V6. While they are dimensionally similar, the LFX features a different cylinder head design, intake manifold, and fuel system components. Although the P0201 code's meaning is identical, the specific part numbers for the fuel injectors and some harness connectors may differ between an LLT and LFX engine. The TSB regarding harness chafing applies to both engine variants within this year range.
