P0201 on 2007-2015 Lincoln MKX: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2007-2015 Lincoln MKX

On the Lincoln MKX's transverse-mounted 3.5L and 3.7L V6 engines, the cylinders are numbered with 1-2-3 on the rear bank (near the firewall) and 4-5-6 on the front bank (near the radiator). This means cylinder 1, the source of the P0201 code, is on the less accessible rear bank. Replacing this injector is more difficult and costly than one on the front bank because the upper intake manifold must be removed to gain access.

Symptoms You May Notice

• Check Engine Light is on
• Rough, unstable, or shaking idle
• Engine misfire (may feel like a shudder)
• Noticeable loss of power and poor acceleration
• Reduced fuel economy

Most Likely Causes

1. Failed Cylinder 1 Fuel Injector 🔴 High Probability → Shop Fuel Injector Fuel injectors are wear-and-tear components. An internal coil winding can fail over time, creating an open or short circuit. This is the most common reason for a P0201 code.
   How to confirm: After verifying the wiring is okay, swap the cylinder 1 injector with an adjacent one (like cylinder 2). Clear the codes and run the engine. If the code changes to P0202, the injector is faulty. Alternatively, measure the injector's resistance with a multimeter; a reading outside the 11-16 Ohm range indicates a bad injector.

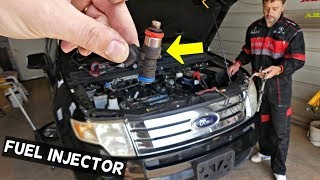

   Typical fix: Replace the faulty fuel injector. Since cylinder 1 is on the rear bank, this requires removing the upper intake manifold. It's also highly recommended to replace the upper intake gaskets at the same time and consider replacing all three rear injectors 🎬 See this walkthrough on replacing injectors and removing the manifold. to avoid future repeat labor.
   Est. part cost: $45-$150
2. Wiring Harness or Connector Issue 🟡 Medium Probability Engine vibration and heat can cause wires to break or chafe over time. The injector connector itself is a frequent point of failure; the plastic can become brittle and the locking tab can break, leading to a loose connection. Oil contamination can also degrade the connection.
   How to confirm: Visually inspect the wiring going to the cylinder 1 injector for any signs of damage, melting, or breaks. Check that the connector is securely plugged in and that the pins inside are clean and not bent. Use a 'noid light' to confirm the PCM is sending a pulse signal to the connector. 🎬 Watch: How to use noid lights to test injector signals. If the connector is broken, even if it seems seated, it may lose connection with vibration.
   Typical fix: Repair the damaged section of wire or, more commonly, replace the broken electrical connector pigtail. Clean any corrosion or oil from the injector pins.
   Est. part cost: $5-$30

Rare But Worth Checking

• Powertrain Control Module (PCM) Failure: → Shop Engine Control Module (ECM) This is the least likely cause. The internal driver circuit in the PCM that controls the injector can fail. This should only be considered after definitively ruling out the injector and wiring as the cause. 🎬 Watch: Diagnosing a rare PCM injector driver circuit failure. A mechanic with advanced diagnostic tools can verify if the PCM driver is functioning.
• Related Platform Power Issues (e.g., Fuel Pump Fuse): While not documented for the MKX specifically, other Ford platforms like the F-150 have a known issue (TSB 15-0137) where the fuel pump relay fuse can overheat and melt, causing a loss of fuel pressure that can trigger a variety of codes, including injector circuit faults like P0201. While the MKX fuse box is different, a problem with the fuel pump's power supply could be a rare, underlying cause.

Diagnosis Steps

1. Confirm the code with an OBD-II scanner.
2. Identify cylinder 1. It is on the rear bank (closest to the firewall), on the passenger side of the engine.
3. Visually inspect the wiring harness and electrical connector for the cylinder 1 fuel injector. Look for any obvious damage, corrosion, or loose connections. Pay close attention to the plastic locking tab on the connector, as they are known to become brittle and break.
4. If the wiring looks good, disconnect the injector and plug in a 'noid light'. Start the engine and check if the light flashes, which indicates the PCM is sending a signal. If it doesn't flash, the problem is in the wiring or PCM.
5. If the noid light flashes, the wiring is likely okay. The next step is to test the injector itself. Turn off the engine and use a multimeter set to Ohms (Ω) to measure the electrical resistance across the two pins on the fuel injector. A good injector should read between 11 and 16 Ohms. A reading of infinity (OL) means an open circuit, while a reading far outside the spec indicates a faulty coil.
6. A practical alternative to step 5 is to swap the cylinder 1 injector with another one on the same bank (e.g., cylinder 2). Clear the codes, start the engine, and see if the code returns. If you now have a P0202, you've confirmed the injector is the problem. If P0201 returns, the issue is in the wiring or PCM.
7. If both the wiring and injector are confirmed to be good, the problem may be a rare failure of the PCM's injector driver circuit, which requires professional diagnosis.

Parts You'll Likely Need

• Fuel Injector (3.7L, 2011-2015) (OEM #Motorcraft CM-5188 / Ford BR3Z-9F593-B) — This is the most common failure point for a P0201 code.
  Trusted brands: Motorcraft, Bosch
  OEM price range: $45-$60
  Aftermarket price range: $30-$50
• Fuel Injector (3.5L, 2007-2010) (OEM #Motorcraft CM-5165 / Ford 7T4Z-9F593-B) — This is the most common failure point for a P0201 code.
  Trusted brands: Motorcraft, Bosch
  OEM price range: $55-$70
  Aftermarket price range: $35-$55

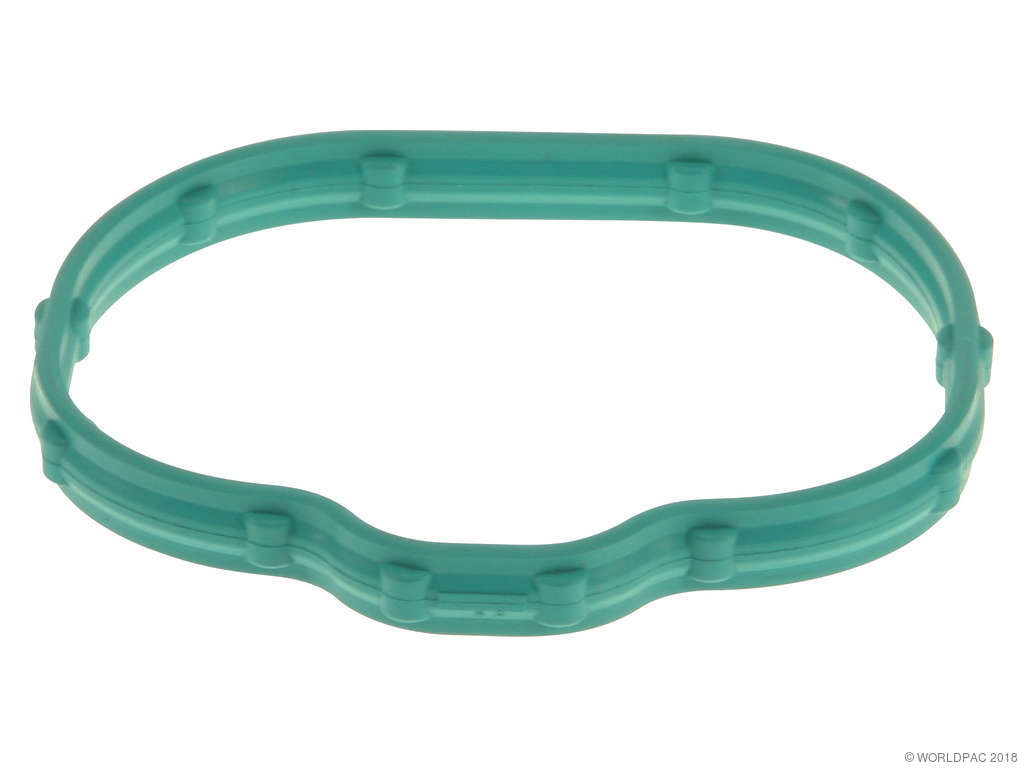

• Upper Intake Manifold Gasket Set (OEM #Fel-Pro MS 97118-1) — Required for reinstallation when replacing a rear bank fuel injector. The old gaskets should not be reused.
  Trusted brands: Fel-Pro, Motorcraft
  OEM price range: $25-$40
  Aftermarket price range: $20-$35
• Fuel Injector Connector Pigtail — Often needed if the original connector's locking tab breaks during removal.
  Trusted brands: Dorman, Motorcraft
  OEM price range: $15-$25
  Aftermarket price range: $8-$15

Related Codes That Often Appear With This One

• P0301 — P0301 means 'Cylinder 1 Misfire Detected'. Since the P0201 code indicates the injector for cylinder 1 isn't working, that cylinder can't combust fuel properly, leading directly to a misfire.
• P0171 — P0171 means 'System Too Lean (Bank 1)'. If the cylinder 1 injector is not firing, the oxygen sensor for Bank 1 (the rear bank) will detect excess oxygen in the exhaust, as no fuel was burned in that cylinder. This is a common accompanying code, as seen in owner forums.

Technical Service Bulletins (TSBs) & Recalls

• TSB 15-0137: While officially for 2009-2014 F-150s, this TSB addresses a crank/no-start or stall caused by an overheating fuel pump fuse (Fuse 27), which can log P0201-P0208 codes. While the MKX has a different fuse box layout, it highlights a potential electrical weakness in the fuel delivery power supply on related Ford platforms that could, in rare cases, be a root cause.

Platform-Specific Known Issues

• Broken Injector Connector Clips: Due to age and repeated heat cycles, the plastic retaining clips on the fuel injector electrical connectors become very brittle. It is extremely common for them to break upon removal. A repair video on a 2008 MKX showed a case where a previous mechanic had broken all six connectors and used zip-ties as a fix, which eventually led to a poor connection and injector fault codes. The correct repair is to splice in a new connector pigtail, not to rely on a zip-tie.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance (3.5L Engine, 2007-2010) — expected: 11.8 - 12.6 Ohms. Failure: A reading of infinity (OL) indicates an open circuit, while a reading significantly outside the specified range indicates a faulty coil.
• Fuel Injector Coil Resistance (3.7L Engine, 2011-2015) — expected: Approximately 12 Ohms (High Impedance). Failure: A reading of infinity (OL) or a value far from 12 Ohms suggests a bad injector.
• Injector Connector Voltage (Key On, Engine Off) — expected: ~12 Volts (Battery Voltage). Failure: A reading of 0 volts on the power supply wire (VPWR) indicates an open in the power circuit from the relay/fuse box.
• Injector Pulse Width (at idle) — expected: 1-5 milliseconds (ms). Failure: While a scan tool may not show a pulse width for a completely dead circuit, comparing the value for cylinder 1 to other cylinders can reveal inconsistencies if the fault is intermittent.

Scan Tool Commands That Help

• Ford IDS (or equivalent professional scanner): Power Balance Test — This test graphically displays the power contribution of each cylinder. When P0201 is active, the graph will show a significant drop for cylinder 1, confirming it is not contributing power. This is useful to quickly verify the fault's impact before starting a physical teardown.
• Ford IDS (or equivalent professional scanner): Injector Buzz Test / Actuator Test — This command allows the technician to manually fire each injector. You can listen for an audible 'click' from the cylinder 1 injector. If it doesn't click while others do, it points to a failure in the injector itself or its wiring. This should be used after a noid light test comes back negative to help differentiate between a wiring and PCM issue.

Wiring & Ground Locations

• Cylinder 1 Injector PCM Pin — On a 2013 F-150 with the 3.7L (a similar engine), the control wire for the cylinder 1 injector is a Tan wire located at Pin 52 of the PCM connector. This provides a specific point to test for continuity between the PCM and the injector connector.. If a noid light test fails but the injector has power, the break is in this specific control wire between the PCM and the injector. Testing continuity on this wire can definitively diagnose a broken wire, saving a costly PCM replacement.
• G100 / G103 — Located on the left side of the engine compartment.. These are primary grounds for components in the engine bay. A corroded or loose connection at these points can cause a variety of electrical issues, including intermittent voltage drops that could potentially trigger circuit codes like P0201.
• G101 — Located on the right rear of the engine.. This ground is physically close to the rear bank of cylinders where injector #1 is located. Verifying this ground is clean and tight is a crucial step when diagnosing any electrical fault on that side of the engine.

Real Owner Repair Stories

• YouTube channel 'White One Auto, LLC' (2008 Lincoln MKX 3.5L V6) — Rough running, multiple injector codes including P0201, P0202, and P0204.
  ❌ Tried (didn't work) Clearing the codes (they returned immediately).
  ✅ What actually fixed it The root cause was broken plastic locking tabs on multiple fuel injector connectors, including those on the rear bank. A previous mechanic had used zip-ties to secure them, but the connections were loose and intermittent. The final fix was to replace the brittle, broken connector pigtails with new ones to ensure a secure electrical connection.

OEM Part Supersession History

• BR3Z-9F593-B → Motorcraft CM-5188 — This is a standard part number supersession where the Motorcraft service part number (CM-5188) is the replacement for the original Ford engineering number (BR3Z-9F593-B).

Model Year Variations Within This Range

• 2007-2015: While the engines changed from 3.5L (2007-2010) to 3.7L (2011-2015), the fuel injector electrical connector type (USCAR EV6 style) appears to be consistent across the entire generation, meaning pigtail replacements are generally interchangeable.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0202 — Cylinder 2 Injector Circuit / Open. This code is often seen during diagnosis if you swap the potentially faulty cylinder 1 injector with the cylinder 2 injector. If the code changes from P0201 to P0202, it confirms the injector itself is bad.
• P0301 — Cylinder 1 Misfire Detected. A direct companion code to P0201; if the fuel injector circuit fails, the cylinder receives no fuel and will misfire.
• P0171 — System Too Lean (Bank 1). Often triggered alongside P0201 because the lack of fuel from the disabled cylinder 1 injector causes the oxygen sensors on the rear bank to read a lean exhaust condition.
• P0204 — Cylinder 4 Injector Circuit / Open. Can appear alongside P0201 if multiple injector connector clips have become brittle and broken, leading to widespread loose connections across the harness.
• P0208 — Cylinder 8 Injector Circuit / Open. Mentioned in related Ford TSB 15-0137, where an overheating fuel pump fuse can log a cascade of injector circuit codes from P0201 through P0208.
