P0202 on 2009-2010 Saturn Outlook: Injector Circuit Malfunction Causes & Fixes

What's Unique About the 2009-2010 Saturn OUTLOOK

The 2009-2010 Saturn Outlook uses a 3.6L V6 engine shared with the Chevrolet Traverse, GMC Acadia, and Buick Enclave. A GM Technical Service Bulletin (TSB #PIP4924D) covers these vehicles and lists a wide array of injector circuit codes, including P0202. This TSB points to a known issue with the fuel injector wiring harness rubbing through or having internal wire opens. Specific chafe points to inspect are where the harness may contact the intake plenum, valve cover bolts, or fuel lines. This makes a thorough wiring inspection a critical diagnostic step on this platform before replacing parts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on (may be flashing)
• Rough or unstable idle
• Engine misfire, which may feel like a shake or stumble
• Hesitation or loss of power during acceleration
• Reduced fuel economy
• Engine may be difficult to start or stall

Most Likely Causes

1. Faulty Fuel Injector (Cylinder 2) 🔴 High Probability → Shop Fuel Injector Injectors are wear-and-tear components. The internal electronic coil can fail over time, creating an open or short circuit. This is a common failure on the 3.6L V6.
   How to confirm: Test the injector's resistance with a multimeter. For the 3.6L LLT direct injection engine, a good injector should have a resistance between 1.5 and 2.5 Ohms. An 'OL' or infinite reading means the coil is open. Alternatively, swap the cylinder 2 fuel injector with one from another cylinder (e.g., cylinder 4). If the trouble code changes to P0204, the injector is confirmed to be faulty.
   Typical fix: Replace the failed fuel injector. Since the intake manifold must be removed, many owners elect to replace all three front injectors or all six at once.
   Est. part cost: $128-$175
2. Wiring Harness Issue (Chafing or Open Circuit) 🟡 Medium Probability A manufacturer TSB (#PIP4924D) specifically calls out the potential for the fuel injector wiring harness to rub against the intake plenum, valve cover bolts, or fuel lines, causing a short or open circuit. Wires can also break internally without visible damage.
   How to confirm: Visually inspect the wiring harness leading to the cylinder 2 fuel injector for any signs of rubbing, melting, or corrosion. Perform a 'wiggle test' by shaking the harness while the engine is running to see if it induces a misfire. Perform a continuity test with a multimeter from the injector connector back to the PCM connector to check for breaks in the wire.
   Typical fix: Repair the damaged section of the wire or replace the entire fuel injector harness if damage is extensive.
   Est. part cost: $5-$50 for wire repair, $150+ for a new harness
3. Poor Connection at the Injector ⚪ Low Probability Engine vibration and heat cycles can cause the electrical connector to become loose or the pins to corrode over time.
   How to confirm: Disconnect the connector for the cylinder 2 injector and inspect for corrosion or bent pins. Re-seat the connector firmly. Use a noid light to test for a pulse signal at the connector while cranking the engine.
   Typical fix: Clean the connector pins or replace the connector pigtail if it's damaged. Common pigtails include ACDelco PT2160 or Standard Motor Products S-1024.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is the least likely cause. The internal driver circuit for the injector can fail, but all other possibilities, especially wiring and the injector itself, should be exhaustively ruled out before considering PCM replacement.
• Corroded Ground Connection: If multiple injector codes for the same cylinder bank are present (e.g., P0202, P0204, P0206), a single corroded ground point for that bank on the cylinder head could be the cause. A user on the ScannerDanner forum traced this exact issue on a related GM 3.6L engine to a wiring problem near the under-hood fuse box.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0202 is present and note any other codes, especially P0302 or other injector codes.
2. Locate cylinder #2 on the 3.6L V6 engine. It is the middle cylinder on the front bank (the bank closer to the radiator), which is on the driver's side of the transverse-mounted engine.
3. Visually inspect the wiring and connector going to the cylinder 2 fuel injector. Look for obvious signs of damage, chafing, or loose connections, paying close attention to where the harness runs near the intake, valve cover bolts, and fuel lines.
4. Test for a signal at the injector connector using a noid light. The light should flash when the engine is cranked or running. If it flashes, the wiring and PCM driver are likely okay, pointing to a bad injector.
5. If the noid light does not flash, test the injector's internal resistance using a multimeter. Disconnect the injector and measure across its two pins. Compare the reading to the manufacturer's specification of approximately 1.5-2.5 Ohms for the direct injection engine. A reading of 'OL' (open) or near zero indicates a failed injector.

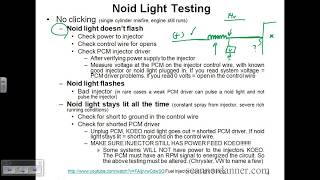

6. If the injector's resistance is good but the noid light doesn't flash, perform a continuity test on the wiring between the injector connector and the PCM to find any breaks or shorts. 🎬 Watch: How to test the injector circuit with a meter. Perform a 'wiggle test' on the harness with the engine running to see if the misfire changes, which can indicate an internal wire break.
7. As a final confirmation for a bad injector, swap the cylinder 2 injector with another one (e.g., cylinder 4). Clear the codes and run the engine. If the code returns as P0204, the injector is faulty.
8. If the code remains P0202 after the swap, the problem is in the wiring or the PCM. If multiple injector codes for the same bank are present, locate and inspect the main ground connection for that cylinder bank.

Parts You'll Likely Need

• Fuel Injector (OEM #12669384 (replaces 12638530, 12632255, 12611545)) — This is the most common failure point for a P0202 code. The internal electronics of the injector fail, causing an open or shorted circuit.
  Trusted brands: ACDelco
  OEM price range: $128-$175
  Aftermarket price range: $70-$120
• Fuel Injector Connector Pigtail (OEM #ACDelco PT2160 or Standard Motor Products S-1024) — If the connector itself is damaged, corroded, or the locking tab is broken, replacing the pigtail is necessary to ensure a solid electrical connection.
  Trusted brands: ACDelco, Standard Motor Products (SMP), Dorman
  OEM price range: $25-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0302 — P0302 means 'Cylinder 2 Misfire Detected'. Since the P0202 code indicates the cylinder 2 injector isn't firing correctly, that cylinder will not have proper combustion, directly causing a misfire.
• P0201, P0203, P0204, etc. — If multiple injector circuit codes are present at once, it strongly points to a common wiring harness problem or a ground issue, as suggested by TSB PIP4924D and confirmed in owner forums.

Technical Service Bulletins (TSBs) & Recalls

• PIP4924D: Warns of potential misfires and various injector DTCs (P0201-P0206, etc.) due to the fuel injector wiring harness rubbing through or having internal wire opens.

Platform-Specific Known Issues

• TSB #PIP4924D indicates a known problem with the fuel injector wiring harness, which can rub against other components like the intake plenum, valve cover bolts, or fuel lines, causing various injector circuit codes, including P0202.

Mechanic-Grade Diagnostic Values

• Direct Fuel Injector Resistance — expected: 1.5 - 2.5 Ohms. Failure: A reading of infinity (OL) indicates an open coil; a reading near zero indicates a shorted coil.
• Injector Connector Voltage (Key On, Engine Off) — expected: 12.0 V ± 0.5 V. Failure: A deviation greater than 0.2V from battery voltage can indicate a wiring fault on the power supply side.
• Scan Tool 'Fuel Injector Balance Test' Pressure Drop — expected: Pressure drop should be within 1.5 PSI (10 kPa) of the average of the other injectors.. Failure: A pressure drop significantly different from other cylinders indicates a clogged or malfunctioning injector.
• High-Pressure Fuel System (at operating temperature) — expected: Can reach up to 1,740 - 2,000 PSI, depending on engine load.. Failure: This is a system-level value; low high-side pressure would typically set other codes (e.g., P0087) but provides context for the direct injection system.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Fuel Injector Balance Test — To test the mechanical operation of an injector after its electrical integrity is confirmed. The tool commands a single injector pulse and measures the resulting drop in fuel rail pressure. An inconsistent drop compared to other cylinders points to a faulty or clogged injector.
• GDS2 (GM Global Diagnostic System 2): Active Fuel Injector Tester (AFIT) — This is an automated, dealer-level diagnostic function that performs a comprehensive electronic and pressure-based test of the injectors without removing them from the engine, checking for electrical faults, leaks, and flow restrictions.

Wiring & Ground Locations

• G101 — Left side of the engine compartment, on the left frame rail.. This is a primary ground location for the Engine Control Module (ECM). A poor connection here could cause a variety of engine control issues, including erratic injector behavior.
• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This ground serves multiple components, including the Body Control Module (BCM) and the Data Link Connector (DLC). While not a direct injector ground, a fault here can cause communication issues that complicate diagnosis.
• G112 / G114 — G112 is at the rear of the engine, mounted to the rear of the cylinder head. G114 is at the left rear of the engine.. Grounds located directly on the cylinder heads or engine block are critical for the fuel injectors and ignition coils. Corrosion or looseness at these points can cause misfires and injector circuit codes for an entire bank of cylinders.
• Injector #2 Control Wire — Runs from the ECM connector to pin 2 of the fuel injector #2 connector. On similar GM V6 platforms, this is pin 37 in the X1 (black) ECM connector.. This is the specific wire the ECM grounds to fire the injector. A continuity test must be performed on this wire between the ECM and the injector if a noid light test fails.

Real Owner Repair Stories

• acadiaforum.net (2011 GMC Acadia 3.6L V6) — Check Engine Light with codes P0264 (Injector Circuit Low Cyl 2) and P0302 (Misfire Cyl 2).
  ❌ Tried (didn't work) Initial diagnosis suggested a bad fuel injector.
  ✅ What actually fixed it A technician performed a 'wiggle test' on the wiring harness while the engine was running and found a spot that would induce the misfire. The cause was a broken wire inside the insulation, with no visible external damage, consistent with the issue described in TSB PIP4924D.
• ScannerDanner Forum (2008 GMC Acadia 3.6L V6) — Engine misfire with codes for the entire front bank of injectors (P0202, P0204, P0206).
  ❌ Tried (didn't work) Testing individual injectors and their immediate connectors.
  ✅ What actually fixed it The root cause was a wiring harness problem near the under-hood fuse box. The technician confirmed this by pulling up on the harness, which caused the engine to stumble and the misfires to occur. This indicates a fault in a common power or ground wire for that injector bank, far from the injectors themselves.

When the Usual Fixes Don't Work

• While a faulty fuel injector is a very common cause for P0202, real-world technician accounts for the GM 3.6L platform frequently prove the ultimate cause to be a wiring failure, as noted in TSB PIP4924D. In one documented case on a platform-mate GMC Acadia, codes P0202, P0204, and P0206 were all present, pointing away from a single injector failure. The problem was ultimately traced to a faulty section of the wiring harness near the fuse box, not the injectors or a main engine ground. This demonstrates that even with a single code like P0202, a wiring harness inspection should be considered a primary diagnostic step, not just an afterthought.

OEM Part Supersession History

• 12611545, 12632255, 12638530 → 12669384 — Standard part evolution for design improvements, manufacturing process changes, or supplier changes.
  Heads up: All listed part numbers are interchangeable, with 12669384 being the latest service replacement for the 2009-2010 Outlook.
