P0204 on 2021-2022 Cadillac Escalade: Injector Circuit Malfunction Causes & Fixes

What's Unique About the 2021-2022 Cadillac ESCALADE

For the 2021-2022 Escalade and its platform-mates with the 3.0L LM2 diesel engine, General Motors has issued Technical Service Bulletin (TSB) #22-NA-087. While the bulletin's primary example may be cylinder #2, it explicitly covers the full range of injector codes from P0201 to P0206. 🎬 Watch: How to fix injector circuit codes on GM vehicles The cause is identified as a potential broken terminal pin inside the injector harness connector. Additionally, TSB #21-NA-149 points out specific areas where the engine harness can chafe against chassis components on both the 6.2L V8 and 3.0L diesel, causing shorts or open circuits. These bulletins indicate known weaknesses, making wiring and connector issues a primary suspect alongside a failed injector.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (MIL) is on or flashing
• Rough or shaking idle
• Engine misfire, which may feel like a stumble or hesitation during acceleration.
• Reduced engine power and poor acceleration.
• Decreased fuel economy.
• Rough running engine.
• Dashboard messages such as 'Reduced Acceleration', 'Service ESC', or 'Service Emission System'.

Most Likely Causes

1. Faulty Cylinder 4 Fuel Injector 🔴 High Probability → Shop Fuel Injector Fuel injectors are wear-and-tear components that can fail electrically (coil burnout) or mechanically (clogging). GM TSBs for this platform recommend replacing the injector along with the harness, indicating a known failure rate for the part itself.
   How to confirm: Use a multimeter to check the injector's resistance. For the 6.2L L87 gas engine, the spec is very low, around 1.5-2.2 Ω. For the 3.0L LM2 diesel (piezo-style), it is much higher, around 160k-190k Ω. A definitive test is to swap the cylinder 4 injector with an adjacent one (e.g., cylinder 2). If the code changes to P0202, the injector is bad.
   Typical fix: Replace the faulty fuel injector. For the 3.0L diesel, the flow rate from the new injector must be programmed into the ECM. It's often recommended to replace the seals at the same time.
   Est. part cost: $80-$250
2. Wiring Harness or Connector Issue 🔴 High Probability GM TSB #22-NA-087 specifically identifies a broken terminal pin within the injector harness connector as a cause for this code on the 3.0L Diesel. TSB #21-NA-149 details multiple chafe points where the main harness can rub against the ECM bracket, upper control arm, or PCV hose clamp. Vibration can also cause 'fretting corrosion' (a fine, dark dust) at the connector, leading to high resistance and an intermittent connection.
   How to confirm: Visually inspect the wiring harness leading to the cylinder 4 injector for chafing, melting, or being pinched. Unplug the connector and check for corrosion, bent/broken pins, or dark dust from fretting. Perform a 'wiggle test' on the connector with the engine running to see if it induces a misfire. Use a noid light to confirm the ECM is sending a pulse signal to the injector connector.
   Typical fix: Repair the damaged section of the wiring harness or replace the pigtail connector. In cases identified by TSB #22-NA-087, the entire injector wiring harness is replaced along with the injector.
   Est. part cost: $20-$150

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is the least likely cause. The injector driver circuit within the ECM can fail, but all other possibilities (injector, wiring) should be exhaustively ruled out before condemning the expensive ECM.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0204 and note any other codes present.
2. Visually inspect the cylinder 4 fuel injector wiring harness and connector. Look for obvious signs of damage, such as chafed wires, melting, or loose connections. Pay close attention to the chafe points identified in TSB #21-NA-149 (near ECM bracket, control arms).
3. Disconnect the injector connector and inspect the terminals for corrosion, damage, or a fine black dust indicative of fretting corrosion.
4. With the engine running, carefully perform a 'wiggle test' on the injector connector and nearby harness to see if it causes the misfire to start or stop. This can quickly identify a poor connection.
5. Use a noid light to test for an electrical pulse at the injector connector. With the engine running, the light should flash steadily, indicating the ECM is sending a signal. If it does not flash, the problem is in the wiring or the ECM.
6. If the noid light flashes, the problem is likely the fuel injector itself. Turn off the engine and disconnect the injector. Measure its internal resistance with a multimeter. Compare the reading to the manufacturer's specification (approx. 1.5-2.2 Ω for 6.2L Gas, 160k-190k Ω for 3.0L Diesel). An out-of-spec reading confirms a failed injector.
7. If the injector tests good but there was no pulse on the noid light, check for continuity on the wiring between the injector connector and the ECM. Repair any open or shorted wires.
8. If the injector and wiring are both confirmed to be good, the issue may lie with the ECM, which is a rare but possible failure.

Parts You'll Likely Need

• Fuel Injector (6.2L V8) (OEM #12710481) — This is the most common failure part that directly causes a P0204 code on the gasoline engine.
  Trusted brands: ACDelco (GM OE), GB Remanufacturing
  OEM price range: $80-$120
  Aftermarket price range: $40-$90
• High Pressure Diesel Fuel Injector (3.0L Diesel) (OEM #55506244) — This is the corresponding injector for the diesel engine, which can fail and is also implicated in TSB #22-NA-087.
  Trusted brands: ACDelco (GM OE)
  OEM price range: $180-$250
  Aftermarket price range: $110-$180
• Fuel Injector Wiring Harness (3.0L Diesel) (OEM #55513485 (Superseded by 40009605)) — TSB #22-NA-087 recommends replacing the harness along with the injector for certain conditions on the diesel engine due to known connector pin issues. Part number 40009605 is the updated replacement.
  Trusted brands: ACDelco (GM OE)
  OEM price range: $50-$100
  Aftermarket price range: N/A

Related Codes That Often Appear With This One

• P0304 — P0304 means 'Cylinder 4 Misfire Detected.' Since P0204 indicates a fault in the fuel delivery for cylinder 4, a misfire is the direct result.
• P0201, P0202, P0203, P0205, P0206 — These are circuit codes for other cylinders. Their presence alongside P0204 could suggest a more widespread wiring harness issue (like chafing) or a problem with a shared power/ground circuit, as mentioned in TSB #22-NA-087.
• P0216 — This code relates to 'Injector/Injection Timing Control Circuit.' It is also mentioned in TSB #22-NA-087 and can appear with other injector codes if there is a harness issue on the 3.0L Duramax.
• P0300 — P0300 means 'Random/Multiple Cylinder Misfire Detected.' This can occur if the wiring fault is intermittent or if the initial P0204 issue causes general engine instability.

Technical Service Bulletins (TSBs) & Recalls

• 22-NA-087: Addresses a Malfunction Indicator Lamp (MIL) with DTCs P0201-P0206 and/or P0216, potentially caused by a broken terminal pin in the injector harness connector on 3.0L LM2 engines. The fix involves replacing the fuel injector and wiring harness.
• 21-NA-149: Details multiple engine wiring harness chafe points that can cause a variety of DTCs, including P0201-P0206, on vehicles with L87, LM2, and other engines.

Platform-Specific Known Issues

• TSB #22-NA-087: General Motors issued this bulletin for 2021-2022 Escalades (and other trucks/SUVs with the 3.0L LM2 diesel) for a Malfunction Indicator Lamp with various injector codes, including P0204. The cause may be a broken terminal pin inside an injector harness connector, and the fix involves replacing the affected fuel injector and its wiring harness.
• TSB #21-NA-149: This bulletin applies to both the 6.2L V8 and 3.0L Diesel engines and identifies specific locations where the engine wiring harness is prone to chafing. For the LM2, this includes on top of the generator and on a PCV hose clamp. For the L87, this includes the corner of the cylinder head and the ECM/TCM bracket.
• Injector Connector Fretting: Beyond the TSBs, a common real-world failure is fretting corrosion at the injector pigtail connector, especially on cylinder 4. This is caused by micro-vibrations creating high resistance. The fix is often to replace just the pigtail connector, which is much cheaper than replacing the whole harness.

Mechanic-Grade Diagnostic Values

• 6.2L L87 Gas Fuel Injector Resistance — expected: 1.5 - 2.2 Ω. Failure: A reading of infinity (open circuit), near zero (short circuit), or a value significantly different from other injectors on the engine.
• 3.0L LM2 Diesel Fuel Injector Resistance — expected: 160k - 190k Ω (160,000 - 190,000 Ohms). Failure: A reading outside this range, or an open circuit (infinite resistance), indicates a faulty piezo stack in the injector.
• Injector Circuit Voltage (Key On, Engine Off) — expected: Each of the two pins at the injector connector should have a specific voltage. One pin is the control circuit from the ECM, the other is a shared voltage supply.. Failure: Absence of voltage on the supply pin points to a fuse or main harness issue. Absence of a signal on the control pin when tested with a noid light during cranking points to a wiring or ECM fault.

Scan Tool Commands That Help

• GDS2 (GM Diagnostic Software): Fuel Injector Balance Test — This function allows a technician to individually fire each injector while monitoring fuel rail pressure drop. If cylinder 4 shows a significantly different pressure drop than the others, it confirms a flow issue with that injector (either clogged or failing mechanically). This is used to confirm a bad injector when electrical tests are inconclusive.
• GDS2 (GM Diagnostic Software): Cylinder Power Balance / Misfire Counters — While diagnosing a rough idle or intermittent issue, a technician will monitor the live misfire counters for each cylinder. This helps confirm that cylinder 4 is the source of the misfire that corresponds with the P0204 code. It is also used to verify the repair after a fix has been implemented.
• GDS2 (GM Diagnostic Software): Injector Coding / Flow Rate Programming (LM2 Diesel) — This is a mandatory step after replacing a fuel injector on the 3.0L LM2 Duramax engine. Each new injector has a specific flow rate code printed on it, which must be programmed into the ECM to ensure proper fueling and engine performance.

Wiring & Ground Locations

• K20 Engine Control Module (ECM) — Located in the engine bay, typically on the driver's side.. The K20 ECM is the brain of the operation. It sends the signal to fire the fuel injectors. The control wire for the cylinder 4 injector originates from a specific pin at one of the ECM's connectors.
• Cylinder 4 Injector Control Pin — On the K20 ECM, the control circuit for fuel injector 4 is typically a Brown/Yellow wire. On some diagrams, it is listed at Pin 4 of the X2 connector. Technicians test for continuity from this pin to the injector connector to rule out a broken wire.. This is the specific wire and pin that controls the cylinder 4 injector. A break or short-to-ground anywhere along this wire will cause a P0204. Knowing the pin number and wire color is critical for targeted electrical testing.
• Engine Block / Cylinder Head Grounds — There are multiple ground straps and points on the engine. One critical ground is often located on the back of a cylinder head, near the firewall.. While not directly part of the injector circuit, a poor engine ground can cause all sorts of electrical havoc, including erratic sensor readings and module behavior. The ECM and its sensors rely on a clean ground reference. While less likely to cause a single-cylinder code, it's a common check for persistent, hard-to-diagnose electrical issues.

Real Owner Repair Stories

• Reddit user, r/gmcsierra (2021 GMC Sierra with 3.0L LM2 engine, 115,000 miles) — Check engine light with codes P0204 and P0304. Truck went into limp mode.
  ❌ Tried (didn't work) Applying dielectric grease to the connector provided only a temporary fix.
  ✅ What actually fixed it The entire fuel injector harness was replaced. The owner noted the #4 injector connector is located directly under the hot EGR pipe, which likely contributed to the connection loosening over time. The new harness (costing about $40) resolved the issue.

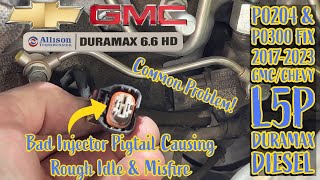

• YouTube channel 'Calibrated Power Solutions' (High-mileage (180k) 2017+ L5P Duramax (platform relative)) — Intermittent or dead misfire with codes P0204, P026D (Injection Timing), and P0300.
  ❌ Tried (didn't work) Replacing the #4 fuel injector did not fix the problem.
  ✅ What actually fixed it The problem was identified as a loose pin inside the pigtail connector for the #4 fuel injector. The pin had opened up, causing a loss of continuity. The fix was to either replace the pigtail or simply crimp the pin down slightly to restore a tight connection.

OEM Part Supersession History

• 55513485 → 40009605 — This is the Fuel Injector Wiring Harness for the 3.0L LM2 Diesel. The part has been superseded multiple times, with 40009605 being the current replacement. This often indicates that GM made revisions to the part to improve durability or correct a known issue, such as the terminal pin problem cited in TSB #22-NA-087.
