P0204 on 2021 Cadillac Escalade: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2021-2021 Cadillac ESCALADE NA

For the 2021 Escalade and its platform siblings (like the Tahoe, Suburban, and Yukon), a P0204 code is specifically addressed by multiple manufacturer Technical Service Bulletins (TSBs), including #21-NA-149 and #22-NA-087. This indicates that General Motors has identified a widespread pattern of issues with both the fuel injectors themselves and, more critically, the engine wiring harnesses on these vehicles. The problem is often caused by the harness chafing against engine or chassis components, leading to an open or shorted wire. This makes a wiring fault a higher probability than on many other vehicles and a critical first inspection point before replacing parts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light illuminated
• Rough idle or engine running rough
• Engine misfire, which may feel like a stumble or hesitation
• Reduced engine power and poor acceleration
• Decreased fuel economy
• Prolonged crank time before the engine starts.

Most Likely Causes

1. Damaged Fuel Injector Wiring Harness or Connector 🔴 High Probability → Shop Engine Wiring Harness TSB #21-NA-149 specifically details multiple locations where the engine harness can chafe on the 6.2L L87, including against the ECM bracket, cylinder head, and other components, causing shorts or open circuits. TSB #22-NA-087 also points to wiring issues. Forum users on related platforms have found harnesses pinched by the transmission bell housing, causing intermittent P0204 codes.
   How to confirm: Visually inspect the wiring harness leading to the cylinder 4 injector (second cylinder from the front on the passenger side) for any signs of melting, chafing, or breaks, paying close attention to contact points with brackets and engine parts. Check that the connector is securely plugged in and free of corrosion or backed-out pins. Use a multimeter to check for continuity between the ECM and the injector connector.
   Typical fix: If the connector is damaged, replace the connector pigtail. 🎬 Watch: A quick roadside guide to replacing the #4 injector connector. If the wire is broken or chafed, repair the damaged section using proper splicing techniques and protect it with high-temperature wire loom or anti-abrasion tape. Reroute the harness slightly to prevent future contact.
   Est. part cost: $15-$75
2. Faulty Fuel Injector (Cylinder 4) 🔴 High Probability → Shop Fuel Injector A GM Technical Service Bulletin (#22-NA-087) and Preliminary Information Bulletin (PIP5891C) identify faulty fuel injectors as a primary cause for this code on this platform, indicating a known higher-than-average failure rate. Owner forums are filled with reports of low-mileage injector failures.
   How to confirm: Swap the cylinder 4 fuel injector with an injector from another cylinder (e.g., cylinder 2). Clear the codes and run the engine. If the code changes to P0202, the injector is confirmed to be faulty. Alternatively, check the injector's resistance with a multimeter; for the L87 GDI injector, it should be very low, around 1.5-2.2 Ω.

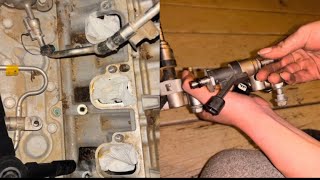

   Typical fix: Replace the faulty fuel injector. 🎬 Watch: A step-by-step walkthrough of the fuel injector replacement process. It is often recommended to replace all injectors on the bank or all eight at once, especially on higher mileage vehicles. Due to the high-pressure direct injection system, this is more involved than on older port-injected engines.
   Est. part cost: $150-$400

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. The PCM's internal injector driver can fail, but all wiring and the injector itself should be exhaustively tested before considering PCM replacement, as it is expensive and requires programming.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner and confirm P0204 is present. Note any other codes, especially P0304 or other P020x codes.
2. Locate cylinder 4. On the 6.2L L87 V8, the cylinders are numbered 1-3-5-7 on the driver's side (front to back) and 2-4-6-8 on the passenger's side. Cylinder 4 is the second one from the front on the passenger side.
3. Perform a thorough visual inspection of the engine wiring harness, especially the section running to the passenger-side fuel rail. Look for chafing against the ECM bracket, cylinder head corners, and transmission bell housing area as noted in TSB #21-NA-149.
4. Use a 'noid light' to test the injector signal. Unplug the injector, plug in the noid light, and start the engine. The light should flash steadily, indicating the ECM is sending a pulse. If it doesn't flash, the problem is in the wiring or ECM. If it flashes, the injector is the most likely problem.
5. To definitively test the injector, perform an injector swap. Exchange the cylinder 4 injector with the one from cylinder 2. Clear the codes and drive the vehicle. If the code returns as P0202, the injector is faulty. If P0204 returns, the issue is in the wiring or ECM.
6. If wiring is suspected, use a multimeter to check the resistance of the fuel injector (should be ~1.5-2.2 Ohms for the L87). Then, check for continuity on the two wires from the injector connector back to the ECM connector to rule out a wire break. Also check for shorts to ground or power.

Parts You'll Likely Need

• Fuel Injector (OEM #ACDelco 12710481 (may be superseded by 12742701)) — This is one of the two most common failure points for a P0204 code, as identified by GM's own service bulletins and widespread owner reports.
  Trusted brands: ACDelco, Bosch, Standard Motor Products
  OEM price range: $140-$250
  Aftermarket price range: $80-$150
• Fuel Injector Connector Pigtail — The connector itself or the wiring directly attached to it can become damaged from heat, vibration, or chafing, requiring a new pigtail to be spliced into the harness.
  Trusted brands: ACDelco, Dorman
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0304 — P0304 means "Cylinder 4 Misfire Detected." Since P0204 indicates a problem with the fuel supply to cylinder 4, a misfire is a direct symptom and result of the injector circuit fault.
• P0300 — This code for 'Random/Multiple Cylinder Misfire' can appear if the wiring harness damage is intermittent or if the failing cylinder is significantly impacting engine balance.
• P0201, P0202, P0203, P0205, P0206 — If the main wiring harness is chafing, it can damage the circuits for multiple injectors at once, leading to several injector circuit codes being stored simultaneously. This strongly points to a harness issue rather than multiple simultaneous injector failures.

Technical Service Bulletins (TSBs) & Recalls

• 22-NA-087: Malfunction Indicator Lamp (MIL) Illuminated with DTC P0201, P0202, P0203, P0204, P0205, P0206 and/or P0216 Set. This bulletin identifies a faulty fuel injector and/or wiring harness as the cause, particularly on the 3.0L Diesel.
• 21-NA-149: Malfunction Indicator Lamp (MIL) Illuminated with Various DTCs Set. This bulletin is critical as it details multiple specific locations on the T1 platform (including L87 engines) where the engine wiring harness can chafe and short out, causing injector circuit codes.

Platform-Specific Known Issues

• A specific version of TSB #22-NA-087 for the 3.0L LM2 Diesel engine variant of the 2021 Escalade notes that a broken terminal pin inside the #2 injector harness connector can cause various injector codes, including P0204. The prescribed fix is to replace both the fuel injector and the injector wiring harness.
• TSB #21-NA-149 is highly relevant for the 6.2L L87 engine, as it provides diagrams of specific points where the main engine harness is known to rub through against brackets and other components, causing a variety of DTCs including the P020x series.

Mechanic-Grade Diagnostic Values

• Fuel Injector Internal Resistance (6.2L L87 GDI) — expected: 1.5 - 2.2 Ω. Failure: A reading of infinity (O.L.) indicates an open coil, near zero indicates a short, and a significantly higher reading (e.g., 40 Ω) indicates a faulty injector.
• Injector Circuit Wire Continuity — expected: < 0.5 Ω. Failure: A reading of O.L. (Open Line) or significantly higher resistance indicates a break in the wire between the ECM and the injector connector.
• High-Pressure Fuel System (Operating) — expected: Up to 150 bar (2,175 psi). Failure: This is a system characteristic. While a major deviation could indicate a pump issue, it would not typically cause a single injector circuit code like P0204.
• Low-Pressure Fuel System (Key On, Engine Off) — expected: 48 - 52 psi. Failure: Pressure below this range suggests a problem with the in-tank fuel pump, which would typically affect all cylinders, not just one.
• Injector Pulse Width at Idle (Scan Tool Data) — expected: ~3.4 milliseconds. Failure: A significant deviation or erratic value for cylinder 4 compared to other cylinders points to a control or injector problem.

Scan Tool Commands That Help

• GM GDS2 (Global Diagnostic System 2): Fuel Injector Balance Test — This is a powerful bidirectional control that commands each injector to fire for a set duration and measures the resulting fuel pressure drop in the rail. It can confirm if an injector is mechanically stuck, clogged, or not firing, helping to differentiate a bad injector from a wiring issue without physically removing parts.
• GM GDS2 (Global Diagnostic System 2): Cylinder Power Balance — This function graphically displays the contribution of each cylinder to engine speed. A cylinder with a faulty injector circuit will show a significant drop in contribution compared to the others, helping to confirm the location of the misfire associated with P0204.

Wiring & Ground Locations

• G101 — Typically located on the lower front of the engine block.. This is a primary ground for the Engine Control Module (ECM). A poor connection here can cause a host of erratic engine management issues, including faulty sensor readings and incorrect driver operations for components like fuel injectors.
• G104 — Often located on the rear of the passenger-side cylinder head.. This ground is often shared by multiple engine sensors and components. A loose or corroded G104 can create a floating ground, leading to intermittent and difficult-to-diagnose electrical faults in associated circuits.
• Injector Harness Chafe Points (per TSB #21-NA-149) — Against the ECM/TCM bracket, corners of the cylinder head cover, driver-side upper control arm, and shock tower bolt.. These are the specific, manufacturer-identified weak spots where the injector wiring is known to rub through and cause an open or short in the circuit, directly leading to a P0204 code.

Real Owner Repair Stories

• YouTube video '2022 Silverado P0204 "fuel injector circuit malfunction"' (2022 Chevrolet Silverado (T1 Platform, L87 Engine)) — Check Engine Light with code P0204.
  ✅ What actually fixed it The technician tested the cylinder 4 injector's resistance and found it was 40 ohms, far outside the 1-3 ohm specification. Replacing the single faulty fuel injector resolved the code.
• YouTube video by 'TDS Motorsports & Home DIY' (2017+ Duramax L5P (Similar connector design and failure mode)) — Reduced Engine Power message, engine shaking, speed limited to 55 mph, P0204 and P0300 codes.
  ❌ Tried (didn't work) Initial diagnosis often points to the injector itself.
  ✅ What actually fixed it The pigtail connector for the #4 fuel injector was faulty due to heat and vibration. The fix was to cut off the old connector and splice a new pigtail onto the engine harness, which resolved all symptoms.

OEM Part Supersession History

• 12710481 → 12742701 — Likely a reliability improvement to address a known failure pattern, as the new part number consolidates several previous part numbers.

Model Year Variations Within This Range

• 2021+: The primary wiring harness chafing issue, documented in TSB #21-NA-149, was not resolved in the 2021 model year. The bulletin was later updated to include 2022 and 2023 models, confirming the design flaw persisted across the T1 platform SUVs for several years.
