P0204 on 2009-2010 Saturn VUE: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2009-2010 Saturn VUE

The 2009-2010 Saturn VUE is a GM platform vehicle, sharing engines (2.4L, 3.5L, 3.6L) and electronics with models like the Chevy Equinox and GMC Terrain. A GM Technical Service Bulletin (TSB) from 2014, #PIP4924D, specifically mentions P0204 along with other injector codes for engine misfire issues. This TSB, and others like it for similar GM vehicles, points to a known pattern of wiring harness chafing against engine components or terminal fretting (vibration-induced wear) inside the injector connector itself. While a simple injector failure is possible, this known weakness means a thorough wiring and connector inspection is critical before replacing parts.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (or Service Engine Soon light) is on.
• Engine misfire, which may feel like a shake or stumble, especially at idle.
• Rough running engine.
• Reduced engine power and poor acceleration.
• Decreased fuel economy.
• Raw fuel smell from the exhaust.

Most Likely Causes

1. Faulty Fuel Injector 🔴 High Probability → Shop Fuel Injector Injectors are a common wear item. The internal solenoid coil can fail, causing an open or shorted circuit. This is a frequent point of failure after 80,000-150,000 miles.
   How to confirm: Measure the injector's resistance with a multimeter. For the 2.4L Ecotec engine, the spec is 11-14 ohms. For the 3.5L/3.6L V6 engines, the spec is typically around 12-15 ohms. A reading outside this range indicates failure. An easier test is to swap the cylinder 4 injector with another one (e.g., cylinder 2). Clear the codes and run the engine. If the code changes to P0202, the injector is faulty.
   Typical fix: Replace the faulty fuel injector. It is recommended to replace the small O-ring seals at the same time.
   Est. part cost: $50-$150
2. Damaged Wiring or Connector 🔴 High Probability TSB #PIP4924D and extensive owner reports on platform mates confirm the engine wiring harness is prone to chafing against the intake manifold, cylinder head, or other brackets, causing wires to break. Engine vibrations can also cause the metal terminals inside the plastic connector to loosen or corrode ('fretting'), creating high resistance.
   How to confirm: Visually inspect the wiring harness going to the cylinder 4 injector for any signs of rubbing, melting, or corrosion. Disconnect the connector and check for a pulse signal with a noid light while cranking the engine. If there's no pulse, test the wiring for continuity between the ECM and the connector. Wiggle the harness during testing to expose intermittent breaks.

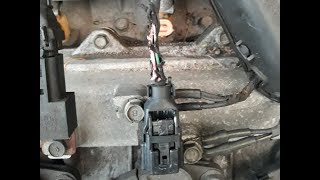

   Typical fix: Repair the broken wire or replace the injector connector pigtail. 🎬 See this walkthrough on replacing a damaged injector connector. Use of abrasion-resistant tape, like PET woven polyester tape, is recommended for repairs.
   Est. part cost: $15-$40
3. Engine Control Module (ECM) Failure ⚪ Low Probability → Shop Engine Control Module (ECM) While less common, the internal driver circuit in the ECM that controls the injector can fail. This is more likely if multiple injector codes (e.g., P0201, P0202, P0204) appear simultaneously without a clear wiring harness fault.
   How to confirm: This is a diagnosis of exclusion. If the injector and wiring have both been tested and confirmed to be good (including a 'wiggle test' of the harness), the ECM is the likely culprit. A professional may need to confirm with advanced diagnostics.
   Typical fix: Replace and reprogram the Engine Control Module.
   Est. part cost: $200-$600

Rare But Worth Checking

• Injector Connector Terminal Fretting:

Diagnosis Steps

1. Read the codes with an OBD-II scanner to confirm P0204 is present and note any other codes, especially P0304 or other P020x codes.
2. Visually inspect the wiring harness and connector for the cylinder 4 fuel injector. Look for obvious signs of damage, such as frayed wires, loose connections, or corrosion. Pay close attention to where the harness may rub against the intake manifold or engine brackets.
3. Disconnect the injector and test for a signal using a noid light. Crank the engine; the light should flash steadily, indicating the ECM is sending a pulse. If it doesn't flash, the problem is in the wiring or ECM. If it stays on solid, there may be a short to ground in the control wire.
4. If the noid light flashes, the issue is likely the injector itself. Turn the ignition off.
5. Use a multimeter to measure the resistance across the two terminals of the fuel injector. Compare the reading to the manufacturer's specification (11-14 ohms for the 2.4L I4, ~12-15 ohms for V6 models). If it's out of spec (e.g., reads 'OL' for open or near zero for shorted), the injector has failed.
🎬 Watch: How to diagnose and fix an injector circuit malfunction.
6. As a final confirmation, swap the cylinder 4 injector with an injector from another cylinder (e.g., cylinder 2). Clear the codes and run the engine. If the code moves to P0202, you have confirmed the injector is bad. If P0204 returns, the problem is in the wiring harness or connector.
7. If the noid light test in step 3 failed, check for 12V power at one pin of the connector with the key on. Then, check the continuity of the ground/control wire back to the ECM. Wiggle the harness while testing continuity to check for intermittent breaks.

Parts You'll Likely Need

• Fuel Injector (OEM #12613163 (For 2.4L L4), 12638530 (For 3.6L V6)) — This is the most common component to fail internally, causing the electrical fault detected by the ECM.
  Trusted brands: ACDelco, Bosch, Delphi
  OEM price range: $90-$180
  Aftermarket price range: $50-$120
• Fuel Injector Connector Pigtail — The connector itself can become brittle, or the terminals can corrode or loosen from vibration (fretting), leading to a poor connection that triggers the P0204 code. This is a very common failure point on this platform.
  Trusted brands: ACDelco, Dorman
  OEM price range: $25-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0304 — P0304 means 'Cylinder 4 Misfire Detected'. Since the P0204 code indicates a problem with fuel delivery to cylinder 4, a misfire is a direct and expected consequence.
• P0201, P0202, P0203, P0205, P0206 — If multiple injector circuit codes are present, it strongly suggests a wiring harness issue common to all affected cylinders (like a chafed harness section or a bad ground), a problem with an injector fuse, or a failing ECM. The TSB #PIP4924D lists all these codes together as a known issue.

Technical Service Bulletins (TSBs) & Recalls

• PIP4924D: Mentions the potential for codes P0201-P0206 in relation to engine misfires, pointing to a known issue with the fuel injector circuits. The underlying cause is often wiring harness chafing or connector issues.

Platform-Specific Known Issues

• A known issue, documented in TSB #PIP4924D, involves engine misfires accompanied by various injector circuit codes, including P0204. This points to a systemic weakness in the engine wiring harness or connectors for this vehicle platform.
• The wiring harness for the fuel injectors is known to chafe against the intake manifold or other engine components, leading to an open or shorted wire for the cylinder 4 injector circuit.
• Terminal fretting inside the injector connector is a common GM issue where vibration causes wear and high resistance, triggering false circuit codes.

Mechanic-Grade Diagnostic Values

• Fuel Injector Power Supply Voltage — expected: ~12 Volts (Battery Voltage). Failure: A reading of 0V or significantly less than 12V indicates a problem with the power feed wire or the injector fuse.
• Fuel Injector Balance Test (Pressure Drop) — expected: All injectors should have a similar pressure drop.. Failure: An injector whose pressure drop value deviates from the average of all cylinders by more than 20 kPa (3 psi) is considered faulty (either clogged or leaking).

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Fuel Injector Balance Test — Use this after confirming the wiring is intact. This command pulses each injector individually while monitoring fuel pressure drop, allowing you to identify a mechanically faulty or clogged injector without removing it from the engine.
• GM Tech 2 / GDS2: Cylinder Power Balance — Use this to confirm that cylinder 4 is the source of a misfire. The tool deactivates each cylinder one by one. If disabling cylinder 4 causes no change in engine RPM or smoothness, it confirms that cylinder was not contributing, which is expected with a P0204 code.

Wiring & Ground Locations

• ECM Location (2.4L I4) — Left rear of the engine compartment.. Knowing the ECM's location is critical for performing continuity tests on the injector control wire between the module and the injector connector.
• ECM Location (3.5L/3.6L V6) — Left front of the engine compartment.. Knowing the ECM's location is critical for performing continuity tests on the injector control wire between the module and the injector connector.
• G107 — At the rear of the engine.. A poor engine ground can cause a variety of electrical issues and codes, including intermittent injector circuit faults. This is a primary ground point to inspect for corrosion and tightness.
• G110 — On the right front corner of the engine (for 2.4L Hybrid models, but likely similar for others).. This is another key engine ground point. All engine grounds must be clean and secure for the ECM and its sensors/actuators to function correctly.

Real Owner Repair Stories

• General Motors Platform Experience (GM V8 (similar principle applies to VUE)) — Recurring P0204 code, misfire on cylinder 4.
  ❌ Tried (didn't work) Replacing the fuel injector for cylinder 4 (twice).
  ✅ What actually fixed it The actual cause was a chafed wire in the engine harness that was making intermittent contact. The wiring fault was missed during the initial diagnoses, leading to unnecessary parts replacement. The fix was to repair the damaged wire and secure the harness.

OEM Part Supersession History

• 12611545, 12632255 → 12638530 (which was later superseded by 12669384) — Standard part evolution for improved reliability or manufacturing changes.
  Heads up: These parts are generally forward-compatible for the 3.6L V6 engine, but it is always best to use the latest available part number (12669384) when replacing.
