P0205 on 2021-2022 Cadillac Escalade: Injector Circuit Malfunction Causes & Fixes

What's Unique About the 2021-2022 Cadillac ESCALADE

For this specific generation of Cadillac Escalade and its platform mates (Tahoe, Yukon, Silverado), the P0205 code is frequently linked to known issues with both the fuel injectors and the engine wiring harness. General Motors has released Technical Service Bulletin (TSB) #22-NA-087, which directly addresses this and other injector codes, recommending the replacement of the fuel injector and its wiring harness to correct the problem, sometimes due to a broken terminal pin inside the connector. Furthermore, TSB #21-NA-149 identifies multiple specific locations where the engine harness can chafe and short out, including against the ECM/TCM bracket, the driver's side upper control arm, and the shock tower bolt, indicating a higher-than-average probability that the cause is a specific component or wiring failure rather than a simple connection issue.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or uneven idle
• Engine misfires, which may feel like a shake or stumble
• Hesitation or loss of power during acceleration
• Reduced fuel economy
• Difficulty starting the engine
• "Service Stabilitrak" or other messages on the driver information center

Most Likely Causes

1. Faulty Cylinder 5 Fuel Injector 🔴 High Probability → Shop Fuel Injector GM has issued TSBs (#22-NA-087, PIP5891C) that identify faulty injectors as a primary cause for P020x codes on this platform, indicating a known component issue. The failure can be an internal short or open in the injector's solenoid coil.
   How to confirm: Perform a resistance test on the injector with a multimeter (spec for the 6.2L L87 is around 1.5-2.2 Ω, while other GM injectors are often in the 10-15 Ω range; always verify spec for your specific part). The most definitive test is to swap the cylinder 5 injector with one from another cylinder (e.g., cylinder 1). Clear the codes and run the engine. If the code changes to P0201, the injector is faulty.
   Typical fix: Replace the cylinder 5 fuel injector. For the 3.0L Diesel engine, TSB #22-NA-087 recommends replacing both the injector and the injector wiring harness together.
   Est. part cost: $80-$200
2. Damaged Fuel Injector Wiring Harness or Connector 🔴 High Probability → Shop Engine Wiring Harness TSB #22-NA-087 explicitly calls for replacing the harness along with the injector on diesel models, sometimes due to a broken pin in the connector. TSB #21-NA-149 is more specific, noting multiple points where the main engine harness can chafe against chassis or engine components. Common chafe points include the ECM/TCM bracket, upper control arm, shock tower bolt, and on LM2 diesels, the alternator bracket or a PCV hose clamp.
   How to confirm: Visually inspect the wiring going to the cylinder 5 injector for any signs of fraying, melting, or corrosion, paying close attention to the known chafe points. With the engine running, gently wiggle the connector and harness to see if it affects the idle, which would indicate a poor connection. Use a noid light to confirm if the electrical pulse is reaching the injector connector.
   Typical fix: Repair the damaged section of wiring with heat-shrink butt connectors or replace the injector connector pigtail. If chafing is found, repair the wires and re-route or protect the harness with anti-abrasion tape or conduit to prevent recurrence.
   Est. part cost: $20-$400

Rare But Worth Checking

• Powertrain Control Module (PCM) Failure: → Shop Engine Control Module (ECM) This is a very rare cause. The PCM is the last thing to suspect. A GM information bulletin (PIP5891C) specifically advises against replacing the ECM for these codes unless all other possibilities have been exhausted. A faulty PCM would likely present with multiple other codes and issues.
• Inadequate Power Supply or Ground: Injector driver circuits in the PCM require a stable voltage to function correctly. A weak battery, failing alternator, or a corroded main engine ground strap can cause voltage drops that may trigger an injector circuit code. This would typically be accompanied by other electrical symptoms or trouble codes.

Diagnosis Steps

1. Verify the code with an OBD-II scanner. Note any other codes present, especially P0305 or other P020x codes.
2. Perform a thorough visual inspection of the engine wiring harness, focusing on the known chafe points identified in TSB #21-NA-149: the ECM/TCM bracket, driver's side upper control arm, shock tower bolt, and (on diesel) the alternator bracket.
3. Inspect the electrical connector at the cylinder 5 injector for corrosion, backed-out pins, or damage. Perform a 'wiggle test' on the connector and nearby harness with the engine idling to see if the misfire changes.
4. Use a noid light to test the injector connector. Disconnect the harness from the injector, plug in the noid light, and crank the engine. The light should flash rhythmically, indicating the PCM is sending a signal. If it doesn't flash, the problem is in the wiring or the PCM. If it stays on constantly, there is a short to ground in the circuit.
5. If the noid light flashes correctly, the problem is likely the injector itself. Turn off the vehicle and disconnect the battery.
6. Use a multimeter to test the resistance of the fuel injector. For the 6.2L V8, it should be between 1.5 and 2.2 ohms. An open circuit (infinite resistance) or a short (near-zero resistance) indicates a bad injector.

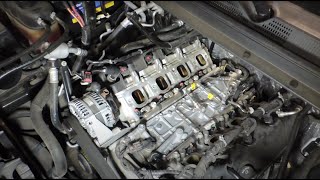

7. As a final confirmation, swap the cylinder 5 injector with an injector from another cylinder (e.g., cylinder 1). Reassemble, clear the codes, and run the engine. If the trouble code follows the injector to the new cylinder (e.g., P0201), the injector is definitively bad.
8. If all wiring and the injector test good, the issue could be a rare PCM driver failure. This should be the last consideration.

Parts You'll Likely Need

• Fuel Injector (6.2L V8 L87) (OEM #12710481) — This is the most common failure point for P020x codes on the V8 engine, as confirmed by GM service bulletins and owner experiences.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $120-$200
  Aftermarket price range: $70-$150
• Fuel Injector (3.0L LM2 Diesel) (OEM #55506244) — This is the injector specified in TSB #22-NA-087 for the Duramax engine when addressing this code.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $150-$250
  Aftermarket price range: $100-$180
• Fuel Injector Wiring Harness (3.0L LM2 Diesel) (OEM #55513485) — TSB #22-NA-087 explicitly recommends replacing this harness (Causal Part) along with the injector on diesel models to ensure a complete repair.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $100-$400
  Aftermarket price range: $50-$150

Related Codes That Often Appear With This One

• P0305 — P0305 means "Cylinder 5 Misfire Detected." Since the P0205 code indicates a problem with fuel delivery to cylinder 5, it's very common for the PCM to also detect the resulting misfire. The P0205 is the cause, and the P0305 is the effect.
• P0201, P0202, P0203, P0204, P0206 — The TSBs from GM list all these codes together. If the cause is a damaged wiring harness that affects multiple wires, or a blown fuse for an injector bank, it's possible to see injector circuit faults on other cylinders simultaneously.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #22-NA-087: Malfunction Indicator Lamp (MIL) Illuminated with DTC P0201, P0202, P0203, P0204, P0205, P0206 and/or P0216 Set.
• Bulletin #21-NA-149: Engine Wire Harness Chafing / IPC Gauges Sweep / IPC Warning Message / SES/Check Engine/MIL / No Start / No Crank / Runs Rough / Stalls / Reduced Engine Power / Various DTCs.

Platform-Specific Known Issues

• TSB #22-NA-087: Injector Circuit DTCs on LM2 Diesel: Addresses MIL illumination with DTCs P0201-P0206 and/or P0216 on 2021-2022 models with the 3.0L LM2 engine. The bulletin states the cause may be a broken terminal pin inside the injector harness connector and recommends replacing both the affected fuel injector and the injector wiring harness.
• TSB #21-NA-149: Widespread Engine Harness Chafing: Details several locations where the engine wiring harness can chafe on both 6.2L and 3.0L engines, leading to shorts or open circuits that can trigger a wide variety of DTCs, including P0201-P0206. Key inspection points for all engines include the ECM/TCM bracket, the driver's side upper control arm, and the shock tower. For the LM2 diesel specifically, it points to chafing on the alternator bracket and near a PCV hose clamp.
• Owner Experience: Pinched Harness on Yukon LM2: A 2022 GMC Yukon Denali owner on 'tahoeyukonforum.com' reported receiving codes P0205 and P0300. The dealership service department diagnosed the issue using TSB 21-NA-149 and found the wiring harness was

Mechanic-Grade Diagnostic Values

• 6.2L L87 V8 Fuel Injector Resistance — expected: 1.5 - 2.2 Ω. Failure: A reading of infinity (open circuit), near-zero (short circuit), or significantly outside this range.
• 3.0L LM2 Duramax Fuel Injector Resistance — expected: 160,000 - 190,000 Ω (160k - 190k Ω). Failure: A reading outside this range, or an open circuit (infinite resistance). The reading should be instantaneous.
• Injector Circuit Wire Continuity — expected: < 0.5 Ω. Failure: Higher resistance indicates corrosion or a break in the wire between the PCM and the injector connector.
• Injector Circuit Power Supply (Key On, Engine Off) — expected: ~12V (Battery Voltage). Failure: Low or no voltage points to a problem in the power supply wire, fuse, or relay.
• Injector Pulse Width at Idle (Scan Tool) — expected: ~2.0 - 4.0 milliseconds (ms). Failure: A value of 0 ms for cylinder 5, or a value significantly different from the other cylinders.

Scan Tool Commands That Help

• GDS2 (GM Dealer Tool): Fuel Injector Balance Test — This automated test commands each injector to open for a set duration and measures the corresponding drop in fuel rail pressure. A cylinder where the pressure drop is significantly different (typically >1.5 PSI variance) from the others indicates a flow issue with that injector. It helps differentiate a clogged or weak injector from a purely electrical fault.
• GDS2 (GM Dealer Tool): Injector Test (Enable/Disable) — This bidirectional command allows a technician to individually disable the cylinder 5 fuel injector while the engine is running. If disabling the injector causes no change in engine idle or RPM, it confirms that cylinder 5 was not contributing, pointing to a problem in that circuit. If disabling it makes the engine run worse, the injector was likely working to some degree.

Wiring & Ground Locations

• X160 — Main engine harness connector, often located near the back of the engine or on the firewall, connecting the main engine harness to the fuel injector sub-harness.. GM service documents (TSB #21-NA-149, #22-NA-087) specifically call out inspecting connector X160 for poor terminal tension, damage, or missing terminal locks when diagnosing P020x codes. A bad connection here can affect multiple injectors.
• Cylinder 5 Location (6.2L L87 V8) — The third cylinder back from the front on the driver's side of the engine. The cylinder numbering is 1-3-5-7 on the driver's side (front to back) and 2-4-6-8 on the passenger's side.. Correctly identifying cylinder 5 is the first step in any physical diagnosis, such as checking wiring, swapping injectors, or performing a resistance test.
• G102 / G103 — G102 is typically located at the left rear of the engine. G103 is on the cowl/firewall, often above the brake booster.. These are primary engine and control module ground points. The PCM's injector drivers rely on a solid ground reference. A loose or corroded ground at these locations can introduce electrical noise or voltage offsets, potentially causing intermittent injector circuit codes like P0205.

Real Owner Repair Stories

• YouTube user 'dannyboy7.3' (2021 Chevrolet Silverado with L5P Duramax Diesel (Platform mate to Escalade LM2)) — Check Engine Light with code P0205-00 (Cylinder 5 Injector Control Circuit).
  ❌ Tried (didn't work) The owner, based on experience, skipped extensive electrical testing.
  ✅ What actually fixed it The owner stated that in his experience, 99% of the time this code is caused by a faulty injector connector. He replaced the cylinder 5 injector connector pigtail by cutting off the old one and splicing in a new one with butt connectors. After clearing the codes, the P0205 did not return.

OEM Part Supersession History

• 12698484, 12687650 → 12710481, which is now superseded by 12742701 — GM often updates part numbers to reflect design improvements, manufacturing changes, or supplier changes aimed at improving reliability.
  Heads up: The latest part number (12742701) is the recommended replacement for the 6.2L L87 injector. Using older stock (e.g., 12698484) may re-introduce a known failure point.
• 55513485 → 40009605 — Part number update for the 3.0L LM2 Diesel fuel injector wiring harness.
  Heads up: When replacing the LM2 injector harness as recommended by TSB #22-NA-087, ensure you are sourcing the latest part number to get any design revisions.
