P0206 on 2021-2022 Cadillac Escalade: Cylinder 6 Injector Circuit Fault Causes and Fixes

What's Unique About the 2021-2022 Cadillac ESCALADE

For the fifth-generation Escalade with the 6.2L L87 V8, this code has specific known causes documented by General Motors. 🎬 Watch: A breakdown of common causes and fixes for P0206 codes. TSB #22-NA-087 points to a broken terminal pin inside the injector harness connector. A broader bulletin, TSB #21-NA-149, details multiple potential harness chafing/pinching points, specifically calling out inspection of connector X160 for poor terminal tension and damage to the nearby harness for P020x codes. This makes a wiring fault a significantly higher-than-usual probability compared to outright injector failure. Additionally, these L87 engines were subject to a major safety recall for connecting rod/crankshaft defects, highlighting potential manufacturing-era issues, though that recall is separate from this specific electrical fault.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on (may be flashing if misfire is severe)
• Rough or vibrating engine idle
• Engine misfires, which may be more noticeable under load
• Reduced engine power and hesitation during acceleration
• Decreased fuel economy
• Black smoke from exhaust

Most Likely Causes

1. Faulty Wiring or Loose Connector at Fuel Injector #6 🔴 High Probability → Shop Fuel Injector Multiple GM Technical Service Bulletins (TSB #22-NA-087 and #21-NA-149) specifically cite issues with the fuel injector wiring harness. This can be a broken terminal pin inside the connector or chafing/pinching of the harness near the main X160 connector.
   How to confirm: Visually inspect the wiring harness and connector for cylinder 6. Per TSB #21-NA-149, pay close attention to the harness near connector X160, checking for poor terminal tension and any signs of chafing, breaks, or loose pins. With the engine running, carefully wiggle the connector and harness to see if the engine's idle changes, which would indicate a poor connection.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. Ensure the harness is properly secured away from any sharp edges or heat sources using anti-abrasion tape and zip ties as needed.
   Est. part cost: $15-$50
2. Failed Cylinder 6 Fuel Injector 🟡 Medium Probability → Shop Fuel Injector While wiring is the primary suspect, the high-pressure direct injector itself can fail electrically (open or shorted coil) or become clogged. GM has issued special coverage programs for injector issues on prior model years and a preliminary bulletin (PIP5891C) notes that P0201-P0208 codes can be caused by a faulty injector.
   How to confirm: Use a multimeter to check the resistance of the injector; for the L87 GDI engine, the expected value is very low, around 1.5-2.2 ohms. A definitive test is to swap the cylinder 6 injector with one from another cylinder (e.g., cylinder 4). If the code changes to P0204, the injector is confirmed to be faulty. This is a labor-intensive test on this direct-injection engine.

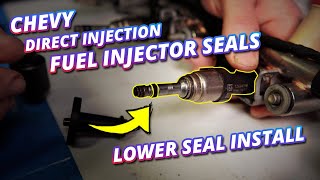

   Typical fix: Replace the cylinder 6 fuel injector. It is often recommended to replace the seals for the injector at the same time.
   Est. part cost: $75-$170
3. Powertrain Control Module (PCM) Fault ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This should be the last resort after ruling out wiring and the injector. Use a noid light on the injector connector; if the light does not flash while cranking the engine, and the wiring from the PCM to the injector is confirmed to be good, the PCM's injector driver may be faulty.
   Typical fix: The PCM needs to be replaced and programmed by a qualified technician or dealership.
   Est. part cost: $500-$1000

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0206 is present. Check for any other related codes.
2. Check for relevant TSBs like #22-NA-087 and #21-NA-149, as they point to the most likely cause.
3. Locate cylinder 6 on the 6.2L V8 engine. On GM V8s, it is the third cylinder back on the PASSENGER'S side (right bank).
4. Perform a thorough visual inspection of the fuel injector connector and wiring harness for cylinder 6. Following TSB guidance, specifically check for chafing or pinching near the main harness connector X160 and ensure the connector terminals have good tension.
5. If the wiring appears intact, use a noid light to test the injector connector. Disconnect the injector and plug in the noid light. Crank the engine; the light should flash, indicating the PCM is sending a signal. If it does not flash, there is a problem in the wiring or the PCM.
6. If the noid light flashes, the issue is likely the injector itself. Turn the ignition off and disconnect the injector.
7. Use a multimeter set to Ohms (Ω) to measure the resistance across the two terminals of the fuel injector. A typical reading for the L87 engine is between 1.5-2.2 ohms. A reading that is significantly higher (open) or lower (short) indicates a failed injector.
8. To be 100% certain, swap the cylinder 6 injector with another one (e.g., cylinder 4). Clear the codes and start the engine. If the code returns as P0204, you have confirmed the injector is the problem. If P0206 returns, the fault lies in the wiring or PCM.

Parts You'll Likely Need

• Fuel Injector (OEM #12710481) — This is the most likely component to have failed if the wiring and connector are found to be in good condition. This part is used across a wide range of GM trucks and SUVs with the L87 engine.
  Trusted brands: ACDelco, Standard Motor Products
  OEM price range: $75-$140
  Aftermarket price range: $40-$110
• Fuel Injector Connector Pigtail (OEM #12707877 or 12707879) — If the TSB-related issue is a broken terminal or damaged connector, replacing the pigtail is the correct repair instead of replacing the whole injector. Part number may vary based on harness side (left/right bank).
  Trusted brands: ACDelco, Dorman, Carquest
  OEM price range: $25-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0306 — This code means "Cylinder 6 Misfire Detected." A faulty injector circuit prevents proper fueling of cylinder 6, directly causing it to misfire.
• P0300 — This code for "Random/Multiple Cylinder Misfire Detected" can appear if the issue is intermittent or if a wiring harness problem is affecting more than one cylinder.
• P0201, P0202, P0203, P0204, P0205 — The related TSBs mention that these codes can appear alongside P0206, suggesting a potential wiring harness issue at a common point (like connector X160) that could affect multiple injectors.

Technical Service Bulletins (TSBs) & Recalls

• 22-NA-087: Malfunction Indicator Lamp (MIL) Illuminated with DTC P0201, P0202, P0203, P0204, P0205, P0206 and/or P0216 Set. This bulletin directly addresses the cause as a potential broken terminal pin inside the injector harness connector.
• 21-NA-149: Engine Wire Harness Chafing / IPC Gauges Sweep / IPC Warning. A broader bulletin that covers multiple engines including the L87. For P020x codes, it specifically directs inspection of connector X160 for bad terminals and the nearby harness for chafing.

Platform-Specific Known Issues

• A known issue, documented in TSB #22-NA-087, points to a broken terminal pin inside the injector harness connector causing P0206 and other related injector codes.
• TSB #21-NA-149 provides even more detail, instructing technicians to inspect for poor terminal tension at connector X160 and to check for a pinched or chafed fuel injector wiring harness near that same connector.

Mechanic-Grade Diagnostic Values

• Fuel Injector Resistance (6.2L L87 Gas) — expected: 1.5 - 2.2 Ω. Failure: A reading of infinity (open circuit), near zero (short circuit), or significantly outside the specified range.
• Injector Pulse Width at Idle (Scan Tool Live Data) — expected: ~2.0 - 4.0 milliseconds (ms). Failure: A missing, erratic, or significantly different pulse width reading for cylinder 6 compared to other cylinders.
• High-Pressure Fuel Rail Pressure (Engine Idling) — expected: 1.9 - 5.0 MPa (276 - 725 PSI). Failure: While not a direct cause of P0206, readings outside this range can indicate a wider fuel system issue that may be relevant during an injector balance test.
• Injector Circuit Voltage (Key On, Engine Off) — expected: Approx. 12.6V on the power supply wire at the injector connector.. Failure: Low or no voltage suggests a problem in the power supply circuit, such as a blown fuse or a break in the wire.

Scan Tool Commands That Help

• GDS2 (GM Dealer Tool): Fuel Injector Balance Test — To functionally test an injector's fuel flow. The tool commands the fuel pump on, then pulses a single injector and measures the resulting drop in fuel rail pressure. A cylinder 6 injector with a pressure drop significantly different (GM specifies less than 20% variance) from the others indicates a flow issue.
• GDS2 (GM Dealer Tool): Cylinder Power Balance — This function helps identify a misfiring cylinder by observing its contribution (or lack thereof) to engine speed. It can confirm that cylinder 6 is the source of the misfire associated with the P0206 code.
• GDS2 or high-end aftermarket scanner: Injector Kill / Disable — This bidirectional command allows the technician to manually disable the cylinder 6 injector. If disabling it causes no change in engine idle quality, it confirms that the injector was not contributing to the engine's operation in the first place.

Wiring & Ground Locations

• Cylinder #6 Location — The third cylinder from the front on the passenger's side of the engine (the right bank).. This is the physical location of the injector and wiring that needs to be inspected for the P0206 code.
• Connector X160 — A main engine harness connector. TSB #21-NA-149 directs inspection of the fuel injector wiring harness *near* this connector for chafing and damage.. This connector is a known trouble spot mentioned in TSBs. Poor terminal tension or harness damage near this point can cause intermittent open/shorts for multiple injector circuits, including cylinder 6.
• ECM/TCM Bracket — The bracket holding the Engine Control Module and Transmission Control Module, located at the left front of the vehicle behind the underhood fuse block.. TSB #21-NA-149 identifies this as a primary chafe point where the engine wiring harness can rub against the sharp metal bracket, causing shorts or open circuits for the injector wires.
• Driver-Side Upper Control Arm / Shock Tower Bolt — Located in the driver's side front wheel well area.. This is another chafe point identified in TSB #21-NA-149 where engine vibration can cause the wiring harness to rub through, potentially affecting injector circuits.

OEM Part Supersession History

• 12687650, 12698484 → 12710481 — Part revision and consolidation by the manufacturer.
  Heads up: The latest part number, 12710481, has been superseded by 12742701 according to some parts databases. Always verify the correct part number with a dealer using the vehicle's VIN.
• 12623128, 12656013, 12658040, 12689504 → 12707877 (Right/Passenger Side Harness) — Part revision and consolidation by the manufacturer.
  Heads up: This is the harness for the right bank of cylinders (2, 4, 6, 8). The left bank uses a different part number (e.g., 12707876). Ensure you order the correct side.

Model Year Variations Within This Range

• 2021-2024: A major safety recall was issued for 6.2L L87 engines built between March 2021 and May 2024 due to manufacturing defects in the crankshaft and connecting rods that could lead to engine failure. The fix involves inspection by a dealer. Vehicles that pass inspection are switched to a higher viscosity 0W-40 oil. Vehicles that fail inspection receive a complete engine replacement. While not a direct cause of the P0206 electrical code, it highlights widespread manufacturing issues during this period.
