P0206 on 2008-2012 Chevrolet Malibu 3.6L V6: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 2008-2012 Chevrolet Malibu

The 2008-2012 Malibu uses the port-injected LY7 3.6L V6 engine. For this specific engine family and its platform mates, GM has issued a Technical Service Bulletin (TSB #PIP4924C) that points to the fuel injector wiring harness chafing against various engine components. Common chafe points are against the intake plenum, valve cover bolts, fuel lines, and the side of the cylinder head under the plenum. This makes a wiring inspection a critical first step, as the issue is frequently not the injector itself.

Symptoms You May Notice

• Check Engine Light is on
• Rough engine idle
• Engine misfire (may also set a P0306 code)
• Reduced engine power and poor acceleration
• Decreased fuel economy
• Noticeable fuel smell from the exhaust due to unburnt fuel

Most Likely Causes

1. Damaged Fuel Injector Wiring Harness 🔴 High Probability → Shop Engine Wiring Harness GM TSB #PIP4924C specifically calls out that the injector wiring harness can rub through (chafe) against the intake plenum, valve cover bolts, fuel lines, or the side of the cylinder head, causing an open or short circuit. This is a well-documented pattern failure on this platform due to harness routing and engine vibration.
   How to confirm: Perform a thorough visual and physical inspection of the wiring harness leading to the cylinder 6 fuel injector. Pay close attention to the areas mentioned in the TSB. A 'wiggle test' (wiggling the harness with the engine running) may cause the misfire to change, confirming a wiring issue. Sometimes the wire breaks internally with no visible damage to the outer insulation; feeling for 'soft spots' in the wire near the connector can reveal this.
   Typical fix: Repair the damaged section of wire using a new piece of wire and heat-shrink butt connectors. If the damage is at the connector, replace the connector pigtail. Wrap the repaired area in protective loom or high-quality electrical tape to prevent recurrence.
   Est. part cost: $10-$50
2. Failed Fuel Injector 🟡 Medium Probability → Shop Fuel Injector
   How to confirm: If wiring inspection shows no damage, test the injector. The easiest method is to swap the cylinder 6 injector with another one (e.g., cylinder 4 or 5). If the code changes to P0204 or P0205, the injector is faulty. Alternatively, use a multimeter to check the injector's resistance; it should be around 11-14 ohms. Compare the reading to a known good injector. An infinite reading means an open circuit, and a near-zero reading means a short.
   Typical fix: Replace the cylinder 6 fuel injector. Since cylinder 6 is on the rear bank (firewall side), this requires removing the upper intake manifold, making the job more labor-intensive.
   Est. part cost: $50-$255
3. Bad Injector Connector ⚪ Low Probability
   How to confirm: Inspect the electrical connector at the fuel injector for corrosion, bent or broken pins, or a loose fit. A 'noid light' can be plugged into the connector; if it flashes when the engine is cranked, the PCM and wiring are sending a signal, pointing to a bad connection or a failed injector. If it does not flash, the problem is in the wiring or PCM.
   Typical fix: Clean the connector terminals with electrical contact cleaner. If the connector is physically damaged or will not stay secure, replace it with a new pigtail connector. Common aftermarket pigtails include Duralast 413 or Standard Motor Products HP3945.
   Est. part cost: $15-$40

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is the least likely cause. The internal driver circuit for the injector can fail, but this should only be considered after all wiring and injector tests have been completed and confirmed to be good.
• Corroded Injector Bank Ground Wire: Forum discussions for GM 3.6L engines have shown that multiple injector codes for one bank (P0202, P0204, P0206) can be traced to a single corroded ground connection on the cylinder head for that bank. If multiple codes for the rear bank are present, inspect ground G112 at the rear of the cylinder head.

Diagnosis Steps

1. Confirm the code P0206 is present using an OBD-II scanner. Note any other codes like P0306 or P2149.
2. Locate cylinder 6. On the transverse-mounted LY7 V6, the cylinders are numbered 1-3-5 on the front bank (radiator side) and 2-4-6 on the rear bank (firewall side). Cylinder 6 is on the rear bank, closest to the driver's side.
3. Visually inspect the fuel injector wiring harness for any signs of chafing, melting, or corrosion, paying close attention to the areas noted in TSB #PIP4924C (against the intake, valve covers, and fuel lines).
4. Disconnect the connector at the cylinder 6 injector. Use a noid light to test for a pulse signal from the PCM while cranking the engine. If the light flashes, the PCM and wiring up to the connector are likely good, and the injector is the probable cause.
5. If the noid light does not flash, use a multimeter to check for 12V power on one of the pins in the connector with the key on, engine off. If power is missing, there is a break in the power supply wire.
6. If power is present but the noid light doesn't flash, there is likely an issue with the signal (ground) wire from the PCM or the PCM itself.
7. To confirm a bad injector, turn the ignition off and measure the resistance across the two pins on the injector itself. It should be within the 11-14 ohm range. If it's an open circuit (infinite resistance) or shorted (zero resistance), the injector has failed.
8. As a final confirmation, swap the cylinder 6 injector with an injector from an accessible cylinder on the front bank (e.g., cylinder 5). Clear the codes and run the engine. If the code changes to P0205, the injector is confirmed bad.

Parts You'll Likely Need

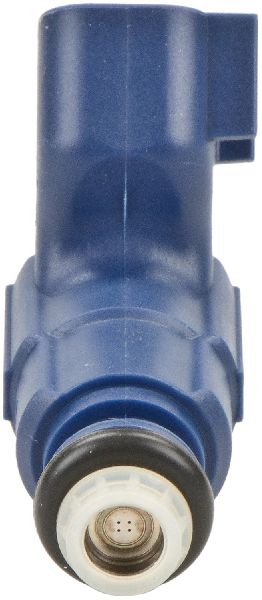

• Fuel Injector (OEM #12638530 (superseded by 12669384)) — This is a common failure point that causes an open or short in the injector's internal coil, triggering the P0206 code.
  Trusted brands: ACDelco (OE), Bosch, Standard Motor Products
  OEM price range: $110-$200
  Aftermarket price range: $50-$150
• Fuel Injector Connector Pigtail — The wiring harness is known to chafe, and damage often occurs near the connector, requiring it to be cut out and replaced.
  Trusted brands: ACDelco PT2183, Dorman 645-907, Standard Motor Products HP3945
  OEM price range: $25-$40
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0306 — P0306 means "Cylinder 6 Misfire Detected." Since P0206 indicates a fault in the fuel delivery circuit for cylinder 6, the cylinder cannot fire correctly, which directly causes a misfire.
• P0300 — This code for "Random/Multiple Cylinder Misfire" can appear if the wiring harness issue is intermittent or if a chafed section of the harness is affecting the wiring for multiple injectors.
• P2149 — This code means 'Fuel Injector Group 'B' Supply Voltage Circuit/Open'. Group B on the 3.6L V6 corresponds to the rear bank (cylinders 2, 4, 6). A significant wiring issue affecting the whole bank can trigger this code along with P0206.

Technical Service Bulletins (TSBs) & Recalls

• PIP4924C - Diagnostic Aid for Misfire and Injector DTCs P0201 - P0206. According to Bulletin #PIP4924C, technicians may find various injector circuit codes including P0206 and P2149 when a vehicle has a Service Engine Soon lamp and misfire.

Platform-Specific Known Issues

• TSB #PIP4924C: This bulletin is highly relevant, noting that on V6 engines from 2009-2013, injector codes (P0201-P0206) are frequently caused by the fuel injector wiring harness rubbing through against engine components. The fix is to inspect and repair the wiring.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 11 - 14 Ohms. Failure: A reading of infinity (Open Loop) or near zero ohms (short circuit).
• Injector Pulse Width (at warm idle) — expected: 2 - 4 milliseconds (ms). Failure: A value of 0 ms on cylinder 6 while others show a normal reading indicates the PCM has shut down the injector driver for that cylinder due to a detected fault.
• Injector Power Wire Voltage (Key On, Engine Off) — expected: 12.0V - 12.6V (Battery Voltage). Failure: Voltage significantly below battery voltage suggests high resistance or an open in the power feed circuit, possibly from the INJ/COIL EVEN fuse.
• Injector Control Wire Voltage Drop (Back-probed, engine running) — expected: Less than 0.5V. Failure: Higher voltage indicates high resistance in the control wire or a weak PCM driver.

Scan Tool Commands That Help

• GM Tech 2 / GDS2: Injector Balance Test — Use this function when you suspect a clogged or mechanically failed injector that still passes an electrical resistance test. The tool individually fires each injector and measures the fuel pressure drop, allowing you to compare flow rates between cylinders without removing the injectors.
• GM Tech 2 / GDS2: Cylinder Power Balance — This test helps confirm which cylinder is not contributing power. The tool disables one cylinder at a time and measures the drop in RPM. If disabling cylinder 6 causes little or no RPM drop compared to other cylinders, it confirms the misfire is on cylinder 6.

Wiring & Ground Locations

• G112 — On the rear of the left (firewall side) cylinder head. It is a stud with one or more ring terminals attached.. This is a primary ground point for the engine harness, including the circuits for the rear bank of injectors (2, 4, 6). A loose or corroded connection here can cause erratic behavior and fault codes for any or all of those cylinders.
• Cylinder 6 Injector Wires — In the harness routed over the rear of the engine to the firewall-side cylinder bank.. The power wire is typically Pink/Black (PNK/BLK) and receives 12V+ from the 'INJ/COIL EVEN' fuse (Fuse 44 in the underhood block). The control wire, which the PCM pulses to ground, is typically Dark Blue/White (DK BLU/WHT). Knowing these colors helps in testing for power and continuity back to the ECM.
• Engine Control Module (ECM) — Located in the left front of the engine compartment.. This is the source of the control signal for the injector. The control wire for the cylinder 6 injector terminates at a specific pin on one of the main ECM connectors (e.g., J2, Pin 52). This is the final point for testing the circuit's integrity before condemning the ECM.

Real Owner Repair Stories

• chevymalibuforum.com user reports (2009 Chevrolet Malibu 3.6L V6) — Check engine light with codes P0206 and P0306, rough idle and misfire.
  ❌ Tried (didn't work) Replaced spark plug for cylinder 6, Replaced ignition coil for cylinder 6
  ✅ What actually fixed it Found a broken wire in the fuel injector harness near the rear cylinder head where it was rubbing against a bracket. The wire was repaired and wrapped in protective loom, which resolved both codes.
• Professional technician diagnostic video (2015 Vehicle with GM 3.6L engine (similar architecture)) — Severe misfire with P0206 and P0306.
  ❌ Tried (didn't work) Visual inspection of harness showed no obvious damage., Swapping the injector with another cylinder did not make the code move.
  ✅ What actually fixed it The technician used an oscilloscope to test the signal directly at the PCM connector pin for the cylinder 6 injector and found no ground pulse being sent. All other injector driver signals were present. The Powertrain Control Module (PCM) was faulty and required replacement.

When the Usual Fixes Don't Work

• While swapping the fuel injector is a common and effective diagnostic step, there are documented cases where the P0206 code remained on the original cylinder even after the swap. In one such case, after extensive wiring checks, the root cause was confirmed to be a failed injector driver inside the PCM. This highlights that an injector swap is a strong indicator, but not 100% definitive, and the fault can still lie 'upstream' in the control module.

OEM Part Supersession History

• 12638530 → 12669384 — Standard part update for reliability or manufacturing process improvements.
  Heads up: These part numbers are for the port-injected LY7 V6 engine. They are NOT compatible with the later direct-injected LLT or LFX V6 engines, which use different high-pressure injectors.

Model Year Variations Within This Range

• 2008-2012: The LY7 3.6L V6 in this Malibu is a port-injected engine. Some other GM platforms began using the direct-injected 3.6L LLT engine around 2009. While the wiring chafe issue is similar, the fuel injectors, fuel rails, and diagnostic resistance values are completely different and not interchangeable.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Timing Chain Stretch 🔴 High — Very common, especially on earlier LY7 engines. Often occurs between 70,000 and 120,000 miles. Triggers codes like P0008, P0009, P0017, P0018. (Ref: Special Coverage Adjustment #11340C (expired))
• Broken 35R Transmission Wave Plate 🔴 High — Common failure in the 6T70/6T75 automatic transmission, typically occurring around 100,000 miles. Results in loss of Reverse, 3rd, and 5th gears. (Ref: Special Coverage #14404B (expired))
• Excessive Oil Consumption 🟠 Medium — Many owners report high oil consumption, often attributed to PCV system issues or worn piston rings. This can accelerate timing chain wear if the oil level is not monitored closely.
• Water Pump Failure 🟠 Medium — The water pump is known to fail, leading to coolant leaks and potential overheating.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness pigtail from a junkyard can be a cost-effective repair, provided the connector is not brittle and has sufficient wire length for splicing. Buying used fuel injectors is generally not recommended.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a pigtail, inspect for cracks in the plastic connector body.
• Ensure the locking tab on the connector is intact.
• Check that the wires are flexible and not stiff or brittle.

OEM-only on this vehicle (don't cheap out):

• Fuel Injector: While some aftermarket brands are reliable, the safest bet to avoid flow rate inconsistencies or premature failure is to use an OEM ACDelco or OEM-supplier (Bosch) injector.

Aftermarket brands forum-validated for this vehicle:

• Bosch (often the OEM manufacturer for ACDelco)
• Standard Motor Products (SMP)

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost sets of 6 injectors from online marketplaces like eBay or Amazon. These are frequently reported by owners to have inconsistent flow rates, leading to other fuel trim codes, or to fail within a short period.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0306 — This is a cylinder-specific misfire code for cylinder 6. It is a direct symptom of the P0206 injector circuit fault, as the cylinder cannot fire correctly without fuel.
• P0201, P0202, P0203, P0204, P0205 — These are injector circuit fault codes for the other cylinders. They are related because the root cause, a chafed wiring harness (per TSB #PIP4924C) or a bad bank ground, can affect multiple injector circuits simultaneously.
• P2149 — This code indicates a fault in the 'Fuel Injector Group B' supply voltage circuit. On the LY7 V6, cylinders 2, 4, and 6 make up one bank (Group B). This code can appear alongside P0206 if the issue is a shared power or ground wire for that bank, as noted in forum discussions.
