P0206 on 2007-2010 Dodge RAM 1500: Injector Circuit Fault Causes and Fixes

What's Unique About the 2007-2010 Dodge RAM 1500

For this generation of Dodge trucks, a critical piece of information comes from a Technical Service Bulletin (TSB #9002688). The manufacturer explicitly warns technicians to check the wiring loom and connector in the valve cover gasket area *before* replacing the fuel injector itself for a P0206 code. This suggests that a wiring fault due to heat and vibration is a very common, and often overlooked, cause for this specific code on this platform, leading to unnecessary injector replacements. Some owners have found the issue to be as simple as a loose connector to the coil pack, which shares grounding and can create electrical noise that triggers the code.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This year range covers the end of the 3rd generation (2007-2008) and the start of the 4th generation (2009-2010). The TSB #9002688 was issued for a 2007 model, making it highly relevant for the 3rd gen. While the fundamental issue of wiring faults can occur on any vehicle, the specific harness routing may differ on the 4th gen models, but the diagnostic principle remains the same. The issue is common across all engine platforms (3.7L, 4.7L, and 5.7L).

Symptoms You May Notice

• Check Engine Light is on
• Engine misfiring and running rough, especially at idle
• Hesitation or stumbling during acceleration
• Reduced engine power
• Decreased fuel economy
• Engine may be difficult to start
• Black smoke from exhaust

Most Likely Causes

1. Faulty Injector Wiring or Connector 🔴 High Probability A manufacturer TSB (#9002688) specifically calls out the wiring loom and connector in the valve cover gasket as a potential root cause, indicating this is a known failure point due to heat and vibration. Forum users report finding broken or bare wires in the harness after extensive troubleshooting.
   How to confirm: Visually inspect the wiring harness for cylinder 6 for any signs of damage, melting, or corrosion. Pay close attention to where the harness passes through or near the valve cover. Use a multimeter to check for continuity and proper voltage at the injector connector. A 'noid light' can also be used to verify the PCM is sending a pulse signal. 🎬 See this tutorial on using a noid light for testing. Wiggling the harness while the engine is running may induce or stop the misfire, confirming a wiring issue.
   Typical fix: Repair the damaged section of the wiring harness or replace the connector pigtail. In some cases on Cummins engines, the entire valve cover gasket which contains the harness must be replaced.
   Est. part cost: $15-$50
2. Failed Fuel Injector 🟡 Medium Probability → Shop Fuel Injector Injectors are a wear item and can fail electrically (open or shorted coil) or mechanically (clogged). This is a common failure on many vehicles, not just the Ram.
   How to confirm: After confirming the wiring is good, test the injector. You can check its internal resistance with a multimeter; a reading should typically be between 11-18 ohms. A reading of 0 or infinite ohms indicates a failed injector. The most definitive test is to swap the cylinder 6 injector with one from another cylinder (e.g., cylinder 4). Clear the codes and drive. If the code changes to P0204, the injector is faulty.
   Typical fix: Replace the fuel injector. It is often recommended to replace all injectors if they are high-mileage to ensure balanced fuel delivery.
   Est. part cost: $112-$131
3. Faulty Powertrain Control Module (PCM) ⚪ Low Probability → Shop Engine Control Module (ECM) While less common, the injector driver circuit within the PCM can fail. This is often a last resort after other possibilities are exhausted.
   How to confirm: This should be the last resort after all wiring and the injector itself have been proven to be good. A professional-grade scan tool may be needed to confirm the PCM injector driver has failed. One user on a Dodge forum ultimately traced their persistent injector code to a faulty PCM after checking all wiring.
   Typical fix: Replace and reprogram the Powertrain Control Module.
   Est. part cost: $300-$800

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner. Note P0206 and any other codes like P0306.
2. Locate cylinder #6. On the 3.7L V6 and 4.7L/5.7L V8s, it is the rearmost cylinder on the passenger side (Bank 2).

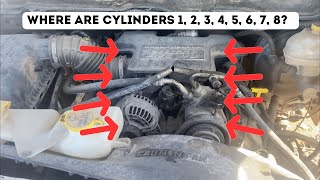

🎬 Watch: How to locate cylinder 6 and the ignition coils.
3. Perform a thorough visual inspection of the fuel injector wiring harness and connector for cylinder 6. Look for any signs of chafing, melting, corrosion, or loose pins, paying special attention to the area near the valve cover as per TSB #9002688.
4. Disconnect the injector and test the circuit. Use a noid light to confirm the PCM is sending a pulse. If the light flashes, the PCM and primary wiring are likely okay. If it's off or stays on solid, there's a wiring or PCM issue.
5. Test the fuel injector itself. With a multimeter set to Ohms (Ω), measure the resistance across the two pins on the injector. Compare the reading to the manufacturer's specification (typically 11-18 ohms). An open (infinite ohms) or shorted (0 ohms) injector needs replacement.
6. If the injector resistance is good, perform an injector swap test. Move the cylinder 6 injector to cylinder 4, and the cylinder 4 injector to cylinder 6. Clear the codes and drive the truck. If the code returns as P0204, the injector is confirmed to be the problem. If P0206 returns, the issue is in the wiring or PCM.
7. If the wiring is suspected, perform a continuity test from the injector connector back to the PCM connector to find any open or short circuits. A resistance of less than 10 ohms is expected on a good wire.
8. If all wiring and the injector test good, the final possibility is a faulty injector driver in the PCM. This step may require professional diagnosis.

Parts You'll Likely Need

• Fuel Injector (OEM #53032713AA (5.7L, 2004-2008), 04591851AA (4.7L, 2008-2010), 5037479AD (5.7L, 2009-2010)) — This is the component responsible for delivering fuel, and it can fail electrically or become clogged. It is a common cause if the wiring is confirmed to be good.
  Trusted brands: Mopar, Bosch, Standard Motor Products, Delphi
  OEM price range: $150-$200
  Aftermarket price range: $80-$130
• Fuel Injector Connector Pigtail (OEM #05183448AA (for 5.7L/6.4L Hemi)) — The connector itself or the wiring directly attached to it can become brittle and fail due to engine heat and vibration, causing an open or short circuit as highlighted in the TSB.
  Trusted brands: Mopar, Dorman, Holley
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Valve Cover Gasket (OEM #RL002012A$) — The TSB specifically mentions the wiring loom in the valve cover gasket. On some engine designs (more common on Cummins diesels but relevant context), the injector harness passes through or is integrated with the gasket, requiring gasket replacement if the harness is serviced.
  Trusted brands: Mopar, Fel-Pro
  OEM price range: $40-$70
  Aftermarket price range: $25-$50

Related Codes That Often Appear With This One

• P0306 — P0306 means 'Cylinder 6 Misfire Detected'. Since P0206 indicates a problem with the fuel injector circuit for cylinder 6, that cylinder cannot receive the correct amount of fuel to fire properly, directly causing a misfire.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9002688: Advises checking the wiring loom and connector in the valve cover gasket before replacing fuel injectors for P0201-P0206 codes.

Platform-Specific Known Issues

• A Technical Service Bulletin (TSB #9002688) was issued for 2007 models, indicating that the wiring loom and/or connector in the valve cover gasket should be inspected as the root cause for P020x codes before replacing the fuel injector.
• Owners have reported intermittent P0206 codes that were resolved by simply ensuring the electrical connector to the coil pack was secure, suggesting loose connections can create electrical interference that the PCM interprets as an injector fault.

Mechanic-Grade Diagnostic Values

• Fuel Injector Coil Resistance — expected: 12.5 Ohms for 5.7L HEMI (P/N 53032713AA). Generally 11-18 Ohms is an acceptable range for many injectors.. Failure: A reading of 0 Ohms (short circuit), infinite Ohms (open circuit), or a value significantly different from the other injectors on the engine.
• Injector Circuit Continuity (Wiring) — expected: Less than 10 ohms from the injector connector back to the PCM connector.. Failure: A reading higher than 10 ohms indicates excessive resistance in the wiring. An infinite reading indicates an open circuit.
• Injector Control Circuit Voltage (at injector connector) — expected: One wire should have battery voltage (approx. 12V) with the key in the 'on' position. The other wire is the ground-side driver from the PCM.. Failure: No voltage on the power feed wire indicates a problem with the ASD relay or fuse. A constant ground on the driver wire may indicate a short or a failed PCM driver.

Scan Tool Commands That Help

• wiTECH (Dealer Tool) or high-end aftermarket: Injector Balance Test / Cylinder Contribution Test — This command fires each injector individually while monitoring fuel pressure drop or engine RPM change to see if an injector is flowing differently than the others. It helps determine if an injector is mechanically clogged or flowing weak, even if it passes an electrical resistance test. A cylinder that shows no RPM drop when its injector is deactivated indicates that cylinder wasn't contributing in the first place.
• wiTECH (Dealer Tool): View DTCs — Dealer-level tools may show more specific or proprietary codes that can help pinpoint the fault. For example, on Cummins engines, if all three injectors on one bank set a code, it points more strongly to a PCM or shared wiring issue. While this example is for a diesel, the principle of checking for grouped codes applies.

Wiring & Ground Locations

• Cylinder #6 Injector Control Wire — For the 4.7L/5.7L V8, this is circuit K58, typically a Brown/Dark Blue wire, at the PCM C2 connector.. This is the specific wire that the PCM uses to ground and fire the #6 fuel injector. Testing for continuity and shorts on this wire between the PCM and the injector is a critical diagnostic step.
• Engine Ground Points — Key grounds are located near the battery negative terminal, on the engine block (sometimes behind a valve cover), and from the block to the frame. On 4th gen trucks (2009+), a common ground is on the driver's side wheel well, forward of the upper control arm.. A poor engine ground can cause a host of electrical issues, including erratic sensor readings and incorrect voltage references for components like fuel injectors, potentially leading to a P0206 code.
• Injector Connector (Cylinder 6) — On the 5.7L V8, the #6 injector is on the right (passenger side) bank, at the rear of the engine. The connector is a black, two-pin connector attached directly to the top of the fuel injector.. This is the primary connection point for the injector. It is subject to intense heat and vibration, making it a common failure point as noted in TSB #9002688.

OEM Part Supersession History

• 53032713AA → Discontinued — This part number, specified for 2004-2008 5.7L engines, has been discontinued by Mopar.
  Heads up: When sourcing replacements, you will likely be purchasing remanufactured units or new old stock. Ensure the replacement is specified for the correct pre-2009 (non-VVT) 5.7L HEMI engine.

Model Year Variations Within This Range

• 2009-2010: The 5.7L HEMI engine was significantly updated for the 2009 model year (start of the 4th Gen Ram). The new 'Eagle' HEMI added Variable Cam Timing (VCT), featured redesigned cylinder heads for better airflow, and had a different accessory drive layout. While the P0206 diagnostic principle is the same, some components like the intake manifold and specific wiring harness routing will differ from the 2007-2008 'pre-Eagle' models.
