P0206 on 1998-2005 Dodge RAM 2500: Injector Circuit Malfunction Causes and Fixes

What's Unique About the 1998-2005 Dodge RAM 2500

For the 1998-2005 Dodge RAM 2500, particularly those with the 5.9L Cummins diesel engine, this code is notoriously linked to the design of the injector wiring. The wiring harness is located under the valve cover, where it is constantly exposed to heat, oil, and vibration. This leads to the wiring and its connectors becoming brittle, losing pin tension, and failing. This problem is so common that Dodge issued a Technical Service Bulletin (TSB #9002688) advising technicians to check the wiring loom and connector in the valve cover gasket before replacing the injector itself. Forum users frequently cite this as the first place to look, with many successful repairs involving only the harness.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers two RAM generations. The 2nd Gen (1998.5-2002) used a 24-valve 5.9L Cummins with a VP44 injection pump. The 3rd Gen (2003-2005) used a 5.9L Cummins with a high-pressure common rail system. While P0206 has the same meaning for both, the specific injector wiring harnesses and diagnostic details differ. The TSB regarding the valve cover gasket wiring is especially pertinent to the common rail models (2003-2005). On common rail trucks, P0206 is often accompanied by P2149 (Fuel Injector Group B Supply Voltage Circuit), pointing strongly to a wiring or injector issue in cylinders 4, 5, or 6.

Symptoms You May Notice

• Check Engine Light is on
• Rough engine idle or stumbling
• Noticeable loss of engine power and acceleration
• Engine misfire, sometimes felt as a shake or bucking
• Increased fuel consumption
• Engine may enter 'limp mode' with restricted speed.
• Black smoke from the exhaust during misfire

Most Likely Causes

1. Faulty Injector Wiring Harness (Under Valve Cover) 🔴 High Probability → Shop Engine Wiring Harness As stated in TSB #9002688, the harness is exposed to intense heat and vibration under the valve cover, causing connectors and wires to fail. The plastic becomes brittle and the female connector pins can lose tension, creating an intermittent open circuit.

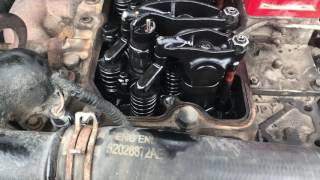

   How to confirm: Visually inspect the harness connectors for brittleness, cracks, or oil saturation after removing the valve cover. A well-known community diagnostic is the 'ice pick trick,' where a sharp tool is used to gently press on the female pins of the harness connector to check for looseness and attempt to re-tension them. Test for continuity on the wires for cylinder #6 between the main pass-through connector and the injector itself.
   Typical fix: Replace the faulty injector wiring harness. There are three harnesses under the cover (one per two cylinders on common rail models); it's often wise to replace all three at once.
   Est. part cost: $40-$125 for one OEM Cummins harness, sold individually.

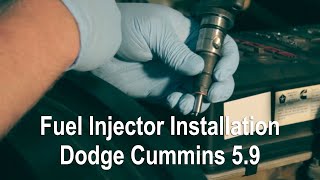

2. Failed #6 Fuel Injector Solenoid 🟡 Medium Probability → Shop Fuel Injector While the wiring is more likely to fail, the injector solenoid can fail electrically, creating an open or short circuit. This can sometimes be intermittent, occurring only when the engine is hot.
   How to confirm: After confirming the wiring is good, test the injector. Measure the resistance between the two terminals on top of the injector. For the 5.9L Cummins, it should be very low, between 0 and 1 Ohm. An infinite (OL) reading means it's open and bad. The definitive test is to swap injector #6 with an adjacent one (like #5). Clear codes, run the engine, and if the code changes to P0205, the injector is faulty.
   Typical fix: Replace the #6 fuel injector. On 2003+ Cummins engines, it is sometimes possible to replace just the solenoid on top of the injector as a temporary fix to get home, though professional calibration is recommended for a permanent repair.
   Est. part cost: $250-$600 for one remanufactured Bosch injector.
3. Chafed or Damaged External Wiring Harness ⚪ Low Probability The main engine harness can rub against brackets or other components over time, causing wires to short or break. This is less common than the under-cover harness failing but should not be overlooked.
   How to confirm: Visually inspect the entire length of the wiring harness leading to the valve cover pass-through connector for cylinder bank 2 (cylinders 4, 5, 6). Check for continuity from the PCM connector to the valve cover connector.
   Typical fix: Repair the damaged section of wire and protect it from future chafing with loom or tape.
   Est. part cost: $5-$20 for wiring repair supplies

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. The PCM should only be considered after all wiring and the injector itself have been tested and proven to be good. A failure of the injector driver circuit inside the PCM can cause this code. Often, if the PCM is the cause, codes for the entire bank of injectors (P0204, P0205, P0206) will be present along with P2149.

Diagnosis Steps

1. Read the code using an OBD-II scanner and confirm P0206 is present. Note any other codes, especially P0306 or P2149.
2. (2003+ Models) Disconnect the two main electrical connectors at the valve cover. Inspect for corrosion or pushed-out pins. Clean with electrical contact cleaner and apply dielectric grease before reconnecting. Clear codes and test drive to see if the issue was intermittent at the main connector.

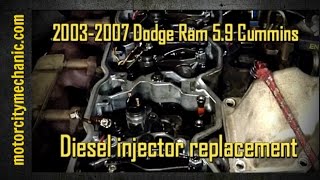

3. Remove the valve cover to access the injector harnesses and injectors.
4. Carefully inspect the injector wiring harness for cylinder #6. Look for brittle plastic, broken connector tabs, and oil contamination. Perform the 'ice pick trick' by gently probing the female connector pins to check for tension.
5. Disconnect the harness from the #6 injector. Use a multimeter set to Ohms to check the resistance of the injector solenoid. It should be between 0 and 1 Ohm. If it reads open (OL) or has high resistance, the injector solenoid has failed.
6. If the injector resistance is good, test the harness itself. Test for continuity on both wires for the #6 injector from the pass-through connector to the injector connector. An open circuit here confirms a bad harness.

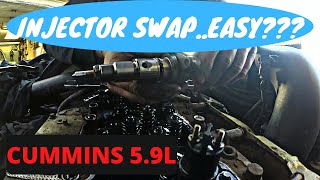

7. For a definitive test, swap the #6 injector with the #5 injector. Reassemble (you can temporarily leave the valve cover off for a short test run), clear codes, and run the engine. If the code changes to P0205, the injector is bad. If the code remains P0206, the problem is in the wiring or PCM.
8. If both the injector and internal harness are confirmed good, test the external harness from the PCM to the valve cover for opens or shorts to ground.

Parts You'll Likely Need

• Fuel Injector Wiring Harness (Under Valve Cover) (OEM #3966805 (For 2003-2005 Common Rail models)) — This is the most common failure point for a P0206 code on this vehicle due to heat and vibration, as documented in TSB #9002688. Three are required per engine.
  Trusted brands: Cummins
  OEM price range: $40-$125 per harness
  Aftermarket price range: $25-$50 per harness
• Fuel Injector (OEM #Bosch 0986435503 (For 2003-2004 305hp) or Bosch 0986435505 (For 2004.5-2005 325hp)) — If the injector solenoid fails its resistance test or the code follows the injector when swapped with another cylinder, it needs to be replaced.
  Trusted brands: Bosch, Cummins
  OEM price range: $400-$600 (remanufactured)
  Aftermarket price range: $250-$450 (remanufactured)
• Valve Cover Gasket (OEM #3954324 (1998.5-2002) / 5264930AA (2003-2005, includes wiring pass-through)) — The valve cover must be removed to access the injectors and harnesses, so the gasket should be replaced to prevent oil leaks. For 2006+ models the harness is integrated, but for 2003-2005 it is a separate gasket with electrical pass-throughs.
  Trusted brands: Cummins, Fel-Pro
  OEM price range: $50-$100
  Aftermarket price range: $30-$60

Related Codes That Often Appear With This One

• P0306 — P0306 means "Cylinder 6 Misfire Detected." Since P0206 indicates an electrical problem preventing the injector from firing, the cylinder will naturally misfire, causing both codes to appear together.
• P2149 — This code indicates a fault in the 'Fuel Injector Group B Supply Voltage Circuit'. On 2003+ Common Rail Cummins engines, injectors are grouped into banks (Bank 2 is cylinders 4, 5, 6). A short or open in the #6 injector circuit will often trigger a fault for the entire group, making P2149 a very common companion code to P0206 on these trucks.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9002688: Advises checking the wiring loom and/or connector in the valve cover gasket before replacing injectors for P0201-P0206 codes.
• TSB #08-013-04: While not directly for P0206, this TSB addresses P2149 on 2004-2005 models and involves inspecting the injector harness for shorts, which is a root cause of P0206.

Platform-Specific Known Issues

• The primary vehicle-specific issue is the documented tendency for the under-valve-cover injector wiring harnesses to fail from heat and vibration, causing intermittent open or short circuits. This is directly addressed by manufacturer TSB #9002688.
• On 2003-2005 Common Rail models, the combination of P0206 and P2149 is extremely common and almost always points to an issue with the #6 injector or its dedicated harness.
• A well-documented community fix/diagnostic is the 'ice pick trick,' which involves using a sharp, pointed tool to carefully re-tension the female pins on the injector harness connector to restore a solid electrical connection.

Mechanic-Grade Diagnostic Values

• Fuel Injector Solenoid Resistance — expected: 0.2 - 0.8 Ohms. Failure: A reading of OL (Open Loop/infinite resistance) or a reading significantly outside the expected range indicates a failed solenoid.
• Cranking Fuel Rail Pressure (Common Rail Models) — expected: > 4,000 PSI. Failure: While not a direct cause for an electrical P0206, pressure below 3,000-4,000 PSI while cranking will prevent the engine from starting and can indicate a weak lift pump, CP3 pump, or major leak, which can damage injectors over time.
• Injector Circuit Voltage Check (using a Noid Light) — expected: The noid light should flash steadily and brightly when connected to the harness connector for cylinder #6 while the engine is cranking or running.. Failure: No flash or a very weak, intermittent flash indicates a problem with the wiring or the PCM injector driver.

Scan Tool Commands That Help

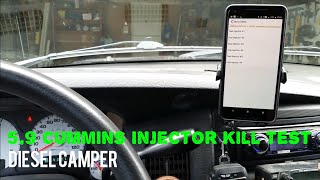

• DRB III, Snap-on, Autel, or equivalent professional scanner: Injector Kill / Cylinder Cutout Test — This is a primary diagnostic step. Use this test to electronically disable cylinder #6. If there is no change in engine idle speed or smoothness, it confirms that cylinder was not contributing, validating the P0206 fault. If disabling another cylinder (e.g., #5) causes a noticeable drop in RPM but disabling #6 does not, it isolates the problem to the #6 cylinder.
• DRB III, Snap-on, Autel, or equivalent professional scanner: Injector Actuation Test (Buzz Test) — With the engine off (Key On, Engine Off), this command will cycle all injector solenoids. The technician can listen for an audible 'click' or 'buzz' from each injector. If injector #6 is silent while others click, it points to a failure in the injector solenoid or the wiring leading to it.

Wiring & Ground Locations

• ECM Connector C1, Pins 36 & 37 (2003-2005 Common Rail) — The main engine computer (ECM/PCM) is located on the driver's side of the engine block. C1 is one of the large multi-pin connectors.. Pin 36 is the Injector #6 Control wire (typically Dark Blue/Yellow) and Pin 37 is the Injector Driver 2 Return (typically Brown/Yellow). These are the specific pins to test for continuity back to the valve cover pass-through connector to diagnose the external harness.
• Engine Block Grounds — There are several key ground points, but a critical one for the ECM is located on the driver's side of the engine block, often near the starter motor or just above the oil pan rail.. A loose or corroded main engine or ECM ground can cause erratic behavior from sensors and actuators, including injector drivers. While it would likely cause multiple codes, an intermittent ground could manifest unusually and should be checked if other diagnostics are inconclusive.

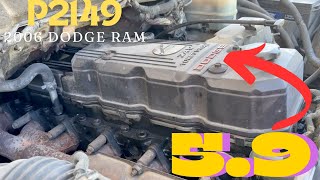

• Valve Cover Pass-Through Connector — On 2003-2005 models, this is integrated into the valve cover gasket itself. There are two main connectors on the driver's side of the valve cover that feed power and signal through the gasket to the internal harnesses.. This is a known failure point. The pins inside this connector can lose tension or become corroded, creating an open circuit for cylinder #6. The entire gasket assembly (Mopar 5264930AA) must be replaced if this connector is faulty.

Real Owner Repair Stories

• CumminsForum user (2004.5 Dodge Ram 2500 5.9L) — P0206 and P2149, rough idle and misfire.
  ❌ Tried (didn't work) Initially suspected a bad injector.
  ✅ What actually fixed it The owner swapped the #6 injector with the #4 injector. The codes followed the injector, changing to P0204 and P2146. This definitively proved the #6 injector was faulty. Replacing the single bad injector resolved all codes and symptoms.
• Diesel Truck Resource Forum user (2003 Dodge Ram 3500 5.9L) — Intermittent P0206, engine would stumble and sometimes die when hot. Would restart after cooling down.
  ❌ Tried (didn't work) Replaced the under-valve-cover harness for cylinders 4-6., Swapped the #6 injector with #5; the code did not move., Tested continuity of the external harness from the ECM to the valve cover; it tested good (when cold).
  ✅ What actually fixed it The problem was traced to the female pins inside the valve cover pass-through connector (part of the valve cover gasket). The pins would lose tension when the engine reached operating temperature, creating an open circuit. Replacing the entire valve cover gasket assembly, which includes the pass-through wiring, permanently fixed the issue.
• YouTube video by a diesel mechanic (2005 Dodge Ram 2500 5.9L) — Check engine light with P0206.
  ❌ Tried (didn't work) The customer had already replaced the #6 injector, but the code remained.
  ✅ What actually fixed it The mechanic removed the valve cover and found the small, two-wire connector on the under-cover harness that plugs into the injector was not fully seated and the locking tab was broken. Vibration would cause it to lose contact. Replacing the inexpensive harness for cylinders 4-6 (Cummins P/N 3966805) was the correct fix.

OEM Part Supersession History

• Multiple older Mopar/Cummins numbers → Mopar 68002012AA (for under-cover harness) — Part consolidation and minor material improvements.
  Heads up: The Cummins P/N 3966805 is also a valid and identical part. No known incompatibilities for 2003-2005 models.
• Multiple older Mopar numbers → Mopar 5264930AA (for valve cover gasket w/ pass-through) — Part consolidation.
  Heads up: This part is specific to 2003-2005 Common Rail engines. It will not fit 1998.5-2002 or 2006+ models.

Model Year Variations Within This Range

• 2003-2004 vs 2004.5-2005: The mid-2004 model year change introduced the higher-output '600' series engine (325hp/600tq). These engines use different fuel injectors (Bosch 0986435505) and pistons than the earlier '555' series 305hp engine (Bosch 0986435503). The injectors have a different spray pattern and are not interchangeable. Installing the wrong injector can lead to poor performance, smoke, and long-term piston damage.
• 1998.5-2002 vs 2003-2005: The entire fuel system is different. The earlier trucks use a VP44 injection pump and the injector wiring is routed differently. While P0206 still points to the #6 injector circuit, the specific parts (harnesses, injector type) and common failure points are not the same. The TSB #9002688 and the common issue with the under-cover harness are most strongly associated with the 2003-2005 common rail engines.
