P0206 on 2000-2003 Dodge Ram Wagon: Injector Circuit Fixes & Causes

What's Unique About the 2000-2003 Dodge RAM WAGON

For this generation of Dodge Ram Wagon and its relatives with Magnum engines (Dakota, Durango), there is a well-documented design flaw that makes it unique. The manufacturer issued a Technical Service Bulletin (TSB #9002688) highlighting that the wiring loom and connector that pass through the valve cover gasket are a common point of failure. Constant exposure to engine heat makes the wiring brittle, leading to cracks and breaks that cause an open circuit. This can cause an injector circuit code like P0206 even when the injector itself is perfectly fine. 🎬 Watch: Understanding the causes and fixes for the P0206 code. Technicians and owners are specifically advised to check this harness before condemning and replacing the fuel injector.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light illuminated
• Rough or unstable idle.
• Noticeable engine misfire, which can feel like a shake or stumble.
• Reduced engine power and poor acceleration.
• Decreased fuel economy
• Engine hesitation or bucking under load
• In some cases, a raw fuel smell from the exhaust if the injector is stuck open

Most Likely Causes

1. Faulty Valve Cover Gasket Wiring Loom/Connector 🔴 High Probability → Shop Engine Valve Cover As documented in Dodge TSB #9002688, the wiring that passes through the valve cover gasket is a known weak point. Constant heat cycles can make the wiring brittle and cause intermittent open or short circuits. This is a widely discussed failure among owners of Magnum engines.
   How to confirm: Visually inspect the wiring and connector integrated into the valve cover gasket for signs of damage, corrosion, or loose connections. A common diagnostic step is to perform a 'wiggle test' on the harness connector while the engine is running to see if it affects the idle. A continuity test from the main harness connector to the injector pigtail will confirm a break.

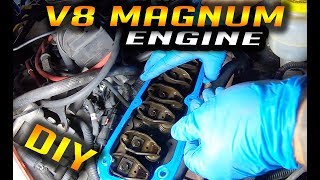

   Typical fix: Replace the valve cover gasket, which includes the new pass-through wiring loom. 🎬 See this walkthrough for replacing the valve cover gasket and harness. This is often sold as a complete kit.
   Est. part cost: $40-$80
2. Failed Cylinder 6 Fuel Injector 🟡 Medium Probability → Shop Fuel Injector
   How to confirm: Disconnect the injector and measure its resistance with a multimeter; it should be within 12-16 ohms. A reading of infinity indicates an open circuit. Alternatively, swap the #6 injector with an adjacent one (e.g., #4 or #8) and see if the trouble code follows the injector (e.g., changes to P0204 or P0208).
   Typical fix: Replace the faulty fuel injector.
   Est. part cost: $50-$120
3. Wiring Harness Damage (External) ⚪ Low Probability The harness can become brittle and chafe against engine components, especially near the exhaust manifold where heat is intense.
   How to confirm: Visually inspect the engine wiring harness between the PCM and the valve cover for any signs of chafing, melting, or breaks. Check for continuity on the injector control wire from the PCM connector to the valve cover connector.
   Typical fix: Repair the damaged section of the wire or replace the connector pigtail.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. The PCM's internal injector driver can fail, but this should only be considered after all wiring and the injector itself have been proven to be good. It is often misdiagnosed when the actual fault is a wiring short that wasn't found.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0206 is present.
2. Crucial Step for this vehicle: Heed TSB #9002688. Begin by carefully inspecting the wiring loom and connector that are part of the valve cover gasket assembly. Look for any signs of damage, brittleness, or corrosion. Perform a 'wiggle test' on the connector while the engine idles to see if it causes a change.
3. Disconnect the fuel injector harness at cylinder 6. Visually inspect the connector pins for corrosion or damage.
4. Use a multimeter to measure the resistance across the two pins of the fuel injector itself. A typical reading is 12-16 ohms. If it's near zero (shorted) or shows infinite resistance (open), the injector is bad.
5. If the injector resistance is good, test the control circuit. Connect a 'noid light' to the injector's harness connector. Crank the engine; the light should flash, indicating the PCM is sending a signal. 🎬 Watch: How to check for injector pulse using a noid light. If it does not flash, or if it stays on continuously, the problem is in the wiring or the PCM.
6. If the noid light does not flash, check for 12V power on one of the pins in the injector connector with the key on. This power is supplied by the Auto Shutdown (ASD) relay. If power is present, the issue is on the ground/control side of the circuit. If no power is present, check the ASD fuse and relay.
7. If the wiring and injector test good, the fault most likely lies within the valve cover pass-through harness, as indicated by the TSB. A continuity test from the main harness side of the valve cover connector to the injector pigtail will confirm this.
8. As a final check, you can swap the #6 injector with another cylinder's injector (e.g., cylinder 4). If the code moves to the new cylinder (P0204), the injector is confirmed to be the problem.

Parts You'll Likely Need

• Valve Cover Gasket with Wiring Loom — This is the most probable cause of the fault on this specific vehicle, as identified by a manufacturer TSB. The harness is integrated into the gasket.
  Trusted brands: Mopar, Fel-Pro, Dorman
  OEM price range: $60-$100
  Aftermarket price range: $40-$80
• Fuel Injector (OEM #53030778AB (supersedes 53030778)) — If the injector itself has failed its resistance test, it will need to be replaced.
  Trusted brands: Mopar, Bosch, Standard Motor Products
  OEM price range: $90-$150
  Aftermarket price range: $50-$90

Related Codes That Often Appear With This One

• P0306 — P0306 indicates a misfire on cylinder 6. Since P0206 means the injector isn't firing correctly, that cylinder isn't getting fuel, which directly causes a misfire.
• P0201, P0202, P0203, P0204, P0205 — The TSB mentions that this wiring issue can affect any of the injectors. If the harness has multiple points of failure, or if there is a short in the shared power or ground circuit, you may see codes for other cylinders as well.
• P2149 — On some Dodge platforms, particularly diesel models but relevant to the circuit design, a fault in one injector can trigger a group fault code like P2149 (Fuel Injector Group 'B' Supply Voltage Circuit/Open), which often accompanies a specific injector code like P0206.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #9002688: Advises checking the wiring loom/connector in the valve cover gasket before replacing injectors for codes P0201 through P0206. This is noted as a Mopar service message/part note.

Platform-Specific Known Issues

• A known issue, documented by TSB #9002688, is the failure of the injector wiring harness that is integrated into the valve cover gasket. This should be the first component inspected.
• Owners on forums frequently report that the wires become brittle and break right at the connector on the outside of the valve cover, or inside where they pass through the gasket.

Mechanic-Grade Diagnostic Values

• Fuel Injector Resistance — expected: 11-18 Ohms. Failure: Near zero ohms (short) or infinite ohms (open circuit).
• Injector Pulse Width (at idle) — expected: Approximately 2.0-3.0 milliseconds (ms). Failure: Zero, or significantly different from other cylinders.
• Injector Circuit Power (Key On) — expected: Battery Voltage (~12.6V) on the power supply wire from the ASD relay.. Failure: Low or no voltage indicates a problem with the ASD relay, fuse, or wiring.
• Injector Inductive Kick (on an oscilloscope) — expected: A sharp voltage spike of 35V or higher immediately after the PCM commands the injector off.. Failure: A missing or weak spike indicates an open in the circuit or a shorted injector coil.

Scan Tool Commands That Help

• DRB III or equivalent bidirectional scanner: Injector Kill / Actuator Test / Injector Balance Test — This function allows a technician to disable cylinder 6's injector while the engine is running. If disabling the injector causes no change in how the engine runs (no drop in RPM), it confirms that cylinder was not contributing, pointing to a failure in its fuel or ignition system. This helps isolate the problem to cylinder 6.
• DRB III or equivalent bidirectional scanner: Auto Shutdown (ASD) Relay Actuation — This command forces the ASD relay on. While the relay is actuated, you can use a test light to confirm that 12V power is reaching the injector connector, which helps diagnose a faulty relay or a break in the power supply wire.

Wiring & Ground Locations

• PCM Connector C2, Pin B12 — On the Powertrain Control Module (PCM), which is typically located on the passenger-side firewall in the engine bay.. This is the specific pin for the cylinder 6 injector driver (control) circuit. The wire color is typically Brown with a Dark Blue tracer (BR/DB). A continuity test should be performed from this pin to the injector connector to find an open or shorted wire.
• Auto Shutdown (ASD) Relay — Located in the Power Distribution Center (PDC), the main fuse box in the engine compartment.. The ASD relay supplies 12V power to all fuel injectors. A failure of this relay or its fuse will cause a no-start condition or kill power to the injectors, potentially triggering multiple injector codes.
• Engine Ground Points — Key grounds are located near the battery negative terminal, on the alternator bracket, and from the engine block to the chassis/firewall.. A poor engine or PCM ground can cause erratic electrical behavior, including false injector circuit codes. The PCM grounds are typically Black with a Tan tracer (BLK/TN). Ensuring these connections are clean and tight is a crucial step.

Real Owner Repair Stories

• Dodge Diesel - Ram Truck Forum user (2007 Ram w/ 6.7L Cummins (Illustrates analogous failure)) — Intermittent Check Engine Light, rough running.
  ❌ Tried (didn't work) Testing the injector solenoid (showed good resistance), Checking for continuity to ground (showed no short)
  ✅ What actually fixed it The problem was intermittent and ultimately resolved by replacing the valve cover gasket, which contained the integrated injector wiring harness. This mirrors the known TSB issue on the Magnum engines.
• DodgeForum.com user 'Scuba Sam' (1999 Dodge Ram 1500 5.9L) — No power to #6 injector, code P0206.
  ❌ Tried (didn't work) Confirmed continuity of wires from injector plug back to the PCM., Confirmed continuity of ASD relay wiring.
  ✅ What actually fixed it After verifying all wiring was intact, the diagnosis pointed to a failed injector driver inside the Powertrain Control Module (PCM), representing the least common cause. The user was advised the PCM needed replacement.

OEM Part Supersession History

• 53030778 → 53030778AB — Standard part revision and improvement by the manufacturer.
  Heads up: Part number 53030778AB is the correct direct replacement for the specified model years. RL030778AB may also be seen, which typically denotes a Mopar-authorized remanufactured part.

Model Year Variations Within This Range

• 2000-2003: The engine management system, wiring, and the specific failure mode of the valve cover gasket harness are consistent across this vehicle's year range for the Magnum V6, V8, and 5.9L V8 engines. No significant variations affecting this specific code have been noted.
