P0243 on 2020-2022 Ford Escape 2.0L EcoBoost: Wastegate Solenoid Causes and Fixes

What's Unique About the 2020-2022 Ford ESCAPE

For the 2020-2022 Ford Escape with the 2.0L EcoBoost engine, this code is directly linked to a well-documented mechanical failure. Ford has issued multiple Technical Service Bulletins (TSBs) acknowledging that the small e-clip holding the wastegate actuator rod can fall off. This disconnects the actuator from the wastegate arm, causing a complete loss of boost control. The PCM then logs the electrical fault P0243 🎬 Watch: A breakdown of what the P0243 code actually means because it can no longer control the disconnected actuator, often alongside the underboost code P0299. This issue is common across several Ford and Lincoln models using the same engine.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Illuminated Malfunction Indicator Lamp (Check Engine Light)
• Wrench light may appear on the dashboard.
• Significant lack of engine power and poor acceleration.
• Vehicle may enter 'limp mode'.
• Cruise control may be inoperative.
• Unusual whooshing or rattling noises from the engine bay.
• A louder than normal servo noise from the engine bay on startup or shutdown, which is the actuator performing its self-test.

Most Likely Causes

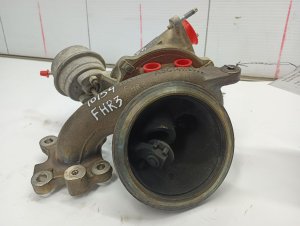

1. Missing Wastegate Actuator E-Clip 🔴 High Probability → Shop Turbocharger This is a widely known issue documented by Ford in TSBs SSM 50485, SSM 50171, and SSM 49427. The clip can detach due to engine vibration and heat cycles, a failure noted by owners on platform mates.
   How to confirm: Visually inspect the turbocharger wastegate actuator, located on the passenger side of the engine. Check if the actuator rod is disconnected from the wastegate arm on the turbo housing. If the rod is dangling, the e-clip is missing.
   Typical fix: Re-secure the actuator rod with a new e-clip. A generic 3.5mm or 4.7mm e-clip from a hardware store may work as a temporary or permanent fix. However, Ford's official repair involves installing the complete service kit (K2GZ-9G488-B) which includes a new actuator, rod, and clips.
   Est. part cost: $1-$5 for a generic e-clip, $70-$120 for the full actuator kit.
2. Faulty Turbocharger Wastegate Actuator 🟡 Medium Probability → Shop Turbocharger The electronic actuator itself can fail internally, as noted in Ford's TSBs which cite an 'inoperative wastegate actuator' or 'non-visible damage to the actuator rod' as potential causes alongside the missing clip. Owners of platform mates have confirmed replacing the actuator resolved the P0243 code.
   How to confirm: If the e-clip is present and the rod is connected, a technician can use a scan tool to command the actuator to move while observing its operation. Resistance tests can also be performed on the solenoid. A failing actuator may also make an unusually loud servo noise during its startup/shutdown sweep test.
   Typical fix: Replace the wastegate actuator assembly. Ford provides a service kit (K2GZ-9G488-B) for this purpose, which includes the actuator, rod, and clips.
   Est. part cost: $70-$120
3. Damaged Wiring or Connector ⚪ Low Probability Wiring near the turbocharger is exposed to high heat, which can cause materials to become brittle over time.
   How to confirm: Visually inspect the wiring harness and connector going to the wastegate solenoid for any signs of fraying, corrosion, or damage. Perform a continuity test on the circuit.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. Motorcraft sells a replacement connector.
   Est. part cost: $20-$50 for a pigtail connector.

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM should only be considered after all other possibilities, including the actuator, linkage, and wiring, have been definitively ruled out.

Diagnosis Steps

1. Scan the PCM for all stored trouble codes. Note P0243 and any accompanying codes like P0299.
2. Perform a thorough visual inspection of the turbocharger wastegate actuator on the passenger side of the engine. This is the most critical step.

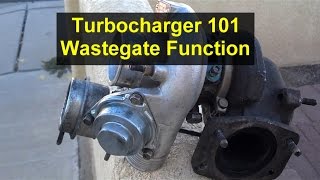

🎬 Watch: How to diagnose wastegate failure and P0299 errors
3. Locate the actuator rod and the arm it connects to on the turbocharger housing.
4. Check if the actuator rod is physically disconnected from the wastegate arm. If it is, the e-clip has fallen off, and you have found the most likely problem.
5. If the rod is connected, check for excessive play in the linkage. Also, listen during engine startup and shutdown for an unusually loud servo sound from the actuator, which can indicate internal failure.
6. If the mechanical linkage appears intact, inspect the electrical connector and wiring going to the actuator for any signs of damage, corrosion, or loose connections.
7. If no visible issues are found, a technician can use a bidirectional scan tool to command the wastegate actuator to move, verifying its electronic and mechanical response.
8. Test the resistance of the solenoid to see if it is within the manufacturer's specifications. A typical value might be around 5-30 Ω.

Parts You'll Likely Need

• Turbocharger Wastegate Actuator Kit (OEM #K2GZ-9G488-B) — This is the official Ford service kit designed to fix the known issue of a missing e-clip or failed actuator, as specified in TSBs SSM 50485, SSM 50171, and SSM 49427. It includes the actuator, rod, and both e-clips.
  Trusted brands: Motorcraft
  OEM price range: $70-$120
  Aftermarket price range: $50-$90
• Wastegate Actuator E-Clip (OEM #Not sold separately by Ford) — If only the clip is missing, this is the single part needed for the repair. Owners have reported success using generic 3.5mm or 4.7mm e-clips from hardware stores. However, due to the known issue, replacing the entire actuator assembly with the kit is the more robust, long-term fix recommended by Ford.
  Trusted brands: Generic, Hillman
  OEM price range: $1-$5
  Aftermarket price range: $1-$5

Related Codes That Often Appear With This One

• P0299 — This code indicates a 'Turbocharger Underboost' condition. It is commonly set with P0243 because the disconnected wastegate actuator rod leaves the wastegate open, preventing the turbo from making the commanded boost pressure.
• P02AB, P25B3, P25B4, P2AB7, P2AB8, P2AB9 — These are other turbocharger and wastegate control-related codes that Ford lists in the same TSBs, indicating they can all stem from the same root cause of a failed actuator or missing e-clip.

Technical Service Bulletins (TSBs) & Recalls

• SSM 50485: Notes that a lack of power with DTC P0243 may be due to an inoperative wastegate actuator or missing e-clip and provides a service kit part number. It covers the 2020-2022 Escape/Corsair, 2019-2022 Edge/Nautilus, and 2021-2022 Bronco Sport.
• SSM 50171: Similar to SSM 50485, linking P0243 and other codes to a faulty actuator or missing e-clip, stating turbo replacement is not necessary.
• SSM 49427: An earlier TSB also identifying the missing wastegate actuator e-clip as the cause for P0243 and lack of power, announcing the release of the service component kit.

Platform-Specific Known Issues

• Ford has issued multiple Technical Service Bulletins (TSBs) for this exact problem on 2020-2022 Escapes with the 2.0L EcoBoost engine. TSB #SSM 50485 states the issue may be an 'inoperative wastegate actuator, missing wastegate actuator e-clip or non-visible damage to the actuator rod.' It advises using service kit K2GZ-9G488-B instead of replacing the entire turbocharger.

Mechanic-Grade Diagnostic Values

• Wastegate Actuator/Solenoid Coil Resistance — expected: Commonly 5-30 Ω. Some service manuals specify a tighter range, such as 20 Ω ± 5 Ω.. Failure: A reading of infinite resistance (Open Loop) or near-zero resistance (short circuit) indicates a failed solenoid coil.
• Voltage Supply at Actuator Connector (Key On, Engine Off) — expected: ~11-14 Volts (Battery Voltage) on the power supply pin.. Failure: No voltage or significantly low voltage points to a problem in the supply circuit, fuse, or PCM.
• Ground Continuity at Actuator Connector — expected: Near 0 Ω resistance between the ground pin on the harness connector and a known good chassis ground.. Failure: High resistance indicates a poor ground connection, which can cause erratic operation or a circuit fault code.

Scan Tool Commands That Help

• Ford IDS or FORScan: Output State Control / Actuator Self-Test — This function allows a technician to command the wastegate actuator to cycle through its full range of motion with the engine off. It is used to visually verify if the actuator is mechanically stuck, slow to respond, or has failed electronically without having to physically remove it.
• Ford IDS or FORScan: Turbocharger/Wastegate Actuator Relearn/Calibration — After replacing the wastegate actuator assembly, this service function must be performed. The PCM needs to learn the new actuator's precise minimum and maximum travel points to ensure accurate boost control. Failure to perform the relearn can result in persistent codes or improper boost levels.

Real Owner Repair Stories

• Bronco6G Forum (2023 Ford Bronco 2.3L EcoBoost (engine shares TSBs with the Escape 2.0L)) — Check engine light with codes P0243 and P2AB9. Noticeably loud servo noise from the actuator during startup and shutdown.
  ❌ Tried (didn't work) Clearing codes with FORScan (they returned immediately).
  ✅ What actually fixed it The owner replaced the electronic wastegate actuator assembly (part number LB5Z-9G488-B for the Bronco). After replacement, the startup/shutdown noise was much quieter and boost control was restored. The repair was successful long-term.

OEM Part Supersession History

• Not specified in TSBs → K2GZ-9G488-B — Ford released this part as a service kit to address the widespread issue of the missing e-clip and actuator failures without requiring a full turbocharger replacement.
  Heads up: This kit is specified for the 2.0L EcoBoost in the Escape, Bronco Sport, and other platform mates. The 2.3L EcoBoost in vehicles like the Bronco uses a different part number (e.g., LB5Z-9G488-B), so care must be taken to order the correct part for the specific engine and vehicle.

Model Year Variations Within This Range

• 2020-2022: There are no significant documented mechanical changes to the 2.0L EcoBoost engine, turbocharger, or wastegate actuator assembly within this specific model year range that would affect the diagnosis or repair of code P0243. The issue and the corresponding TSBs apply to all years equally.
