P0269 on 2012-2015 Kia Sorento: Cylinder 3 Contribution/Balance Fault Causes and Fixes

What's Unique About the 2012-2015 Kia SORENTO

The 2.4L GDI (Gasoline Direct Injection) 'Theta II' engine used in this generation of Kia Sorento (chassis code 'XM') has a known, widespread history of fuel injector problems. Kia directly addressed this pattern of failures by issuing multiple Technical Service Bulletins (TSBs), most notably TSB ENG149. These bulletins guide technicians to inspect and replace the fuel injectors when cylinder contribution codes like P0269 appear, making it a much more predictable diagnosis than on other vehicles where the cause might be less obvious.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Rough or unstable idle, sometimes stalling at low RPMs
• Engine hesitation or stumbling during acceleration
• Noticeable loss of power
• Reduced fuel economy
• Check Engine Light is on
🎬 Watch: A quick guide to understanding the P0269 engine code.
• Audible engine misfire, sometimes described as a 'popping' or 'sputtering' sound
• Black smoke from the exhaust, especially during acceleration

Most Likely Causes

1. Faulty Cylinder 3 Fuel Injector 🔴 High Probability → Shop Fuel Injector This is a known issue for the 2.4L GDI engine, as documented by Kia in TSBs #TSBENG149 and #PS327R1. TSB ENG149 specifically covers Sorento models produced from December 2012 to December 2014.
   How to confirm: The most reliable DIY method is to swap the fuel injector from cylinder 3 with one from another cylinder (e.g., cylinder 2). Clear the codes and drive the vehicle. If the code returns as P0266 (Cylinder 2 Contribution/Balance), the injector is confirmed to be faulty. A visual inspection may also reveal leaking O-ring seals around the injector.

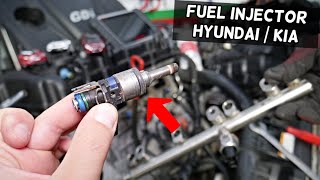

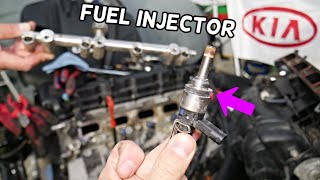

   Typical fix: Replace the faulty fuel injector. 🎬 See this walkthrough for removing and replacing GDI fuel injectors. TSB ENG149 recommends replacing only the affected injector. However, many technicians and owners recommend replacing all four injectors as a set to prevent future failures of the other original injectors. CRITICAL: After replacement, the fuel system adaptive values MUST be cleared/reset using a capable scan tool, as specified in TSB ENG149, to ensure the repair is effective.
   Est. part cost: $60-$130 for one remanufactured injector, or $180-$250 for a new OEM injector.
2. Carbon Buildup on Intake Valves/Injector 🟡 Medium Probability GDI engines inject fuel directly into the cylinder, so they don't have fuel washing over the intake valves. This can lead to carbon deposits that disrupt airflow and cylinder performance, a known issue with GDI engines.
   How to confirm: This requires a visual inspection using a borescope inserted into the intake ports or cylinder.
   Typical fix: Perform a chemical cleaning (e.g., 'seafoam' treatment) or a more intensive walnut shell blasting service to physically remove the carbon deposits.
   Est. part cost: $20-$50 for DIY cleaning kits; professional service can cost several hundred dollars.
3. Clogged Fuel Filter ⚪ Low Probability
   How to confirm: Perform a fuel pressure test. If the pressure is below the manufacturer's specification, a clogged filter could be the cause. Low fuel pressure can sometimes trigger a P0087 code alongside the P0269.
   Typical fix: Replace the fuel filter. Many injector manufacturers recommend replacing the filter whenever injectors are replaced.
   Est. part cost: $30-$70

Rare But Worth Checking

• Low Compression in Cylinder 3: If an injector swap doesn't move the code and cleaning doesn't help, a mechanical issue could be the cause. A compression test is necessary to check for worn piston rings, a bad valve, or a head gasket leak.
• Wiring or Connector Issue: The wiring harness or connector for the cylinder 3 injector could be damaged, corroded, or have a loose connection. A visual inspection and testing for a consistent electrical pulse with a noid light can rule this out.
• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM should only be considered as the cause after all other possibilities, including mechanical, fuel system, and wiring issues, have been thoroughly eliminated.

Diagnosis Steps

1. Read all stored trouble codes with an OBD-II scanner. Note P0269 and any other codes present (e.g., P0303, P0087).
2. Inspect the wiring and connector going to the cylinder 3 fuel injector for any visible damage, corrosion, or loose connections.
3. Perform a fuel injector swap. Label and move the injector from cylinder 3 to cylinder 2. Clear all codes.
4. Drive the vehicle until the Check Engine Light returns. Re-scan the codes.
5. If the code is now P0266 (Cylinder 2 Contribution/Balance), the fuel injector is faulty and must be replaced.
6. If the code remains P0269, the problem is not the injector. The issue lies with cylinder 3 itself or its wiring.
7. Perform a compression test on all cylinders and compare the readings. A significant drop in cylinder 3 indicates a mechanical engine problem.
8. If compression is good, inspect the intake valves for heavy carbon buildup using a borescope.
9. If all else fails, test the injector driver circuit from the ECM to rule out a rare computer or wiring fault.

Parts You'll Likely Need

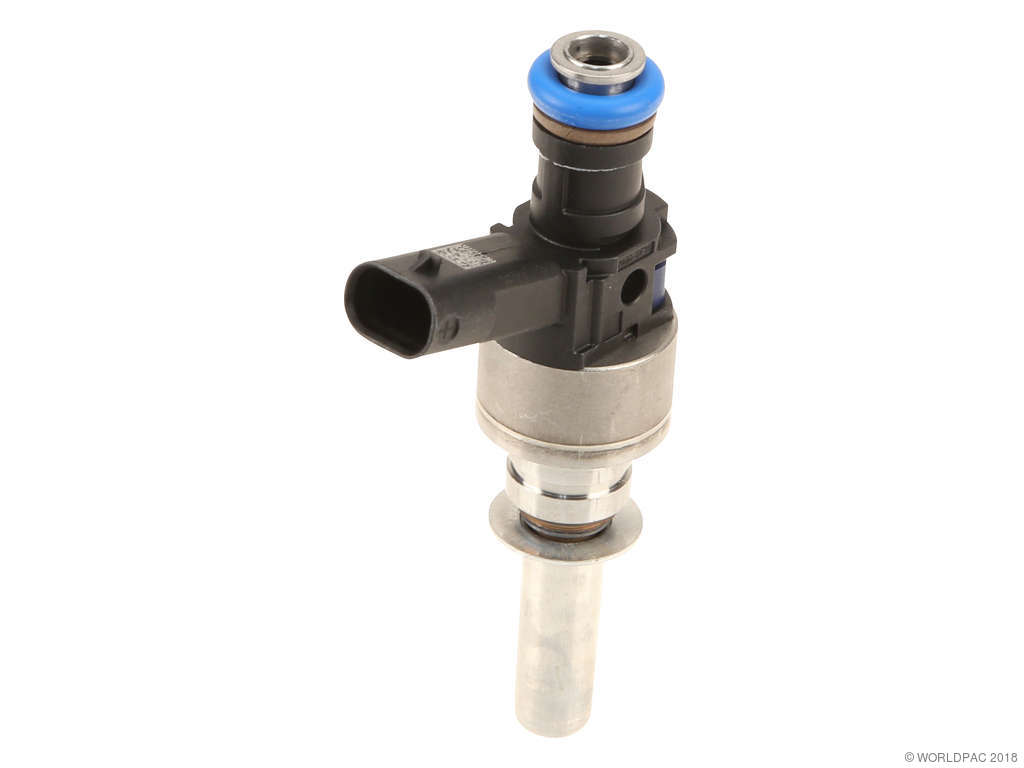

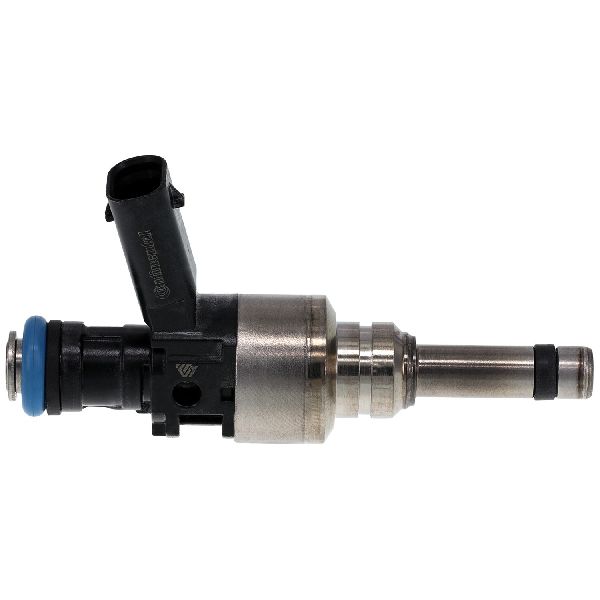

• Fuel Injector (OEM #35310-2G710FFF) — This is the most common failure part for code P0269 on this specific vehicle. TSB ENG149 confirms this and specifies the 'FFF' suffix for the injector used in cylinder 3.
  Trusted brands: Genuine Kia, Bosch, GB Remanufacturing
  OEM price range: $180-$250
  Aftermarket price range: $60-$130

Related Codes That Often Appear With This One

• P0303 — A Cylinder 3 Misfire code often accompanies P0269 because the underlying fueling issue is severe enough to cause incomplete combustion.
• P0263, P0266, P0272 — These are the contribution/balance codes for cylinders 1, 2, and 4. Seeing them together with P0269 suggests a more widespread problem, like multiple failing injectors (a common scenario on this engine), a failing high-pressure fuel pump, or systemic carbon buildup.

Technical Service Bulletins (TSBs) & Recalls

• TSBENG149: Advises replacement of the specific fuel injector corresponding to the DTC (e.g., P0269 = injector 3) on 2012-2014 Sorento 2.4L GDI models and requires resetting fuel adaptive values.
• PS327R1: A Kia 'Pitstop' bulletin acknowledging MIL illumination with DTC P0269 on 2012-2015 Sorento 2.4L GDI models as a recognized issue.
• TSBFUE023: Identifies P0269 as one of a series of common cylinder contribution/balance DTCs, establishing a known pattern of failure.

Platform-Specific Known Issues

• The 2.4L GDI engine is subject to Kia TSB #TSBENG149, which specifically addresses codes P0263, P0266, P0269, and P0272 by recommending fuel injector replacement on Sorento models produced from 12/17/2012 to 12/11/2014.
• Kia Pitstop bulletin #PS327R1 also highlights the Malfunction Indicator Lamp (MIL) illuminating with code P0269 on 2012-2015 Sorento 2.4L GDI models, pointing to a known issue.
• TSB #TSBFUE023 groups P0269 with other cylinder contribution codes, indicating a recognized pattern of these specific faults across the Kia lineup.
• TSB ENG149 mandates that after injector replacement, the technician must use a scan tool to clear the fuel system adaptive values to prevent the issue from recurring.

Mechanic-Grade Diagnostic Values

• Low-Pressure Fuel Pump Pressure (in-tank) — expected: 48-52 psi at idle.. Failure: Pressure should not drop below 45 psi when revving the engine to 2,500 RPM.
• High-Pressure Fuel Pump (HPFP) Pressure — expected: Can exceed 2,000 PSI under load.. Failure: A significant drop or inability to build pressure, often accompanied by code P0087.
• Injector Pulse Width (at hot idle) — expected: Generally 1.5ms - 2.9ms.. Failure: A pulse width of 2.9ms - 5.5ms can indicate a clogged injector, as the ECM tries to compensate by holding it open longer.
• Fuel Injector Resistance — expected: While a specific value for this exact part was not found, GDI injectors are typically low resistance. A multimeter can be used to compare the resistance of the suspect injector to the others; a significant deviation indicates a fault.. Failure: An open circuit (infinite resistance) or a short (very low resistance) compared to the other injectors.

Scan Tool Commands That Help

• Kia GDS/KDS: Resetting adaptive values (Engine Control) — This is a mandatory step after replacing a fuel injector. TSB ENG149 and PS327R1 state that failure to reset the 'cylinder balance adaptation values' can cause the P0269 code to return even with a new part. The function is found under 'Option/Data Treatment' or 'Special Function' in the GDS software.
• Kia GDS/KDS: Injector Test Mode — This function allows the technician to individually activate each injector to check for operation, helping to confirm if the cylinder 3 injector is responding to commands from the ECM.

Wiring & Ground Locations

• Engine Ground Wiring Assembly — This harness provides a critical ground path for various engine components. While the exact location on the chassis isn't specified, the part number for 2013-2014 Sorento 2.4L models is 91860-1U510.. A poor engine ground can cause a variety of electrical issues, including erratic sensor readings and incorrect injector operation, potentially leading to contribution/balance faults.
• Injector Connector C324-3 — This is the electrical connector for the cylinder #3 fuel injector.. All electrical testing for the cylinder 3 injector circuit (voltage, resistance, pulse width) is performed at this connector. A schematic shows it has two pins.
• Interior Fuse Box — Located under the dashboard on the driver's side, behind a cover.. Contains fuses for various engine control components. While a specific injector fuse isn't listed, checking relevant ECU and ignition fuses here is a valid preliminary step.

OEM Part Supersession History

• 35320-2G730 → 35320-2G720 — This is the part number trail for the High-Pressure Fuel Pump (HPFP) applicable to the 2009-2014 Sorento with the 2.4L Theta II engine. The -2G720 part is the later revision.
• 35310-2G710 → 35310-2G710FFF — TSB ENG149 specifically calls out part number 35310-2G710FFF for replacing the injectors in cylinders 2 and 3, while cylinders 1 and 4 use 35310-2G710. This indicates a specific revision or selection for the center cylinders, though the base part number is the same.
  Heads up: Using the base part number without the 'FFF' suffix in cylinder 3 may not resolve the issue or could lead to premature failure, as Kia specifically designated a different part for this location.

Model Year Variations Within This Range

• 2012-2015: According to Kia TSB PS327R1, the GDS software used for diagnostics must be version N-K-01-13-0022 or later. Older versions of the dealer software did not have the ability to properly reset the 'cylinder balance adaptation values', which could cause the P0269 code to return after an injector replacement.
