P0284 on 2017-2018 GMC Sierra 3500: Cylinder 8 Balance Fault Causes and Fixes

What's Unique About the 2017-2018 Gmc SIERRA 3500

For the 2017-2018 Sierra 3500 with the 6.6L L5P Duramax engine, this code is particularly significant. These trucks use sophisticated Denso high-pressure solenoid fuel injectors that operate at up to 30,000 PSI. While a faulty injector is a common cause, General Motors has specifically identified that an 'anomaly in the Engine Control Module (ECM)' can also cause this code, as detailed in Technical Service Bulletin #17-NA-171. This TSB recommends reprogramming both the ECM and TCM with the latest software. Furthermore, experience from technicians shows the injector wiring pigtail, especially for cylinder 8 at the back of the driver's side, is a very common failure point due to heat and vibration, sometimes being a more likely culprit than the injector itself.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or uneven idle
• Engine vibration or shaking, which can be felt in the seat
• Loss of power and poor acceleration, especially noticeable when towing or under load
• Increased fuel consumption
• Black smoke from the exhaust under load
• Hesitation or stumbling on acceleration

Most Likely Causes

1. Faulty Cylinder 8 Fuel Injector 🔴 High Probability → Shop Fuel Injector The high-pressure, high-precision nature of the L5P injectors makes them susceptible to failure from contamination or wear. Cylinder 8 is on the driver's side, at the rear of the engine.
   How to confirm: Use a diagnostic scan tool to monitor injector balance rates at operating temperature in Park. GM specifies a limit of +/- 4.0 mm³. 🎬 Watch: A quick guide to understanding fuel injector balance rates. A reading for cylinder 8 significantly outside this range (either positive or negative) points to a problem. A positive reading means the ECM is adding fuel to compensate for a weak cylinder (low compression or clogged injector), while a negative reading means the ECM is pulling fuel to compensate for excess (leaking injector). An injector can also be swapped with another cylinder to see if the fault code follows.
   Typical fix: Replace the cylinder 8 fuel injector and its associated high-pressure fuel line, which GM recommends replacing anytime it is removed. The new injector's flow rate code (IQA code) must be programmed into the ECM.
   Est. part cost: $250-$450 for a single remanufactured or new OEM injector.
2. Fuel Injector Wiring or Connector Issue 🔴 High Probability → Shop Fuel Injector The wiring connector for the fuel injector is a very common failure point on the L5P Duramax. Heat and engine vibration can cause the female pins inside the connector to lose tension, leading to a poor connection and intermittent open circuits, triggering codes like P0284 or P0208 (Injector 8 Circuit Malfunction). Cylinder 8's location at the back of the engine bay may subject it to more heat and vibration.
   How to confirm: Visually inspect the wiring harness and connector for cylinder 8's injector. Wiggle the connector while the engine is running (if safe to do so) to see if it affects the idle. A more definitive test is to measure the resistance at the connector pins; they often lose their grip on the injector's male pins. Many technicians will replace the pigtail as a first step before condemning the injector.
   Typical fix: Replace the injector connector pigtail. This involves cutting the old connector off and splicing the new one in. The ACDelco part number for the connector is 19368140. 🎬 Watch: See how to locate and inspect the #8 injector connector.
   Est. part cost: $25-$60 for the pigtail connector.
3. Engine Control Module (ECM) Anomaly 🟡 Medium Probability → Shop Engine Control Module (ECM) As cited in TSB #17-NA-171, the ECM and TCM software on these trucks can sometimes incorrectly flag a contribution/balance fault among many other issues.
   How to confirm: This must be confirmed by a GM dealership or a shop with access to GM's TIS2Web software service. They will check the vehicle's current software calibration version against the latest available version.
   Typical fix: Reprogramming (reflashing) both the ECM and TCM with the latest software from the manufacturer is the specified fix in TSB #17-NA-171.
   Est. part cost: $0-$250, depending on dealer labor rates and warranty coverage.
4. Low Engine Compression in Cylinder 8 ⚪ Low Probability
   How to confirm: Perform a relative compression test using a scan tool, followed by a manual compression test on cylinder 8 and compare it to other cylinders. A variance greater than 10-15% indicates a mechanical problem. A high positive balance rate on a cylinder can also be an indicator of low compression.
   Typical fix: This indicates a serious internal engine problem (e.g., worn piston rings, bad valve, head gasket failure) that requires significant engine repair.
   Est. part cost: $1000+

Rare But Worth Checking

• Contaminated Fuel:

Diagnosis Steps

1. Connect a professional-grade OBD-II scanner and verify code P0284 is present. Check for any other related codes, especially P0208.
2. Access live data and view the injector balance rates for all 8 cylinders at hot idle. Note the reading for cylinder 8; it should be within +/- 4.0 mm³. A value outside this range confirms an issue.
3. Perform a thorough visual inspection of the cylinder 8 fuel injector wiring and connector. It is located at the rear of the driver's side valve cover. Look for signs of damage, corrosion, or loose connections.
4. Given the high failure rate of the connector, consider wiggling the connector while monitoring balance rates to see if the reading changes, indicating a bad connection. If a bad connection is suspected, replace the connector pigtail (ACDelco 19368140) before replacing the injector.
5. If the wiring and connector are confirmed good, the next step is to confirm if the injector is the fault. The most reliable method is to swap the cylinder 8 injector with another cylinder (e.g., cylinder 6).
6. Clear the codes and run the engine. If the code changes to P0278 (Cylinder 6 Contribution/Balance), the injector is confirmed to be faulty.
7. If code P0284 returns after the swap, the problem lies in the ECM or a mechanical issue with cylinder 8 itself.
8. If the injector and wiring are ruled out, perform a compression test on cylinder 8 to check for mechanical engine problems.
9. If all mechanical and electrical tests pass, consult a GM dealership and reference TSB #17-NA-171 to check for a required ECM/TCM software update.

Parts You'll Likely Need

• Fuel Injector (OEM #12698552 (replaces 12678992, 12696966)) — This is a common cause for a cylinder-specific contribution fault on the L5P Duramax engine.
  Trusted brands: ACDelco (OEM), Denso (OEM supplier)
  OEM price range: $300-$550
  Aftermarket price range: $250-$450
• Fuel Injector Connector Pigtail (OEM #ACDelco 19368140) — A very common failure point due to heat and vibration causing a poor electrical connection. Often fails before the injector itself.
  Trusted brands: ACDelco (OEM)
  OEM price range: $25-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0208 — This is the code for 'Cylinder 8 Injector Circuit Malfunction'. It often appears alongside P0284, especially if the root cause is a bad electrical connection or faulty wiring pigtail.
• P0263, P0266, P0269, P0272, P0275, P0278, P0281 — These are the contribution/balance fault codes for cylinders 1-7. Seeing multiple codes together could point towards a systemic issue like fuel contamination, a failing fuel pump, or a widespread ECM problem. The cited TSBs list these codes together. [Bulletin #PIP5468F, Bulletin #17-NA-171]
• P2463 — This code means 'Diesel Particulate Filter (DPF) Soot Accumulation'. A poorly performing injector can cause incomplete combustion, leading to excess soot that clogs the DPF.

Technical Service Bulletins (TSBs) & Recalls

• 17-NA-171: Mentions that an ECM/TCM anomaly can cause P0284 and other codes, requiring a software update for both modules as the fix.
• PIP5468F: Lists P0284 among a wide range of engine codes and advises technicians to follow published service diagnostics.
• PIP5468D: An earlier version of PIP5468F, also listing P0284 and advising standard diagnostic procedures.

Platform-Specific Known Issues

• TSB #17-NA-171 notes that an anomaly in the Engine Control Module (ECM) can cause code P0284 (and other cylinder balance codes) to set. The fix requires reprogramming both the ECM and the Transmission Control Module (TCM) to the latest software version.
• TSBs #PIP5468F and #PIP5468D also list P0284 as part of a group of codes that require following standard diagnostics first, implying a complex or potentially non-obvious root cause that the bulletin addresses if simple fixes fail.
• The injector wiring connector pigtail is a known weak point on the L5P engine, frequently causing injector circuit and contribution codes. Technicians often replace the connector before condemning the injector itself.

Mechanic-Grade Diagnostic Values

• Injector Connector Resistance — expected: ~0.8 Ohms. Failure: Resistance climbs to 3.8 Ohms or higher, indicating fretting and a poor connection.
• Low-Side Fuel Pressure (Lift Pump) — expected: Primes to ~62 PSI and holds steady.. Failure: Pressure is erratic at idle, surging between ~10 PSI and ~90 PSI.
• High-Side Fuel Pressure (Rail Pressure) at Idle — expected: 5,000 - 7,000 PSI. Failure: Pressure significantly deviates or is unstable.
• Injector Pulse Width at Idle (Stock) — expected: 8.0 - 12.0 mm³. Failure: Values outside this range may indicate a fueling command issue.
• Fuel Rail Pressure Sensor Voltage — expected: 0.5V - 4.8V. Failure: Voltage is fixed, or does not respond to changes in pressure.
• Fuel Pressure Regulator 2 Return Test — expected: 15 ml or less of fuel return during a 15-second crank.. Failure: Significantly more than 15 ml (e.g., 30+ ml) indicates the regulator is leaking pressure back to the tank instead of holding it in the rail.

Scan Tool Commands That Help

• GM GDS2: Injector Flow Rate Programming — This is required after replacing a fuel injector to write the new injector's unique calibration (IQA) code to the ECM. The path is: ECM > Module Diagnostics > Control Functions > Configuration Reset > Injector Flow Rate Programming.
• Aftermarket (e.g., Snap-on Solus Ultra): Injector Rate Programming — Used for the same purpose as the GDS2 command. A critical step is to prepend 'F7' to the injector's trim code for the command to be accepted by the ECM.
• GM GDS2 / Professional Scan Tool: Fuel Injector Balance Test — This function pulses each injector individually and measures the corresponding drop in fuel rail pressure, helping to identify an injector that is flowing differently than the others.
• GM GDS2 / Professional Scan Tool: Cylinder Power Balance — This displays a graph of the contribution of each cylinder in real-time, which can visually confirm that cylinder 8 is underperforming.

Wiring & Ground Locations

• Injector Connector #8 — Driver's side of the engine, at the rearmost cylinder, under the valve cover and behind fuel lines. Access is typically gained through the driver's side wheel well.. This is the direct electrical connection to the fuel injector. It is a known high-failure part due to engine vibration causing the connection to become loose (fretting), leading to high resistance and triggering P0284 and P0208.
• Engine Ground Strap — There are several key grounds. One typically runs from the negative battery cable to the passenger side cylinder head, and another from the body/firewall to the driver's side cylinder head.. A poor engine ground can cause a host of electrical issues, including erratic sensor readings and improper operation of ECM-controlled components like fuel injectors. While not a primary cause of a single-cylinder code, it should be checked.
• ECM Connector X1 (66-way) — The Engine Control Module (ECM) is located on the driver's side of the engine bay. X1 is one of its main connectors.. This connector contains the control circuits from the ECM to the fuel injectors. A fault here could cause an issue, but it's much rarer than a problem at the injector connector itself. A full pinout for the cylinder 8 injector circuit is typically only found in paid service manuals.

Real Owner Repair Stories

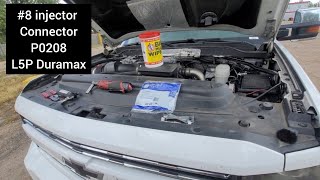

• YouTube channel 'cfarmer' (2017-2019 L5P Duramax) — Check engine light with code P0208 (Cylinder 8 Injector Circuit Malfunction), which is often paired with P0284.
  ❌ Tried (didn't work) The video focuses directly on the known common failure.
  ✅ What actually fixed it The problem was a failed #8 injector connector pigtail. The repair involved accessing the injector through the driver's side wheel well, removing two fuel lines to gain access, cutting off the old connector, and splicing in a new pigtail.
• YouTube channel 'Blue Collar Garage' (2018 Duramax L5P) — Misfire with codes P0204 (Cylinder 4) and P0300 (Random Misfire). The principle is identical for P0284 on cylinder 8.
  ❌ Tried (didn't work) Initial diagnosis pointed towards a bad injector.
  ✅ What actually fixed it The injector itself tested with correct resistance (between 0.2 and 0.4 ohms). The fault was confirmed to be the injector connector pigtail. Replacing the pigtail for cylinder #4 resolved the misfire and codes.
• T3 Speed Shop Blog (2017-2024 L5P Duramax) — Misfire and check engine light with injector codes (P0201-P0208).
  ❌ Tried (didn't work) Assuming the fuel injector itself has failed.
  ✅ What actually fixed it The blog states that most of the time, the problem is not the injector but the pigtail connector. The connector wears out, causing a short or high resistance. They show a picture of a failed connector with burnt-looking pins as evidence.

OEM Part Supersession History

• 12678992, 12696966, 12674615, 12686812 → 12698552 — Standard part evolution and consolidation by the manufacturer.

Model Year Variations Within This Range

• 2017-2018: For the purpose of diagnosing P0284, the 2017 and 2018 models are virtually identical. Both use the same L5P engine, Denso solenoid injectors, and Allison 1000 6-speed transmission. No significant changes affecting this fault were made within this period.
