P0299 on 2014-2018 Ram ProMaster 3.0L EcoDiesel: Underboost Causes and Fixes

What's Unique About the 2014-2018 Ram PROMASTER

On the 3.0L Iveco F1C diesel engine in the ProMaster, the P0299 code is frequently linked to the complex emissions system and specific component vulnerabilities. This engine is distinct from the 3.0L V6 EcoDiesel (made by VM Motori) found in the Ram 1500 and Jeep Grand Cherokee. The provided NHTSA Technical Service Bulletins (TSBs) show that underboost issues often appear alongside codes for the Diesel Particulate Filter (DPF) and Exhaust Gas Recirculation (EGR) system, and that a common factory fix is an ECM software update to change the sensitivity of the sensor monitoring. This suggests that either excessive soot and backpressure from a clogged emissions system can be a root cause, or the factory calibration itself is too sensitive, before the turbo itself is considered the initial failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Significant loss of engine power and acceleration.
• Vehicle enters 'limp mode' or 'reduced power' mode, sometimes limiting speed to 40 mph or less.
• Check Engine Light (Malfunction Indicator Lamp) is on.
• Service Electronic Throttle Control light may illuminate.
• Audible hissing, whistling, or whooshing sound from the engine bay, especially under acceleration, indicating a boost leak.
• Difficulty maintaining speed on inclines.
• Decreased fuel economy.
• Jerky or hesitant acceleration.

Most Likely Causes

1. Leaking or Damaged Boost Hoses (CAC Pipes) 🔴 High Probability → Shop Turbocharger Outlet Hose The rubber or plastic hoses that carry pressurized air from the turbo to the intercooler and then to the engine can crack, split, or become loose over time due to heat, pressure, and vibration. One owner on the TDR forums reported a very specific failure where a CAC pipe rubbed through from contact with a battery cable, causing a hard-to-find leak.
   How to confirm: Visually inspect all hoses in the intake tract for cracks, oil residue (indicating a leak), or loose clamps. A smoke test, where smoke is forced into the intake system, is the most effective way to pinpoint 🎬 Watch: How to identify and fix common P0299 error causes. hard-to-see leaks.
   Typical fix: Replace the damaged hose or tighten the loose connection. It is best practice to replace hoses as a kit, because if one has failed, others are likely degraded as well.
   Est. part cost: $50-$200

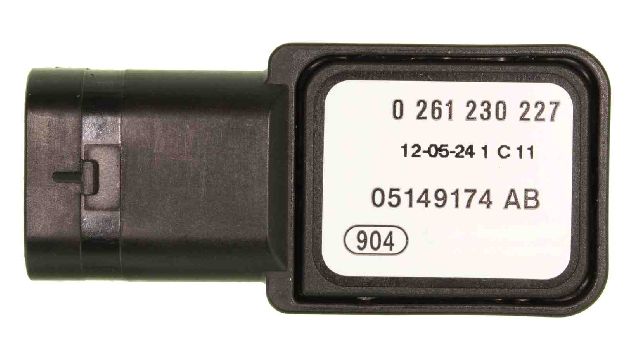

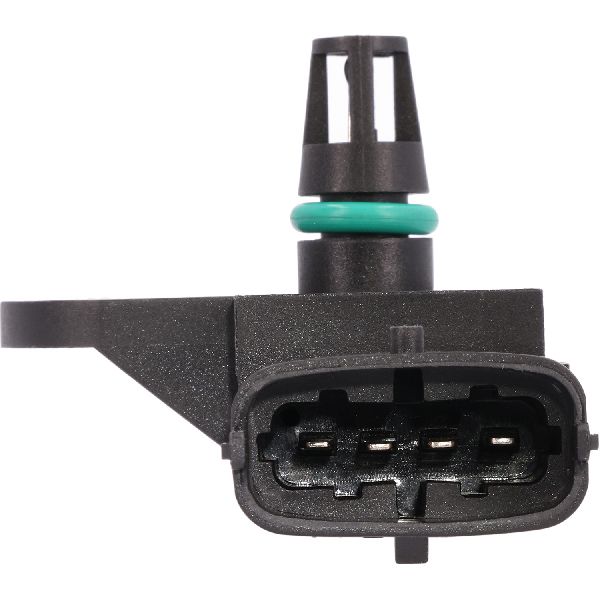

2. Clogged or Faulty Boost Pressure Sensor (MAP Sensor) 🟡 Medium Probability The 3.0L Iveco engine is known for producing significant soot, which can completely clog the small port on the boost pressure sensor (also called a MAP sensor). When clogged, the sensor cannot accurately read the boost pressure, causing the ECM to think there is an underboost condition even if the turbo is healthy.
   How to confirm: Remove the sensor, which is typically mounted on the intake manifold, and visually inspect it. If the opening is plugged with soot, it is the likely culprit. Owners report the sensor being so caked with carbon that no light can pass through the port.
   Typical fix: Carefully clean the soot out of the sensor port with a pick and a sensor-safe electronics cleaner. Do not use harsh chemicals like brake or carb cleaner, as they can damage the sensor. If cleaning doesn't resolve the issue, replace the sensor.
   Est. part cost: $40-$100
3. Sticking or Clogged EGR Valve/System 🟡 Medium Probability → Shop Exhaust Gas Recirculation (EGR) Valve Soot from the exhaust can cause the EGR valve to stick open or closed, or clog the passages leading to the intake manifold. This disrupts proper air and exhaust flow, which can directly impact the turbo's ability to build boost and often triggers a P0401 (EGR Flow Insufficient) or P0402 (EGF Flow Excessive) code alongside P0299.
   How to confirm: Diagnosis often requires removing the EGR valve and intake components to inspect for heavy carbon buildup. A scan tool can be used to command the EGR valve open and closed to check for response.
   Typical fix: Clean the EGR valve, EGR cooler, and associated intake passages. If the valve is mechanically or electrically faulty, it must be replaced.
   Est. part cost: $200-$500 for a new valve
4. Faulty Turbocharger Actuator or Sticking VGT Vanes ⚪ Low Probability → Shop Turbocharger The electronic actuator controls the variable geometry vanes inside the turbo. It can fail electrically, or the vanes themselves can get stuck due to soot buildup, preventing them from moving to the correct position to generate boost. TSB #18-038-15 REV-B specifically links P0299 with P226C (Turbocharger Boost Control Slow Response), which points directly to this type of failure.
   How to confirm: A scan tool can perform an actuator test. Visual inspection may show the actuator arm isn't moving when the engine is started. Confirming stuck vanes often requires turbo removal. Replacing the actuator requires a special calibration procedure with a capable scan tool.
   Typical fix: Replace the turbocharger actuator. If the vanes are the issue, the entire turbocharger assembly usually needs to be replaced or professionally rebuilt.
   Est. part cost: $250-$500 for an actuator, $1500+ for a turbo

Rare But Worth Checking

• Clogged Diesel Particulate Filter (DPF) or Catalytic Converter: → Shop Diesel Particulate Filter (DPF) A severely clogged DPF or catalytic converter creates excessive exhaust backpressure, preventing the turbo from spinning up effectively. This is often accompanied by other DPF-related codes like P2002, as mentioned in TSB #0901316.
• Restricted or Poor Quality Air Filter: → Shop Air Cleaner Assembly A severely clogged engine air filter can starve the turbo of air. Furthermore, some owners report that cheap, poor-quality aftermarket air filters can cause turbulence or separate, leading to an underboost code even if the filter looks clean. Using the OEM Mopar filter is often recommended to rule this out.
• ECM Software Calibration: Multiple TSBs (#18-038-15 REV-B and #18-018-15 REV. B) for this vehicle list P0299 as a code that can be fixed by reprogramming the ECM with updated software. This implies the factory logic for detecting underboost may be too sensitive and can be corrected with a dealer reflash.

Diagnosis Steps

1. Read all fault codes with an OBD-II scanner. Pay close attention to any other codes present, especially for the EGR (P0401), DPF (P2002), or boost control (P226C) systems.
2. Check for Technical Service Bulletins (TSBs). Specifically, search for TSBs #18-038-15 REV-B and #18-018-15 REV. B, which may resolve the issue with a simple ECM software update at a dealership.
3. Perform a thorough visual inspection of the entire air intake system. Look for disconnected hoses, loose clamps, and obvious cracks or splits in the plastic and rubber pipes. Pay special attention to areas where hoses might rub against other components, like battery cables.
4. Inspect and clean the engine air filter. Ensure it is an OEM-spec filter, as some aftermarket filters are known to cause this code.
5. Remove and inspect the boost pressure (MAP) sensor for soot buildup. Clean it carefully with sensor-safe electronics cleaner if it is clogged.
6. If no obvious leaks are found, perform a smoke test on the charge air system to find hidden leaks in hoses, the intercooler, or gaskets.
7. Use a scan tool to monitor live data for commanded boost vs. actual boost while driving. 🎬 Watch: A quick diagnostic walkthrough for the ProMaster P0299 code. A large, persistent discrepancy confirms the underboost condition.
8. Inspect the EGR system for functionality and carbon buildup if EGR-related codes are present.
9. If all else fails, inspect the turbocharger itself. Check for excessive shaft play and test the electronic VGT actuator's range of motion. This may require professional assistance and special calibration tools if the actuator is replaced.

Parts You'll Likely Need

• Charge Air Cooler (CAC) Hose / Intercooler Pipe
• MAP Sensor (Boost Pressure Sensor) (OEM #68371847AB)
• Turbocharger Actuator (OEM #R8481772AA)

Related Codes That Often Appear With This One

• P0401 — Indicates insufficient EGR flow. A sticking or clogged EGR valve is a common cause for both P0401 and P0299 on this engine.
• P226C — Means 'Turbocharger Boost Control Slow Response'. This often points to a sticking VGT actuator or vanes, which directly causes the underboost condition of P0299. This pairing is explicitly mentioned in TSB #18-038-15 REV-B.
• P2002 — Indicates 'Diesel Particulate Filter Efficiency Below Threshold'. A clogged DPF can create backpressure, hindering turbo performance and causing an underboost condition, as noted in TSB #0901316.
• P0101 — Relates to the Mass Air Flow (MAF) sensor performance. Issues with measuring the air entering the engine can lead to incorrect boost calculations and trigger P0299. A sticking EGR valve can also cause a P0101 code.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #0901316: Links P0299 to DPF codes and incorrect cylinder head replacement.
• Bulletin #18-018-15 REV B: Lists P0299 as one of several DTCs that may be stored, pointing to potential software issues.
• Bulletin #18-038-15 REV-B: Connects P0299 with P226C (Turbocharger Boost Control Slow Response), suggesting a VGT actuator or related control issue.

Platform-Specific Known Issues

• NHTSA TSB #0901316 notes that P0299 can appear after an incorrect cylinder head was installed during a previous repair, alongside several DPF-related codes.
• Multiple TSBs (#18-018-15 REV B, #18-038-15 REV-B) link P0299 with other seemingly unrelated codes like P0181 (Fuel Temperature Sensor) and P2BA9 (NOx Exceedence), indicating that software updates may be required to address intermittent or complex issues.
• An owner complaint (ODI #11442397) documents the severe limp mode caused by P0299 in combination with P0401 (EGR) and P226C (Boost Control Slow Response), highlighting a common failure pattern.

Mechanic-Grade Diagnostic Values

• MAP Sensor Voltage (Key On, Engine Off at Sea Level) — expected: ~1.0 V. Failure: Significant deviation from 1.0V indicates a potential sensor issue.
• Freeze Frame Data: Actual Boost vs. Accelerator Position — expected: Boost should rise with accelerator position under load.. Failure: A freeze frame showing actual boost at 0 PSI while the accelerator pedal is pressed (e.g., 15%) under light load points to a sensor or logic issue rather than a high-load mechanical failure.

Hidden / Shadow Codes Worth Checking

• P2509: PCM/ECM Power Input Signal Intermittent. This code can be stored in freeze frame data before the P0299 code sets. (see via A capable scan tool that can read historical freeze frame data. A technician noted it often indicates a battery was recently disconnected, possibly by someone attempting to clear the check engine light without a scanner.)

Scan Tool Commands That Help

• AlfaOBD / TopScan: VGT Actuator Test / Boost Actuator Test — To command the VGT actuator to move through its range of motion. This helps verify if the actuator is physically working, stuck, or if the internal position sensor is faulty (e.g., commanded position changes but measured position stays at 0%).
• wiTECH 2.0: Air Filter Restriction Test — This is a factory scan tool function added to specifically address the high frequency of P0299 codes being caused by incorrect or clogged air filters on Ram diesel engines.

Real Owner Repair Stories

• YouTube channel "Fix it Angel" (2017 Ram 1500 3.0L EcoDiesel (Note: V6 engine, but MAP sensor issue is identical to the ProMaster's I4)) — Limp-in mode, dead pedal, throttle control fault message on the dash, P0299 code stored.
  ❌ Tried (didn't work) The owner took it to a shop that could not diagnose it.
  ✅ What actually fixed it The MAP sensor (called a boost pressure sensor in service info) was found to be completely plugged solid with carbon soot. The technician removed the sensor and cleaned the port out. After reinstalling the cleaned sensor and clearing codes, the vehicle ran correctly.

"I Checked Everything" — The Actual Cause

• In a case on a VW (with similar turbo systems), a smoke test passed, indicating no boost leaks. The wastegate linkage was also tight. The final root cause was a clogged catalytic converter, which created so much backpressure that the turbo could not spin up effectively to create boost.

OEM Part Supersession History

• 68211213AA → 68211213AD — Part has been revised multiple times by the manufacturer. The supersession chain is 68211213AA -> 68211213AB -> 68211213AC -> 68211213AD.
  Heads up: This part number is for the related 3.0L V6 EcoDiesel, but demonstrates a typical Mopar supersession path. The specific turbo for the ProMaster 3.0L I4 is Garrett model GTB2056V, with OEM part numbers like 68226943AA.

Model Year Variations Within This Range

• 2014-2016: Early model year ProMasters are reported by some owners to have more initial 'teething troubles' compared to the 2018 and later models, as issues with the drivetrain and body were progressively worked out.
