P0300 on 2021 Cadillac Escalade: Random Misfire Causes & Lifter Failure Fixes

What's Unique About the 2021-2021 Cadillac ESCALADE NA

The 2021 Escalade is the first year of the fifth generation, featuring the 6.2L L87 V8 engine with Dynamic Fuel Management (DFM). This system is an evolution of the previous Active Fuel Management (AFM) and is designed to improve fuel economy by deactivating cylinders in various combinations. However, the specialized DFM valve lifters are a well-documented failure point, making them the primary suspect for a P0300 code on this specific vehicle, far more so than typical causes like spark plugs or coils. This issue is so prevalent that it has been the subject of numerous TSBs (e.g., 23-NA-043, PIP5776H) and class-action lawsuits alleging defective design and materials in the valvetrain components.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Rough or shaking idle.
• Hesitation or stumbling during acceleration.
• Flashing or solid Check Engine Light.
• Audible ticking or knocking noise from the engine bay, particularly the driver's side valve cover area.
• Noticeable loss of power.
• Service StabiliTrak or traction control warning light may appear simultaneously.

Most Likely Causes

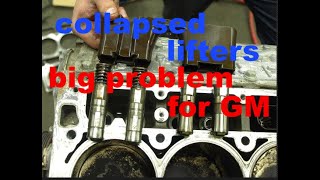

1. Failed DFM Valve Lifter(s) 🔴 High Probability The DFM lifters in the 6.2L L87 engine are a known weak point. The internal 🎬 Watch: Expert breakdown of L84 and L87 lifter issues locking pins or springs can fail, causing the lifter to collapse, become stuck, or come apart entirely. This prevents the valve from opening correctly, leading to a misfire. Multiple TSBs, including #23-NA-043 and #PIP5776H, directly link P0300 to this failure and recommend replacing the lifters and guides. The issue is so common it has prompted class-action lawsuits and a large volume of owner complaints.
   How to confirm: A distinct ticking noise from the valve cover area is a strong indicator. A professional 🎬 Watch: How to diagnose a lifter tick on an Escalade diagnosis involves using a scan tool like GM's GDS2 to perform a Cylinder Balance Test, followed by removing the valve cover. A stationary rocker arm while the engine is running confirms a collapsed lifter. Physical inspection after disassembly is required to check for a bent pushrod or camshaft lobe damage.
   Typical fix: Replace all DFM lifters and lifter guides on the affected cylinder bank, or both banks depending on mileage per TSB #23-NA-043. TSB #PIP5776H recommends replacing the lifter guide and all four lifters on the bank where the failure occurred. If the camshaft has been scored or damaged by the failed lifter, the camshaft must also be replaced, significantly increasing labor and cost. This is an extensive repair requiring cylinder head removal. 🎬 See this walkthrough of a partial engine rebuild for lifters
   Est. part cost: $400-$1500
2. Bent Pushrod(s) 🟡 Medium Probability → Shop Engine Push Rod This is often a secondary failure caused by a collapsed or stuck DFM lifter. When the lifter fails, it can create slack or a hard stop in the valvetrain, causing the pushrod to bend under pressure from the rocker arm. TSB #PIP5776H explicitly mentions finding a bent pushrod along with a collapsed lifter. Some owners have reported bent pushrods with as few as 5,000 miles.
   How to confirm: Visual inspection after removing the valve cover. A bent pushrod will be visibly deformed and can often be rolled on a flat surface to check for straightness.
   Typical fix: Replace the bent pushrod(s). The root cause (usually a failed lifter) must also be addressed to prevent a repeat failure.
   Est. part cost: $50-$150
3. Broken Valve Spring ⚪ Low Probability → Shop Engine Valve Spring TSB #PIP5752M specifically mentions a possible valve spring concern in relation to code P0300 on this vehicle. While less common than lifter failure, a broken spring will prevent the valve from closing properly, causing a loss of compression and a misfire.
   How to confirm: After removing the valve cover, a visual inspection may reveal the broken spring. A compression test on the affected cylinders will show significantly lower readings compared to healthy cylinders.
   Typical fix: Replace the broken valve spring. It is best practice to replace all valve springs on that cylinder head at the same time.
   Est. part cost: $100-$300
4. Fouled or Worn Spark Plugs ⚪ Low Probability → Shop Spark Plug While always a potential cause for a misfire, it's less likely to be the root cause of a P0300 on a newer vehicle compared to the known mechanical issues. However, a failing lifter or excessive oil consumption can cause secondary fouling of the spark plug in that cylinder, masking the primary issue.
   How to confirm: Remove and inspect the spark plugs. Look for heavy carbon buildup, oil fouling, or a worn electrode.
   Typical fix: Replace all 8 spark plugs. Use high-quality Iridium plugs as specified by the manufacturer (e.g., ACDelco 41-123). This should be considered a first step, but if a ticking noise is present, the problem is likely mechanical.
   Est. part cost: $80-$150
5. Faulty Ignition Coil ⚪ Low Probability → Shop Ignition Coil An ignition coil failure typically causes a single-cylinder misfire code (e.g., P0301-P0308). It is uncommon for multiple coils to fail simultaneously to cause a P0300, but not impossible.
   How to confirm: Use a scan tool to observe which cylinders are misfiring. Swap the ignition coil from a misfiring cylinder with one from a known good cylinder. If the misfire code follows the coil (e.g., a P0302 becomes a P0305 after swapping coils from cylinders 2 and 5), the coil is bad.
   Typical fix: Replace the faulty ignition coil.
   Est. part cost: $50-$100

Rare But Worth Checking

• Faulty Fuel Injector: → Shop Fuel Injector A clogged or failing direct injector can cause a lean misfire. While less common than lifter failure, it's a possibility, especially if the misfire is accompanied by other fuel-related codes.
• Low Fuel Pressure: A weak fuel pump or failing fuel pump control module can starve the engine of fuel, causing random misfires under load.
• Intake Manifold Gasket Leak: → Shop Engine Intake Manifold A vacuum leak from a failed intake manifold gasket can lean out the air/fuel mixture on one or more cylinders, leading to random misfires. A smoke test is the best way to confirm a leak.
• Crankshaft/Connecting Rod Bearing Failure: → Shop Engine Crankshaft A major safety recall (N252494001) was issued for some 2021-2024 L87 engines due to manufacturing defects in crankshafts and connecting rods that could lead to engine failure. While this may not always start with a P0300, it's a critical known issue for this engine.

Diagnosis Steps

1. Check for stored trouble codes with an OBD-II scanner. Note any specific cylinder misfire codes (P0301-P0308) or associated codes like P050D.
2. Listen carefully to the engine while it's running, especially on a cold start. A repe

Parts You'll Likely Need

• Engine Valve Lifter Kit (DFM) (OEM #12698945) — This is the primary failure point for code P0300 on the 6.2L L87 engine. The repair involves replacing all lifters on the affected bank.
  Trusted brands: ACDelco, Melling
  OEM price range: $40-$70 per lifter
  Aftermarket price range: $30-$50 per lifter
• Valve Lifter Guide (OEM #12664915) — These guides hold the lifters in place. TSBs recommend replacing them whenever the lifters are replaced to ensure proper alignment.
  Trusted brands: ACDelco
  OEM price range: $15-$25 each
  Aftermarket price range: $10-$20 each
• Cylinder Head Gasket Set — Required for re-installing the cylinder head after replacing the lifters. This is a one-time-use part.
  Trusted brands: ACDelco, Fel-Pro
  OEM price range: $150-$250
  Aftermarket price range: $100-$200
• Pushrod — Often bend as a result of a lifter failure and must be inspected and replaced if any deformation is found.
  Trusted brands: ACDelco, Melling
  OEM price range: $10-$20 each
  Aftermarket price range: $5-$15 each

Related Codes That Often Appear With This One

• P0301-P0308 — These are specific cylinder misfire codes. They often appear alongside P0300 as the ECM tries to pinpoint the source of the random misfires. TSBs #23-NA-043 and #PIP5776H list these codes together as symptoms of lifter failure.
• P050D — This code means 'Cold Start Rough Idle'. TSB #PIP5628G links this code with P0300-P0308 misfires, suggesting they are part of the same diagnostic pattern related to valvetrain issues.
• P0106 — 'Manifold Absolute Pressure (MAP) Sensor Performance'. TSB #PIP5752M associates this with P0300, likely because erratic valve events from a failed lifter or spring can cause abnormal pressure readings in the intake manifold.
• P0506 — 'Idle Air Control System RPM Lower Than Expected'. Also mentioned in TSB #PIP5752M, a severe misfire will cause the engine's idle speed to drop below the target RPM.

Technical Service Bulletins (TSBs) & Recalls

• #23-NA-043: Poor Engine Performance, Engine Misfires, Malfunction Indicator Lamp (MIL) Illuminated - DTC P0300, P0301-P0308 Set.
• #PIP5776H: Misfire Due To Collapsed Lifter.
• #PIP5628G: Cold Start Misfire or Rough Idle with DTCs P0300-P0308 and/or P050D.
• #PIP5752M: Service Engine Light, Misfire and Engine Noise with DTC P0300 P0106 P0506.

Platform-Specific Known Issues

• Owner Experience: Lifter Failure at 13,000 Miles: An owner of a 2021 Escalade ESV Sport reported hearing an audible ticking from the driver's side of the engine. The dealership confirmed it was the known lifter issue, which was prevalent in vehicles built between September 2020 and March 2021.
• Owner Experience: Engine Rebuild at 5,000 Miles: On the Cadillac Society forum, an owner of a 2021 Escalade Sport stated their vehicle required all new lifters and replacement of bent pushrods after only 5,000 miles. The dealer reportedly acknowledged a known problem with a bad batch of factory-installed lifters.
• Repair Story: Multiple Lifter and Camshaft Replacements: → Shop Engine Camshaft An owner of a 2021 Yukon Denali (platform mate) reported a failure at 26,000 miles that required two separate repairs to replace lifters and the camshaft, indicating the complexity and potential for repeat issues if not all damaged components are addressed.

Mechanic-Grade Diagnostic Values

• Cylinder Contribution via Cylinder Balance Test — expected: When a healthy cylinder's fuel injector is disabled via the scan tool, there should be a noticeable drop in engine RPM.. Failure: If disabling a cylinder causes little or no drop in RPM compared to other cylinders, that cylinder is not contributing power and is the source of the misfire.

Hidden / Shadow Codes Worth Checking

• Mode $06, Misfire Counts per Cylinder: This is not a trouble code, but a diagnostic function that displays the raw count of misfires detected by the ECM for each cylinder. It allows a technician to see which cylinders are misfiring intermittently, even if the count is not yet high enough to trigger a specific P030x DTC. (see via An advanced OBD-II scan tool or professional-grade software like GM's GDS2 that can access Mode $06 test data.)

Scan Tool Commands That Help

• GDS2 (GM Global Diagnostic System 2): Cylinder Balance Test — This function should be used when a P0300 is present but specific cylinder codes (P0301-P0308) are not, or to confirm a weak cylinder. The tool disables one injector at a time, and by graphing the engine RPM, a technician can visually identify which cylinder fails to cause an RPM drop, pinpointing the misfire.

Wiring & Ground Locations

• G103 — Typically located on the front of the right cylinder head on GM V8 engines.. A poor engine ground can cause erratic signals from critical sensors like the crankshaft and camshaft position sensors, which the ECM uses to detect misfires. Ensuring this ground is clean and tight is a crucial electrical check.
• Fuel Pressure Sensor Connector — On the high-pressure fuel line.. GM TSB #20-NA-197 indicates that corrosion or damage at this connector can cause fuel system issues that may lead to misfires. The bulletin advises inspecting the terminals and replacing the connector if corrosion is found.

Real Owner Repair Stories

• YouTube channel 'Alex The Car Doctor' (Cadillac Escalade, engine consistent with 6.2L L87) — Engine misfire caused by a lifter that completely fell apart, scoring the lifter bore inside the engine block.
  ❌ Tried (didn't work) Simple replacement of the lifter was not possible due to the damage to the engine block itself.
  ✅ What actually fixed it The engine block was sent to a machine shop to have the scored lifter cylinder bore repaired. The engine was then reassembled with new Melling-brand lifters (which were pre-soaked in oil), new lifter guides (retainers), a new timing chain guide, and all new gaskets.

OEM Part Supersession History

• 12680871 (DFM Lifter) → 12698946 — The part was updated to a new design for DFM engines. The new lifter is also backwards compatible with older AFM (Active Fuel Management) engines.
  Heads up: The new lifter (12698946) will work in older AFM applications, but the original AFM lifter will ONLY fit AFM applications and not the newer DFM engines.

Model Year Variations Within This Range

• 2021-2024: As part of GM recall N252494001 for potential crankshaft and connecting rod defects, the recommended engine oil was changed. For engines that pass inspection, the factory-fill 0W-20 oil is to be replaced with a higher viscosity 0W-40 dexosR specification oil to improve durability.
