P0301 on 2004-2010 Audi A8 4.2L V8 FSI: Cylinder 1 Misfire Causes and Fixes

What's Unique About the 2004-2010 Audi A8

The key issue for this Audi A8's 4.2L FSI (Fuel Stratified Injection) engine is carbon buildup on the intake valves. Because fuel is injected directly into the cylinder, it never washes over the back of the valves. This allows oil and combustion byproducts to bake onto the valves, restricting airflow and causing misfires that can be difficult to diagnose if you only focus on ignition or fuel parts. This is not a question of 'if' but 'when' carbon cleaning will be needed, often starting to cause issues around 40,000-60,000 miles. While ignition coils are a common failure point, persistent misfires on this engine often lead back to the need for a manual intake valve cleaning.

Symptoms You May Notice

• Check Engine Light is on and may be flashing
• Rough or shaking idle
• Engine hesitation or stumbling on acceleration
• Noticeable loss of engine power
• A smell of gasoline from the exhaust
• Difficulty starting the engine
• Reduced fuel economy

Most Likely Causes

1. Faulty Ignition Coil 🔴 High Probability → Shop Ignition Coil Ignition coils are a very common failure item on Volkswagen and Audi engines from this era. They are subjected to high heat and vibration, leading to eventual failure.
   How to confirm: Swap the ignition coil from cylinder 1 with another cylinder (e.g., cylinder 2). Clear the codes and run the engine. If the fault code changes to P0302 (Cylinder 2 Misfire), the coil is bad. This is a definitive and simple DIY test.
   Typical fix: Replace the faulty ignition coil. 🎬 Watch: Step-by-step ignition coil and spark plug replacement guide. It is often recommended to replace all 8 coils and spark plugs at the same time for preventative maintenance, as the others are of the same age and likely to fail soon.
   Est. part cost: $30-$60 per coil

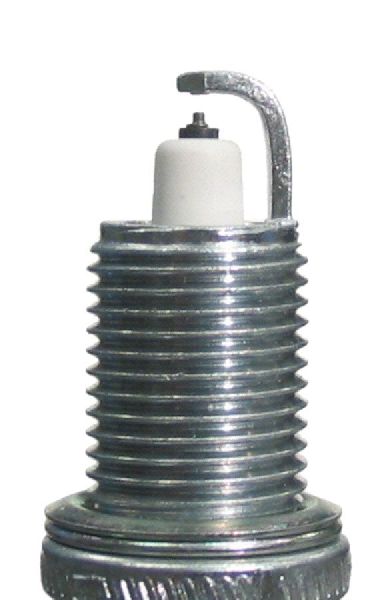

2. Worn or Fouled Spark Plug 🔴 High Probability → Shop Spark Plug Spark plugs are a standard wear-and-tear item with a finite service life. An old plug can have a worn electrode or excessive carbon buildup, leading to a weak spark.
   How to confirm: After ruling out the ignition coil, remove the spark plug from cylinder 1. Inspect it for wear, oil fouling, or damage. A visual check is often enough. You can also swap it with another cylinder's plug to see if the misfire follows.
   Typical fix: Replace the spark plug. It is best practice to replace all 8 spark plugs at the same time to ensure consistent performance.
   Est. part cost: $15-$25 per plug
3. Carbon Buildup on Intake Valves 🟡 Medium Probability As a direct-injection (FSI) engine, fuel does not spray over the intake valves, leading to a guaranteed buildup of carbon deposits over time. This restricts airflow and can cause misfires, especially on cold starts. This is considered an inevitable maintenance item on FSI engines.
   How to confirm: This requires visual inspection. The intake manifold must be removed to access the intake ports. A borescope can then be used to see the condition of the valves. Symptoms like a rough idle that smooths out when warm can also point to this issue.
   Typical fix: The intake valves must be manually cleaned. This is typically done via media blasting with walnut shells, which is effective and safe for the engine. 🎬 See how to perform a DIY walnut shell carbon cleaning. Chemical cleaning methods are generally less effective for heavy buildup. This service can cost between $800 and $1500 at a repair shop.
   Est. part cost: $50-$100 for intake gaskets needed for the job.
4. Faulty Fuel Injector ⚪ Low Probability → Shop Fuel Injector Direct injectors operate under high pressure and can become clogged or fail electronically. A leaking injector can cause a rich condition, while a clogged one can cause a lean misfire. Leaking injector seals are also a common failure point.
   How to confirm: This is more complex. A professional may need to perform a fuel injector balance test. Swapping injectors between cylinders is possible but labor-intensive as it requires removing the intake manifold. A strong fuel smell in the oil can indicate a severely leaking injector.
   Typical fix: Replace the faulty fuel injector and its seals. It's often recommended to replace all injectors on the same bank or all 8 at once due to the labor involved.
   Est. part cost: $100-$200 per injector

Rare But Worth Checking

• ECM Software Update Needed: Audi issued a Technical Service Bulletin (TSB 01 13 44 2035668/1) for the related 4.2L FSI engine in the S5 to fix cold-start misfires with a software update. It's possible this could apply to the A8 as well.
• Low Compression: A mechanical engine issue like a burnt valve, worn piston rings, or a timing chain problem can cause a persistent misfire. A compression test on cylinder 1 will confirm or deny this. Timing chain tensioner wear is a known issue on high-mileage 4.2L engines and can cause misfires.
• Vacuum Leak: A leak from a cracked hose, faulty PCV valve, or intake manifold gasket can introduce unmetered air and cause a lean misfire. A smoke test is the most effective way to find a vacuum leak.

Diagnosis Steps

1. Connect an OBD-II scanner to read the fault codes. Confirm P0301 is present 🎬 Watch this helpful overview of diagnosing P0301 misfire codes. and note any other codes.
2. To quickly test the ignition coil, swap the coil from cylinder 1 with the coil from cylinder 2.
3. Clear the codes, start the engine, and see if the misfire code returns as P0302. If it does, the ignition coil is the culprit. Replace it.
4. If the code remains P0301, perform the same swap test with the spark plug from cylinder 1.
5. If the misfire is still on cylinder 1, inspect the spark plug well for any oil. Oil presence indicates a leaking valve cover gasket or spark plug tube seal, which must be fixed as it will damage the new coil.
6. Given the engine's FSI design, suspect carbon buildup. This requires removing the intake manifold and inspecting the intake valves with a borescope.
7. If valves are clean, investigate the fuel injector. This may require professional diagnosis, including checking fuel trims with a scan tool or performing an injector balance test.
8. As a final step for a persistent misfire, perform a compression test on cylinder 1 to rule out a mechanical engine problem like worn rings, a bad valve, or a timing issue.

Parts You'll Likely Need

• Ignition Coil (OEM #06E905115E) — This is the most common failure point for a single-cylinder misfire on this engine.
  Trusted brands: Bosch, NGK, Eldor, Denso
  OEM price range: $50-$75
  Aftermarket price range: $30-$50

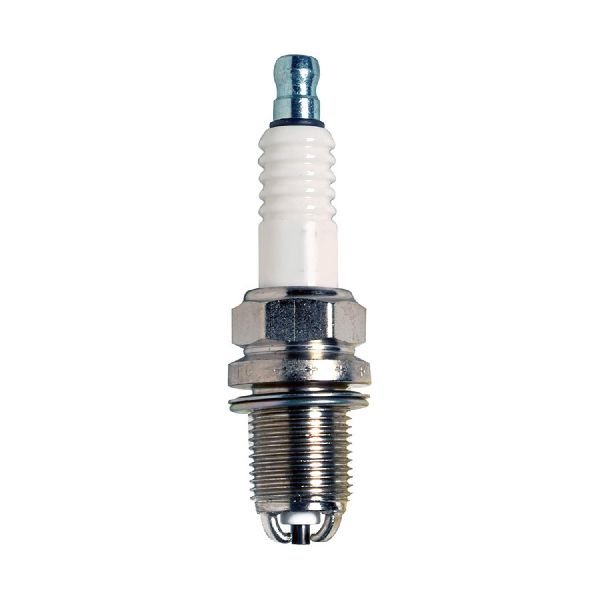

• Spark Plug (OEM #101905631H) — A routine maintenance item that is a frequent cause of misfires.
  Trusted brands: NGK (Laser Platinum), Bosch
  OEM price range: $20-$30
  Aftermarket price range: $15-$25
• Intake Manifold Gasket Kit (OEM #079129717B) — Required if the intake manifold is removed to perform carbon cleaning or fuel injector service, a common job for this engine.
  Trusted brands: Victor Reinz, Elring
  OEM price range: $80-$120
  Aftermarket price range: $40-$70
• Fuel Injector Seal Kit (OEM #06E998907G) — If fuel injectors are removed for testing or replacement, new seals are mandatory to prevent high-pressure fuel leaks.
  Trusted brands: Bosch, Audi OEM
  OEM price range: $25-$40 per injector
  Aftermarket price range: $15-$25 per injector

Related Codes That Often Appear With This One

• P0300 — If the misfire is intermittent or affects multiple cylinders, a P0300 (Random/Multiple Cylinder Misfire) may be stored alongside P0301. This often points towards a systemic issue like carbon buildup or a vacuum leak.
• P0302, P0303, P0304, etc. — If the root cause (like carbon buildup or low fuel pressure) affects other cylinders, you will see corresponding misfire codes for them. Seeing misfires on a whole bank (e.g., P0301, P0302, P0303, P0304) could indicate a timing issue on that bank.
• P1138, P1130 — Fuel trim codes indicating a lean condition on Bank 2 (which contains cylinder 1) can accompany a misfire code, suggesting a vacuum leak or fuel delivery problem on that side of the engine.

Technical Service Bulletins (TSBs) & Recalls

• 01 13 44 2035668/1 - While for the Audi S5, this TSB addresses cold start misfires on the 4.2L FSI engine via an ECM software update, indicating a potential fix for similar issues on the A8.
• TSB Bulletin #A0124212069038_5 — This manufacturer bulletin provides information for instances where the MIL is illuminated due to cylinder misfires, specifically citing codes P0300 through P0306.
• TSB Bulletin #A0123912069038_5 — A manufacturer service bulletin noting diagnostic information when the MIL is illuminated with DTCs P0300, P0301, P0302, P0303, P0304, P0305, and P0306.

Platform-Specific Known Issues

• Carbon buildup on the intake valves is an inevitable maintenance issue due to the FSI direct injection design, commonly causing misfires after 40,000-60,000 miles.

Mechanic-Grade Diagnostic Values

• High-Pressure Fuel System at Idle — expected: 35 to 45 bar (507 to 652 PSI). Failure: Pressure significantly below this range at idle can indicate a failing High-Pressure Fuel Pump (HPFP) or a leak in the high-pressure side.
• Low-Pressure Fuel System — expected: Approximately 7 bar (101 PSI). Failure: Low pressure here points to a weak in-tank fuel pump (G6) or a clogged fuel filter.
• Misfire Recognition (VCDS/VAG-COM) — expected: Using Measuring Value Block 15 and 16, a technician can see the misfire count for each individual cylinder. A healthy engine should have a count of 0.. Failure: Any number greater than 0 indicates a misfire event. This is more precise than just the generic P0301 code.
• Upstream Oxygen Sensor (Bank 1, Sensor 1) Voltage — expected: Fluctuating rapidly between 0.1V and 0.9V.. Failure: A sensor stuck high (rich) or low (lean) can indicate a fueling problem or a sensor failure that could contribute to a misfire. A lean reading on Bank 1 could point to a vacuum leak affecting that bank.

Scan Tool Commands That Help

• VCDS (VAG-COM): Read Measuring Value Blocks (MVB) 15, 16, and 140 — Use MVB 15 and 16 to view live misfire counts per cylinder to confirm the misfire is isolated to cylinder 1. Use MVB 140 to monitor high-pressure fuel rail pressure in real-time to diagnose fuel delivery issues.
• VCDS (VAG-COM): Throttle Body Adaptation - Basic Settings Group 060 — After cleaning the throttle body, which may be done during an intake manifold removal for carbon cleaning, this procedure must be run to relearn the throttle plate's home position. Failure to do so can cause idle and drivability issues that might be confused with misfires.

Wiring & Ground Locations

• Engine to Body Ground Strap — There are primary ground connections on the left and right side of the engine compartment, connecting the engine/chassis to the body. Specifically, a main engine block ground point is designated as '18' in some diagrams.. A corroded or loose main engine ground can cause a weak spark across all cylinders, but can sometimes manifest as an intermittent misfire on a single cylinder due to voltage drop variations. This is a critical check before replacing expensive components.
• Ignition Coil Connector (Cylinder 1) — The connector directly on top of the ignition coil for the front-most cylinder on the passenger side bank.. The plastic locking tabs on these connectors become extremely brittle with age and heat cycles. A broken connector may not seat properly, leading to a poor connection and an intermittent misfire that seems to be a bad coil. The wiring harness itself can also become brittle.
• ECM Ground Points — The Engine Control Module (J623) has multiple ground connections. Key ground points are located in the plenum chamber (under the windshield cowl) and inside the vehicle.. Water ingress into the plenum chamber is a known issue, which can corrode ECM grounds and cause a wide range of erratic engine behavior, including phantom misfires.

Real Owner Repair Stories

• Ross-Tech Forums user (2012 Audi A8 4.2L (similar engine management)) — Intermittent rough idle and misfire feeling, accompanied by a whistling noise from the engine when cold.
  ❌ Tried (didn't work) Replacing spark plugs, Replacing air filter
  ✅ What actually fixed it The user replaced the breather control valve (PCV valve) twice. The first replacement was faulty, but the second, warrantied part resolved the whistling and the intermittent misfire symptoms. This indicates an internal vacuum leak from the PCV system was the root cause.
• Reddit r/Audi user (Cupra R mk2 265 (2.0 TFSI, but similar diagnostic path)) — P0301, lumpy idle, flashing check engine light after a long drive.
  ❌ Tried (didn't work) Replacing spark plug on cylinder 1, Replacing ignition coil on cylinder 1, Swapping coils and plugs to other cylinders (misfire stayed on cylinder 1)
  ✅ What actually fixed it The issue was a dead fuel injector. This is a good example of a persistent single-cylinder misfire where the ignition system was not at fault.
• NHTSA ODI #11402605 — An owner reported experiencing multiple cylinder misfires (P0300, P0301, and P0302) while driving on the highway and city roads, accompanied by a blinking engine light.
• NHTSA ODI #11708802 — A report describes a catastrophic engine failure while driving on a highway where the system threw error codes P0301, P054A, and P0017, rendering the vehicle undrivable despite regular service intervals.

"I Checked Everything" — The Actual Cause

• A persistent misfire with lean codes (e.g., P0171/P0174) where a smoke test reveals no leaks can be caused by a faulty High-Pressure Fuel Pump (HPFP) leaking fuel directly into the crankcase. The fuel contaminates the oil, creating rich vapors that are pulled through the PCV system, confusing the ECU and causing it to incorrectly lean out the mixture, which in turn can cause misfires. A faint whistling from the engine bay or fuel smell in the oil are key indicators.

OEM Part Supersession History

• 06E905115, 06E905115A, 06E905115B, 06E905115C, 06E905115D → 06E905115E, then 06E905115F, and finally 06E905115G — Early versions of the ignition coil were prone to premature failure. The design was revised multiple times to improve durability and performance. The latest versions (often with a red top, though color is not a guarantee) are considered more reliable.
  Heads up: All revisions are physically and electrically compatible. However, it is strongly recommended to replace coils in a full set of 8 with the latest available revision to ensure consistent performance and prevent future failures of the other older coils.

Model Year Variations Within This Range

• 2004-2006: Early D3 A8s used a 4.2L V8 with multi-port fuel injection (MPI), not FSI direct injection. While they can still suffer from P0301, the cause is very unlikely to be carbon buildup on the intake valves, as the fuel spray constantly cleans them. The FSI engine (code BVJ), which is prone to carbon buildup, was introduced starting in the 2006 model year.
• 2007-2010: These models received a facelift which included updates to the MMI system and minor cosmetic changes. The 4.2L FSI BVJ engine remained largely the same, but may have received minor software updates from the factory over these years.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Tensioner & Guide Wear 🔴 High — Becomes a concern over 100,000 miles. A rattling noise on cold startup is the primary symptom. Failure is catastrophic and requires engine removal for repair.
• Air Suspension Failure 🟠 Medium — Very common as the vehicle ages (over 80,000 miles). Leaking air springs (bags) or a failing compressor are the usual culprits, causing the vehicle to sag at one or more corners.
• MMI Infotainment System Failure 🟡 Low — Commonly reported issue where the MMI screen fails to open, goes blank, or the system randomly reboots. Can be caused by a variety of issues from a blown fuse to a failed control module or a break in the fiber optic loop.
• Adaptive Headlight Motor Failure 🟡 Low — The motors for the swiveling (adaptive) headlights can fail, causing a dashboard warning and loss of the feature. The entire headlight assembly often needs to be replaced or repaired.
• Transmission Fluid Leaks / Mechatronic Issues 🟠 Medium — The 6-speed ZF automatic transmission is generally robust, but can develop leaks from the pan gasket or electrical connector sleeve. Rough shifting can sometimes be traced to the Mechatronic unit (valve body).

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, buying used parts is generally not recommended for the most common failure items. The only potential exception would be a major mechanical component like a complete intake manifold if the runner flaps were damaged, and even then, it's a risk. Cosmetic items or brackets are fine.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For any electronic part, verify the donor vehicle had no electrical fire or water damage.
• Check part numbers carefully; many parts look similar across different Audi engines but are not compatible.
• If considering a used intake manifold, inspect for cracks, especially around mounting points and the PCV connection.

OEM-only on this vehicle (don't cheap out):

• Fuel Injectors: Due to the high pressures of the FSI system and the precision required, OEM (Bosch) or genuine Audi injectors are strongly recommended. Aftermarket injectors have a high rate of failure or poor spray patterns.
• Sensors (Crank/Cam/O2): While some aftermarket brands are good, OEM sensors are the safest bet to avoid chasing phantom issues caused by incorrect readings.

Aftermarket brands forum-validated for this vehicle:

• Ignition Coils: Bosch, NGK, Eldor (often the OEM supplier). Some enthusiasts report good results with APR or other performance brands, but for a stock vehicle, stick to OEM suppliers.
• Spark Plugs: NGK or Bosch are the OEM suppliers and the best choice.
• Gaskets: Victor Reinz and Elring are reputable OEM-quality suppliers for intake and valve cover gaskets.

Brands owners have reported issues with on this vehicle:

• Unnamed/white-box ignition coils and fuel injectors from online marketplaces. These are notorious for failing quickly, sometimes within days or weeks, causing you to redo the labor.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0302 — Cylinder 2 misfire; often appears during diagnostic 'swap tests' when moving a faulty ignition coil or spark plug from cylinder 1 to cylinder 2.
• P0300 — Random/Multiple Cylinder Misfire; frequently accompanies P0301 when issues like carbon buildup or aged ignition components affect more than one cylinder.
• P0303 — Cylinder 3 misfire; another companion code common on this V8 engine when multiple ignition coils begin to fail due to heat and vibration.
• P0304 — Cylinder 4 misfire; cited in related FSI engine cases as a code that can be triggered by a dead fuel injector when plugs and coils are functional.

Frequently Asked Questions
