P0301 on 2010-2016 Buick LaCrosse 3.6L V6: Cylinder 1 Misfire Causes and Fixes

What's Unique About the 2010-2016 Buick LaCrosse

The 3.6L V6 engines (both LLT and LFX versions) in this LaCrosse generation are generally reliable but are known for a few specific issues related to this code. First, cylinder #1 is located in the rear bank of cylinders (Bank 1), close to the firewall. This means the upper intake manifold must be removed to access the ignition coil and spark plug, making the job more labor-intensive than for the front cylinders (Bank 2). Second, these are Direct Injection (DI) engines, which means over time they are highly susceptible to carbon buildup on the intake valves, a less common but important potential cause of misfires that often occurs on cold starts. GM has issued technical service bulletins (e.g., TSB PIP5029B) regarding this specific issue.

Symptoms You May Notice

• Flashing or solid check engine light
• Rough idle or engine vibration
• Hesitation or stumbling during acceleration
• Reduced engine power
• Decreased fuel economy
• Hard starting
• Smell of raw fuel from the exhaust

Most Likely Causes

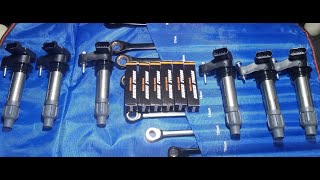

1. Failed Ignition Coil 🔴 High Probability → Shop Ignition Coil The coil-on-plug ignition coils are exposed to significant heat and vibration, causing them to fail over time. The rear bank of coils (including cylinder 1) is under the intake manifold, which can trap more heat, contributing to failure.
   How to confirm: The most effective diagnostic step is to swap the ignition coil from cylinder #1 with another cylinder (e.g., cylinder #3, also on the rear bank). Clear the codes and drive the vehicle. If the code changes to P0303, the ignition coil is confirmed to be faulty. This requires removing the intake manifold. 🎬 Watch this walkthrough on accessing and replacing the rear ignition coils.
   Typical fix: Replace the failed ignition coil. Since the intake manifold must be removed, it is highly recommended to replace all three rear-bank coils and spark plugs at the same time to save on future labor costs. Always apply dielectric grease to the new coil boot.
   Est. part cost: $30-$80
2. Worn or Fouled Spark Plug 🔴 High Probability → Shop Spark Plug Spark plugs are a regular maintenance item with a finite lifespan. On direct injection engines, carbon can build up and foul the plugs, leading to a weak or inconsistent spark. The original equipment plugs are Iridium type.
   How to confirm: After confirming the ignition coil is good, remove the spark plug from cylinder #1. Inspect it for wear on the electrode (rounding), carbon fouling (black, sooty), oil fouling, or cracks in the porcelain insulator.
   Typical fix: Replace the spark plug. It is best practice to replace all spark plugs as a set, especially when replacing the ones on the rear bank that require significant labor to access. Use the pre-gapped OEM spec plug (ACDelco 41-109) and do not attempt to re-gap it. 🎬 See how to replace the spark plugs on this specific engine.
   Est. part cost: $10-$20 per plug
3. Faulty Fuel Injector 🟡 Medium Probability → Shop Fuel Injector Direct injection fuel injectors operate under very high pressure and can become clogged or fail electronically over time. The wiring harness for the injectors can also chafe against engine components, causing an intermittent electrical connection (see TSB PIP4924D).
   How to confirm: Listen for a consistent clicking sound from the injector with a mechanic's stethoscope. A more advanced method is to perform a fuel injector balance test with a capable scan tool. You can also swap the injector with another cylinder to see if the misfire follows, but this is a labor-intensive process. Resistance for an LFX (2012+) injector should be 1.2-1.8 Ohms, while an LLT (2010-2011) injector is ~12 Ohms.
   Typical fix: Replace the faulty fuel injector. This is a complex job involving the high-pressure fuel system and should be approached with caution. Due to the labor, replacing all injectors on the same bank is sometimes recommended.
   Est. part cost: $50-$120
4. Intake Valve Carbon Buildup ⚪ Low Probability In direct injection engines like the LLT and LFX, fuel is injected directly into the cylinder, so it never washes over the intake valves. Oil vapors from the PCV system can bake onto the hot valves, restricting airflow and causing misfires, especially during cold starts. This is a well-documented issue on these GM engines, as noted in TSB PIP5029B.
   How to confirm: This is difficult to confirm without a borescope to visually inspect the intake valves. It is usually diagnosed after ruling out all ignition and fuel-related causes. A misfire that is most prominent on a cold start and may be accompanied by code P050D is a strong indicator.

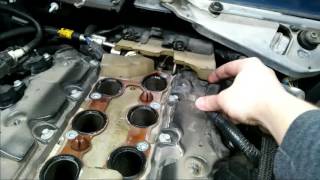

   Typical fix: The intake manifold must be removed and the carbon deposits need to be physically cleaned from the valves, often through a process called walnut shell blasting. Chemical cleaning procedures also exist but may be less effective for heavy buildup. 🎬 Watch a mechanic perform a deep cleaning of the intake valves.
   Est. part cost: $300-$700 for a professional cleaning service

Rare But Worth Checking

• Low Compression: If ignition and fuel systems are confirmed to be working, a mechanical issue like a worn piston ring, leaking valve, or head gasket failure could be the cause. A compression test on cylinder #1 is needed to verify this. In rare cases, porosity in the cylinder head can cause coolant to leak into the spark plug tube, causing a misfire (see TSB PIP5095C).
• Stretched Timing Chain: A known issue on some 3.6L engines, particularly the earlier LLT version (2010-2011). A stretched chain can cause camshaft timing to be off, leading to misfires. This would typically be accompanied by other codes (like P0008, P0016, P0017) and a rattling noise from the engine on startup.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0301 and check for any other stored codes. Check freeze-frame data to see the conditions under which the misfire occurred (e.g., cold start, high RPM).
2. Note if the Check Engine Light is flashing. If so, avoid driving to prevent catalytic converter damage.
3. To diagnose the ignition coil, swap the coil from cylinder #1 with the coil from cylinder #3 (both are on the rear bank). This requires removing the upper intake manifold and replacing the intake gaskets upon reassembly.
4. Clear the codes, run the engine, and re-scan. If the code is now P0303, the ignition coil is faulty and must be replaced.
5. If the code remains P0301, the coil is likely good. Inspect the spark plug from cylinder #1 for wear, damage, or fouling. Replace if necessary, preferably as a full set for that bank.
6. If the coil and plug are good, the issue may be the fuel injector. Listen for its operation with a stethoscope or have a professional perform a balance test. Inspect the injector wiring harness for chafing.
7. If fuel and ignition are ruled out, perform a compression test on cylinder #1 to check for mechanical engine problems like worn rings or leaking valves.
8. If compression is good, investigate less common causes. Use a borescope to inspect the intake valves for carbon buildup, especially if misfires are worse on cold starts.
9. Check for vacuum leaks using a smoke machine, paying close attention to the intake manifold gaskets and PCV hoses.

Parts You'll Likely Need

• Ignition Coil (OEM #12632479 (supersedes 12618542, 12610626, 12590990)) — This is the most common part to fail and cause a single-cylinder misfire due to heat and vibration. The part number has been updated several times for improved durability.
  Trusted brands: ACDelco, Delphi, NGK
• Spark Plug (OEM #ACDelco 41-109 (GM 12622561)) — Spark plugs are a maintenance item. A worn or fouled plug is a very common cause of a single-cylinder misfire.
  Trusted brands: ACDelco, NGK, Bosch
• Upper Intake Manifold Gasket Set (OEM #ACDelco 12607401) — These gaskets are single-use and must be replaced anytime the upper intake manifold is removed to access the rear bank (Bank 1) coils, plugs, or injectors. Reusing old gaskets will cause a vacuum leak.
  Trusted brands: ACDelco, Fel-Pro, Mahle

Related Codes That Often Appear With This One

• P0300 — If the cause of the misfire (like a vacuum leak or major carbon buildup) begins to affect other cylinders, a P0300 (Random/Multiple Cylinder Misfire) may be stored alongside P0301.
• P0303, P0305 — Misfires on other cylinders of the same bank (Bank 1 includes cylinders 1, 3, and 5) can indicate a problem common to that bank, such as a clogged catalytic converter, a vacuum leak from the intake manifold gasket, or a timing issue affecting that bank.
• P0201 — This code indicates a fault in the fuel injector circuit for cylinder 1. Seeing P0201 and P0301 together strongly points to a problem with the fuel injector itself or its wiring.

Technical Service Bulletins (TSBs) & Recalls

• PIP5029B: Addresses misfires, especially on cold starts, due to heavy carbon buildup on the intake valves of direct-injection engines.
• PIP5095C: Notes that oil or coolant in a spark plug tube may be caused by cylinder head porosity, not a valve cover gasket leak, requiring cylinder head replacement.
• PIP4924C: Warns that misfire codes can be caused by the fuel injector wiring harness chafing against various engine components.
• PIP4744B: For 2010-2011 models, advises checking for loose ignition coil ground bolts as a potential cause of misfires before replacing parts.
• PIP5163A: Discusses diagnosis of cylinder bore damage or out-of-round conditions that can cause misfire and oil consumption, though notes this is not a common factory defect.
• TSB Bulletin #PIP3333C: Notes that vehicles may have an intermittent engine misfire and a Service Engine Soon lamp with codes P0300, P0301, and/or P0304, requiring technicians to follow published Service Information diagnostics.

Platform-Specific Known Issues

• A known issue for the 3.6L direct injection engine is carbon buildup on intake valves, which can lead to misfires that are difficult to diagnose. GM has issued service bulletins (like PIP5029C) describing this issue and recommending a decarboning procedure.
• Some earlier 3.6L LLT engines (2010-2011) were more susceptible to stretched timing chains, which can cause misfires, often accompanied by rattling noises and other timing-related codes.

Mechanic-Grade Diagnostic Values

• Fuel Injector Resistance (2012-2016 LFX Engine) — expected: 1.2 - 1.8 Ohms. Failure: A reading outside this range, or OL (Open Line), points to an internal injector fault.
• Fuel Injector Resistance (2010-2011 LLT Engine) — expected: ~12 Ohms (e.g., 11.8 - 12.6 Ohms). Failure: A significant deviation from ~12 Ohms indicates a fault in the high-impedance injector. These are not interchangeable with LFX injectors.
• High-Pressure Fuel Rail Pressure (at idle) — expected: 2-4 MPa (290-580 psi). Failure: Pressure significantly below 2 MPa at idle or failing to reach ~15 MPa (2176 psi) under load can indicate a failing high-pressure fuel pump.
• Low-Pressure Fuel System Pressure (Key On, Engine Off) — expected: 345-690 kPa (50-100 psi). Failure: Pressure below this range indicates a problem with the in-tank fuel pump or the fuel pump control module, which can starve the high-pressure pump.

Hidden / Shadow Codes Worth Checking

• Misfire History / Current Counter: This is not a DTC, but a live data parameter showing a real-time count of misfires for each cylinder. It is the most direct way to confirm an active misfire on cylinder 1, even if it's intermittent and not yet severe enough to keep the CEL on. (see via GM GDS2, Tech2, or a high-end professional scan tool with access to GM-specific live data.)

Scan Tool Commands That Help

• GDS2 / Tech2: Fuel Injector Balance Test — Use this after ruling out ignition problems. The tool disables each injector one by one and measures the RPM drop. If disabling the cylinder 1 injector causes little or no RPM drop compared to other cylinders, it strongly suggests the injector is clogged or has failed.
• GDS2 / Tech2: Cylinder Power Balance — This provides a graphical representation of each cylinder's contribution to crankshaft speed. It's a quick way to visually confirm that cylinder 1 is the one underperforming.
• GDS2 / Tech2: Crankshaft Position Variation Learn — This procedure should be performed after any major engine work, especially timing chain replacement. If not performed, the ECM's sensitivity to misfire detection can be off, potentially causing false P0301 codes.

Wiring & Ground Locations

• G103 / G104 — Typically located on the rear of the cylinder heads, bolted to the engine block. G104 is often on the firewall-side cylinder head (Bank 1).. These are the primary engine grounds for the ECM. A loose or corroded ground here can cause erratic behavior from the ECM's injector and ignition coil drivers, leading to misfires that are difficult to diagnose. Ensuring these are clean and tight is a critical step in any electrical diagnosis.
• Injector Wiring Harness Chafe Points — Per GM TSB PIP4924D, inspect the harness where it can rub against the intake plenum, valve cover bolts, and fuel lines, particularly under the intake manifold for Bank 1.. This is a well-documented failure point. A short or open in the wiring for the cylinder 1 injector or coil can directly cause a P0301 and related circuit codes (P0201). This is often misdiagnosed as a component failure.

OEM Part Supersession History

• 12590990, 12610626, 12618542 → 12632479 (ACDelco D515C) — Standard part evolution for improved durability, with better internal windings and weather/corrosion protection.
• 12638530 (LLT Injector) → 12669384 — Updated part for reliability.
  Heads up: This injector is for the 2010-2011 LLT engine. It is a high-impedance injector (~12 Ohms) and is NOT compatible with the 2012-2016 LFX engine, which uses a low-impedance injector (~1.2-1.8 Ohms) like PN 12634126.

Model Year Variations Within This Range

• 2010-2011: These models use the 3.6L LLT engine. This engine is more prone to timing chain stretch, uses an aluminum intake manifold, a Bosch ECM, and high-impedance (~12 Ohm) fuel injectors.
• 2012-2016: These models use the updated 3.6L LFX engine. It features improved timing chains, a composite intake manifold, integrated exhaust manifolds in the cylinder heads, a Delphi ECM, and low-impedance (~1.2-1.8 Ohm) fuel injectors. The injectors and ECM are not interchangeable with the earlier LLT engine.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0303 — Cylinder 3 Misfire. Cylinder 3 is also located on the rear bank under the intake manifold. Swapping the coil from cylinder 1 to cylinder 3 is the primary diagnostic step to confirm a faulty ignition coil.
• P0305 — Cylinder 5 Misfire. Often appears alongside P0301 and P0303 when the entire rear bank (Bank 1) is experiencing issues, such as shared wiring harness chafing or widespread carbon buildup.
• P050D — Cold Start Rough Idle. This code is a strong indicator of intake valve carbon buildup on the 3.6L direct-injection engine, which frequently accompanies a P0301 misfire during cold starts.
• P0300 — Random/Multiple Cylinder Misfire. Can trigger alongside P0301 if the root cause affects multiple cylinders, such as stretched timing chains on 2010-2011 LLT engines or severe intake valve carbon buildup.
