P0301 on 2007-2010 Pontiac G3 1.6L: Cylinder 1 Misfire Causes and Fixes

What's Unique About the 2007-2010 Pontiac G3

The Pontiac G3 is a rebadged Chevrolet Aveo, and they are mechanically identical, sharing the same 1.6L E-TEC II engine. This entire platform (including the Suzuki Swift+ and Daewoo Kalos) is known for being particularly sensitive to ignition component health. The single ignition coil pack assembly is a very common failure point and a leading cause of P030x codes. Additionally, the valve cover gasket is notoriously prone to leaking oil directly into the spark plug tubes, which fouls the plugs and causes misfires. Forum users report this gasket failing annually, with some speculating the plastic valve cover itself may warp over time, preventing a good seal.

Symptoms You May Notice

• Check Engine Light is on or flashing
• Rough or shaking idle
• Engine hesitates or stumbles on acceleration
• Noticeable loss of power
• Decreased fuel mileage
• Smell of unburned gasoline from the exhaust
• Engine vibration

Most Likely Causes

1. Faulty Ignition Coil Pack 🔴 High Probability → Shop Ignition Coil The original factory coil packs on the G3/Aveo platform are a known high-failure item. The single pack, waste-spark design means an internal failure can easily cause a misfire on one or more cylinders. Misfires that appear specifically under load are a strong indicator of a weak coil.
   How to confirm: Inspect the coil pack for cracks, signs of arcing, or oil contamination from a leaking valve cover. Since it's a single unit, the most effective test is to replace it after confirming plugs and wires are good. A user on AveoForum.com noted a coil pack replacement solved a persistent misfire.
   Typical fix: Replace the entire ignition coil pack assembly.
   Est. part cost: $60-$150
2. Worn or Oil-Fouled Spark Plugs 🔴 High Probability → Shop Spark Plug A very common issue on this engine is a leaking valve cover gasket that allows oil to pool in the spark plug tubes, fouling the plugs and causing misfires. Owners on AveoForum.com discuss this being a chronic issue, sometimes requiring gasket replacement every year.
   How to confirm: Remove the ignition coil and look into the spark plug tube for cylinder 1. If there is liquid oil, the valve cover gasket has failed. Remove the spark plug and inspect for heavy carbon buildup, oil saturation, or a 'carbon track' line on the ceramic, which indicates external arcing.
   Typical fix: Replace all four spark plugs. If oil is present, you must also replace the valve cover gasket and tube seals.
   Est. part cost: $20-$50 for plugs, $25-$50 for gasket set
3. Bad Spark Plug Wires/Boots 🟡 Medium Probability → Shop Spark Plug GM issued Emission Recall #11290C for 2009-2010 models due to a 'degraded connection between the spark plug boots...and the spark plugs' causing misfires. The boots can also degrade from heat and constant exposure to oil from a leaking valve cover gasket.
   How to confirm: Inspect the wire and boot for cylinder 1 for cracks, corrosion, a loose fit, or oil saturation. Test the wire's resistance with a multimeter. Check if your vehicle is covered under the recall.

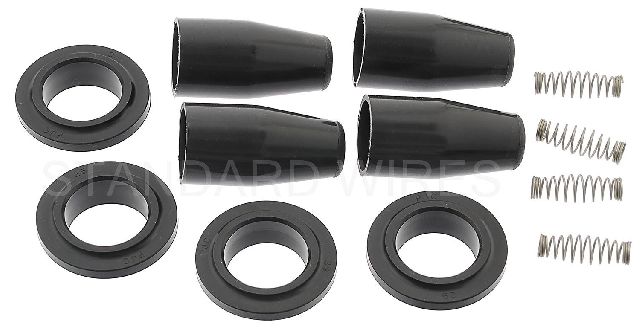

   Typical fix: Replace the spark plug wire set. The recall fix involved installing new spark plug boots and new spark plugs at the dealer.
   Est. part cost: $30-$60
4. Clogged or Faulty Fuel Injector ⚪ Low Probability → Shop Fuel Injector
   How to confirm: Use a mechanic's stethoscope to listen to the injector; it should have a steady clicking sound. A more definitive test is to swap the fuel injector from cylinder 1 with another cylinder (e.g., cylinder 2). Clear the codes and drive. If the misfire code changes to P0302, the injector is confirmed to be faulty.
   Typical fix: Replace the faulty fuel injector.
   Est. part cost: $40-$90

Rare But Worth Checking

• Low Engine Compression: If ignition and fuel system checks don't reveal the problem, a mechanical issue like a burnt exhaust valve, worn piston rings, or a head gasket failure could be the cause. This requires a compression test to diagnose. A Reddit user with a P0301 on a different vehicle reported a mechanic found only 60 PSI of compression and diagnosed a burnt valve.
• Fuel Contamination in Rail (per TSB PIP3333C): GM issued a TSB for an unusual scenario where an intermittent P0301 misfire occurs specifically during or after a left turn. This can be caused by fuel contaminants (like water or debris) sloshing in the returnless fuel rail and temporarily blocking the #1 injector. The fix involves inspecting and cleaning the fuel rail and/or fuel tank.
• Vacuum Leak: A crack in a vacuum hose or a leaking intake manifold gasket can introduce unmetered air, leaning out the mixture and causing a misfire. This will usually be accompanied by other codes, including a P0300 random misfire code.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner and confirm P0301 is present. Note any other codes.
2. Visually inspect the engine bay for obvious issues like disconnected hoses or damaged wiring.
3. Remove the plastic engine cover and the ignition coil pack (held by Torx bolts).
4. Inspect the spark plug tubes for any pooled oil. If oil is present, the valve cover gasket is leaking and must be replaced along with the plugs.
5. Remove the spark plug from cylinder 1 (far left/passenger side). Inspect it for wear, damage, or fouling. For good measure, replace all four plugs if they are old or fouled.
6. Inspect the spark plug boot/wire for cylinder 1. Look for cracks, corrosion, or a loose fit. Check for recalls related to this part.
7. If plugs and wires are good and there is no oil, the ignition coil pack is the most likely culprit. It is best to replace it as a unit.
8. If the misfire persists after replacing ignition components, test the fuel injector for cylinder 1, potentially by swapping it with another cylinder to see if the code follows.
9. If the misfire is intermittent and happens during turns, consider the possibility of fuel rail contamination as described in TSB PIP3333C.
10. If all else fails, perform an engine compression test to rule out internal mechanical problems like a burnt valve or worn rings.

Parts You'll Likely Need

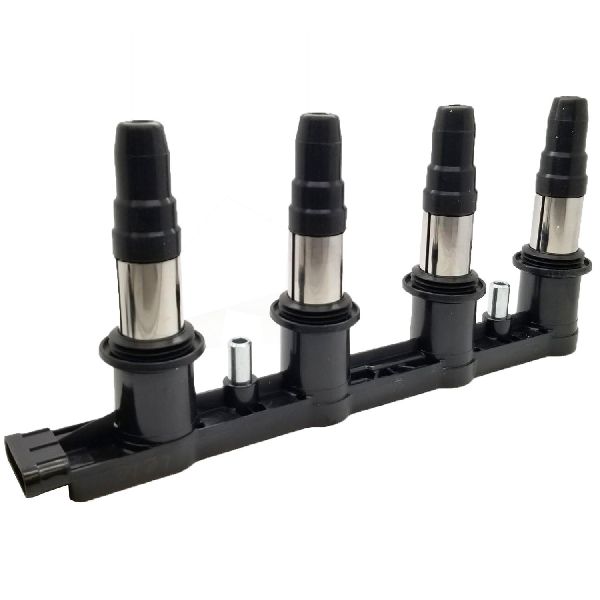

• Ignition Coil Pack (OEM #96476979) — This is the most common failure part causing a P0301 code on this engine due to its design and high failure rate. Alternate/superseded part numbers include 25186687, 55570160, and 55585539.
  Trusted brands: ACDelco, Delphi, NGK, Standard Motor Products (UF620)
  OEM price range: $100-$180
  Aftermarket price range: $60-$120
• Spark Plugs (OEM #NGK BKR6E-11) — Worn or fouled spark plugs are a primary cause of misfires. They are frequently contaminated by oil from the leaking valve cover gasket on this engine and should be replaced as part of any tune-up.
  Trusted brands: NGK, Denso, ACDelco
  OEM price range: $8-$15 per plug
  Aftermarket price range: $3-$10 per plug
• Valve Cover Gasket Set (OEM #96476423) — Required to fix the extremely common oil leak into the spark plug tubes which causes ignition components to fail and misfire. This is a chronic failure point. The set should include the main gasket and spark plug tube seals. A popular aftermarket part is Fel-Pro VS50733R.
  Trusted brands: ACDelco, Fel-Pro, Mahle
  OEM price range: $30-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0300 — If the coil pack is failing or a vacuum leak is present, the misfire may become erratic and affect multiple cylinders, triggering a random misfire code.
• P0302, P0303, P0304 — If the ignition coil pack is failing broadly, or the valve cover leak has fouled multiple plug wells, codes for other cylinders may appear alongside P0301.
• P0420 — This code for 'Catalyst System Efficiency Below Threshold' can appear if the P0301 misfire has been ignored, allowing unburned fuel to damage the catalytic converter.

Technical Service Bulletins (TSBs) & Recalls

• PIP3333C: Addresses an intermittent engine misfire on cylinder 1 during or following a left turn (or cylinder 4 on a right turn). It suggests the cause may be fuel contaminants temporarily blocking the respective fuel injector in the returnless fuel rail.

Platform-Specific Known Issues

• GM Emission Recall #11290C: Degraded Spark Plug Boot Connection: → Shop Spark Plug Issued for 2009-2010 G3/Wave models to address a poor connection between the spark plug boots and spark plugs, which could cause misfires (P030x), rough running, and lack of power. The dealer fix was to install new spark plug boots and new spark plugs at no charge.
• Chronic Valve Cover Gasket Leak: → Shop Engine Valve Cover The 1.6L E-TEC II engine is notorious for its valve cover gasket failing and leaking oil into the spark plug wells. This fouls the plugs and boots, leading to misfires. Many owners report this as a recurring problem, sometimes needing a new gasket annually. Some forum users speculate the plastic valve cover itself may warp, preventing a long-lasting seal.

Mechanic-Grade Diagnostic Values

• Fuel Injector Resistance — expected: 12 - 17 Ohms. Failure: A reading below 12 Ohms or an open circuit (infinite resistance) indicates a faulty injector coil.
• Fuel Pressure (Key On, Engine Off) — expected: 55-60 PSI. Failure: Low fuel pressure can cause lean misfires, but would typically affect all cylinders and trigger a P0300 code.
• Engine Compression (Cranking) — expected: Approx. 160-170 PSI per cylinder, with less than 10-15% variation between cylinders.. Failure: A significantly lower reading in one cylinder points to a mechanical issue like a bent valve, worn piston rings, or a bad head gasket.
• Ignition Coil Connector Pinout (2009+) — expected: Pin A: Ignition control Cyl 1/4, Pin B: Ignition control Cyl 2/3, Pin C: Ignition 1 Voltage, Pin D: Ground.. Failure: Lack of voltage at Pin C or lack of signal from the ECM on Pins A/B when testing can indicate a wiring or ECM issue.

Hidden / Shadow Codes Worth Checking

• Mode $06 Misfire Data: This is not a formal trouble code but an onboard monitoring test that counts misfire events for each cylinder. It can be viewed with a capable OBD-II scan tool and can show which cylinder is misfiring before the count is high enough to trigger a P0301 code and illuminate the Check Engine Light. (see via A capable OBD-II scan tool that supports Mode $06 (Onboard Monitoring Tests).)

Scan Tool Commands That Help

• Tech2 / GDS2 (or equivalent professional scanner): Crankshaft Position (CKP) Variation Learn — This procedure is required after replacing a crankshaft position sensor, engine, or ECM. It synchronizes the CKP sensor with the ECM to ensure accurate misfire detection. Failure to perform this relearn after major engine work can cause a persistent P0300 random misfire code, even if there are no mechanical faults.

Wiring & Ground Locations

• G103 — On the engine block, below the Engine Control Module (ECM) on the left side of the engine compartment.. This is a primary ground point for the engine control system. A corroded or loose connection at G103 can cause erratic ECM behavior, weak spark, and incorrect sensor readings, leading to unexplained misfire codes.
• G104 — On the engine block, next to the starter motor on the transmission housing.. This is a major engine block ground. A poor connection can affect the grounding of the entire ignition system, including the coil pack and sensors, causing weak spark and misfires.
• Ignition Coil Connector — On top of the valve cover, plugging directly into the ignition coil pack.. This connector provides power, ground, and the trigger signal from the ECM to the coil pack. Testing the pins here can quickly determine if the coil is receiving the necessary inputs to fire. For 2009+ models, Pin C should have ignition voltage and Pin D should be a good ground.
• ECM Connector X2, Pin 19 (2004-2008 style) — At the Engine Control Module (ECM).. This pin (white wire, circuit 406) is the Ignition Coil 1 and 4 Control signal. A fault in this circuit between the ECM and the coil pack would prevent cylinders 1 and 4 from firing correctly.

Real Owner Repair Stories

• AveoForum.com user (Chevrolet Aveo (mechanically identical)) — P0300 random misfire code after an engine swap.
  ❌ Tried (didn't work) Replacing spark plugs and wires.
  ✅ What actually fixed it The issue was resolved by successfully performing a Crankshaft Position (CKP) Variation Learn procedure using a Tech2 scan tool. Initial attempts failed until it was done at a dealership, indicating some aftermarket tools may struggle with this specific function on this vehicle.
• YouTube video (generic P0301 diagnosis) (Not specified, but demonstrates a common failure pattern.) — P0301 cylinder 1 misfire.
  ❌ Tried (didn't work) Initial visual inspection.
  ✅ What actually fixed it The video highlights a common diagnostic path where a leaking valve cover gasket allows oil to pool in the spark plug well. This oil saturation fouls the spark plug and can damage the ignition coil boot, causing the misfire. The fix was replacing the spark plug and the leaking valve cover gasket.

OEM Part Supersession History

• 96476979 → 25186687, 55570160, 55585539, GN10234 — Standard part evolution and consolidation by GM/ACDelco. These numbers are often listed as interchangeable for the ignition coil pack.
  Heads up: While many aftermarket brands cross-reference these numbers, quality can vary significantly. Sticking with OEM (ACDelco) or reputable OE suppliers (Delphi, NGK) is recommended to avoid premature failure, as this is a known weak point on the vehicle.

Model Year Variations Within This Range

• 2009-2010: The 2009 model year introduced the updated 1.6L LXV engine, which included Variable Valve Timing (VVT). While the core causes of a P0301 misfire (plugs, coil, gasket leak) remain the same, the presence of VVT adds camshaft position sensors and actuators as potential, though less common, points of failure that could theoretically contribute to timing-related misfires if they malfunction.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0300 — Random/Multiple Cylinder Misfire. Often appears alongside P0301 on this engine because the single waste-spark coil pack design means an internal failure can easily cause misfires on multiple cylinders simultaneously.
• P0302 — Cylinder 2 Misfire. Mentioned in the diagnostic steps as the expected code if you swap a faulty cylinder 1 fuel injector to cylinder 2 to confirm an injector failure.
• P0304 — Cylinder 4 Misfire. Directly related via TSB PIP3333C, which notes that fuel rail contamination causes a cylinder 1 misfire on left turns, and a cylinder 4 misfire on right turns.
• P030X — General misfire codes (P0302, P0303, P0304) are explicitly grouped together in GM Emission Recall #11290C, as the degraded spark plug boots on the 2009-2010 models can cause misfires on any cylinder.
