P0302 on 1999-2004 Oldsmobile Alero 3.4L: Cylinder 2 Misfire Causes and Fixes

What's Unique About the 1999-2004 Oldsmobile Alero

The 3.4L V6 (LA1) engine in the Oldsmobile Alero is notorious for a specific, widespread weakness: the lower intake manifold (LIM) gaskets. The original factory gaskets used a plastic/nylon frame that degrades over time due to heat and prolonged exposure to Dex-Cool antifreeze. This degradation allows coolant to leak into the engine's intake ports or crankcase. This leak can cause a misfire isolated to a single cylinder, like P0302, before developing into a more widespread random misfire (P0300). Any misfire on this engine warrants an immediate and thorough inspection 🎬 Watch: Diagnosing common misfire causes on the GM 3.4L engine for signs of an internal coolant leak, as this is a primary suspect.

Symptoms You May Notice

• Rough or shaky idle
• Hesitation or stumbling during acceleration
• Flashing Check Engine Light (a sign of a severe, catalyst-damaging misfire)
• Noticeable loss of engine power
• Decreased fuel economy
• Smell of raw fuel from the exhaust
• Difficulty starting the engine, extended cranking
• For 3.4L V6, gradual loss of coolant with no visible external leaks
• A 'milky' or 'milkshake' appearance on the oil dipstick or oil cap, indicating coolant has mixed with the oil
• Engine temperature gauge reading higher than normal or fluctuating

Most Likely Causes

1. Worn Spark Plug or Faulty Spark Plug Wire 🔴 High Probability → Shop Spark Plug Spark plugs and wires are regular maintenance items. The 3.4L V6 uses a waste-spark ignition, which fires plugs more often, potentially leading to faster wear. Accessing the rear plugs (including #2's companion, #5) is difficult, so they are often neglected.
   How to confirm: Visually inspect the spark plug for cylinder #2 for wear, fouling (black and sooty), or coolant contamination (abnormally clean or white deposits). Inspect the corresponding spark plug wire for cracks, burns, or corrosion. A good test is to swap the #2 spark plug wire with another cylinder's wire (e.g., #4) and see if the misfire code changes to P0304.
   Typical fix: Replace the spark plugs and spark plug wires. It is best practice to replace all plugs and wires as a set. Use of double platinum or iridium plugs is recommended for the waste-spark system.
   Est. part cost: $50-$100 for a full set of quality plugs and wires.
🎬 See this walkthrough for replacing spark plugs and wires

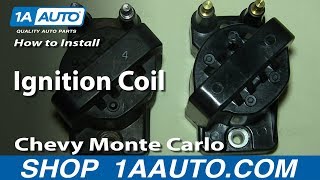

2. Failed Ignition Coil Pack 🟡 Medium Probability → Shop Ignition Coil The 3.4L V6 uses a waste-spark system with three coil packs. Each coil fires two cylinders simultaneously. Heat and age can cause a coil to fail, resulting in no spark to both paired cylinders.
   How to confirm: Cylinder 2 is paired with cylinder 5. The coil for 2/5 can be swapped with an adjacent coil (e.g., the one for 4/1). Clear the codes and drive. If the code changes to P0304 or P0301, the coil is bad. The coil packs are mounted on an Ignition Control Module (ICM).
   Typical fix: Replace the faulty ignition coil pack. The OEM part is often an ACDelco D555.
   Est. part cost: $40-$70
3. Leaking Lower Intake Manifold (LIM) Gaskets 🔴 High Probability → Shop Engine Intake Manifold This is the most notorious and common major failure on the GM 3.4L LA1 engine. The original plastic-framed gaskets degrade from heat and Dex-Cool coolant, allowing coolant to leak into the intake port for cylinder #2, fouling the spark plug and causing a persistent misfire.
   How to confirm: Check for gradual coolant loss with no visible external drips. Look for a milky, frothy appearance on the oil dipstick or under the oil cap. A coolant system pressure test may show a pressure drop with no external leak. Coolant residue or staining may be visible at the corners of the intake manifold where it meets the cylinder heads.

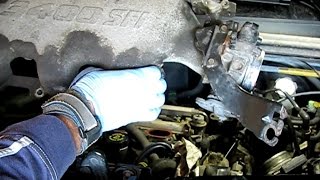

   Typical fix: Replace the lower intake manifold gaskets with an updated metal-frame design, 🎬 Watch: How to remove the lower intake manifold and gaskets such as the Fel-Pro MS98003T set. This is a labor-intensive job (8-10 hours).
   Est. part cost: $60-$120 for the gasket set.
4. Clogged or Faulty Fuel Injector ⚪ Low Probability → Shop Fuel Injector
   How to confirm: Use a mechanic's stethoscope or a long screwdriver to listen to the injector for cylinder #2; it should have a consistent, rapid clicking sound. You can also measure the injector's resistance with a multimeter. A more definitive test is to swap the injector with one from another cylinder (e.g., cylinder #4) and see if the misfire code moves to P0304.
   Typical fix: Replace the faulty fuel injector. Access requires removing the upper intake manifold, so it is often recommended to replace all injectors as a set if they are original and high-mileage.
   Est. part cost: $50-$90 per injector.

Rare But Worth Checking

• Low Compression: If ignition and fuel system checks don't reveal the issue, a mechanical problem could be the cause. This can be due to a burnt valve, worn piston rings, or a failed head gasket (which can also be a result of the LIM gasket failure). A compression test on all cylinders will confirm or deny this.
• Failed Ignition Control Module (ICM): While less common than a single coil failure, the ICM that the coils mount to can fail. This can cause issues with just one coil driver or create more random misfires. This is usually diagnosed after the individual coil packs have been ruled out.
• Chafed Wiring Harness: On some GM platforms of this era, the engine wiring harness could rub against brackets or engine components, causing shorts in the ignition or injector circuits. A visual inspection of the harness around cylinder #2's components is warranted if other causes are eliminated.

Diagnosis Steps

1. Verify the code with an OBD-II scanner. Note if the Check Engine Light is steady or flashing and check for any other stored codes.
2. Identify Cylinder #2. On the transverse 3.4L V6, the cylinders against the firewall (rear bank) are 1-3-5 (left to right), and the cylinders at the front of the vehicle (front bank) are 2-4-6 (left to right). Cylinder #2 is the front-most cylinder on the driver's side.
3. IMMEDIATELY check for signs of a leaking Lower Intake Manifold Gasket. Check the coolant level in the reservoir. Inspect the oil dipstick and oil filler cap for a milky, 'milkshake' consistency. This is the most critical check on this engine.
4. Inspect the spark plug wire for cylinder #2. Look for any signs of arcing (white marks), burning, physical damage, or a loose connection.
5. Remove and inspect the spark plug from cylinder #2. Look for heavy carbon buildup, oil fouling, or signs of coolant contamination (a very clean, steam-washed appearance or white/greenish deposits). Compare it to a plug from another cylinder, like #4.
6. If ignition parts are suspect, swap the ignition coil for cylinders 2-5 with the coil for 4-1. Clear the codes and drive the vehicle to see if the misfire code moves to P0304 or P0301. If it does, the coil is faulty.
7. If the misfire remains on cylinder #2, check the fuel injector. Listen for a steady clicking sound with a stethoscope. If possible, swap the injector with another cylinder's and see if the misfire follows. This is more labor-intensive.
8. If ignition and fuel are ruled out, perform a cooling system pressure test to check for internal leaks (a sign of LIM or head gasket failure).
9. As a final step, perform a compression test on cylinder #2 and compare it to others to rule out mechanical engine problems like bad rings or valves.

Parts You'll Likely Need

• Lower Intake Manifold Gasket Set (OEM #89017400) — Extremely common failure point on the 3.4L LA1 engine, directly causing coolant-induced misfires. The updated metal-framed gasket is a required fix.
  Trusted brands: Fel-Pro (MS98003T), ACDelco
  OEM price range: $80-$120
  Aftermarket price range: $60-$100
• Spark Plugs (OEM #ACDelco 41-101 (Iridium)) — Standard wear item and the most common cause of a single-cylinder misfire. Often fouled by a leaking LIM gasket.

Related Codes That Often Appear With This One

• P0300 — If the cause of the misfire, like a leaking LIM gasket or a large vacuum leak, begins to affect multiple cylinders, a P0300 (Random Misfire) code will appear alongside or even replace the P0302.
• P0305 — Cylinders 2 and 5 are companion cylinders fired by the same ignition coil in the waste-spark system. A failing coil or a problem in that circuit can sometimes cause intermittent misfires on both cylinders, triggering P0302 and P0305.

Technical Service Bulletins (TSBs) & Recalls

• GM TSB #03-06-01-019: While not the exact number, related TSBs discuss internal coolant leaks on V6 engines, which is the root cause of the infamous LIM gasket failure.
• GM TSB #PIP5628G: This TSB for a different GM vehicle groups all misfire codes (P0300-P0308) for diagnosis, showing the commonality of the diagnostic process.

Platform-Specific Known Issues

• Lower Intake Manifold (LIM) Gasket Failure: → Shop Engine Intake Manifold This is the single most defining and common major repair on the 3.4L LA1 engine. The original plastic/nylon gaskets are guaranteed to fail and leak coolant internally, causing misfires, sludged oil, and eventual engine damage if not addressed. The fix requires replacing them with the steel-framed Fel-Pro MS98003T or equivalent gasket set.
• Difficult Rear Spark Plug Access: → Shop Spark Plug The three spark plugs on the rear cylinder bank (1-3-5) are located deep against the firewall with very limited access. This makes changing them a difficult and time-consuming task, leading many to neglect them, which can contribute to misfires as they age.

Mechanic-Grade Diagnostic Values

• Fuel Pressure (Key On, Engine Off) — expected: 48-55 PSI (1999-2000 models), 52-59 PSI (2001-2004 models).. Failure: Pressure below the specified range can cause a lean condition and misfires.
• Fuel Injector Coil Resistance — expected: 11.4 to 12.6 Ohms.. Failure: A reading outside this range, or one that is significantly different from other injectors, indicates a faulty injector coil.
• Ignition Coil Primary Resistance — expected: 0.3 - 1.0 Ohms.. Failure: A reading outside this range suggests a faulty primary winding in the coil.
• Ignition Coil Secondary Resistance — expected: 5.0 - 15.0 kOhms (kilohms).. Failure: A reading outside this range, especially an open circuit (infinite resistance), points to a failed secondary winding.
• Ignition Control Module (ICM) Ground Circuit — expected: Near 0 Ohms resistance between the Black/White wire at the ICM connector and a known good chassis ground.. Failure: High resistance indicates a poor ground, which can cause erratic ICM behavior and misfires.

Scan Tool Commands That Help

• GM Tech 2 / Professional Bidirectional Scanner: Crankshaft Variation Relearn (CASE Relearn) — This procedure is mandatory after replacing the Crankshaft Position Sensor (CKP), PCM, or making major engine repairs. Failure to perform the relearn can cause the PCM to incorrectly interpret minor crankshaft speed variations as misfires, potentially setting false P0300-series codes.
• GM Tech 2 / Professional Bidirectional Scanner: Power Balance Test — This function allows the technician to disable one cylinder at a time and observe the corresponding drop in engine RPM. A cylinder that shows little or no RPM drop when disabled is the one that is misfiring. This is a quick way to confirm the misfire is on cylinder 2.

Wiring & Ground Locations

• G103 — On a transmission stud, located on the left (driver's) side of the engine compartment.. This is a primary engine and transmission ground. A loose or corroded connection here can cause a host of electrical issues, including erratic behavior from the Ignition Control Module (ICM) and PCM, leading to false or real misfire codes.
• G102 — In front of the starter motor.. This is another critical engine ground. A poor connection can affect the performance of various engine control components, contributing to electrical noise and potential misfire detection issues.
• ICM Ground — The Ignition Control Module is grounded through its mounting bolts to its metal bracket, and via a specific Black/White wire in its main connector.. A poor ground path for the ICM is a common cause of weak or erratic spark. The mounting surface must be clean and free of corrosion, and the ground wire must have continuity to the chassis ground.
• Cylinder 2 Injector Control Wire — The wire for the cylinder 2 fuel injector is Light Green/Black and goes to pin 65 on the C1 (Clear) connector of the Powertrain Control Module (PCM).. When diagnosing a persistent P0302 with fuel delivery suspected, a technician can test for a pulsed ground signal on this specific wire at the PCM connector to verify the PCM is commanding the injector to fire. A break in this wire would cause a P0302.

Real Owner Repair Stories

• Reddit user in r/MechanicAdvice (2000 Oldsmobile Alero 3.4L V6) — Persistent misfiring for over a year, initially a P0300 random misfire, which later became a specific P0302. Also had a rough, incorrect idle.
  ❌ Tried (didn't work) Replacing spark plugs, Replacing spark plug wires, Replacing ignition coils
  ✅ What actually fixed it The user's friend suggested replacing the Idle Air Control (IAC) valve, which solved all misfiring and idle problems for a period. The user also noted sludged coolant and an engine not reaching operating temperature, classic signs of a separate, but likely co-occurring, LIM gasket and thermostat issue.

OEM Part Supersession History

• GM's original plastic/nylon frame Lower Intake Manifold gasket → Fel-Pro MS98003T (metal frame) or GM's own updated metal frame gasket (e.g., 89017400). — The original plastic frame design was susceptible to degradation from Dex-Cool coolant, leading to widespread leaks and engine damage.

Model Year Variations Within This Range

• 1999-2000 vs 2001-2004: The specified fuel pressure for the 3.4L V6 engine changed. 1999-2000 models require 48-55 PSI, while 2001-2004 models require a higher pressure of 52-59 PSI. Using the wrong specification during diagnosis could lead to misinterpreting fuel pump performance.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0300 — Random/Multiple Cylinder Misfire - Grouped together with P0302 in GM TSB #PIP5628G; often appears if the Lower Intake Manifold (LIM) gasket leak is severe enough to affect multiple cylinders.
• P0305 — Cylinder 5 Misfire - Cylinder 5 shares an ignition coil pack with cylinder 2 in the 3.4L V6 waste-spark system. A failed 2/5 coil will often cause misfires on both of these paired cylinders.
• P0304 — Cylinder 4 Misfire - A companion misfire code that may appear during diagnosis if you swap the suspect cylinder #2 spark plug wire, fuel injector, or the 2/5 coil pack to the cylinder #4 position to isolate the fault.
• P0301 — Cylinder 1 Misfire - A companion misfire code that may appear during diagnosis if you swap the suspect 2/5 ignition coil to the 4/1 position to test for a faulty coil pack.

Frequently Asked Questions
