P0303 on 2016-2017 Lincoln MKX: Cylinder 3 Misfire Causes and Fixes

What's Unique About the 2016-2017 Lincoln MKX

While P0303 is a generic code, its diagnosis on the 2016-2017 Lincoln MKX requires engine-specific awareness. For models with the 3.7L V6, the causes are typically standard ignition or fuel system faults. However, for the optional 2.7L EcoBoost V6, particularly those with build dates between April 1, 2016, and January 1, 2017, this misfire code is a key symptom of a much more severe underlying problem. Ford/Lincoln has issued Technical Service Bulletins (TSBs) like 19-2243 and 19-2384 acknowledging that P0303, especially when paired with excessive oil consumption, can be caused by faulty cylinder head valve guides, a major engine repair.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Rough idle or shaking, especially in Park or Neutral.
• Hesitation or stumbling during acceleration.
• Noticeable loss of engine power
• Flashing or solid check engine light
• Reduced fuel economy
• For 2.7L EcoBoost: Excessive oil consumption (e.g., 1 quart in less than 3,000 miles).
• For 2.7L EcoBoost: Blue or white exhaust smoke, especially after a hot restart.

Most Likely Causes

1. Faulty Ignition Coil 🔴 High Probability → Shop Ignition Coil Coil-on-plug systems are a common failure point on modern engines. Valve cover gasket leaks can also cause oil to pool in the spark plug wells, damaging the coil boot and causing a misfire.
   How to confirm: Swap the ignition coil from cylinder 3 with another cylinder (e.g., cylinder 2). Clear the codes and drive the vehicle. If the code changes to P0302, the coil is bad.
   Typical fix: Replace the faulty ignition coil. It is often recommended to replace all coils at the same time for preventative maintenance, especially on higher mileage vehicles.
   Est. part cost: $40-$75 per coil
2. Worn or Fouled Spark Plug 🔴 High Probability → Shop Spark Plug EcoBoost engines can be harder on spark plugs due to direct injection and turbocharging. On the 2.7L engine, oil fouling from the known cylinder head issue can quickly ruin a new spark plug, making it a symptom rather than the root cause.
   How to confirm: Remove the spark plug from cylinder 3. Inspect it for wear, damage, or fouling from oil (black, wet) or carbon. A 'steam-cleaned' or unusually white appearance can indicate a coolant leak. Compare it to a new plug.
   Typical fix: Replace the spark plug. It is best practice to replace all spark plugs as a set.
   Est. part cost: $7-$20 per plug
3. Cylinder Head Valve Guide Issue (2.7L EcoBoost Only) 🟡 Medium Probability → Shop Engine Cylinder Head As documented in Ford/Lincoln TSBs 19-2243 and 19-2384, 2.7L EcoBoost engines built from April 1, 2016, through January 1, 2017, are prone to excessive valve guide wear. This allows oil to leak into the cylinders, causing oil consumption, fouling the spark plug, and triggering misfires like P0303.
   How to confirm: This requires professional diagnosis. The primary symptoms are excessive oil consumption (1 quart in <3000 miles) and misfire codes. A technician may perform a compression test and a cylinder leak-down test. The TSB itself is the strongest confirmation if symptoms and build date align.
   Typical fix: Replace both left and right cylinder heads as per the manufacturer's service bulletin. In some earlier versions of the TSB, if codes P0524/P06DD were also present, a complete long block engine replacement was recommended.
   Est. part cost: $2000-$4000+
4. Faulty Fuel Injector ⚪ Low Probability → Shop Fuel Injector
   How to confirm: This is more difficult to diagnose. A professional can perform a fuel injector balance test. A DIY method is to swap the injector with another cylinder, but this is far more labor-intensive than swapping a coil.
   Typical fix: Replace the faulty fuel injector. It's recommended to replace the O-rings and seals at the same time.
   Est. part cost: $50-$120

Rare But Worth Checking

• Vacuum Leak: A vacuum leak near the intake manifold for cylinder 3 can lean out the air/fuel mixture, causing a misfire. This is less common for a single-cylinder misfire but possible.
• Low Engine Compression: Beyond the specific TSB issue, other mechanical problems like a burnt valve, worn piston rings, or a damaged cylinder wall can cause a misfire. A compression test is needed to confirm.

Diagnosis Steps

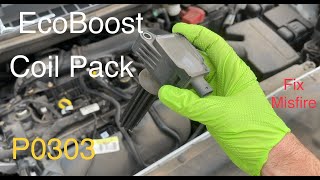

1. Read the code with an OBD-II scanner 🎬 Watch: How to diagnose P0303 spark plug and coil issues to confirm P0303 and check for any other codes.
2. Identify cylinder 3. On the transverse V6 engines in the MKX, the engine is mounted sideways. Bank 1 (cylinders 1-2-3) is against the firewall, and Bank 2 (cylinders 4-5-6) is toward the radiator. Cylinder 3 is the cylinder on the firewall side closest to the driver's side.
3. If you have a 2.7L EcoBoost, check your vehicle's build date (on the driver's door jamb sticker). If it's between April 2016 and January 2017, immediately begin monitoring oil levels. If you are experiencing excessive oil consumption, reference TSB 19-2243 or 19-2384, as the cylinder head issue is highly probable.
4. Swap the ignition coil from cylinder 3 with an adjacent cylinder (e.g., cylinder 2). Clear the codes and run the engine to see if the misfire code moves to P0302. If it does, the ignition coil is faulty.
5. If the code remains P0303, inspect the spark plug in cylinder 3. Look for signs of wear, carbon fouling, or oil contamination (a wet, black appearance). Replace if necessary.
6. Inspect the wiring and connector for the ignition coil and fuel injector on cylinder 3 for any damage or corrosion.
7. If ignition components are good and there is no evidence of the TSB issue, the problem may be a clogged fuel injector. Consider having a professional fuel system service performed.
8. If all else fails, a mechanical issue is likely. Perform or have a professional perform a compression test and a cylinder leak-down test to check the mechanical health of cylinder 3.

Parts You'll Likely Need

• Ignition Coil (OEM #FT4Z-12029-A (2.7L); DG-520 / 7T4Z-12029-E (3.7L)) — This is the most common failure point for a single-cylinder misfire.
  Trusted brands: Motorcraft, Denso, NGK
  OEM price range: $60-$75
  Aftermarket price range: $35-$60
• Spark Plug (OEM #SP-594 / CYFS-092-YPT (2.7L); SP-520 / CYFS-12F-5 (3.7L)) — Spark plugs are a routine maintenance item and can wear out or become fouled, causing a misfire. Oil fouling is a key symptom of the 2.7L TSB issue.
  Trusted brands: Motorcraft, NGK, Bosch
  OEM price range: $15-$20
  Aftermarket price range: $7-$15
• Cylinder Head Assembly (2.7L EcoBoost) (OEM #FT4Z-6049-E (Left, supersedes FT4Z-6049-B, FT4Z-6049-D); FT4Z-6049-F (Right)) — Required to fix the oil consumption and misfire issue documented in TSB 19-2243 for the 2.7L engine built between 4/1/2016 and 1/1/2017.
  Trusted brands: Motorcraft (OEM)
  OEM price range: $1000-$1500 per head

Related Codes That Often Appear With This One

• P0300 — This code for 'Random/Multiple Cylinder Misfire' often appears with single-cylinder misfire codes like P0303, especially if the underlying issue is starting to affect other cylinders.
• P0301, P0302, P0304, P0305, P0306 — These codes indicate misfires in other cylinders. Seeing multiple codes can point towards a systemic issue like a vacuum leak, a fuel delivery problem, or the widespread cylinder head issue on the 2.7L engine.
• P0524, P06DD — These codes for 'Engine Oil Pressure Too Low' are specifically mentioned in the TSBs for the 2.7L EcoBoost engine. If you see these with P0303, it strongly indicates the severe oil consumption/cylinder head problem, which in some cases could lead to the recommendation of a full engine replacement.

Technical Service Bulletins (TSBs) & Recalls

• SSM 54504: Mentions misfire DTCs P0300-P0306 with excessive oil consumption on some 2016 models.
• SSM 46363: Links misfire DTCs P0300-P0306 to excessive oil consumption and points to cylinder heads as the suspected cause.
• 19-2243: A TSB for the 2016-2017 Edge/MKX with the 2.7L engine that explicitly links oil consumption and misfire codes to faulty valve guides requiring cylinder head replacement.

Platform-Specific Known Issues

• TSB for 2.7L EcoBoost Engine: TSB 19-2243 (superseding earlier versions) was issued for 2016-2017 Lincoln MKX models with the 2.7L engine built from April 1, 2016, to January 1, 2017. It notes that vehicles may exhibit an illuminated check engine light with misfire codes (P0300-P0306) alongside excessive oil consumption (1 quart in less than 3,000 miles) and blue/white smoke after a hot restart. The root cause is identified as defective valve guides, requiring the replacement of both cylinder heads.

Mechanic-Grade Diagnostic Values

• Spark Plug Gap (3.7L V6) — expected: 0.049 - 0.053 in (1.25 - 1.35 mm). Failure: An incorrect gap can lead to a weak or inconsistent spark, causing misfires.
• Mode $06 Misfire Monitor Threshold — expected: Misfire count below the failure threshold (e.g., < 1.97% on one example).. Failure: A high misfire count on cylinder 3, even without a check engine light, indicates an intermittent issue that the PCM is tracking. This can be viewed with advanced scan tools like Forscan.
• Ignition Coil Primary/Secondary Resistance (Aftermarket Example) — expected: Approximately 0.49 ohms (primary) and 7.3k ohms (secondary).. Failure: Readings significantly outside of specification (e.g., open circuit or high resistance) indicate a faulty coil. Note: These values are for a specific aftermarket brand and OEM specs may differ.

Hidden / Shadow Codes Worth Checking

• Mode $06, Test ID $53: This is not a DTC, but a diagnostic monitor for cylinder-specific misfire counts. It tracks misfires that are not yet frequent or severe enough to trigger the check engine light and set a P0303 code. (see via Requires a scan tool capable of reading Mode $06 data, such as Ford's IDS or aftermarket tools like Forscan.)

Scan Tool Commands That Help

• Ford IDS, Snap-on, Autel, or other professional scanners: Power Balance Test — Use this test when a P0303 is present but swapping the coil and plug does not resolve the issue. The test disables the fuel injector for each cylinder one at a time and graphs the resulting drop in RPM. If disabling cylinder 3 causes little or no change in RPM compared to other cylinders, it confirms that cylinder 3 is not contributing power, pointing towards a fuel, compression, or more serious ignition issue.

Wiring & Ground Locations

• G104 — A major chassis ground point located on the left front of the engine compartment.. While not exclusive to the ignition circuit, a poor or corroded connection at a primary ground can cause erratic behavior and voltage drops in multiple electronic systems, including the PCM and ignition coils, potentially leading to misfire codes.
• Cylinder 3 Ignition Coil Connector — On the 2.7L and 3.7L V6, cylinder 3 is on the rear bank (against the firewall), closest to the driver's side of the vehicle.. This 3-pin connector and its wiring are the final link to the ignition coil. Damage from heat, oil contamination, or chafing can interrupt the signal or power to the coil, causing a P0303.
• Harness between C1016 and C1168 (2.7L) — This section of the engine harness is located near the back of the 2.7L engine.. TSBs for other codes have identified this specific wiring harness section as a known area for chafing damage. While the TSBs were for other sensors, the ignition coil wiring may be routed in the same harness, making it a potential, though rare, location for a short or open circuit causing a P0303.

Real Owner Repair Stories

• Reddit user on r/f150ecoboost (Ford F-150 with 2.7L EcoBoost (mechanically similar)) — Misfire under wide-open-throttle (WOT), sometimes causing limp mode.
  ❌ Tried (didn't work) Initial diagnosis was unclear.
  ✅ What actually fixed it The user drilled a small 'weep hole' in the intercooler to drain a significant amount of oil/water condensation. They also replaced all spark plugs and coil packs at the same time. The combination of fixes resolved the WOT misfire.
• Reddit user on r/f150ecoboost (2016 Ford F-150 with EcoBoost engine) — P0303 code appeared.
  ✅ What actually fixed it The owner discovered the vehicle had been consistently driven with a very low fuel level. They filled the fuel tank, added a bottle of fuel injector cleaner, and replaced the spark plugs. The misfire code did not return.

"I Checked Everything" — The Actual Cause

• A faulty Positive Crankcase Ventilation (PCV) valve can cause a single-cylinder misfire like P0303 but may not be detected by a typical smoke test focused on the intake manifold. If the valve is stuck open, it creates an unmetered vacuum leak that can lean out the mixture in a nearby cylinder. If it's stuck closed, it can cause excessive crankcase pressure, potentially affecting oil seals and engine performance. Technicians may overlook the PCV system when a smoke test of the main intake path comes back clean.

Model Year Variations Within This Range

• 2017: The 2017 Lincoln MKX was equipped with the newer Sync 3 infotainment system, which supported Apple CarPlay and Android Auto. The 2016 model used the older, often criticized MyLincoln Touch system. This does not affect P0303 diagnosis but is a key difference between the model years.
• 2016-2017 (specific build dates): As noted in the TSBs, 2.7L EcoBoost engines built between April 1, 2016, and January 1, 2017, are susceptible to the valve guide failure causing oil consumption and misfires. Engines built before or after this window are not covered under this specific bulletin for this issue.
