P0304 on 2004-2008 Chevrolet Aveo: Cylinder 4 Misfire Causes and Fixes

What's Unique About the 2004-2008 Chevrolet AVEO

The 1.6L E-TEC II engine in the first-generation Aveo is known for two key issues that can lead to a P0304. First, it is an interference engine, meaning a broken timing belt can cause pistons to hit and bend the valves, leading to a severe misfire and compression loss. Second, the valve cover gasket is notoriously prone to leaking oil directly into the spark plug tubes. This oil saturation is a very common cause of spark plug and wire failure, leading to misfires. While a P0304 code is usually caused by simple ignition issues, on this specific vehicle, it's critical to check for oil in the plug wells and be aware of the engine's timing belt service history.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This range covers the first generation Chevrolet Aveo, which includes the initial T200 models (2004-2006) and the facelifted T250 models (2007-2008 sedan). Both use the same 1.6L DOHC I4 engine and share the same common causes and fixes for this code.

Symptoms You May Notice

• Check Engine Light is on or flashing
🎬 Watch a diagnostic walkthrough of an Aveo running rough.
• Rough or shaky idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of power
• Reduced fuel economy
• Smell of unburned fuel from the exhaust
• Engine stalling

Most Likely Causes

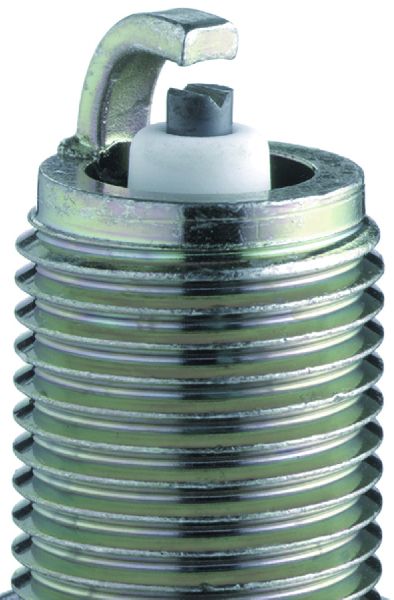

1. Worn or Fouled Spark Plug 🔴 High Probability → Shop Spark Plug Spark plugs are a routine maintenance item, but on the Aveo, they are most often fouled by engine oil leaking from a failed valve cover gasket into the spark plug wells. The oil submerges the plug and boot, shorting out the spark. This is a very common failure pattern for this engine.
   How to confirm: Pull the spark plug wire for cylinder 4. Look for liquid oil in the spark plug tube. If oil is present, the valve cover gasket has failed. Remove the spark plug and inspect it for wear, heavy carbon buildup, or oil fouling. Compare it to the other plugs. You can also swap the cylinder 4 spark plug with another cylinder (e.g., cylinder 1) and see if the code changes to P0301.
   Typical fix: Replace the spark plug. It is recommended to replace all four spark plugs at the same time. 🎬 See how to perform an easy spark plug tune-up. Crucially, if oil was present, you must also replace the valve cover gasket to prevent the new plug from failing.
   Est. part cost: $15-$40 for a set of four

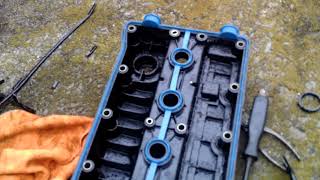

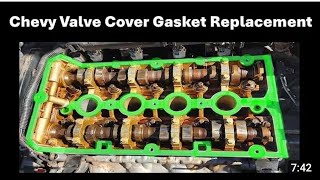

2. Leaking Valve Cover Gasket 🔴 High Probability → Shop Engine Valve Cover The valve cover gasket on the 1.6L E-TEC II engine is a well-documented, frequent failure point. The gasket material hardens from heat cycles and allows oil to leak into the spark plug tubes, directly causing ignition misfires.
   How to confirm: Visually inspect the spark plug wells after removing the ignition wires. The presence of liquid oil in the tube for cylinder 4 is definitive proof. You may also see oil residue around the perimeter of the valve cover.
   Typical fix: Replace the valve cover gasket and the spark plug tube seals, which often come in a kit. While the cover is off, clean the oil out of the spark plug tubes and off the ignition wires/boots. It is highly recommended to replace the spark plugs and wires at the same time.
   Est. part cost: $20-$50 for a gasket set
3. Faulty Spark Plug Wire 🔴 High Probability → Shop Spark Plug
   How to confirm: Visually inspect the wire for cylinder 4 for any cracks, burns, or corrosion on the contacts. Oil saturation from a leaking valve cover gasket can also degrade the wire's boot. With the engine running, you can use an insulated tool to check for arcing around the wire. The easiest test is to swap the wire for cylinder 4 with another cylinder's wire (if length permits) and see if the misfire code follows.
   Typical fix: Replace the spark plug wire set. Wires are typically replaced as a complete set.
   Est. part cost: $30-$60 for a set
4. Defective Ignition Coil Pack 🟡 Medium Probability → Shop Ignition Coil The Aveo uses a single coil pack that provides spark to all four cylinders via spark plug wires. Over time, the internal windings for one cylinder's output can fail, or cracks can form in the housing.
   How to confirm: Since you cannot swap individual coils, diagnosis involves confirming the spark plugs and wires are good first. A mechanic can test the coil's output using a spark tester. If plugs and wires are new and the misfire persists on cylinder 4, the coil pack is a strong suspect.
   Typical fix: Replace the entire ignition coil pack.
   Est. part cost: $60-$150
5. Clogged or Faulty Fuel Injector ⚪ Low Probability → Shop Fuel Injector
   How to confirm: Listen to the injector with a mechanic's stethoscope; it should make a consistent clicking sound. You can also test the injector's electrical resistance with a multimeter. The most definitive test is to swap the fuel injector from cylinder 4 with another cylinder and see if the misfire code moves.
   Typical fix: Replace the faulty fuel injector.
   Est. part cost: $40-$100

Rare But Worth Checking

• Low Engine Compression (Bent Valve): The 1.6L E-TEC II is an interference engine. If the timing belt has ever broken or skipped time, it's highly likely that one or more valves are bent, causing a complete loss of compression in that cylinder. This is a known major failure point for this specific vehicle. A borescope can be used to inspect the piston tops for valve impact marks without removing the cylinder head.
• Leaking Head Gasket: A failed head gasket can allow coolant to enter cylinder 4, which will cause a misfire. This is usually accompanied by other symptoms like unexplained coolant loss, white smoke from the exhaust, or milky-looking engine oil.
• Fuel Contamination (per TSB): GM Technical Service Bulletin #PIP3333C notes a rare condition where fuel contaminants can become trapped in the returnless fuel rail. During a right-hand turn, these contaminants can slosh over and temporarily clog the inlet for the #4 fuel injector, causing an intermittent P0304 misfire.
• Vacuum Leak: A significant vacuum leak near the intake runner for cylinder 4 could lean out the air/fuel mixture enough to cause a misfire. This is less common for a single-cylinder misfire compared to a random misfire code (P0300).

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0304 is present and note any other codes.
2. Identify cylinder 4. On the Aveo's 1.6L engine, the cylinders are numbered 1-2-3-4 from the timing belt side (passenger side) to the transmission side (driver side). So, cylinder 4 is closest to the driver's side.
3. Pull the ignition wire off the spark plug for cylinder 4. Shine a light into the spark plug tube and check for liquid engine oil. If oil is present, the primary cause is a leaking valve cover gasket.
4. If the tube is dry, proceed with inspecting the spark plug for cylinder 4. Look for wear, damage, or fouling. If it looks bad, replace it.
5. Inspect the spark plug wire for cylinder 4. Check for cracks, burns, corrosion, or oil saturation on the boot.
6. Perform a 'swap test'. Swap the spark plug from cylinder 4 with cylinder 1. Clear the codes and drive. If the code changes to P0301, the spark plug is bad. If not, swap the spark plug wire from cylinder 4 with cylinder 1. If the code then changes to P0301, the wire is bad.
7. If plugs and wires are good, the ignition coil pack is the next likely suspect.
8. If ignition components are confirmed good, check the fuel injector on cylinder 4. Listen for a steady clicking. You can swap it with another cylinder's injector to see if the code follows.
9. If the misfire persists, perform a compression test. A low reading in cylinder 4 points to a mechanical engine problem like a bent valve, worn piston rings, or a bad head gasket.
10. For suspected valve damage from a timing belt failure, a borescope can be inserted into the spark plug hole to look for impact marks on the piston crown, potentially avoiding unnecessary cylinder head removal.

Parts You'll Likely Need

• Ignition Coil Pack (OEM #96253555) — This single pack is responsible for spark in all cylinders. Failure of the driver for one cylinder is a common cause for a single-cylinder misfire after plugs and wires are ruled out. This part number is widely confirmed for this vehicle.
  Trusted brands: ACDelco, Delphi, NGK, Denso
  OEM price range: $100-$160
  Aftermarket price range: $60-$110
• Spark Plug Wire Set (OEM #96476112) — The insulation on spark plug wires breaks down over time, causing the spark to

Related Codes That Often Appear With This One

• P0300 — If the misfire is intermittent or beginning to affect other cylinders, a P0300 (Random/Multiple Cylinder Misfire) may be stored alongside P0304.
• P0301, P0302, P0303 — If other cylinder-specific misfire codes are present, it points towards a common cause affecting the whole engine, such as a bad ignition coil pack, low fuel pressure, or a major vacuum leak. A P0302/P0304 combination could point to one side of the coil pack failing.

Technical Service Bulletins (TSBs) & Recalls

• PIP3333C: Addresses intermittent engine misfires and codes P0300, P0301, and/or P0304, noting that the cause may not be found with initial diagnostics. [⭐ MANUFACTURER TSB — highest authority]

Platform-Specific Known Issues

• Chronic Valve Cover Gasket Leaks: → Shop Engine Valve Cover The most prevalent issue on this platform is the failure of the valve cover gasket, which allows engine oil to pool in the spark plug tubes. This directly causes the spark plug and wire to fail, leading to misfire codes like P0304. Many owners report having to replace the gasket multiple times. A fix for P0304 is often incomplete without also addressing this root-cause leak.
• Interference Engine Design: The 1.6L E-TEC II engine is an interference design. The recommended timing belt replacement interval is 60,000 miles. If the belt breaks or jumps time, the pistons will collide with the valves, causing bent valves and a loss of compression that results in a persistent misfire. This is a catastrophic and expensive failure that can present as a misfire code.
• TSB on Fuel Contamination: GM issued Technical Service Bulletin #PIP3333C, which identifies a rare scenario for the 2004-2011 Aveo. It states that an intermittent P0304 can be caused by fuel contaminants in the fuel rail sloshing over the #4 injector inlet during a hard right turn, temporarily starving it of fuel. This should be considered after standard ignition and fuel system checks are inconclusive.

Mechanic-Grade Diagnostic Values

• Ignition Coil Primary Resistance — expected: Approx. 0.54 Ohms. Failure: A reading significantly higher or lower than the specification, or an open circuit (infinite resistance).
• Ignition Coil Secondary Resistance — expected: Approx. 5.8 kOhms (5,800 Ohms). Failure: A reading significantly outside the expected range, indicating an internal coil winding issue.
• Fuel Injector Resistance — expected: 12 - 17 Ohms. Failure: A reading below 12 Ohms or an open circuit (infinite resistance) indicates a faulty injector coil.
• Fuel Pressure (Key On, Engine Off) — expected: 55-60 PSI. Failure: Low fuel pressure can cause lean misfires, but would typically affect all cylinders, triggering a P0300 code alongside the P0304.
• Engine Compression — expected: Approx. 170 PSI per cylinder, with less than 10-15% variation between cylinders.. Failure: A significantly lower reading in cylinder 4 points to a mechanical issue like a bent valve, worn piston rings, or a bad head gasket.

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent professional scanner: Misfire Data / Misfire History — To view live and historical misfire counts for each individual cylinder. This helps confirm that cylinder 4 is the primary and consistent source of the misfire, especially for intermittent issues.
• GM Tech2 / GDS2 or equivalent professional scanner: Fuel Injector Balance Test — This test commands each injector to fire for a set duration while monitoring the corresponding drop in fuel rail pressure. If the pressure drop for cylinder 4 is significantly different from the others, it indicates a clogged or failing injector.

Wiring & Ground Locations

• G103 — On the starter mounting bolt.. This is a primary ground point for the Engine Control Module (ECM). A poor connection here can cause erratic behavior in multiple systems, including ignition and fuel control, potentially leading to misfires.
• G104 — Behind the right headlamp, under the air cleaner assembly.. This ground serves several engine components. Corrosion or a loose connection at this point can lead to a weak spark or improper sensor readings, contributing to a misfire code.
• ECM Pin 11 — On the main Engine Control Module connector.. This is the control signal for the cylinder 4 fuel injector. A technician can probe this pin to verify the ECM is sending a signal to the injector.
• ECM Pin 18 — On the main Engine Control Module connector (Connector A).. This pin controls the ignition coil for cylinders 1 and 4 (waste spark system). Checking for a signal here can help determine if a persistent P0304 is caused by a faulty coil or a problem with the ECM driver circuit.

Real Owner Repair Stories

• Chevrolet Aveo forum (2009 Chevrolet Aveo, 79k miles) — Flashing Check Engine Light and HOLD light, rough running, loss of power, P0304 code.
  ❌ Tried (didn't work) Replacing all four spark plugs.
  ✅ What actually fixed it After a compression test showed good results (170 PSI across all cylinders), the owner replaced the ignition coil pack, which resolved the misfire.
• Chevrolet Forum (2004 Chevrolet Aveo, 83k miles) — Engine shot, timing belt broke.
  ❌ Tried (didn't work) Replacing the timing belt at 53k miles.
  ✅ What actually fixed it The timing belt failed again at 83k miles due to the tensioner falling off. This led to catastrophic engine damage (bent valves), which is a common cause of severe misfires on this interference engine. The engine had to be rebuilt under warranty.
• Chevrolet Aveo forum (2009 Chevrolet Aveo LT, 80k miles) — P0304, hard starting, constantly drained battery.
  ❌ Tried (didn't work) Replacing spark plugs, Replacing ignition coil, Replacing both O2 sensors, Replacing crank sensor
  ✅ What actually fixed it The user was advised that the remaining likely causes were a faulty fuel injector or a mechanical issue like a burnt exhaust valve. The thread ended before a final resolution was posted, but highlights a scenario where all common ignition parts are replaced without fixing the code.

Model Year Variations Within This Range

• 2004-2005 vs 2006-2008: The PCV system design was changed. Early models (2004-2005) used an external PCV system, while later models (2006-2008) integrated it internally. While not a direct cause of P0304, this is a critical difference to be aware of during engine repairs or swaps.
• Early production within the 2004-2008 range: Some early OEM timing belts and tensioners were prone to premature failure, sometimes well before the 60,000-mile replacement interval. GM issued a TSB regarding this issue. A failing tensioner can cause the belt to slip, leading to incorrect timing and misfires.
