P0305 on 2011-2017 Ford Mustang 3.7L V6: Cylinder 5 Misfire Causes and Fixes

What's Unique About the 2011-2017 Ford Mustang

For the 3.7L V6 Mustang, a P0305 code is typically a straightforward ignition issue that is easy to diagnose. The coil-on-plug design makes swapping components for testing simple. A key distinction for the Mustang platform versus other vehicles with the 3.7L Cyclone (like the Ford Edge or Lincoln MKX) is the water pump design. The Mustang's RWD layout uses a conventional, external water pump. This is a significant advantage, as the transverse-mounted versions of this engine feature an internal, timing-chain-driven water pump where failure can cause catastrophic engine damage by mixing coolant with oil. While Mustang owners should still be aware of general engine issues, they are not prone to this specific, severe failure mode.

Generation note: The 2011-2017 year range covers two Mustang generations: the S197 (2011-2014) and the S550 (2015-2017). Both generations used the 3.7L Cyclone V6, and the common causes, diagnostic procedures, and primary replacement parts for a P0305 code are the same across both. The core engine architecture and ignition system are functionally identical for this fault.

Symptoms You May Notice

• Check Engine Light is on (solid or flashing)
• Rough or vibrating idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of engine power
• Reduced fuel economy
• Possible smell of fuel from the exhaust

Most Likely Causes

1. Faulty Ignition Coil 🔴 High Probability → Shop Ignition Coil Coil-on-plug ignition coils are a common failure item on most modern vehicles as they age. Heat and vibration cause the internal windings to fail.
   How to confirm: Swap the ignition coil from cylinder 5 with the coil from an adjacent cylinder (e.g., cylinder 4 or 6). Clear the codes and drive the vehicle. If the code changes to P0304 or P0306, the coil is bad. This is the most definitive DIY test.
   Typical fix: Replace the faulty ignition coil. The OEM part is Motorcraft DG542. It is generally recommended to replace only the failed coil.
   Est. part cost: $25-$75
2. Worn or Fouled Spark Plug 🟡 Medium Probability → Shop Spark Plug Spark plugs are a regular maintenance item. The OEM Motorcraft SP-520 iridium/platinum plugs have a long service life (approx. 100,000 miles) but will eventually wear out, leading to a weak or inconsistent spark.
   How to confirm: After confirming the ignition coil is good, remove the spark plug from cylinder 5. Inspect it for wear (rounded electrode), carbon fouling, oil, or damage to the porcelain insulator. Check the gap; it should be between 0.049 and 0.053 inches.
   Typical fix: Replace the spark plug in cylinder 5. It is best practice to replace all six spark plugs at the same time if they are near the end of their service life. Ensure new plugs are gapped correctly. 🎬 See this walkthrough for replacing spark plugs on the 3.7L.
   Est. part cost: $8-$20 per plug
3. Faulty Fuel Injector ⚪ Low Probability → Shop Fuel Injector Fuel injectors can become clogged with deposits over time or fail electrically, preventing the correct amount of fuel from reaching the cylinder.
   How to confirm: Listen to the injector with a mechanic's stethoscope; it should make a consistent clicking sound. You can also test the electrical signal to the injector with a 'noid' light. For a definitive test, swap the injector with one from another cylinder to see if the misfire follows (this is a more labor-intensive job).
   Typical fix: Replace the faulty fuel injector.
   Est. part cost: $35-$80

Rare But Worth Checking

• Internal Water Pump Failure (Transverse Engines): This is a known, critical failure point for the 3.7L Cyclone engine family, BUT primarily in transverse (FWD/AWD) applications like the Ford Edge/Lincoln MKX. In those vehicles, the internal pump fails and leaks coolant into the oil, causing catastrophic damage. The Mustang uses an external pump, making this specific failure mode not applicable. It is important for owners to know this distinction when researching engine issues.
• Vacuum Leak: A leak in the intake manifold gasket near cylinder 5 could lean out the air/fuel mixture and cause a misfire. This would often be accompanied by a lean code (P0171/P0174). Check for cracked hoses or listen for a hissing sound.
• Low Engine Compression: Internal mechanical issues like a burnt valve, worn piston rings, or a damaged cylinder head can cause a loss of compression, leading to a persistent misfire. This is the least likely cause and should be investigated last with a compression test. An owner report for a similar Ford engine (NHTSA ODI #11652376) noted a P0305 code caused by low compression on cylinder #5 (110 PSI) compared to 145-150 PSI on healthy cylinders.
• Failed PCM Ignition Driver: In very rare cases, if a new coil and spark plug do not fix the misfire on cylinder 5, and swapping them confirms they are good, the issue could be the ignition driver circuit within the Powertrain Control Module (PCM). This would prevent the PCM from correctly firing the coil. Diagnosis involves checking for a signal pulse at the coil connector. 🎬 Watch: A comprehensive guide to diagnosing and fixing engine misfires. This usually requires a PCM repair or replacement. Manufacturer Bulletin #TSB 22-2464 notes that for some Mustang models, misfire codes including P0305 may be due to various strategies within the PCM software, requiring a software update to correct.

Diagnosis Steps

1. Read the codes: Use an OBD-II scanner to confirm P0305 and check for any other codes.

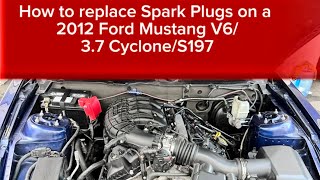

2. Perform the Ignition Coil Swap Test: Locate cylinder 5 (middle cylinder, driver's side). 🎬 Watch: See the 3.7L firing order and cylinder locations. Swap its ignition coil with cylinder 6 (rear cylinder, driver's side). Clear the codes and run the engine. If the code changes to P0306, the ignition coil is the problem.
3. Inspect the Spark Plug: If the misfire remains on cylinder 5, remove the coil and spark plug. Check the plug for excessive wear, fouling, or damage. Verify the gap is between 0.049-0.053 inches. Replace it if it's in poor condition or old.
4. Check the Fuel Injector: If the plug and coil are good, check the fuel injector. Listen for a steady clicking with a stethoscope. Use a 'noid' light to verify it's receiving an electrical pulse from the PCM.
5. Check for Vacuum Leaks: With the engine running, carefully spray brake cleaner or a propane torch (unlit) around the intake manifold gasket near cylinder 5. If the engine RPM changes, you have a vacuum leak.
6. Perform a Compression Test: If all other tests fail, perform a compression test on cylinder 5 to check for internal mechanical engine problems. Compare the reading to the other cylinders.

Parts You'll Likely Need

• Ignition Coil (OEM #DG542) — This is the most common failure part for a P0305 code on this engine. It's an easy and relatively inexpensive part to replace.
  Trusted brands: Motorcraft, NGK, Denso
  OEM price range: $50-$75
  Aftermarket price range: $25-$50
• Spark Plug (OEM #SP-520 (Finis code CYFS-12F-5)) — As a routine maintenance item, a worn spark plug is the second most likely cause of a single-cylinder misfire.
  Trusted brands: Motorcraft, NGK, Bosch
  OEM price range: $10-$15
  Aftermarket price range: $8-$12

Related Codes That Often Appear With This One

• P0300 — If the misfire is intermittent or starting to affect other cylinders, a P0300 (Random/Multiple Cylinder Misfire) code may appear alongside P0305.
• P0316 — This code indicates a 'Misfire Detected on Startup (First 1000 Revolutions)'. It frequently accompanies a specific cylinder misfire code like P0305. Manufacturer Bulletin #SSM 46363 notes that P0316 and P0305 can appear together if there are issues with the cylinder heads.

Technical Service Bulletins (TSBs) & Recalls

• TSB 12-7-11: Addresses a chirp or squeal from the accessory drive belt on some 2012-2013 models.
• TSB 14-0213: Addresses DTC P1450 (EVAP system) on some 2012-2013 models due to a faulty canister purge valve. While not directly a misfire issue, it is a common TSB for this platform.
• Customer Satisfaction Program 16B23: Related to electronic throttle body replacement for certain 2011-2012 Mustangs.
• Bulletin #SSM 46391: Notes that engines built within a specific window may exhibit multiple misfire codes, including P0305, due to an under-torqued crankshaft pulley bolt.
• Bulletin #TSB 22-2464: Specifically for Mustang vehicles, this bulletin addresses illuminated MILs with codes P0300-P0308 that may be corrected via PCM software updates.

Platform-Specific Known Issues

• The 3.7L Cyclone engine family is known for an internal, timing-chain-driven water pump. However, this design is used in transverse (FWD/AWD) applications like the Ford Edge, Flex, and Lincoln MKX/MKT. A failure in those vehicles is catastrophic, leaking coolant into the engine oil. The 2011-2017 Mustang, being rear-wheel-drive, uses a longitudinal engine layout with a traditional, external water pump. While any water pump can fail, the Mustang's is a standard maintenance item and does not carry the risk of immediate, widespread engine damage associated with the internal pump design.
• Early models (2011-2012) were subject to a Customer Satisfaction Program (16B23) for faulty electronic throttle bodies that could cause the vehicle to enter a low-power 'limp mode'.
• Manufacturer Bulletin #SSM 46363 indicates that for some Ford vehicles, an illuminated MIL with P0305 may be caused by the cylinder heads, especially if accompanied by excessive oil consumption.

Mechanic-Grade Diagnostic Values

• Fuel Pressure (Key On, Engine Off) — expected: 35-65 PSI (Nominal ~55 PSI). Failure: Pressure below 35 PSI can indicate a weak fuel pump or clogged filter, potentially causing a lean misfire.
• Fuel Injector Resistance — expected: 11 - 18 Ohms. Failure: A reading significantly outside this range, or an open/short circuit, indicates a failed injector coil.
• Ignition Coil Primary Resistance — expected: 0.4 - 2.0 Ohms. Failure: A reading outside this range suggests a fault in the coil's primary winding.
• Ignition Coil Control Signal — expected: Pulsing ground signal when cranking/running. Failure: No pulse (constant power or constant ground) indicates a problem with the PCM driver or wiring.

Hidden / Shadow Codes Worth Checking

• Mode $06, TID $A6: This is not a DTC, but a diagnostic monitor value. TID $A2 through $A7 correspond to misfire counts for cylinders 1-6. TID $A6 specifically tracks the raw misfire count for cylinder 5 during the current and previous 10 drive cycles. (see via A capable OBD-II scanner that can display Mode $06 data (e.g., FORScan, higher-end professional scan tools). A non-zero value confirms the PCM is detecting misfire events on that cylinder, even if they aren't yet frequent enough to keep the CEL on.)

Scan Tool Commands That Help

• Ford IDS (or FORScan): Power Balance Test — This is the most effective way to confirm a live misfire. The tool graphically displays the power contribution of each cylinder. A cylinder with a significant drop on the graph is the one misfiring. A technician can then use the tool to disable the fuel injector for that cylinder to see if there's any change, confirming it was the source of the issue.

Wiring & Ground Locations

• Cylinder 5 Ignition Coil Connector — On top of the valve cover, connected to the ignition coil for the middle cylinder on the driver's side.. The plastic locking tab can become brittle and break, leading to a poor or intermittent connection that causes a P0305 misfire. The connector has two pins: Pin 1 is the control signal from the PCM, and Pin 2 is the 12V+ power supply.
• PCM Connector C175E, Pin 15 — This is one of the main connectors at the Powertrain Control Module (PCM), typically located in the engine bay or passenger-side kick panel area.. This specific pin is the ignition control signal output from the PCM to the cylinder 5 ignition coil. If a misfire persists with a known-good coil, plug, and wiring, testing for a pulse at this pin can confirm if the PCM driver has failed.
• G104 — In the engine bay, on the driver's side inner fender or radiator support, often near the battery.. This is a primary ground point for the engine harness and PCM. A loose or corroded connection here can cause widespread electrical issues, including weak spark or erratic sensor data that could lead to misfires.

Real Owner Repair Stories

• Forum user reports (2013 Ford Mustang 3.7L, approx. 90,000 miles) — Persistent P0305 code and a slight rough idle.
  ❌ Tried (didn't work) Replaced spark plug on cylinder 5, Swapped ignition coil from cylinder 5 to cylinder 4 (code remained P0305)
  ✅ What actually fixed it The fuel injector for cylinder 5 was faulty. After replacing the injector, the code was cleared and did not return.
• Mustang forum user (2011 Ford Mustang 3.7L) — Intermittent P0305, especially after hitting bumps or during hard acceleration. Engine would stumble.
  ❌ Tried (didn't work) Replaced ignition coil on cylinder 5 with a new one.
  ✅ What actually fixed it The plastic locking clip on the ignition coil's electrical connector had broken off. The connector was vibrating loose and making intermittent contact. Replacing the connector pigtail (splicing in a new connector) provided a secure connection and permanently resolved the misfire.
• NHTSA ODI #10966046 — An owner reported a P0305 error code (Cylinder 5 Misfire) and noted that multiple online forum reports suggest this is a recurring issue that manufacturers may be ignoring.

OEM Part Supersession History

• Motorcraft SP-520 (CYFS-12F-5) → Motorcraft SP-580 (CYFS-12Y-5) or SP-589 (CYFS12YT6) — Likely a change in supplier, materials, or minor design revision for improved longevity or performance. Functionally interchangeable.
  Heads up: No incompatibility exists. Both parts share the same thread, reach, and heat range. The recommended spark plug gap of 0.049-0.053 inches remains the same.

Model Year Variations Within This Range

• 2011-2017: For the specific causes of a P0305 code (ignition, fuel, compression), there are no significant mechanical differences between the S197 (2011-2014) and S550 (2015-2017) platforms with the 3.7L V6. Parts like ignition coils, spark plugs, and fuel injectors are interchangeable.
• 2015-2017: Ford slightly detuned the 3.7L V6 in the S550 generation by 5 horsepower to better position the 2.3L EcoBoost as the mid-tier engine. This was a software/tuning change and does not affect the physical causes or diagnosis of a P0305 code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Electronic Throttle Body (ETB) Failure 🟠 Medium — Common on earlier models (2011-2012), leading to Customer Satisfaction Program 16B23. Can occur at various mileages. Symptoms include sudden limp mode, wrench light, and codes like P2111/P2112. (Ref: Customer Satisfaction Program 16B23; TSB 16-0139)
• Internal Water Pump Failure (on Transverse Platforms) 🔴 High — This is a critical clarification. While a major issue for the 3.7L Cyclone engine family, it primarily affects transverse (FWD/AWD) applications like the Ford Edge and Lincoln MKX. The Mustang's longitudinal (RWD) version uses an external water pump, which is a standard and far less catastrophic failure. Mustang owners should be aware of the distinction.
• Accessory Drive Belt Chirp/Squeal 🟡 Low — Affected 2012-2013 models built between Jan-May 2012. A chirping or squealing noise from the accessory drive belt at idle and during acceleration. (Ref: TSB 12-7-11)
• Automatic Transmission Shift Quality 🟠 Medium — Some owners of Mustangs with the 6R80 automatic transmission report harsh shifts, lagging, or shuddering. Sometimes this can be addressed with a PCM re-flash or fluid service, but in other cases, it may indicate internal wear.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, using used parts is generally not recommended for the most common failure items. However, if a more complex part like a wiring harness pigtail or a fuel rail is needed, a used part from a reputable salvage yard is a viable option.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a fuel injector, check for a clean tip with no signs of heavy carbon buildup.
• For wiring, ensure the plastic connectors are not brittle or cracked and that the locking tabs are intact.
• Look for vehicles with documented front-end damage, as they are more likely to have been running perfectly before the accident.

OEM-only on this vehicle (don't cheap out):

• While not a common cause, if the PCM is diagnosed as faulty, it's highly recommended to use an OEM replacement or a specialized PCM repair service rather than a random used unit, due to programming and security (PATS) requirements.

Aftermarket brands forum-validated for this vehicle:

• Ignition Coils: NGK, Denso, and higher-end Granatelli or Mishimoto are reported by owners to be reliable alternatives to OEM Motorcraft.
• Spark Plugs: NGK and Bosch are trusted OEM-equivalent brands.

Brands owners have reported issues with on this vehicle:

• Unnamed or generic 'value packs' of ignition coils sold on online marketplaces. Forum users frequently report premature failure (within months or a few thousand miles) with these inexpensive coil sets.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0304 — A misfire code for cylinder 4; often appears during diagnostic 'swap tests' when moving a faulty coil from cylinder 5 to cylinder 4.
• P0306 — A misfire code for cylinder 6; often appears during diagnostic 'swap tests' when moving a faulty coil from cylinder 5 to cylinder 6.
• P1450 — EVAP system code related to a faulty canister purge valve; identified in TSB 14-0213 as a common issue for 2012-2013 Mustang models.
• P2111 — Electronic Throttle Body (ETB) stuck open; associated with the ETB failures common in 2011-2012 models under Customer Satisfaction Program 16B23.
• P2112 — Electronic Throttle Body (ETB) stuck closed; associated with the ETB failures common in 2011-2012 models under Customer Satisfaction Program 16B23.

Frequently Asked Questions
