P0306 on 2010-2013 Chevrolet Avalanche: Cylinder 6 Misfire Causes and Fixes

What's Unique About the 2010-2013 Chevrolet AVALANCHE

For the 2010-2013 Avalanche, particularly with the 5.3L V8 engine, a P0306 code is not just a simple tune-up issue. This generation's engine uses an Active Fuel Management (AFM) system that deactivates cylinders—including cylinder 6—to save fuel. The specialized hydraulic lifters used in this system are a notorious weak point and are prone to collapsing or sticking, which directly causes a misfire on the affected cylinder. While standard ignition faults are still common, a P0306 code on this specific truck must be investigated with the high possibility of an AFM lifter failure in mind, often preceded by a distinct engine ticking noise.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Flashing or solid Check Engine Light
• Rough or shaking idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of power
• Reduced fuel economy
• Engine ticking or tapping noise, especially if related to a lifter issue
• "Service StabiliTrak" or "Traction Control Off" message on the dashboard

Most Likely Causes

1. Failed Active Fuel Management (AFM) Lifter 🔴 High Probability → Shop Engine Valve Lifter The 5.3L V8 engine's AFM system puts stress on special hydraulic lifters. Cylinder 6 is one of the four cylinders deactivated by this system (1, 7, 4, and 6), and its lifter is a common failure point, leading to a collapsed or stuck lifter that can no longer open the valve.
   How to confirm: Listen for a persistent ticking noise from the engine that increases with RPM. A definitive diagnosis involves removing the passenger-side valve cover and starting the engine briefly to observe valve movement. 🎬 Watch: How to diagnose and replace a collapsed AFM lifter. A collapsed lifter will result in the rocker arm for cylinder 6 not moving or moving very little compared to others. This confirms a mechanical failure.

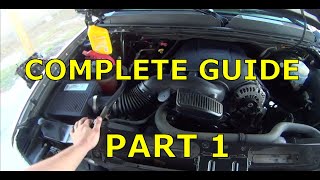

   Typical fix: This is a major repair that involves removing the cylinder head 🎬 See this complete guide on replacing lifters and head gaskets. to replace the failed lifter(s). It is highly recommended to replace all 8 AFM lifters, the four lifter guides, and the Valve Lifter Oil Manifold (VLOM). Often, the camshaft is also damaged and requires replacement. Many owners install an AFM-delete kit to prevent future issues.
   Est. part cost: $250-$900 for lifters, guides, gaskets, and potentially a camshaft and VLOM.
2. Bad Ignition Coil 🟡 Medium Probability → Shop Ignition Coil Coil-on-plug systems are common, and constant heat cycles can cause the internal windings of the coils to fail over time, leading to a weak or no-spark condition. It's a frequent cause for single-cylinder misfires.
   How to confirm: Swap the ignition coil from cylinder 6 with another cylinder (e.g., cylinder 4, which is the second one back on the passenger side). Clear the codes and drive the vehicle. If the code changes to P0304, the ignition coil is faulty.
   Typical fix: Replace the faulty ignition coil. 🎬 Watch: A quick walkthrough of the ignition coil replacement process. It is held on by a single 10mm bolt and is easily accessible.
   Est. part cost: $30-$70 for one aftermarket coil, $60-$100 for an OEM ACDelco coil.
3. Worn or Fouled Spark Plug 🟡 Medium Probability → Shop Spark Plug
   How to confirm: Remove the spark plug from cylinder 6. Inspect it for wear (eroded electrode), fouling (black, oily, or white deposits), or a cracked porcelain insulator. Compare its condition to a plug from a working cylinder. A fuel-fouled plug can also be a symptom of a failed lifter.
   Typical fix: Replace the spark plug. It is recommended to replace all 8 spark plugs if they are near the end of their 100,000-mile service life. Use the specified ACDelco Iridium plugs for best performance.
   Est. part cost: $8-$20 per iridium spark plug.
4. Faulty Spark Plug Wire ⚪ Low Probability → Shop Spark Plug A Technical Service Bulletin (TSB #PIP4819A) specifically mentions that loose-fitting spark plug wires can cause P030x misfire codes on these trucks. The connection at the coil or plug can become weak, causing intermittent spark.
   How to confirm: Inspect the spark plug wire for cylinder 6. Ensure it is securely 'clicked' onto both the ignition coil and the spark plug. Check for any visible damage, cracking, or white arcing marks on the boot.
   Typical fix: Replace the faulty spark plug wire. It's often best to replace the entire set of 8 wires, such as with an ACDelco set (Part # 9748UU).
   Est. part cost: $40-$80 for a set of aftermarket wires, $70-$120 for an OEM ACDelco set.
5. Clogged or Failing Fuel Injector ⚪ Low Probability → Shop Fuel Injector
   How to confirm: Swapping the fuel injector from cylinder 6 with another cylinder is a valid diagnostic step, but it is labor-intensive. If the misfire code follows the injector, it is the cause. A professional can also perform an injector balance test to measure flow rates.
   Typical fix: Replace the faulty fuel injector. The OEM part is ACDelco 217-3411.
   Est. part cost: $50-$100 for one aftermarket injector, $90-$150 for an OEM injector.

Rare But Worth Checking

• Low Engine Compression: This is a mechanical engine issue. Besides a failed AFM lifter, it could be caused by a broken valve spring, worn piston rings, or a bad head gasket, though these are less common for a single-cylinder misfire on this platform.
• Intake Manifold Gasket Leak: → Shop Engine Intake Manifold A vacuum leak near the intake runner for cylinder 6 can lean out the air/fuel mixture and cause a misfire. This would typically be accompanied by a lean code (P0171/P0174) and a hissing sound.
• Worn Camshaft Lobe: → Shop Engine Camshaft This is almost always a direct consequence of a failed AFM lifter where the roller on the lifter seizes and grinds down the camshaft lobe. If a lifter has failed, the camshaft must be inspected for damage, which requires removing all lifters for a clear view.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0306 and check for any other codes.
2. Note if the check engine light is flashing. If so, avoid driving to protect the catalytic converter.
3. Listen for a ticking or tapping noise from the passenger side of the engine bay, which strongly suggests a lifter issue.
4. Identify cylinder 6: It is the third cylinder back from the front on the passenger side.
5. Inspect the spark plug wire for cylinder 6. Ensure it's secure at both ends, per TSB #PIP4819A.
6. Swap the ignition coil from cylinder 6 with cylinder 4 (second cylinder back on the passenger side). Clear codes and drive. If the code changes to P0304, the coil is bad.
7. If the coil is good, remove and inspect the spark plug from cylinder 6. Look for excessive wear, oil/fuel fouling, or damage. Replace if necessary.
8. If ignition components are good and a ticking noise is present, proceed to a mechanical diagnosis. Remove the passenger side valve cover. Start the engine for a few seconds and observe the rocker arms for cylinder 6. If one or both are not moving, you have a confirmed collapsed lifter and/or damaged camshaft.
9. If no ticking is present and ignition is good, consider a clogged fuel injector. A professional can perform a balance test, or you can swap it with another cylinder.
10. A compression test on cylinder 6 can also confirm a mechanical issue. A low reading points towards an internal problem like a failed lifter, broken valve spring, or worn piston rings.

Parts You'll Likely Need

• Active Fuel Management (AFM) Lifter Kit (OEM #12648846 (Set of 8 AFM Lifters), 12595365 (Guide Tray)) — The most common major failure causing a P0306 on this engine. Replacing all AFM components at once is the standard repair.
  Trusted brands: ACDelco, General Motors, Michigan Motorsports, Melling
  OEM price range: $400-$600
  Aftermarket price range: $200-$400
• Ignition Coil (OEM #12611424 (ACDelco D510C - Square Style)) — A common failure item causing a single-cylinder misfire. Easy to diagnose by swapping.
  Trusted brands: ACDelco, Delphi, MSD
  OEM price range: $60-$100
  Aftermarket price range: $30-$70

Related Codes That Often Appear With This One

• P0300 — If the misfire is intermittent or affects other cylinders, the system may first log a P0300 (Random Misfire) before isolating it to cylinder 6.
• StabiliTrak/Traction Control Warning — The engine and stability control systems are linked. A significant engine problem like a misfire disrupts smooth power delivery, which the StabiliTrak system interprets as a potential stability issue, disabling the system and triggering its warning light as a precaution.

Technical Service Bulletins (TSBs) & Recalls

• TSB #PIP4819A: Mentions that a loose spark plug wire connection can cause misfire codes and advises technicians to inspect and replace any loose wires.
• TSB #19-NA-219: Discusses engine misfires (P0300-P0308) and ticking noises, pointing to causes like a collapsed AFM lifter, worn camshaft lobe, or broken valve spring.
• TSB #15-06-01-002F: Specifically addresses engine misfire/tick noise with P0300, identifying the cause as a mechanically collapsed or stuck AFM lifter due to internal damage.

Platform-Specific Known Issues

• AFM Lifter Failure: The most significant issue for this platform. The Active Fuel Management system deactivates cylinders 1, 4, 6, and 7 under light load. The specialized lifters for these cylinders are prone to failure, getting stuck in the collapsed position. This results in a dead cylinder and a persistent misfire code.
• Loose Spark Plug Wires: TSB #PIP4819A specifically calls out inspecting for and replacing loose spark plug wires as a potential fix for P030x codes on the 2010 model year. [TSB #PIP4819A]

Mechanic-Grade Diagnostic Values

• Fuel Pressure (Key On, Engine Off) — expected: 55-62 PSI. Failure: Pressure significantly below this range indicates a weak fuel pump or leak.
• AFM VLOM Solenoid Resistance — expected: 11 to 18 Ohms. Failure: A reading outside this range indicates a faulty solenoid in the Valve Lifter Oil Manifold.
• Fuel Injector Resistance — expected: 11.7 to 13.5 Ohms. Failure: A reading significantly outside this range suggests a failing injector coil.
• Ignition Coil Secondary Resistance — expected: 6,000 to 15,000 Ohms. Failure: A reading outside this range indicates a failure in the coil's secondary winding.

Hidden / Shadow Codes Worth Checking

• Misfire History Counters: Not a specific code, but a data parameter showing a cumulative count of misfires per cylinder. This helps identify an intermittent misfire on a specific cylinder even if it hasn't set a hard code recently. (see via A GM-specific scan tool like a Tech2 or GDS2 is required to view this live data parameter.)

Scan Tool Commands That Help

• GDS2/Tech2: Cylinder Power Balance Test — Used to graphically display the contribution of each cylinder, quickly identifying which one is underperforming (misfiring).
• GDS2/Tech2: Cylinder Deactivation (AFM) System Compression Test — This service procedure commands AFM solenoids on and off to help diagnose if a lifter is mechanically stuck or failing to respond hydraulically.
• GDS2/Tech2: Fuel Injector Balance Test — Used to command each injector to fire for a set duration and measure the corresponding drop in fuel pressure, identifying a clogged or weak injector.

Wiring & Ground Locations

• G101 — Located at the lower front of the engine block.. This is a primary ground for the Engine Control Module (ECM). A poor connection here can cause erratic ECM behavior, leading to misdiagnosis of misfires.
• G102 — Located at the left rear of the engine.. This ground point serves all 8 ignition coils. Corrosion or a loose connection here can cause weak or intermittent spark on multiple cylinders, including cylinder 6.
• G104 — Located on the left rear of the engine block.. This is another critical engine block ground. Ensuring all engine-to-chassis grounds are clean and tight is essential for stable ignition system performance.

Real Owner Repair Stories

• Reddit user on r/ChevyAvalanche (2010 Chevrolet Avalanche, 186,000 miles) — Lifter failure.
  ✅ What actually fixed it The owner and mechanic discussed performing a full AFM delete, replacing the oil pump, and timing belt as the comprehensive and permanent fix.
• YouTube channel 'Easy Fix' (Chevrolet 5.3L V8) — P0306 misfire code, stripped head bolt during repair.
  ❌ Tried (didn't work) Initial misfire diagnosis.
  ✅ What actually fixed it The root cause was a stuck AFM lifter. The repair was complicated by a stripped head bolt hole in the engine block, which was successfully repaired using an M11x2.0 Helicoil kit.

OEM Part Supersession History

• 12571609 → 12698755 — This is the Valve Lifter Oil Manifold (VLOM), a critical component of the AFM system. The part was updated by GM.
  Heads up: The new part number 12698755 replaces the older 12571609 and should be used for repairs.

Model Year Variations Within This Range

• 2010-2013: The 6.0L V8 engine was discontinued for the Avalanche after the 2009 model year, making the 5.3L V8 (LMG or LC9 FlexFuel) the sole engine for this period. All models in this range also feature the 6-speed 6L80 automatic transmission. There were no other significant mechanical changes to the engine or AFM system within this specific date range.
