P0308 on 2018-2021 GMC Terrain: An Impossible Misfire Code Explained

What's Unique About the 2018-2021 Gmc TERRAIN

The key issue for this platform is the impossibility of the code. Unlike a GMC Sierra or Yukon with a V8 engine where P0308 would point to a real misfire, on a 4-cylinder Terrain it signals a phantom problem. This issue is not isolated to the Terrain; its platform-mate, the Chevrolet Equinox, has also seen reports of impossible misfire codes, pointing to a shared vulnerability in the GM engine control architecture of this era. The appearance of this specific code on this vehicle immediately shifts the diagnosis away from standard ignition or fuel system parts and towards a faulty control module or corrupted software.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle may not start
• Engine may run rough or stall
• Unpredictable engine behavior
• Other seemingly unrelated error codes may be present
• Loss of communication with the ECM reported by scan tool

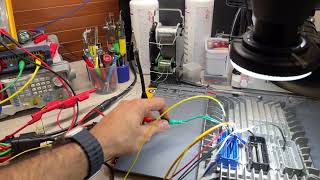

🎬 Watch: Troubleshooting a GMC that won't start or communicate with the ECM

Most Likely Causes

1. Faulty Engine Control Module (ECM) 🔴 High Probability → Shop Engine Control Module (ECM) This is the most logical cause, as the ECM is generating a fault code for a cylinder that does not physically exist on the vehicle. This can be due to internal hardware failure (e.g., a failed driver circuit or processor) or a major data corruption event.
   How to confirm: A professional technician will use an advanced scan tool (like GM's GDS2) to communicate with the ECM. They will verify the vehicle's correct configuration is loaded and check for internal ECM faults. The inability to clear the impossible code after a successful software re-flash points definitively to hardware failure. Real-world owner reports confirm that ECM replacement is the ultimate fix for this issue.
   Typical fix: The ECM must be replaced and programmed with the vehicle's specific VIN and software calibration.
   Est. part cost: $400-$1000
2. Corrupted ECM Software or Incorrect Calibration 🟡 Medium Probability An incorrect software flash, possibly from a previous repair attempt, a failed over-the-air update, or a voltage spike during a jump-start, could load the wrong engine configuration (e.g., for a V8) into the ECM.
   How to confirm: A dealership or qualified shop can check the current calibration ID against GM's official records (TIS2Web) for the vehicle's VIN. They can attempt to re-flash the ECM with the correct factory software.
   Typical fix: Re-flashing the ECM with the correct factory software for the specific VIN and 4-cylinder engine. If the re-flash fails or does not resolve the code, the ECM hardware is faulty.
   Est. part cost: $0 (if under warranty) - $250

Rare But Worth Checking

• Major Electrical Short in Main Harness: While extremely unlikely to manifest as this specific code, a severe short or significant voltage issue in the main wiring harness could theoretically corrupt ECM data or cause bizarre internal logic failures. This would typically be accompanied by numerous other electrical faults and communication (U-series) codes.
• Faulty OBD-II Scanner: In some cases, a low-quality or incompatible OBD-II scanner can misinterpret data from the vehicle's data bus and display an erroneous 'phantom' code. Before proceeding with expensive diagnostics, it is wise to try and read the codes with a second, high-quality scan tool to verify the P0308 code is actually present.

Diagnosis Steps

1. Confirm the vehicle is a 2018-2021 GMC Terrain and verify it has a 4-cylinder engine.
2. Connect a professional OBD-II scanner and confirm the presence of the P0308 code. If possible, use a second scanner to rule out a tool error.
3. Check for any other accompanying trouble codes, especially U-series communication codes or other phantom misfire codes (P0305-P0307).
4. Attempt to clear the codes. If P0308 returns immediately, it strongly suggests a module-level fault.
5. Using a dealership-level scan tool (like GM GDS2), verify the software and calibration currently loaded onto the ECM. Check if it matches the vehicle's VIN and factory build sheet.
6. If the software is incorrect or corrupt, attempt to re-flash the ECM with the correct calibration.
7. If re-flashing fails, cannot be completed, or the code returns immediately after, the ECM is faulty and requires replacement.
8. The new ECM must be programmed by a professional to match the vehicle's VIN and security credentials.
🎬 Watch: How a new GM ECM is swapped and programmed

Parts You'll Likely Need

• Engine Control Module (ECM) (OEM #12669908, 12707744 (Part numbers are VIN-specific; always verify with a dealer. These are examples for 1.5L/2.0L engines).) — This is the source of the impossible error code. The internal logic or hardware has failed, causing it to report a misfire on a non-existent cylinder.
  Trusted brands: ACDelco (OEM)
  OEM price range: $500-$1000+
  Aftermarket price range: $400-$800 (Remanufactured/Cloning Service)

Related Codes That Often Appear With This One

• U-series codes (e.g., U0100) — U-codes indicate a loss of communication between modules. The presence of these codes alongside P0308 would further support the diagnosis of a faulty or failing ECM that is disrupting the vehicle's data network.
• P0305, P0306, P0307 — Seeing other impossible misfire codes for a 4-cylinder engine (which only has cylinders 1-4) points to the same ECM failure pattern. An owner is just as likely to see a P0306 as a P0308, and the diagnosis is identical.

Technical Service Bulletins (TSBs) & Recalls

• PIP5628G: This is a general GM bulletin for diagnosing gas engine misfires (P0300-P0308) and rough running (P050D) across all models from 2000-2024. Its relevance to the Terrain is not as an admission of a V8, but as a procedural guide for technicians. When faced with a P0308, a technician following this TSB would collect data (freeze frame records, etc.) and, upon realizing cylinder 8 doesn't exist, would be directed by the Technical Assistance Center (TAC) toward an ECM-level diagnosis.

Platform-Specific Known Issues

• Real-World Example: Phantom P0305 Code: A user on 'terrainforum.com' with a 2018 GMC Terrain equipped with the 2.0L Turbo engine reported receiving a P0305 code, which is also impossible for a 4-cylinder engine. After dealer diagnosis, the confirmed solution was the replacement of the Engine Control Module (ECM). This case validates the diagnostic path that phantom cylinder misfire codes on this platform point directly to ECM failure.

Mechanic-Grade Diagnostic Values

• ECM Power Input Voltage — expected: 12.6V (Battery Voltage) at all times on specific pins.. Failure: Voltage below 12V or no voltage indicates a problem with the fuse, relay, or wiring harness leading to the ECM.
• ECM Ground Pins Resistance to Chassis — expected: < 1.0 Ohm. Failure: Resistance higher than 1.0 Ohm indicates a poor ground connection, which can cause unpredictable ECM behavior, including phantom codes.
• 5-Volt Reference Voltage — expected: 5.0V +/- 0.5V at various sensor signal pins with key-on, engine-off.. Failure: Voltage that is too high, too low, or non-existent points to an internal ECM failure or a short in a sensor/harness connected to that 5V reference circuit.

Hidden / Shadow Codes Worth Checking

• P1690: ECM Loop Overrun. This is an internal processing error code that can indicate the ECM's software is stuck or corrupted, a potential root cause for generating phantom codes like P0308. (see via Professional scan tools like GM GDS2 or high-end aftermarket scanners.)
• Code 111 (or similar internal fault): ECM Internal Hardware Error. This is a generic code indicating a fatal internal failure of the ECM processor or memory. It directly points to the need for ECM replacement. (see via May only be visible with dealership-level diagnostic tools (GDS2) when performing a module health check.)
• P0633: Theft Deterrent Key Not Programmed. While not a direct cause, this code can appear after an ECM replacement if the immobilizer relearn procedure is not completed correctly. Its presence after an ECM swap indicates an incomplete repair. (see via Standard OBD-II scanner.)

Scan Tool Commands That Help

• GM GDS2 / Techline Connect (SPS2): Replace and Program ECU — This is the primary function used when installing a new or used ECM. It downloads the correct VIN-specific software and calibration files from GM's servers to the new module.
• GM GDS2 / Techline Connect (SPS2): Reprogram ECU — Used to update the existing ECM with a newer software version. This is the first step to try if corrupted software is suspected, as it's less expensive than full replacement. If this process fails or does not fix the issue, hardware failure is likely.
• GM GDS2: Module Setup / Configuration — After programming an ECM, certain vehicle options (like tire size, specific RPO codes) may need to be configured. This function ensures the new ECM is correctly set up for the specific vehicle it's in. Failure to do this can set other communication or configuration codes.

Wiring & Ground Locations

• Engine Compartment Fuse Block — Located on the driver's side of the engine compartment, next to the battery.. This fuse block contains the primary fuses for the Engine Control Module (Fuse F04) and starter. A poor connection or fault here can cut power to the ECM, causing a no-start or no-communication issue.
• G112 (or similar engine block ground) — Typically located on the engine block or transmission, often near the starter or between the A/C compressor and alternator. These can be very difficult to see and access.. This is the primary ground point for the ECM. A loose or corroded ground bolt at this location is a known cause for no-communication with the ECM, erratic behavior, and phantom codes. The ECM needs a solid ground reference to function; without it, its internal logic can fail unpredictably.
• ECM Connectors (X1, X2, X3) — On the Engine Control Module itself.. Technicians must test for power and ground directly at the ECM connector pins to confirm if the module is receiving what it needs. For example, on an ECM X1 connector, Pin 20 (RD/WH wire) is often Battery Positive Voltage, and on an ECM X2 connector, Pin 73 (BK/WH wire) is a primary ground. Verifying these is a key step before condemning the ECM.

Real Owner Repair Stories

• YouTube video 'GMC NO START NO PCM COMMUNICATION' (GMC vehicle with a 2.4L engine (similar platform to Terrain)) — No start, no communication with the PCM/ECM, Service Stabilitrak message.
  ❌ Tried (didn't work) Initial diagnosis pointed towards a failed ECM.
  ✅ What actually fixed it The problem was a loose ground bolt (G112) for the ECM and transmission, hidden between the A/C compressor and alternator. After tightening the bolt, communication was restored and the vehicle started.
