P0308 on 2004-2010 Saturn VUE: Why This Code Indicates an Error

What's Unique About the 2004-2010 Saturn VUE

The Saturn VUE platform is unique in this context precisely because it never had a V8 option. Engines included 4-cylinder Ecotec models and V6s, some of which were sourced from Honda. The appearance of a P0308 code is therefore not a reflection of the engine's mechanical condition but rather a symptom of a deeper electronic or diagnostic error. The provided TSB #PIP5628G, which covers codes up to P0308, is a general GM bulletin intended for a wide range of vehicles, including those with V8s, and its mention alongside the VUE is likely a database error or a generic inclusion for all GM models.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This issue applies to both the first generation (2004-2007) and second generation (2008-2010) of the Saturn VUE, as neither was offered with a V8 engine.

Symptoms You May Notice

• Check Engine Light is on with code P0308
• Scan tool may show other erroneous or unrelated codes.
• If the PCM is failing, you may experience rough idle, engine stalling, or difficulty starting.

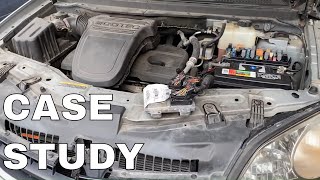

• In some cases of PCM failure, the car may not crank at all after replacement 🎬 Watch: Case study on diagnosing a no-crank communication failure. until it is properly programmed.

Most Likely Causes

1. Incorrect Scan Tool Configuration or Glitch 🔴 High Probability Some generic OBD-II scanners may misinterpret the vehicle's specific communication protocol, especially on older GM platforms, and display phantom codes. This can happen if the wrong engine type (e.g., V8) is accidentally selected in the tool's menu.
   How to confirm: Try reading the codes with a different, higher-quality scan tool. Ensure the correct vehicle model and engine (I4 or V6) are selected in the scanner's menu. If the code disappears with a different tool, the original scanner was the issue.
   Typical fix: Use a professional-grade scan tool (like a GM Tech2) or one known to be compatible with early 2000s GM vehicles. Clear the codes and see if they return.
   Est. part cost: $0

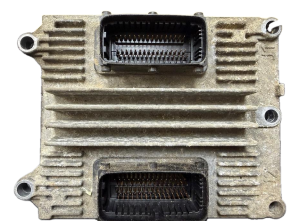

2. Faulty Powertrain Control Module (PCM) 🟡 Medium Probability → Shop Engine Control Module (ECM) PCMs can fail due to age, electrical surges, or environmental factors like moisture. A failing PCM can generate random, nonsensical error codes. Forum discussions on Saturn VUEs with persistent, difficult-to-diagnose misfire codes (like P0300, P0301, P0303, P0305) have sometimes concluded with the PCM being the root cause after all other components were replaced.
   How to confirm: This requires professional diagnosis. A technician will check for communication errors between modules (U-codes), test power and ground signals at the PCM, and may attempt to reflash the software. The appearance of multiple, unrelated, or impossible codes like P0308 is a strong indicator of PCM failure.
   Typical fix: The PCM may need to be reprogrammed or replaced. Replacement PCMs must be programmed with the vehicle's specific VIN and software using a subscription to GM's TIS2Web/SPS service and a J2534 interface or Tech2 scanner. 🎬 Watch: How to program a donor PCM on a Saturn Vue.
   Est. part cost: $150-$400

Diagnosis Steps

1. Confirm the code is P0308 using an OBD-II scanner.
2. Verify that your vehicle is a Saturn VUE. Confirm it has a 4-cylinder or 6-cylinder engine by visual inspection of the engine bay.
3. Double-check the vehicle information (Year, Make, Model, Engine) entered into the scan tool. If possible, use a tool that can auto-detect the VIN.
4. Clear the code. Turn the vehicle off, then restart it and see if the code immediately returns. Some scanner glitches are temporary.
5. If the code returns, attempt to read the codes with a different, preferably higher-quality, scan tool (e.g., a professional-grade scanner at a repair shop).
6. Check for any accompanying codes. If U-series (communication) codes or multiple random misfire codes (P0300) are present, suspicion of PCM failure increases significantly.
7. If the P0308 code persists across multiple scan tools and no other codes explain the issue, the problem is almost certainly with the vehicle's PCM.
8. At this point, professional diagnosis is required to test the PCM's software, power, and ground connections before recommending replacement. This may involve attempting a software reflash before condemning the hardware.

Parts You'll Likely Need

• Powertrain Control Module (PCM) — This is the most likely component to fail if the vehicle itself is generating a code for a non-existent cylinder. A replacement requires VIN-specific programming.
  Trusted brands: ACDelco (OEM)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• P0300 — If the PCM is truly failing, it may log a random misfire code (P0300) in addition to the erroneous P0308. This combination further suggests a central processing issue rather than a specific cylinder problem.
• U-series codes (e.g., U0100, U0073) — U-series codes indicate a loss of communication between modules. The presence of these codes alongside P0308 would strongly point to a PCM or network issue, as the main computer is failing to communicate correctly with other parts of the car.

Technical Service Bulletins (TSBs) & Recalls

• PIP5628G: This is a general GM TSB regarding engine misfires (P0300-P0308) and is not specific to the Saturn VUE. Its inclusion of P0308 confirms it applies to V8 models, but its association with the VUE in some databases is an error as the VUE never had a V8. The bulletin provides a diagnostic worksheet for technicians when contacting GM's Technical Assistance Center (TAC) for complex misfire issues.

Platform-Specific Known Issues

• Phantom Code Generation: Like other GM vehicles of its era, the Saturn VUE can be susceptible to electronic glitches that produce nonsensical trouble codes. The P0308 is a prime example of this, pointing to a failure in the diagnostic or control system rather than the mechanical components of the engine.

Mechanic-Grade Diagnostic Values

• PCM Ground Circuit Voltage Drop — expected: Less than 0.1 Volts (100 mV). Failure: A reading greater than 0.3 Volts (300 mV) indicates unacceptable resistance from corrosion or a faulty wire, requiring circuit cleaning or repair.
• PCM Power Feed (B+) Voltage vs. Battery Voltage — expected: Within 0.5 Volts of battery voltage.. Failure: If the measured voltage at the PCM pin is significantly different from the voltage read by a scan tool, and the powers and grounds are confirmed good, the PCM is likely faulty.
• PCM Ground Voltage Drop (Engine Cranking) — expected: Should not exceed 85 millivolts (0.085V).. Failure: A higher reading indicates a poor ground connection that can cause erratic module behavior, especially under the electrical load of starting.

Hidden / Shadow Codes Worth Checking

• Pending Codes: A phantom P0308 might be accompanied by 'pending' codes for other systems. These are codes for events the PCM has noted but which haven't occurred frequently enough to illuminate the Check Engine Light. A professional scan tool can read these and may point toward a developing issue that is causing the PCM to act erratically. (see via Professional-grade scan tool (e.g., GM Tech2, Autel, Snap-on) with the ability to display pending/history codes.)
• P1xxx Manufacturer-Specific Codes: While P0308 is the phantom code, the root cause (like a failing PCM) might also set manufacturer-specific codes (P1xxx, e.g., P1376 - ignition ground circuit). Cheaper scanners may not read these, but they can provide crucial diagnostic clues. (see via Professional-grade scan tool with access to manufacturer-specific code definitions.)

Scan Tool Commands That Help

• GM Tech2 / GDS2 with TIS2Web: Replace and Reprogram ECU — This function is mandatory after installing a new or used PCM. It downloads the correct VIN-specific calibration file from GM's servers and flashes it to the module, ensuring it can communicate with the vehicle's other modules and anti-theft system.
• GM Tech2 / GDS2: VIN Relearn — After programming a new PCM, a VIN relearn or other security relearn procedure may be required to sync the new module with the Body Control Module (BCM) and ignition key immobilizer system, allowing the vehicle to start.

Wiring & Ground Locations

• PCM Ground (2008 VUE 2.4L) — On the X2 connector, pin 73. The ground itself is physically located on the engine at the left front top corner.. A poor PCM ground is a primary cause of erratic electronic behavior, including generating phantom codes. Verifying this ground has less than 0.1V of voltage drop is a critical diagnostic step.
• G106 (2008-2009 VUE) — On the engine, at the left front top corner.. This is a primary engine ground point that serves the Engine Control Module (ECM). A loose or corroded connection here can cause a host of unexplainable issues.
• G107 (2009 VUE 3.6L) — At the rear of the engine.. Engine-to-chassis grounds are critical for stable sensor readings and module operation. Any ground point should be inspected for corrosion and tightness when diagnosing phantom electrical faults.
• G108 (2008-2009 VUE) — Behind the left headlight assembly.. This is a major chassis ground point. While not directly on the engine, a poor connection here can affect modules and sensors grounded to the chassis in that area.

Real Owner Repair Stories

• Reddit user on r/Saturn_Cars (2008 Saturn Vue 3.6L V6) — Misfires on cylinders 1, 3, and 5 (entire rear bank) with an open circuit code on the scan tool after replacing valve cover gaskets.
  ❌ Tried (didn't work) Initial checks of fusible links were okay.
  ✅ What actually fixed it The user traced the ground wire for the bank 1, 3, 5 ignition coils. The wire had become brittle with age and broke near the power steering pump reservoir. Repairing the broken ground wire resolved the misfires.
• DSMtuners.com forum user (2005 Saturn VUE) — No crank, no start, and no communication with the PCM via a scan tool after performing an engine swap.
  ❌ Tried (didn't work) Checking for an alarm reset.
  ✅ What actually fixed it The user admitted to accidentally brushing the PCM ground wires against the metal PCM case while the battery was connected, causing sparks. The conclusion was that the PCM was fried and required replacement and dealer programming. This serves as a cautionary tale on the sensitivity of the PCM to electrical shorts.

OEM Part Supersession History

• 12607096 → 12636660, then 12678511 — Service replacement, likely includes hardware and software updates.
  Heads up: These parts are generally interchangeable if programmed correctly, but always use the latest available part number for repairs.
• 12597491 (GM P/N) → N/A — PCM for the 2004 VUE with the 3.5L Honda V6 engine.
  Heads up: This is for the Honda powertrain and is not interchangeable with other GM-engine VUE PCMs. Note that Honda part numbers like 37820-RDM-A580 may also be used for this application.
• 12572959 → N/A, compatible with hardware family 12202143. — PCM for the 2004 VUE with the 2.2L Ecotec I4 engine.
  Heads up: Only compatible with 2.2L models. Not interchangeable with V6 models.

Model Year Variations Within This Range

• 2004-2007 (First Generation): Built on the GM Theta Platform. A key variation is the use of the Honda 3.5L J35A3 V6 engine alongside GM engines. Diagnosing a V6 in this range requires first identifying if it is the GM L81 or Honda J35, as the PCM, wiring, and potential issues (like the PCM reflash campaign #09231 for the Honda powertrain) are completely different.
• 2008-2010 (Second Generation): This is a rebadged Opel Antara and shares no powertrain components with the first generation. Engines are exclusively GM (2.4L I4, 3.5L V6, 3.6L V6). The PCM is a different type (e.g., ACDelco E37) and all wiring, grounds, and diagnostic procedures are unique to this generation.
