P0322 on 2003-2007 Saturn Ion 2.2L: Crank Sensor Failure Causes and Fixes

What's Unique About the 2003-2007 Saturn Ion

The 2.2L Ecotec L61 engine in the Saturn Ion is a common GM powertrain, but like many vehicles, the crankshaft position sensor is a frequent failure point. The key challenge on this specific platform is the sensor's location. It is positioned on the back of the engine block, directly behind the starter motor. This requires removing the starter for access, which significantly increases the labor and complexity compared to engines where the sensor is more accessible. This job typically requires a 15mm socket for the starter bolts and a 10mm socket for the sensor itself, often with extensions and a swivel.

Symptoms You May Notice

• Engine cranks but will not start
• Tachometer reads 0 RPM during cranking
• Engine stalls intermittently, especially when warm (heat-soak failure)
• Engine misfires or runs rough
• Reduced engine power and acceleration
• Check Engine Light is illuminated

Most Likely Causes

1. Failed Crankshaft Position Sensor (CKP) 🔴 High Probability → Shop Engine Crankshaft Position Sensor The sensor is exposed to significant heat cycles on the back of the engine block, which can lead to internal electronic failure over time. Owner forums frequently cite premature failure of cheaper aftermarket sensors, strongly recommending OEM ACDelco or Delphi parts to ensure longevity.
   How to confirm: Use a scan tool to monitor engine RPM while cranking. If it reads 0, the sensor or its circuit is bad. You can also test the sensor's 3-pin connector for a 12V reference, ground, and a fluctuating signal with a multimeter or oscilloscope while cranking. Comparing readings to factory specifications will confirm a bad sensor.
   Typical fix: Replace the crankshaft position sensor. This requires disconnecting the battery, raising the vehicle, and removing the starter motor to access the single 10mm bolt holding the sensor in place. 🎬 Watch: Step-by-step starter and crankshaft sensor replacement guide.
   Est. part cost: $20-$90
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness to the sensor is in a high-heat area near the exhaust and can become brittle, cracked, or melted over time. The connector itself can also fail due to heat and vibration.
   How to confirm: Visually inspect the wiring harness leading to the CKP sensor for any signs of damage, melting, or corrosion. Check the connector for bent or corroded pins. Perform a continuity test on the wires between the sensor connector and the PCM connector to check for breaks in the circuit.
   Typical fix: Repair the damaged section of wiring or replace the pigtail connector.
   Est. part cost: $10-$30

Rare But Worth Checking

• Weak Battery or Charging System Issue: → Shop Vehicle Battery A low battery voltage during cranking can sometimes be insufficient to power the sensor correctly, leading to a temporary loss of signal and a P0322 code.
• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very rare. The PCM should only be considered after all other possibilities, including the sensor and its entire circuit, have been thoroughly tested and ruled out.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0322 is the primary code. Note any other codes.
2. Use the scanner's live data function to monitor 'Engine RPM' while cranking the engine. A reading of '0' strongly suggests a problem with the CKP sensor circuit.
3. CRITICAL: Check the vehicle's VIN for the status of GM Safety Recall 14V047 regarding the ignition switch. 🎬 Watch: Learn the common symptoms of a failing ignition switch. A faulty switch can cut power to the engine electronics, mimicking a failed CKP sensor and causing a no-start or stalling condition.

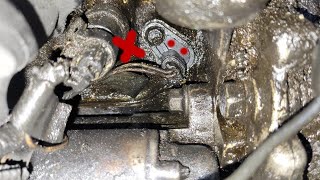

4. Perform a thorough visual inspection of the crankshaft position sensor wiring and connector. Look for any signs of heat damage, chafing, or corrosion. The sensor is located on the rear of the engine block, above the oil filter housing and behind the starter motor.
5. If the wiring appears intact, disconnect the sensor and test for proper voltage and ground at the connector with the key on. You should have a 12-volt reference, a good ground, and a signal wire.
6. If power and ground are present, the next step is to test the sensor itself. This can be done by measuring its internal resistance or by using an oscilloscope to check for a square wave signal pattern while cranking the engine.
7. If the sensor and wiring test good, the issue could be an intermittent connection. Wiggle the harness while monitoring the signal to see if it cuts out.
8. If all tests point to a faulty sensor, proceed with replacement. This requires disconnecting the battery, safely raising the vehicle, and removing the starter motor (typically two 15mm bolts) to access the single 10mm bolt holding the sensor in place. It is highly recommended to use a quality OEM (ACDelco) or equivalent (Delphi) replacement part.

Parts You'll Likely Need

• Crankshaft Position Sensor (OEM #12577245) — This is the most common failure point for a P0322 code on the Saturn Ion, causing a loss of the engine speed signal to the PCM. Owner forums consistently report that cheap aftermarket sensors fail quickly, making an OEM part a worthwhile investment to avoid repeating the labor-intensive repair.
  Trusted brands: ACDelco (OEM), Delphi, NTK/NGK, Standard Motor Products
  OEM price range: $60-$90
  Aftermarket price range: $20-$50

Platform-Specific Known Issues

• The location of the Crankshaft Position Sensor behind the starter motor is the most significant vehicle-specific issue, making replacement more labor-intensive than on many other vehicles.
• The massive GM ignition switch recall (14V047) affects all 2003-2007 Ions and can cause stalling and no-start symptoms identical to a P0322 code, making it a crucial point of misdiagnosis if not checked.

Mechanic-Grade Diagnostic Values

• CKP Sensor Connector Voltage (Key On, Engine Off) — expected: Pin A (Yellow wire): 12V+, Pin C (Light Blue wire): <100mV (Good Ground). Failure: No voltage on Pin A indicates a wiring or PCM issue. High voltage on Pin C indicates a bad ground.
• CKP Sensor Signal Voltage (During Cranking) — expected: Pin B (Purple wire): Fluctuating AC voltage, typically 1V-5V on a multimeter. On an oscilloscope, a clear 0V-5V (or 0V-12V) square wave.. Failure: A steady 0V or a constant DC voltage on Pin B while cranking indicates a failed sensor.

Scan Tool Commands That Help

• Tech2 / GDS2 / Professional Bidirectional Scanner: Crankshaft Position System Variation Learning Procedure (CASE Learn) — This is NOT required to fix a P0322 or get the engine running after a sensor replacement. However, it should be performed if a P0300 (random misfire) code appears after the repair, as the PCM needs to recalibrate its misfire detection based on the new sensor's signal.

Wiring & Ground Locations

• CKP Sensor Connector — On the rear of the engine block, above the oil filter housing and behind the starter motor.. This is the primary connection point. The pins and wiring here are exposed to extreme heat and vibration, making them a common failure point.
• G105 — A primary engine-to-chassis ground, typically located on a transmission bellhousing stud.. A loose or corroded G105 ground can cause erratic behavior 🎬 Watch: How to diagnose no-start issues using voltage drop tests. in multiple engine sensors, including the CKP sensor, leading to a P0322 code even if the sensor and its direct wiring are good.

Real Owner Repair Stories

• SaturnFans.com forum discussions (2004 Saturn Ion 2.2L) — Sudden stall while driving, followed by a crank-no-start condition. P0322 code present and tachometer showed 0 RPM during cranking.
  ❌ Tried (didn't work) Replaced the Crankshaft Position Sensor with a new part.
  ✅ What actually fixed it The crankshaft reluctor wheel (tone ring) was found to be damaged and had shifted on the crankshaft. This occurred after the engine was worked on for an unrelated issue. Replacing the crankshaft (which includes the integrated reluctor wheel) resolved the P0322 code.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• GM Ignition Switch Failure 🔴 High — Extremely common across all model years, leading to a massive recall. (Ref: NHTSA Recall 14V047)
• Electric Power Steering (EPS) Motor Failure 🔴 High — Common failure leading to a sudden loss of power steering assist. A 'PWR STR' message appears on the dash. GM extended warranty coverage for this issue. (Ref: Special Coverage Adjustment / Extended Warranty (Not a formal recall))
• Timing Chain Tensioner and Guide Wear 🔴 High → Shop Engine Timing Chain — A known weak point, especially on earlier 2003-2004 models, due to an inadequate oiler nozzle design. Failure can cause catastrophic engine damage as it is an interference engine. (Ref: TSB #03-06-01-017 (describes updated oiler nozzle))
• Fuel Pump Module Connector Corrosion 🟠 Medium — Corrosion at the fuel pump module electrical connector can cause intermittent stalling or a crank-no-start condition, often misdiagnosed as a failed fuel pump. (Ref: Possible relation to NHTSA recall 12V459000)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used crankshaft position sensor is NOT recommended for this vehicle. The part is a known common failure item, and the labor required to access it (removing the starter) is significant. The risk of a used part failing shortly after installation is too high to justify the small cost savings.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If forced to use one in an emergency, source from the lowest-mileage vehicle possible.
• Inspect the connector for any signs of cracking, melting, or brittle plastic.
• Ensure the wiring pigtail is flexible and not hardened from heat exposure.

OEM-only on this vehicle (don't cheap out):

• Crankshaft Position Sensor

Aftermarket brands forum-validated for this vehicle:

• ACDelco (OEM)
• Delphi (often the OEM supplier)

Brands owners have reported issues with on this vehicle:

• Generic 'white-box' or store-brand sensors are frequently reported on owner forums to be dead-on-arrival or fail within a few weeks or months, forcing a repeat of the labor-intensive repair.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• NHTSA 14V047 — While not a P-code, this safety recall for the ignition switch is the most common 'companion' issue, as it causes identical stalling and no-start symptoms on the 2003-2007 Ion.
• TSB 03-06-01-017 — Related to timing chain tensioner and guide wear on the 2.2L L61 engine; mechanical timing issues can sometimes interfere with proper CKP signal synchronization.
• NHTSA 12V459000 — Relates to fuel pump module connector corrosion which, like P0322, causes intermittent stalling or a crank-no-start condition.

Frequently Asked Questions
