P0340 on 2008-2012 Chevrolet Malibu 2.4L: Cam Sensor Causes and Fixes

What's Unique About the 2008-2012 Chevrolet Malibu

The 2.4L Ecotec engine in this generation of Malibu has two well-documented weaknesses that directly relate to code P0340. First, these engines are known for consuming oil due to piston ring design, which was addressed in GM Special Coverage program #14404. Low oil levels can disrupt the hydraulic timing chain tensioner and VVT system, leading to timing errors that can be misread as a sensor fault. Second, these engines are prone to premature timing chain stretch, which is a major mechanical failure that can also set a P0340 code, often tricking owners into replacing the sensor when the real problem is much more severe. The combination of these issues makes P0340 a more complex diagnosis than on other vehicles.

Symptoms You May Notice

• Check Engine Light is on
• Engine is hard to start or cranks but won't start.
• Engine starts and then immediately stalls
• Rough or unstable idle
• Hesitation or stumbling during acceleration
• Noticeable loss of engine power.
• Reduced fuel economy
• Engine shaking or running rough, especially at idle.

Most Likely Causes

1. Failed Intake Camshaft Position (CMP) Sensor 🔴 High Probability → Shop Engine Camshaft Position Sensor The sensor is a common electronic failure point. It's relatively inexpensive and easy to access, making it the most likely first part to fail.
   How to confirm: Unplug the intake CMP sensor. If the engine, which previously would not run, now starts and idles (even if poorly), the sensor is almost certainly bad. A Reddit user confirmed this diagnostic step worked on their 2011 Malibu. Another method is to swap the intake and exhaust CMP sensors; if the code changes to P0365 (Exhaust CMP Sensor), the sensor is confirmed bad.
   Typical fix: Replace the intake camshaft position sensor.
   Est. part cost: $25-$60
2. Low or Dirty Engine Oil 🟡 Medium Probability The 2.4L Ecotec engine is known for excessive oil consumption due to piston ring design, a condition addressed by GM's Special Coverage #14404. The VVT system and timing chain tensioner are hydraulically operated, and low oil pressure starves them, causing timing deviations that can trigger this code.
   How to confirm: Check the engine oil level on the dipstick. If it is low, this is a likely contributor. GM's official guideline for acceptable consumption is up to 1 quart per 2,000 miles (3200 km).
   Typical fix: Top up the engine oil to the correct level and change the oil and filter if it is old or sludgy. Monitor oil consumption closely going forward.
   Est. part cost: $30-$70 for oil and filter
3. Failed Intake Camshaft Position Actuator Solenoid 🟡 Medium Probability → Shop Engine Camshaft These solenoids get clogged with sludge from old oil or can fail electrically. They are a frequent failure item on many GM vehicles with VVT.
   How to confirm: Remove the intake solenoid from the top of the valve cover and inspect its screens for metallic debris or sludge. You can also swap the intake and exhaust solenoids; if the drivability issue or related codes change, the solenoid is bad. A good solenoid should have a resistance between 8 and 13 Ohms.
   Typical fix: Replace the intake camshaft position actuator solenoid. It is highly recommended to use ACDelco parts. The original part number 12655420 has been updated; ensure you get the latest revision, 12679099.
   Est. part cost: $35-$70

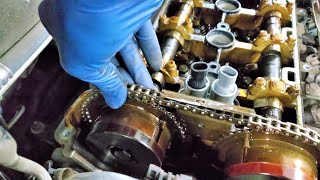

4. Stretched Timing Chain or Failed Timing Components 🟡 Medium Probability → Shop Engine Timing Chain This is a widely documented major failure on the 2.4L Ecotec engine. The original chains, guides, and tensioners are known weak points.
   How to confirm: Listen for a distinct rattling or scraping noise from the engine, especially on a cold start. This is the classic sign of a loose timing chain. This diagnosis is almost certain if P0340 is accompanied by correlation codes P0016 or P0017.
   Typical fix: This is a major repair requiring replacement of the timing chain, guides, tensioner, and often the sprockets and balance shaft chain components with a complete kit. Repair costs can range from $1,027 to $2,700 at a shop.
   Est. part cost: $150-$400 for a full kit

Rare But Worth Checking

• Damaged Wiring or Connector: Check the wiring harness and connector going to the intake CMP sensor for any signs of corrosion, damage from heat, or loose pins. This can cause an intermittent signal and trigger the code. A manufacturer service bulletin, Bulletin #PIP5724, notes that a pinched wiring jumper harness can lead to P0340 and a possible crank no-start or stall condition.
• Slipped Camshaft Reluctor Ring: → Shop Engine Camshaft A GM technical service bulletin (PIP4548C) notes that the toothed wheel on the camshaft that the sensor reads can physically move, causing timing correlation codes even when the chain is properly timed. This requires camshaft replacement to fix.
• Failed Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is very rare. The ECM should only be considered after all other possibilities, including sensors, wiring, and mechanical timing, have been exhaustively ruled out. Bulletin #PIT5677E suggests that P0340 may appear in combination with numerous other electrical codes when there are issues within the electrical system or specific fuse blocks.

Diagnosis Steps

1. Check Engine Oil Level: Before doing anything else, check the oil level and condition. If it's low, top it off, clear the code, and see if it returns. This is a known issue with the 2.4L Ecotec and a free first step.
2. Scan for Other Codes: Check for other codes, especially P0016 or P0017. Their presence makes a timing chain issue much more likely.
3. Perform the 'Unplug Test': Try to start the engine. If it cranks but won't start, or starts and stalls, unplug the electrical connector from the intake camshaft position sensor (the front-most sensor on the valve cover). Try to start the engine again. If it now starts and runs, the sensor has failed and needs replacement.
4. Inspect Sensor Wiring: If the unplug test is inconclusive, inspect the wiring and connector for the intake CMP sensor. Look for frayed wires, corrosion, or loose pins. Check for a 5-volt reference signal at the connector with a multimeter.
5. Swap VVT Solenoids: The intake and exhaust VVT solenoids on top of the engine are identical and easy to access. Swap their positions. Clear codes and drive. If the code changes to P0013/P0014 (exhaust side) or the car's behavior changes, the solenoid you moved is faulty.
6. Listen for Timing Chain Rattle: On a cold start, listen for a 2-3 second rattle or scraping sound from the passenger side of the engine. This noise is a classic indicator of a failing timing chain tensioner and a stretched chain.
7. Professional Diagnosis: If the above steps do not identify the issue, the problem is likely a mechanical timing failure (stretched chain) that requires professional diagnosis and repair. A shop will compare cam/crank signals with an oscilloscope to confirm. Manufacturer Bulletin #PIP5335D advises technicians to use normal published service diagnostics when P0340 and P0341 are setting.

Parts You'll Likely Need

• Intake Camshaft Position Sensor (OEM #213-3826) — This is the most common direct failure for a P0340 code. It's an electronic sensor that wears out over time.
  Trusted brands: ACDelco, Delphi, NTK
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• Intake Camshaft Position Actuator Solenoid (OEM #12655420) — These solenoids get clogged with debris from engine oil or fail electrically, causing improper camshaft timing which can trigger a P0340. It is recommended to replace both intake and exhaust solenoids at the same time.
  Trusted brands: ACDelco
  OEM price range: $45-$70
  Aftermarket price range: $20-$40
• Timing Chain Kit — If the timing chain has stretched, a complete kit including the chain, tensioner, guides, and sometimes sprockets is required for a lasting repair.
  Trusted brands: Cloyes, Melling, ACDelco
  OEM price range: $250-$400
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0016 — Indicates a correlation issue between the crankshaft and the intake camshaft. Seeing P0016 with P0340 strongly suggests a stretched timing chain.
• P0017 — Indicates a correlation issue between the crankshaft and the exhaust camshaft. If the timing chain is stretched, it's common to see both cam correlation codes.
• P0365 — This is the code for the exhaust camshaft position sensor ('B'). If you swap the intake and exhaust sensors for diagnosis and this code appears, it confirms the sensor you moved is faulty.
• P0010 / P0011 — These codes point to a fault in the intake camshaft position actuator solenoid circuit. Their presence alongside P0340 can help pinpoint the VVT solenoid as the likely culprit.

Technical Service Bulletins (TSBs) & Recalls

• GM Special Coverage #14404 - Addresses excessive oil consumption on 2.4L Ecotec engines by replacing the pistons and piston rings.
• GM TSB #12-06-01-009F - Groups timing correlation codes (P0008, P0009, P0016, P0017, etc.) as symptoms of a stretched timing chain on various GM engines.
• GM TSB PIP4548C - Discusses instances where the camshaft reluctor ring can slip, causing timing codes even with a good chain and sensors, requiring camshaft replacement.
• GM TSB #01-06-01-011N - General bulletin on engine oil consumption guidelines, stating that 1 quart per 2,000 miles (3,200 km) is considered acceptable for personal use vehicles under warranty.
• Bulletin #PIP5482B - Advises technicians to perform a battery inspection and test using specific equipment when P0335, P0340, or P0365 are set as current or history codes.
• Bulletin #PIP5724 - Notes that P0340 can be associated with a pinched wiring jumper harness, potentially causing a crank no-start or engine stall.
• Bulletin #PIT5677E - Lists P0340 among various codes that may be found when checking the electrical system or fuse blocks.
• Bulletin #PIP5335D - Provides information for technicians regarding vehicles with a Malfunction Indicator Lamp and codes P0340 or P0341 setting at times.

Platform-Specific Known Issues

• This engine is subject to a special coverage adjustment for excessive oil consumption. GM acknowledged issues with the piston rings causing high oil use, which can lead to low oil levels that trigger timing-related codes like P0340.
• Premature timing chain failure is a well-documented problem. The plastic guides can break, and the chain can stretch, causing cam/crank correlation codes. This is a severe issue because the 2.4L Ecotec is an interference engine, meaning a broken chain will cause catastrophic engine damage.

Mechanic-Grade Diagnostic Values

• VVT (Camshaft Position Actuator Solenoid) Resistance — expected: 8 to 13 Ohms at ~68°F (20°C). A new ACDelco part may read closer to 10-12 Ohms.. Failure: A reading of infinite resistance (Open Loop), near zero (short), or a reading that fluctuates wildly when wiggling the connector pins indicates a failed solenoid.
• CMP Sensor Connector Voltage (Key On, Engine Off) — expected: One wire should have a 5-volt reference signal from the ECM. Another wire should show a good ground (near 0V). The third wire is the signal wire.. Failure: Absence of the 5V reference voltage points to a wiring issue or a problem with the ECM's 5V circuit, not necessarily a bad sensor.
• Ground Point Voltage Drop (Engine Running) — expected: Approximately 50 mV or less when measuring from the ground point (e.g., G107) to the negative battery post.. Failure: A significantly higher voltage reading indicates a poor ground connection, which can cause erratic behavior from sensors like the CMP.

Scan Tool Commands That Help

• GDS2/Tech2: Camshaft Position Actuator Test — This bidirectional control allows a technician to command the VVT solenoids to activate, helping to verify if the solenoid, wiring, and hydraulic response are functioning without having to remove parts. It's used to isolate a sticky or failed solenoid from a mechanical phaser problem.
• GDS2/Tech2: Crankshaft Position Variation Learn — While not directly for the P0340 code, this relearn procedure is often required after major engine work like a timing chain replacement. Failure to perform the relearn can sometimes lead to other timing-related codes as the ECM works with incorrect baseline data.

Wiring & Ground Locations

• G107 — On the transmission bellhousing or the engine block itself, often on the lower left side. Its exact position can vary slightly by year.. This is a critical ground for the Engine Control Module (ECM) and the Mass Airflow (MAF) sensor. A loose or corroded connection here can cause unstable sensor readings and phantom codes, including P0340.
• G105 — On the left front of the engine block.. This is another key engine block ground. Sensitive sensors like the CMP and CKP rely on a clean ground reference. Noise or voltage drops from a bad G105 can corrupt the sensor signal to the ECM.

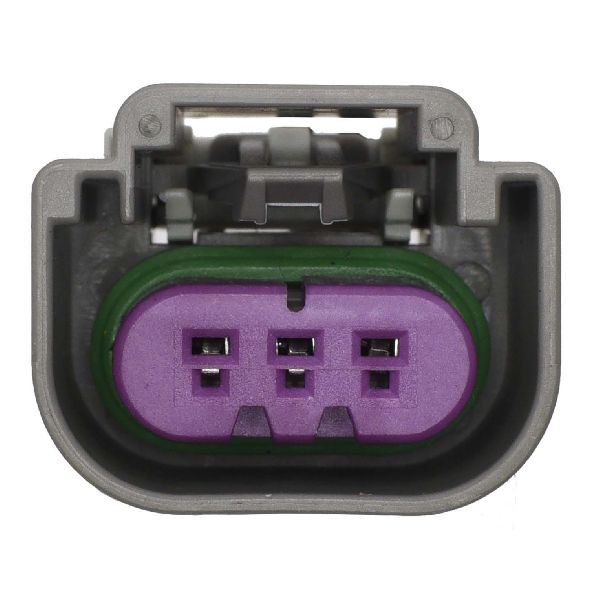

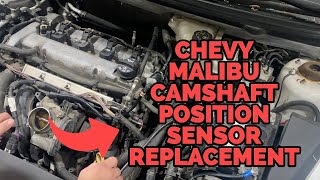

• CMP Sensor Connector — The intake CMP sensor is the front-most of the two sensors on the top of the valve cover. The connector is gray.. The wiring harness can become brittle from heat cycles. Inspect the connector for broken lock tabs and the wires for chafing or breaks right at the connector body, which is a common failure point.

Real Owner Repair Stories

• ChevyMalibuForum.com user (2009 Chevrolet Malibu 2.4L) — Car would not start, threw P0340 code.
  ❌ Tried (didn't work) Replacing the camshaft position sensor, Replacing the crankshaft position sensor
  ✅ What actually fixed it The timing chain had jumped. A complete timing chain replacement, including guides and tensioners, resolved the no-start condition and the P0340 code.
• NHTSA ODI #11727149 — An owner reported that their vehicle was towed and connected to an OBDII scanner, which revealed six codes including P0340 and P0365.

OEM Part Supersession History

• 12655420 → 12679099 — GM updated the part to improve reliability and performance. The new part is a direct replacement.
  Heads up: The original part number 12655420 was part of a series (including 12578517, 12628347, and 12646783) that were all eventually replaced by 12679099 for the intake solenoid. Using the latest genuine ACDelco part is critical for longevity.

Model Year Variations Within This Range

• 2009+: The LE9 engine variant was introduced, which is E85 flex-fuel compatible. While mechanically almost identical to the LE5 for the purposes of this repair, it has different fuel injectors and potentially different valve seat materials to handle ethanol. This does not directly affect the P0340 diagnosis but is an important distinction when sourcing other engine parts.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Excessive Oil Consumption 🔴 High — Very common. Can start as early as 50,000 miles. Related to piston ring design. (Ref: GM Special Coverage #14404 (piston/ring replacement))
• Stretched Timing Chain 🔴 High → Shop Engine Timing Chain — Common failure, often between 80,000 and 120,000 miles. Can cause catastrophic engine damage if not addressed. (Ref: N/A, but widely documented.)
• Electric Power Steering (EPS) Failure 🔴 High — Common issue leading to a sudden loss of power assist. Can be intermittent. (Ref: Recalls #14132, #14329 (Torque Sensor Replacement).)
• 6T40/6T45 Automatic Transmission Failure 🟠 Medium — Failures of the 3-5-R wave plate are documented, leading to loss of those gears. (Ref: TSB #14-07-30-001 (Covers various transmission issues).)
• Cracked Exhaust Manifold 🟡 Low — The stock cast iron manifold is prone to cracking, causing a loud exhaust leak noise. (Ref: N/A.)
• Faulty Door Lock Actuators 🟡 Low — Common for actuators to fail, preventing doors from locking or unlocking with the remote or switch. (Ref: N/A.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, buying used parts is generally not recommended. The only exception might be a connector pigtail from a junkyard harness if the original connector is broken and a new pigtail is unavailable.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If salvaging a connector, ensure the plastic is not brittle and the locking tab is intact.
• Check the wires for any signs of cracking insulation or corrosion on the pins.

OEM-only on this vehicle (don't cheap out):

• Camshaft Position Actuator Solenoid (VVT Solenoid)
• Timing Chain Kit

Aftermarket brands forum-validated for this vehicle:

• ACDelco (for sensors and solenoids - strongly preferred)
• Delphi (for sensors)
• NTK (for sensors)
• Cloyes (for timing chain kits)
• Melling (for timing chain kits)

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name VVT solenoids from online marketplaces. Forum and general mechanic consensus is that these have an extremely high failure rate, often within weeks or months, due to poor quality internal coils and filter screens.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0365 — This is the code for the Exhaust Camshaft Position Sensor; swapping the intake and exhaust sensors can cause the P0340 to move to this code, confirming a sensor failure.
• P0016 — A cam/crank correlation code that, when paired with P0340, strongly indicates a stretched timing chain or failed timing components.
• P0017 — A correlation code often cited alongside P0340 in GM TSB #12-06-01-009F as a symptom of a stretched timing chain.
• P0013 — An exhaust-side VVT solenoid code that may appear if solenoids are swapped during the diagnostic process for P0340.
• P0014 — An exhaust-side VVT performance code that often appears in conjunction with camshaft circuit issues on the Ecotec engine.
• P0008 — Listed in GM TSB #12-06-01-009F as a related timing correlation code for engines with stretched timing chains.

Frequently Asked Questions
