P0352 on 2011-2018 Ford Focus 2.0L: Ignition Coil 'B' Circuit Malfunction Causes and Fixes

What's Unique About the 2011-2018 Ford Focus

The 2.0L Duratec engine in the third-generation (Mk3) Focus uses a reliable coil-on-plug ignition system. While generally robust, individual coil failures are a common maintenance issue as the vehicle ages. The problem is rarely with the vehicle's wiring or computer; it's typically just a worn-out coil. Diagnosis is straightforward for this platform due to the easy access to the coils on top of the engine, each held by a single 8mm bolt.

Symptoms You May Notice

• Check Engine Light is on (may be flashing)
• Rough, shaking idle
• Engine hesitation or stumbling during acceleration
• Noticeable loss of engine power
• Engine may be difficult to start
• Smell of raw fuel from the exhaust
🎬 See this video for a detailed explanation of the P0352 code.

Most Likely Causes

1. Faulty Ignition Coil on Cylinder #2 🔴 High Probability → Shop Ignition Coil Ignition coils are wear-and-tear components that operate under high heat and voltage. After many years and miles, internal failure is the most common reason for this code. Water intrusion from a leaking hood cowl or from engine washing can also pool in the spark plug wells and short out the coil.
   How to confirm: Swap the ignition coil from cylinder #2 with the coil from cylinder #3. Clear the codes and run the engine. If the trouble code changes to P0353 (Ignition Coil 'C' Circuit Malfunction), the coil is definitively bad.
   Typical fix: Replace the faulty ignition coil. Many owners choose to replace all four coils at the same time as a preventative measure, along with the spark plugs.
   Est. part cost: $40-$60 for a single OEM-quality coil
2. Worn or Fouled Spark Plug in Cylinder #2 🟡 Medium Probability → Shop Spark Plug Spark plugs have a finite service life (Ford recommends replacement at 100,000 miles). An old plug with a wide gap or heavy deposits can strain the ignition coil, causing it to report a fault or fail prematurely.
   How to confirm: After confirming the coil is good, remove the spark plug from cylinder #2. Inspect it for wear, corrosion, or oil/carbon fouling. The correct spark plug gap should be between 0.033–0.037 inches (0.85–0.95 mm).

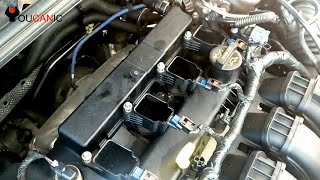

   Typical fix: Replace the spark plug. It is best practice to replace all four spark plugs as a set 🎬 Watch: How to replace both spark plugs and ignition coils. to ensure even performance.
   Est. part cost: $10-$20 per plug
3. Damaged Coil Connector or Wiring ⚪ Low Probability The plastic locking tab on the coil's electrical connector (often a red tab) can become brittle and break, leading to a loose connection that vibrates off. Wires can also chafe or break from engine vibration over time, especially where the harness routes over the engine. In some Ford models, wiring issues can become severe; for instance, NHTSA ODI #11270907 describes a situation where a wiring harness actually melted on an ignition coil, leading to intermittent power loss and P0352 codes.
   How to confirm: Visually inspect the connector for cylinder #2 for cracks, corrosion on the pins, or a loose fit. Ensure the red locking tab is present and engaged. Gently tug on the wires leading to the connector to check for breaks.
   Typical fix: If the connector is broken, a new pigtail connector can be spliced into the harness. Damaged wires must be repaired or replaced.
   Est. part cost: $15-$30 for a new pigtail connector

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is extremely rare. The PCM contains the driver circuit that controls the coil. In some cases, a shorted ignition coil can damage the PCM driver. Before condemning the PCM, all other possibilities (coil, plug, wiring) must be exhaustively ruled out by a professional. An owner report in NHTSA ODI #10644521 noted that even after changing all spark plugs and the specific coil, the P0352 code remained, suggesting a deeper issue with the PCM.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0352 and check for any other codes like P0302.
2. Turn off the engine. Locate the ignition coils on top of the engine cover. Cylinder #2 is the second one from the timing belt side (left side of the engine when facing it).
3. Disconnect the electrical connector from the coil on cylinder #2 and the coil on cylinder #3. To do this, slide the red locking tab back, then press the black tab to release the connector. Be gentle as these tabs can become brittle.
4. Unbolt and remove the ignition coils from cylinders #2 and #3. They are each held by a single 8mm bolt.
5. Swap the coils: install the coil from cylinder #2 into cylinder #3, and the coil from cylinder #3 into cylinder #2. Reinstall the bolts and reconnect the electrical connectors, ensuring they click into place and the red tabs are pushed forward.
6. Clear the trouble codes with your scanner. Start the engine and let it run for a minute or take a short drive.
7. Re-scan for codes. If the code is now P0353, the ignition coil is faulty and needs to be replaced.
8. If code P0352 returns, the problem is not the coil. The next step is to inspect the spark plug in cylinder #2 and the wiring/connector to the coil.
9. If the wiring and spark plug are good, the issue may be a rare PCM fault, which should be diagnosed by a professional.

Parts You'll Likely Need

• Ignition Coil (OEM #DG-562 (Motorcraft)) — This is the most common failure point for a P0352 code. The coil provides the high voltage for the spark plug.
  Trusted brands: Motorcraft, NGK, Denso, Delphi
  OEM price range: $40-$60
  Aftermarket price range: $25-$50

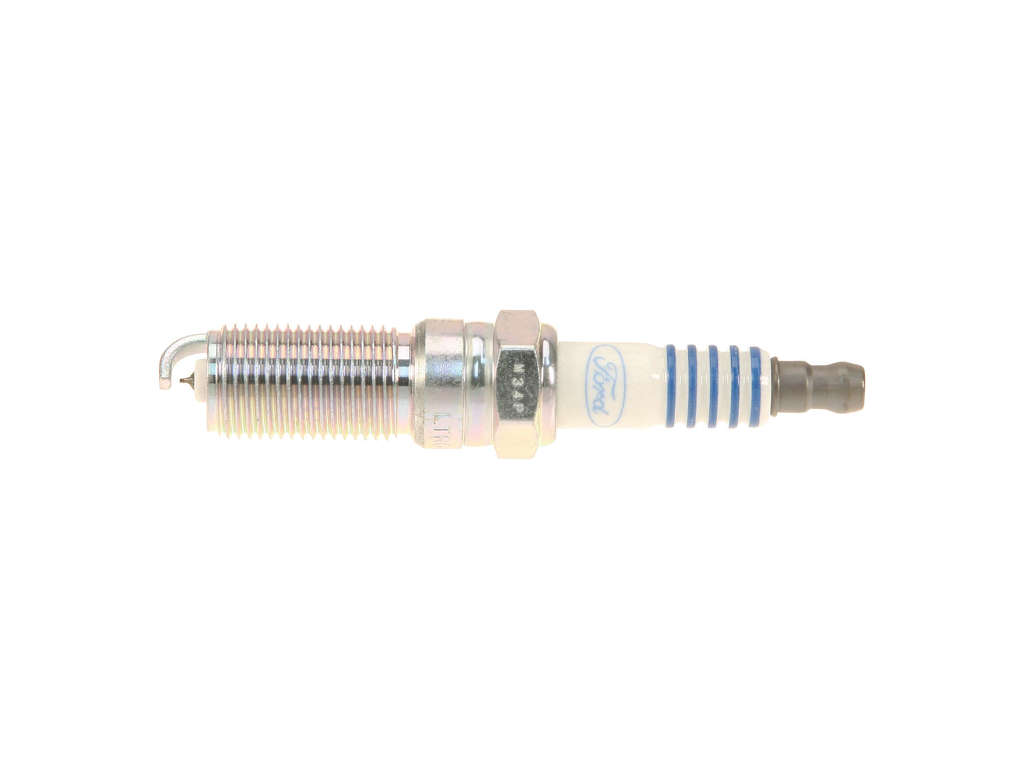

• Spark Plug (OEM #SP-535 (Motorcraft CYFS12Y)) — A worn spark plug can cause this code or be discovered during the repair. It's recommended to replace them if their service interval is near.
  Trusted brands: Motorcraft, NGK, Bosch
  OEM price range: $15-$25
  Aftermarket price range: $8-$15

Related Codes That Often Appear With This One

• P0302 — P0302 means 'Cylinder 2 Misfire Detected.' Since P0352 indicates a fault with the ignition coil circuit for cylinder 2, the cylinder will not fire correctly, directly causing a misfire. NHTSA ODI #11681823 notes that P0352 often appears alongside multiple misfire codes like P0300, P0304, P0305, and P0306.

Platform-Specific Known Issues

• While not directly related to code P0352, the 2012-2018 Focus was subject to a major recall (Ford 18S32 / NHTSA 18V735000) for a faulty canister purge valve (CPV) that could cause stalling and other drivability issues. It's worth ensuring this recall and the subsequent 19S22 software update program have been performed on your vehicle.

Technical Service Bulletins (TSBs) & Recalls

• Manufacturer Bulletin #TSB 24-2406 notes that various Ford vehicles equipped with EcoBoost engines may exhibit an illuminated MIL with ignition system DTCs including P0352, P0353, P0354, and P0355 set in the PCM.
• Manufacturer Bulletin #SSM 52455 indicates that several Ford gas engine models may exhibit an illuminated MIL with ignition system DTCs such as P0352 through P0357, as well as various primary circuit codes like P2303 and P2304.

Mechanic-Grade Diagnostic Values

• Ignition Coil Connector Voltage (Key On, Engine Off) — expected: With the 3-pin connector unplugged from the coil, one pin should have 12V+ (battery voltage), one is a ground, and the third is the signal wire from the PCM (should be near 0V).. Failure: No 12V+ power indicates a problem with the power supply circuit or fuse. If power and ground are good but the code returns with a known-good coil, the signal wire or PCM driver is suspect.
• PCM Ignition Driver Signal (Engine Cranking/Running) — expected: Using a noid light or an oscilloscope on the signal wire pin, you should see a flashing light or a square wave pattern as the PCM commands the coil to fire.. Failure: A steady light or no light/signal indicates a problem with the PCM driver or the wiring between the PCM and the coil connector. A constant light can indicate a shorted driver that will quickly destroy the ignition coil.

Scan Tool Commands That Help

• Ford IDS (or equivalent high-end scanner): Power Balance Test — This command graphically displays the power contribution of each cylinder in real-time. For a P0352, the graph will show a significant drop for cylinder #2, confirming a lack of combustion. It's used to verify the misfire location before swapping parts.
• Ford IDS (or equivalent high-end scanner): Driver on Coil Ignition Test — This is an advanced oscilloscope function within the scan tool used to analyze the PCM driver signal waveform and the coil's primary current ramp. It is the definitive way to diagnose a faulty PCM driver or high primary circuit resistance after the coil and plug have been ruled out.

Wiring & Ground Locations

• Ignition Coil Connector (C1652 for Cyl #2) — On top of the engine, plugged into the ignition coil for the second cylinder from the left (passenger side).. This is the primary connection point for power, ground, and the PCM's control signal for the coil. The 3 pins are typically: Pin 1 (Signal from PCM), Pin 2 (Ground), and Pin 3 (12V+ Power). A bad connection here is a common cause of circuit codes.
• G1 (or G104) — Main chassis ground located on the fender wall, underneath the air filter box.. This is a critical ground point for the battery and several engine management systems. Corrosion or looseness here can cause a wide range of bizarre electrical issues, including intermittent ignition problems. It should be removed, cleaned to bare metal, and re-secured during advanced diagnosis.
• G103 / G108 — Engine-specific grounds, typically located on the left side or rear of the engine compartment, often bolted to the cylinder head or block.. The ignition coils are grounded through the engine wiring harness, which ultimately relies on these main engine-to-chassis ground points. A poor connection here can weaken spark intensity and potentially trigger circuit fault codes.

Real Owner Repair Stories

• Lincoln vs Cadillac Forums user 'joegr' (Ford platform with similar coil-on-plug system) — Persistent P0352 code that would not go away even after swapping ignition coils.
  ❌ Tried (didn't work) Replacing the ignition coil, Swapping the ignition coil with another cylinder (code stayed on cylinder 2)
  ✅ What actually fixed it The user was advised that since the coil was verified as good, the fault must be in the primary wiring to the coil or the PCM itself. The diagnostic path is to use a multimeter to check the wiring harness between the coil connector and the PCM for continuity (no breaks) and for shorts to ground. If the wiring is perfect, the only remaining cause is a failed ignition driver inside the PCM.

OEM Part Supersession History

• DG-562 (Motorcraft) → DG-562 (current) — This part number has remained consistent for the specified vehicle range.
  Heads up: No significant supersessions or incompatibilities are noted for the 2011-2018 Ford Focus 2.0L. Ensure the part is genuine Motorcraft or a high-quality OEM equivalent.

Model Year Variations Within This Range

• 2012-2018: The 2.0L GDI Ti-VCT engine and its coil-on-plug ignition system are consistent across this generation in North America. There are no significant part or diagnostic procedure changes related to code P0352 within these model years.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• DPS6 'PowerShift' Automatic Transmission Failure 🔴 High — Extremely common on 2012-2016 models. Symptoms include shuddering/jerking from a stop, delayed or rough shifting, and complete loss of gear engagement. (Ref: Multiple lawsuits and customer satisfaction programs were initiated, but no single recall fixed the fundamental design flaw.)
• Electric Power Steering (EPAS) Failure 🔴 High — Common on 2012-2015 models. Can result in a sudden and complete loss of power steering assist, making the wheel very heavy. Often presents with a 'Steering Assist Fault' message. (Ref: No major recall, but a known issue often requiring expensive steering rack replacement. Fault codes like U3000 are common.)
• Canister Purge Valve (CPV) Malfunction 🟠 Medium — Widespread across 2012-2018 models. A stuck-open valve can cause engine stalling, rough idle, difficulty starting after refueling, and deformation of the fuel tank. (Ref: Ford Safety Recall 18S32 / NHTSA 18V735000 and Customer Satisfaction Program 19S22 were issued to reprogram the PCM and replace the valve if necessary.)
• Passenger Side Engine Mount Collapse 🟠 Medium — The hydraulic-filled passenger side engine mount is prone to leaking and collapsing, typically after 60,000 miles, causing excessive engine vibration at idle and while in gear.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For an ignition coil, a used part is strongly discouraged. It is an electronic wear-and-tear component with a finite lifespan. The history of a used coil is unknown, and it may fail shortly after installation, wasting time and money.

Donor-vehicle mileage cap: roughly under 20000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• If you must use a used coil in an emergency, source it from the newest, lowest-mileage vehicle possible.
• Inspect the plastic housing for cracks, discoloration (browning from heat), or swelling.
• Ensure the connector pins are clean and free of corrosion.
• Check that the rubber boot is pliable and not torn or brittle.

OEM-only on this vehicle (don't cheap out):

• Ignition Coil

Aftermarket brands forum-validated for this vehicle:

• Motorcraft (OEM)
• NGK
• Denso
• Delphi

Brands owners have reported issues with on this vehicle:

• Generic, unbranded 'no-name' coils from online marketplaces like Amazon or eBay are frequently reported by owners to fail prematurely, sometimes within weeks or months.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0302 — Cylinder 2 Misfire Detected; often appears alongside P0352 when the ignition coil or spark plug fails to ignite the fuel in that specific cylinder.
• P0353 — Ignition Coil 'C' (Cylinder 3) Circuit Malfunction; this is the code that should appear if you successfully swap a faulty Cylinder 2 coil into Cylinder 3 during testing.
• P0351 — Ignition Coil 'A' (Cylinder 1) Circuit Malfunction; a related ignition circuit fault that can occur due to the same wear-and-tear or wiring issues.
• P0354 — Ignition Coil 'D' (Cylinder 4) Circuit Malfunction; frequently discussed in forums alongside P0352 as part of a general ignition system failure.
• U3000 — A common code for Electric Power Steering (EPAS) failure, which is a known high-severity issue on this vehicle platform, though not directly caused by the ignition system.

Frequently Asked Questions
