P0353 on 2009-2013 Toyota Corolla: Ignition Coil 'C' Circuit Malfunction Causes and Fixes

What's Unique About the 2009-2013 Toyota Corolla

The 1.8L 2ZR-FE engine in this generation of Corolla uses a reliable and straightforward coil-on-plug ignition system. The coils are mounted directly on top of the spark plugs, making them exceptionally easy to access and replace. While the components are generally durable, individual coil failure is a common reason for a check engine light on these vehicles as they age. The diagnosis is typically very simple, with a high probability of the coil itself being the culprit. The issue is so common that many owners report fixing it in their driveway with minimal tools.

Symptoms You May Notice

• Check Engine Light is on (may be flashing if the misfire is severe)
• Rough or vibrating idle
• Engine stumbles, hesitates, or misfires during acceleration
• Noticeable loss of power, especially under load
• Reduced fuel economy by 10-15% or more
• Strong smell of gasoline from the exhaust

Most Likely Causes

1. Faulty Ignition Coil (Cylinder 3) 🔴 High Probability → Shop Ignition Coil Ignition coils are wear-and-tear components that operate under high heat and voltage. The internal windings can break down over time, causing an open or short in the circuit. This is the most frequent cause for P035x codes on this platform.
   How to confirm: Swap the ignition coil from cylinder #3 with another cylinder (e.g., cylinder #2). Clear the codes. If the code changes to P0352 ('B' circuit), the coil is definitively bad. This is the most reliable diagnostic step.

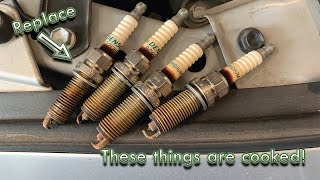

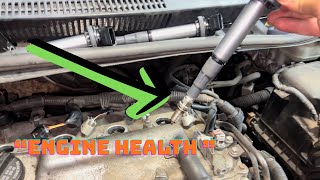

   Typical fix: Replace the faulty ignition coil. Many owners choose to replace all four coils and spark plugs 🎬 Watch: Step-by-step walkthrough for changing your coils and spark plugs. at the same time for preventative maintenance, especially on higher mileage vehicles.
   Est. part cost: $40-$110
2. Worn or Fouled Spark Plug (Cylinder 3) 🟡 Medium Probability → Shop Spark Plug Spark plugs have a finite service life (typically 100,000-120,000 miles for the OEM Iridium plugs). An old plug with a wide gap or heavy carbon/oil deposits increases the electrical resistance, which can over-stress the ignition coil and contribute to its failure or, in some cases, trigger the code directly.
   How to confirm: After swapping the coil and the P0353 code remains on cylinder 3, remove the spark plug. Inspect for wear (rounded electrode), excessive gap, cracks in the porcelain, or heavy fouling. Replace if it is worn or past its service interval.
   Typical fix: Replace the spark plug in cylinder #3. It is highly recommended to replace all four spark plugs as a set to maintain balanced engine performance.
   Est. part cost: $15-$25 per plug
3. Damaged Wiring or Connector ⚪ Low Probability The plastic connector clips can become brittle over time from engine heat cycles and break, leading to a poor connection. Rodents can also chew on the soy-based wiring insulation used in many modern cars. Wires can also be damaged during other engine repairs.
   How to confirm: Visually inspect the wiring harness and connector for cylinder #3's ignition coil. Look for broken/chewed wires, corrosion on the pins, or a loose-fitting connector. Wiggle the connector with the engine running to see if it induces a misfire. Use a multimeter to check for 12V power, ground, and continuity of the IGT/IGF signal wires 🎬 See how to test the electrical cables on your Corolla coils. back to the ECM.
   Typical fix: Repair the damaged wire or replace the connector pigtail. Applying a small amount of dielectric grease to the new connector can help prevent future moisture intrusion.
   Est. part cost: $10-$30 for a new pigtail

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. The ECM's internal driver for the coil #3 circuit can fail, but this should only be considered after all other possibilities (coil, plug, wiring) have been exhaustively tested and ruled out. This fault typically requires professional diagnosis and may be preceded by other electrical issues.

Diagnosis Steps

1. Read the trouble codes with an OBD-II scanner to confirm P0353 is present. Note any other codes, like P0303.
2. Turn off the engine and remove the plastic engine cover by pulling it straight up.
3. Locate the ignition coils. They are the four identical components in a row on top of the engine. Cylinder #3 is the third from the left (passenger side) when facing the engine from the front of the car.
4. Disconnect the electrical connector from the coil on cylinder #3 and a neighboring cylinder (e.g., cylinder #2). Press the tab firmly and pull. The clips can be brittle.
5. Use a 10mm socket to remove the single bolt holding each coil in place. The bolt does not need to be torqued heavily, just snug (approx. 7 ft-lbs).
6. Pull the coils straight up and out of the engine. They may offer some resistance. Swap their positions: install the coil from cylinder #3 into cylinder #2, and the coil from cylinder #2 into cylinder #3.
7. Reinstall the 10mm bolts and reconnect the electrical connectors. Ensure they click into place.
8. Clear the trouble codes with your scanner and start the engine. Let it run for a minute or take a short drive.
9. Re-scan for codes. If the code is now P0352, the ignition coil you moved to cylinder #2 is faulty and needs to be replaced.
10. If code P0353 returns, the problem is not the coil. The next step is to inspect and replace the spark plug in cylinder #3. Check for oil in the spark plug tube, which would indicate a leaking valve cover gasket.
11. If the plug is new and the code persists, carefully inspect the wiring and connector for cylinder #3 for any signs of damage, corrosion, or looseness. Test for power, ground, and signal continuity with a multimeter if possible.

Parts You'll Likely Need

• Ignition Coil (OEM #90919-02258 (replaces 90919-02252)) — This is the most common cause of code P0353. The internal electronics of the coil fail over time.
  Trusted brands: Denso (OEM), NGK, Bosch, Standard Motor Products (UF596T)
  OEM price range: $100-$145
  Aftermarket price range: $40-$90
• Iridium Spark Plug (OEM #90919-01275 (Denso SC20HR11)) — Often replaced as a set during ignition coil service. A worn spark plug can contribute to coil failure and should be replaced if near the end of its service life.
  Trusted brands: Denso SC20HR11, NGK ILKAR7B11
  OEM price range: $14-$20
  Aftermarket price range: $10-$18
• Ignition Coil Connector Pigtail — Needed if the original connector is broken, corroded, or the wires are damaged. The locking tab is a common failure point.
  Trusted brands: Dorman, Standard Motor Products
  Aftermarket price range: $10-$30

Related Codes That Often Appear With This One

• P0303 — P0303 means 'Cylinder 3 Misfire Detected'. Since a bad coil circuit (P0353) prevents the spark plug from firing correctly, it will almost always cause a detectable misfire 🎬 Watch: Full diagnosis and troubleshooting guide for a cylinder 3 misfire. on that same cylinder.
• P0351, P0352, P0354 — If multiple or all P035x codes appear at once, it is less likely that all coils failed simultaneously. This usually points to a common problem, such as a blown ignition fuse, a bad ground connection for the coils, or an issue with the power supply from the integration relay.

Platform-Specific Known Issues

• Intermittent Symptoms: Some owners report that the misfire and P0353 code are intermittent, especially when the engine is cold vs. hot. This can be a sign of an ignition coil's internal windings beginning to fail, where the connection is lost as the coil heats up and expands.
• Wiring Harness Vulnerability: In a forum post, a user with a persistent P0353 after swapping coils and plugs suspected a wiring issue. The harness can be susceptible to damage near the connector or where it might rub against other components.

Mechanic-Grade Diagnostic Values

• Ignition Coil Connector - Power Supply Voltage — expected: Battery voltage (approx. 12V). Failure: Voltage significantly below 12V or 0V indicates a power supply issue.
• Ignition Coil Connector - Ground Circuit — expected: Less than 1.0 Ohm of resistance. Failure: High resistance or an open circuit (OL) indicates a bad ground connection.
• IGT (Ignition Timing) and IGF (Ignition Confirmation) Signals — expected: A pulsing square wave signal visible on an oscilloscope.. Failure: A flat line, missing pulses, or a noisy signal indicates a problem with the ECM or the wiring between the ECM and the coil.
• Spark Plug Insulation Resistance — expected: 10 MOhms or more. Failure: A reading of less than 10 MOhms suggests the spark plug is fouled or failing and may be causing excessive load on the coil.

Scan Tool Commands That Help

• Toyota Techstream: Freeze Frame Data Analysis — When a DTC like P0353 is set, the ECM records a snapshot of engine parameters. This data is invaluable for determining the exact conditions (engine speed, load, temperature) under which the fault occurred, which can help differentiate between an intermittent wiring fault and a failing coil.
• Toyota Techstream: Active Test - Control the Spark — Some versions of Techstream may allow a technician to command individual coils to fire. This can be used to confirm if the coil itself is capable of firing when commanded directly by the scan tool, helping to isolate the problem to the coil, wiring, or the ECM's standard driver circuit.

Wiring & Ground Locations

• IG2 Relay & IG2 Fuse — Located in the Engine Room Relay Block / Junction Block Assembly, typically near the battery.. This relay and fuse supply the 12V power to all ignition coils. If multiple P035x codes are present, this is a primary suspect.
• Ignition Coil Connector (Cylinder 3) — On top of the third ignition coil from the passenger side of the engine.. This is the direct connection point. Pin 1 is 12V power, Pin 4 is ground. The other two pins are for the IGT (timing) and IGF (confirmation) signals from the ECM. The plastic locking tab is known to become brittle and break, causing a poor connection.
• Engine Harness Ground — The main engine wiring harness has several ground points. On Toyota engines of this era, common locations are bolted to the side of the cylinder head (often under the intake or throttle body area) and on the valve cover(s).. A poor engine ground can cause a host of electrical issues, including weak spark and incorrect sensor readings that could potentially trigger ignition fault codes.
• ECM (Engine Control Module) — Typically located behind the glove box on this generation of Corolla.. This is the source of the IGT signal and the destination for the IGF signal. The final step in a wiring diagnosis is to check for continuity of the IGT and IGF wires between the coil connector and the ECM connector.

Real Owner Repair Stories

• YouTube user Asim AFi AUTO (2013 Toyota Vitz (uses a similar engine and coil design)) — Check engine light on, severe engine vibration and misfiring, P0353 code present.
  ❌ Tried (didn't work) The user immediately identified the likely cause before attempting other fixes.
  ✅ What actually fixed it The locking tab on the ignition coil #3 electrical connector was broken. This caused the connector to become loose with engine vibration, interrupting the circuit and triggering the P0353 code. The connector pigtail was replaced to ensure a secure connection, which resolved the issue.

OEM Part Supersession History

• 90919-02252 → 90919-02258 — Standard part revision or change in manufacturer. The parts are functionally identical.
  Heads up: None. 90919-02258 is the correct direct replacement for 90919-02252.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used ignition coil is generally not recommended as they are a wear item sensitive to heat cycles, and their remaining lifespan is unknown. However, obtaining a used connector pigtail from a junkyard is a very cost-effective and sensible repair if your original connector is broken, as long as the donor part's plastic is not brittle and the wires are intact.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a connector pigtail, check that the locking tab is present and flexible, not brittle.
• Ensure there are at least 4-6 inches of wire attached to the pigtail for easier splicing.
• Inspect the pins inside the connector for any signs of green or white corrosion.

Aftermarket brands forum-validated for this vehicle:

• Denso (OEM supplier)
• NGK
• Bosch

Brands owners have reported issues with on this vehicle:

• Unnamed, no-brand ignition coils sold at exceptionally low prices on marketplace websites often have high failure rates.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0303 — Cylinder #3 Misfire Detected. This code is a direct result of the P0353 fault. The ignition coil circuit failure prevents the spark plug from firing correctly, causing the engine computer to detect a misfire on that specific cylinder. They almost always appear together.
• P0352 — Ignition Coil 'B' (Cylinder 2) Primary/Secondary Circuit. This code is a key diagnostic companion. It will appear after you swap a known-bad coil from cylinder #3 to cylinder #2, confirming the coil itself is the source of the problem.
• P0351 — Ignition Coil 'A' (Cylinder 1) Primary/Secondary Circuit. A diagnostic companion code that would appear if the faulty coil from cylinder #3 was moved to cylinder #1 during the swap test.
• P0354 — Ignition Coil 'D' (Cylinder 4) Primary/Secondary Circuit. A diagnostic companion code that would appear if the faulty coil from cylinder #3 was moved to cylinder #4 during the swap test.
• P0300 — Random/Multiple Cylinder Misfire Detected. If the misfire from cylinder #3 is severe or intermittent, it can disrupt the engine's overall balance and crankshaft speed enough for the ECU to log a general, non-specific misfire code in addition to the more precise P0303 and P0353.
