P0363 on 2003-2007 Saturn Ion 2.2L: Misfire Detected & Fuel Cut-Off Causes and Fixes

What's Unique About the 2003-2007 Saturn Ion

The 2.2L L61 Ecotec engine in the Saturn Ion has two very common failure points that directly lead to severe misfires. First, it uses an integrated ignition coil and control module (ICM) assembly, often called a cassette, that sits over the spark plugs. When one part of this assembly fails, it often damages the other, making replacement of the entire unit necessary. A YouTube video by "jimthecarguy" specifically highlights that replacing only the module can lead to a repeat failure if the old coils are defective and cause the new module to burn out. Second, the valve cover gasket is prone to leaking oil directly into the spark plug wells, which shorts out the ignition system and causes misfires. These two issues account for the vast majority of P0363 codes on this specific vehicle. A unique design aspect of the L61 is that the Ignition Control Module (ICM) generates the camshaft position signal; a failing ICM can therefore create false cam sensor codes (like P0341) alongside misfire codes.

Symptoms You May Notice

• Engine shaking violently or running very rough, especially at idle
• Significant loss of engine power and poor acceleration
• Flashing Check Engine Light, which may become solid
• Engine may stall or be difficult to start
• Noticeable drop in fuel economy
• Car feels like it is running on only two cylinders.

Most Likely Causes

1. Failed Ignition Coil / Control Module Assembly 🔴 High Probability → Shop Ignition Coil The L61 Ecotec engine uses a cassette-style ignition system where the coils and Ignition Control Module (ICM) are integrated into one unit. Heat and vibration cause this assembly to fail over time. A failing module can destroy the coils, and a failing coil can destroy the module, creating a cycle of repeat failures if not replaced together. The ICM is located under the coil pack, subjecting it to significant heat which leads to electronic failure.
   How to confirm: Remove the single ignition assembly from the top of the engine (held by 10mm bolts). Inspect for cracks, burn marks, or signs of arcing on the boots. Since the components are integrated, swapping individual coils to diagnose is not possible. A common diagnostic trick mentioned in forums is to use a heat gun on the module to see if the misfire worsens, indicating a heat-related failure. Replacement of the assembly is the most common and effective diagnostic step.
   Typical fix: Replace the entire ignition coil and module assembly. 🎬 Watch: This walkthrough shows how to replace the common ignition cassette. It is strongly recommended to replace the spark plugs at the same time. Many owners and mechanics on forums stress the importance of replacing the coils and module as a single unit to prevent immediate repeat failures.
   Est. part cost: $70-$150

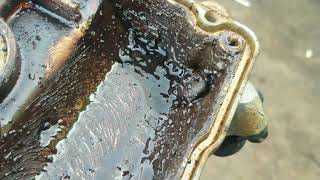

2. Leaking Valve Cover Gasket (Oil in Spark Plug Wells) 🔴 High Probability → Shop Engine Valve Cover The rubber valve cover gasket and its integrated spark plug tube seals degrade with age and heat cycles. This allows engine oil to leak from the top of the engine and fill the spark plug tubes, shorting out the spark plugs and coil boots.
   How to confirm: Remove the ignition coil assembly. Visually inspect the spark plug wells for the presence of liquid engine oil. If the wells are full of oil, the gasket has failed. This is a very common finding on these engines.
   Typical fix: Replace the valve cover gasket set, which includes the main gasket and four spark plug tube seals. A popular aftermarket option is the Fel-Pro VS50606R. 🎬 Watch: How to clean and install your new valve cover gasket. Thoroughly clean all oil from the spark plug wells and the ignition coil boots before reassembly. Failure to clean out the oil will ruin the new ignition parts.
   Est. part cost: $25-$50
3. Worn or Fouled Spark Plugs 🟡 Medium Probability → Shop Spark Plug While a maintenance item, old spark plugs with a large gap or heavy deposits cannot create a strong enough spark, leading to misfires. This is often discovered when replacing the ignition cassette. Oil fouling from a leaking valve cover gasket is also a primary cause.
   How to confirm: Remove the spark plugs and inspect them. Look for worn-down electrodes, a gap that is too wide, or fouling from oil (black, wet) or carbon.
   Typical fix: Replace all four spark plugs with new, pre-gapped Iridium plugs from a quality brand like ACDelco or NGK. This should always be done when replacing the ignition assembly.
   Est. part cost: $30-$60
4. Faulty or Clogged Fuel Injectors ⚪ Low Probability → Shop Fuel Injector Over time, fuel injectors can become clogged with deposits or fail electrically, preventing the correct amount of fuel from being delivered to a cylinder. While less common than ignition issues, it can still be the root cause.
   How to confirm: This is more difficult to diagnose. A mechanic can perform a fuel injector balance test. A DIY method is to listen to each injector with a mechanic's stethoscope; a healthy injector will have a consistent clicking sound. You can also swap the suspect injector with one from a known good cylinder and see if the misfire code follows the injector. Test the resistance of the injector; it should be between 11-14 ohms.
   Typical fix: Replace the faulty fuel injector. It is often recommended to replace them as a set on a high-mileage vehicle.
   Est. part cost: $40-$80 per injector

Rare But Worth Checking

• Low Fuel Pressure: A failing fuel pump or a severely clogged fuel filter can starve the engine for fuel, causing misfires. There was a recall on 2003-2004 models for a fuel filter assembly that could corrode and leak (NHTSA ID: 03V460000). While the recall was for a leak, a clogged filter can cause performance issues.
• Low Engine Compression: Internal engine damage such as a burnt valve, bad piston rings, or a jumped timing chain can cause a lack of compression, leading to a persistent misfire that ignition or fuel parts won't fix. The L61 Ecotec is known to have issues with timing chain tensioners and guides, which can lead to jumped timing.
• Worn Timing Chain Components: The 2.2L Ecotec is known for timing chain and tensioner wear, especially at higher mileage. A stretched chain or failed tensioner can cause camshaft timing to be off, leading to misfires, often on startup, accompanied by rattling noises. An updated tensioner design exists to mitigate this issue.

Diagnosis Steps

1. Read the codes with an OBD-II scanner to confirm P0363 and note any other codes like P0301-P0304 or P0341.

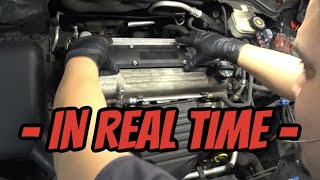

🎬 See a real-time misfire diagnosis on a 2.2L Saturn Ion.
2. Turn off the engine and remove the plastic engine cover.
3. Unbolt and remove the ignition coil/module assembly that sits on top of the engine.
4. Crucial Step: Look down into the four spark plug tubes with a flashlight. If you see liquid oil, the valve cover gasket is your primary problem. You must replace the gasket (e.g., Fel-Pro VS50606R) and thoroughly clean all oil from the wells and coil boots before proceeding.
5. If the spark plug tubes are dry, the ignition coil/module assembly is the most likely culprit. It is highly recommended to replace the entire assembly along with all four spark plugs.
6. If new ignition components and/or a new valve cover gasket do not solve the issue, the problem may be in the fuel system.
7. Check fuel pressure to ensure the pump is working correctly. The spec is typically 50-60 PSI. Check for a clogged fuel filter, especially on 2003-2004 models which had a recall for this part.
8. If pressure is good, suspect a faulty fuel injector on the misfiring cylinder. You can test this by swapping the injector to another cylinder and seeing if the misfire follows. Also test injector resistance; it should be 11-14 ohms.
9. If all else fails, a compression test should be performed to rule out internal engine mechanical issues, such as a worn timing chain or burnt valve. A healthy L61 engine should have compression around 200 PSI per cylinder.

Parts You'll Likely Need

• Ignition Coil and Control Module Assembly (OEM #12587426) — This is the most common failure point for misfires on the 2.2L Ecotec. The integrated design means the whole unit should be replaced. The ACDelco part number is D512A.
  Trusted brands: ACDelco, Delphi, NGK
  OEM price range: $150-$200
  Aftermarket price range: $70-$150
• Valve Cover Gasket Set (OEM #12578525) — Frequently leaks oil into the spark plug wells, causing ignition failure. The set should include the main gasket and four spark plug tube seals. The Fel-Pro aftermarket part number is VS50606R.
  Trusted brands: Fel-Pro, ACDelco, Mahle
  OEM price range: $40-$60
  Aftermarket price range: $25-$50
• Spark Plugs (OEM #ACDelco 41-103 (Iridium)) — Should always be replaced with the ignition assembly or when found to be fouled by oil. Worn plugs are a primary cause of misfires.
  Trusted brands: ACDelco, NGK
  OEM price range: $40-$60 (set of 4)
  Aftermarket price range: $30-$50 (set of 4)

Related Codes That Often Appear With This One

• P0300 — P0300 means 'Random/Multiple Cylinder Misfire'. P0363 is a more severe version of P0300, triggered when the misfire is bad enough for the PCM to cut fuel.
• P0301, P0302, P0303, P0304 — These codes specify which cylinder is misfiring (e.g., P0301 is Cylinder 1). P0363 may appear alongside one of these codes, indicating the PCM has disabled fuel to that specific cylinder.
• P0341 — P0341 is 'Camshaft Position Sensor Circuit Range/Performance'. On the L61 engine, the cam signal is derived from the ignition module. A failing module can generate a false P0341 code along with the misfire codes.

Technical Service Bulletins (TSBs) & Recalls

• A general TSB for the 2.2L engine describes a severe misfire on cylinders 1 & 4 or 2 & 3, advising a wiring check before replacing the ignition module.

Platform-Specific Known Issues

• GM Ignition Switch Recall: While it does not cause code P0363, nearly all 2003-2007 Saturn Ions were part of a critical safety recall (NHTSA #14V047000) for a faulty ignition switch that could shut the engine off while driving. Owners should verify this recall has been performed.
• Fuel Filter Corrosion Recall: 2003-2004 models were recalled (NHTSA #03V460000) because the fuel filter body could rust through and leak fuel, creating a fire hazard.
• Fuel Tank Inlet Valve TSB: A special coverage campaign (GM Bulletin 14728B) was issued for 2006-2007 models for a cracked fuel tank inlet control valve, which could cause fuel leaks and an illuminated check engine light.

Mechanic-Grade Diagnostic Values

• Fuel Pressure (Key On, Engine Running) — expected: 55 - 65 PSI. Failure: Pressure that is low, drops off, or is wildly inconsistent can indicate a weak fuel pump or clogged filter.
• Fuel Injector Resistance — expected: 11 - 14 Ohms. Failure: A reading significantly outside this range, or an injector that reads very differently from the others, indicates a faulty injector coil.
• Engine Compression — expected: ~200 PSI per cylinder. Failure: Low compression in one or more cylinders indicates a mechanical engine problem (e.g., bad valve, piston rings).
• Ignition Coil Secondary Resistance (Cassette) — expected: 6,000 - 10,000 Ohms (6kΩ - 10kΩ). Failure: A reading outside this range suggests a failure in the coil pack's internal windings.

Scan Tool Commands That Help

• GM Tech2 / Tech2Win: Misfire Graphic / Misfire Counters — To view live and historical misfire counts for each specific cylinder. This is the most effective way to confirm which cylinder(s) are affected, especially with a random misfire (P0300) that accompanies P0363.
• GM Tech2 / Professional Scan Tool: Crankshaft Position (CKP) Variation Learn Procedure — This procedure is required if the PCM, crankshaft position sensor, or engine block has been replaced. It synchronizes the CKP sensor with the reluctor wheel. Failure to perform this can result in inaccurate misfire detection. The procedure involves accelerating to wide-open throttle until fuel cut-off occurs under specific conditions.
• GM Tech2 / Professional Scan Tool: Reset Adaptives — This should be performed before the CKP Variation Learn procedure when an Engine Control Computer (ECC) is replaced on a Saturn.

Wiring & Ground Locations

• G103 — At the lower left front side of the engine compartment.. This is a primary ground for the Engine Control Module (ECM). A poor connection here can cause a wide range of erratic engine behavior, including misfires and false sensor readings.
• G105 — On the lower left rear of the engine, above the starter.. This is another critical engine ground. A loose or corroded G105 can lead to intermittent ignition and fuel system problems.
• G107 — At the left rear corner of the engine.. Serves as an essential engine ground point. Ensuring it is clean and tight is a fundamental step in diagnosing any electrical issue related to the engine management system.
• Ignition Control Module (ICM) Connector — On top of the engine, connecting to the ignition coil cassette.. The tachometer signal wire (Brown/White or White/Orange depending on source) can be found at this connector, which can be used for diagnostic purposes. The PCM sends control signals to the ICM via this harness to fire the coils.
• Body Control Module (BCM) — Part of the fuse/relay box in the lower center of the dash, below the HVAC controls.. The BCM integrates with many vehicle systems. While not a direct cause of P0363, wiring issues at its various connectors (C1-C5) can cause widespread electrical problems.

Real Owner Repair Stories

• GMTNation forum user 'GENMOTMAN' (2007 Saturn Ion) — Occasional intermittent stumble when the car is warmed up and comes to a stop. No issues when parked at idle.
  ❌ Tried (didn't work) Fuel system cleaning, Injector cleaning, Verification of fuel system operation
  ✅ What actually fixed it Using a Tech2Win scanner, the owner ran the misfire graphics and identified coil pack #4 as the problem. Upon removal, the spark plug well for that cylinder was found to be full of oil from a leaking valve cover gasket. Cleaning the oil out and installing a spare coil pack resolved the stumble. The final fix required replacing the valve cover gasket.
• motor-vehicle-maintenance.com case study (2004 Saturn Ion 2.2L Ecotec) — Engine misfire with code P0300, high misfire counts on cylinders 1 and 4.
  ❌ Tried (didn't work) Verified fuel trims were okay., Confirmed fuel pressure was ~55 PSI., Injector scope test showed normal operation., Spark tester showed good spark on all cylinders., Performed a CKP Variation Relearn procedure, which only shifted the misfire from cylinder 1 to 4.
  ✅ What actually fixed it The Ignition Control Module (ICM) was found to be faulty. Scope analysis showed the ICM was commanding a shorter spark duration on the failing cylinders. Replacing the ICM, which was under warranty from a previous replacement less than a year prior, resolved the misfire completely.

Model Year Variations Within This Range

• 2005-2007: For the 2005 model year, the Ion received a facelift with a larger grille and other cosmetic updates. The previous Aisin 5-speed automatic and VTi CVT were replaced by the GM 4T45-E 4-speed automatic.
• 2007: The 2.2L L61 engine received a power increase from 140 hp to 145 hp and torque from 145 lb-ft to 150 lb-ft, along with a new ECU shared with the 2.4L engine.
• 2003-2004: These model years used a VTi continuously variable transmission (CVT) in coupes or an Aisin 5-speed automatic in sedans, both of which were discontinued for 2005 due to reliability issues.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this repair, used parts are generally not recommended for the core electrical components. A used ignition coil/module assembly from a junkyard carries a very high risk of being near the end of its life or already faulty, as it's the most common failure point. Used parts are only acceptable for cosmetic items like the plastic engine cover.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For an ignition module, there are no reliable visual cues. The failure is electronic and internal.
• Avoid any parts from a vehicle that shows signs of poor maintenance or has high mileage.
• If considering any used part, check for a return policy from the seller (e.g., salvage yard).

Aftermarket brands forum-validated for this vehicle:

• Ignition Coil/Module Assembly: ACDelco (OEM), Delphi, NGK. Forum users often state that Delphi was the original manufacturer for the ACDelco part, making them equivalent.
• Valve Cover Gasket: Fel-Pro is a highly trusted and commonly recommended aftermarket brand for gaskets.
• Spark Plugs: NGK and ACDelco are the preferred brands for this engine.

Brands owners have reported issues with on this vehicle:

• Unbranded, 'white-box' ignition coil assemblies from online marketplaces. While cheap, they have a very high failure rate and are a common source of repeat repairs. The savings are not worth the risk of being stranded or having to do the job again.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0300 — Random/Multiple Cylinder Misfire. This is a more general misfire code. P0363 is a more severe, specific code indicating the powertrain control module has shut off fuel to a misfiring cylinder to protect the catalytic converter.
• P0301 — Cylinder 1 Misfire Detected. This code, along with P0302, P0303, and P0304, identifies the specific cylinder that is misfiring. A persistent misfire on one of these cylinders will lead to a P0363 code being set.
• P0302 — Cylinder 2 Misfire Detected. This code, along with P0301, P0303, and P0304, identifies the specific cylinder that is misfiring. A persistent misfire on one of these cylinders will lead to a P0363 code being set.
• P0303 — Cylinder 3 Misfire Detected. This code, along with P0301, P0302, and P0304, identifies the specific cylinder that is misfiring. A persistent misfire on one of these cylinders will lead to a P0363 code being set.
• P0304 — Cylinder 4 Misfire Detected. This code, along with P0301, P0302, and P0303, identifies the specific cylinder that is misfiring. A persistent misfire on one of these cylinders will lead to a P0363 code being set.
• P0341 — Camshaft Position Sensor Circuit Range/Performance. This code was noted in diagnostic steps and a forum report as appearing with misfires. A failing ignition module or timing chain issue, both potential causes of P0363, can also affect the camshaft position signal.

Frequently Asked Questions
