P0402 on 2010-2018 Freightliner Sprinter 3.0L Diesel: EGR Flow Excessive Causes and Fixes

What's Unique About the 2010-2018 Freightliner Sprinter

The OM642 V6 diesel engine is known for producing a significant amount of soot, which is the primary cause of EGR problems on these Sprinters. While other vehicles might trigger a P0402 code from a faulty sensor, on the OM642, the root cause is almost always the mechanical failure of the EGR valve itself, which gets physically jammed open by carbon deposits. The valve's location deep in the engine valley, beneath the turbocharger, makes what would be a simple job on other vehicles a complex and labor-intensive repair on this platform. This location also makes it a common 'while you're in there' job during an oil cooler seal replacement, which is another chronic issue for this engine.

Symptoms You May Notice

• Check Engine Light is on
• Rough or surging idle
• Poor engine performance, including reduced power and acceleration
• Vehicle may enter a low-power "limp mode", often limited to under 3,000 RPM
• Stalling, especially at idle
• Noticeable black smoke from the exhaust under acceleration
• Slight smell of exhaust fumes in the cabin, especially when stationary

Most Likely Causes

1. EGR Valve Stuck Open from Carbon Buildup 🔴 High Probability → Shop Exhaust Gas Recirculation (EGR) Valve The OM642 engine produces significant soot, which cakes onto the EGR valve components, physically preventing it from closing. The carbon can bake into the valve's bearings and shaft, which is why cleaning often fails as a long-term fix. This is the most common failure mode for this code on this engine.
   How to confirm: Visually inspect the EGR valve for heavy carbon deposits that restrict its movement. A scan tool may also show that the commanded EGR position and actual position do not match, or that MAF readings are abnormally low at idle (e.g., below 20 g/s when it should be higher).
   Typical fix: The EGR valve must be removed. A thorough cleaning may temporarily restore function, but due to the high labor involved in accessing the part, replacement is the recommended long-term solution. Always replace the associated gaskets to prevent exhaust leaks. The OEM part is made by Wahler.
   Est. part cost: $250-$500
2. Faulty EGR Position Sensor ⚪ Low Probability The position sensor is integrated into the EGR valve assembly. While the sensor itself can fail, it's far more common for the mechanical part of the valve to stick, which then causes the sensor to report an incorrect (but accurate) position. An electrical failure of the sensor itself is less common than a mechanical jam.
   How to confirm: Diagnosis usually involves ruling out a mechanically stuck valve first. If the valve is clean and moves freely but the code persists, the integrated sensor may be at fault. This typically triggers a P0404 code as well.
   Typical fix: The EGR valve assembly, which includes the sensor, must be replaced.
   Est. part cost: $250-$500

Rare But Worth Checking

• Leaking or Clogged EGR Cooler: → Shop Exhaust Gas Recirculation (EGR) Valve While a clogged EGR cooler more commonly causes a P0401 (Insufficient Flow) code, a significant internal leak in the cooler could potentially affect pressure readings and contribute to a P0402 code under certain conditions. This is less common for P0402 specifically.
• Faulty Mass Airflow (MAF) Sensor: The ECM uses the MAF sensor to diagnose EGR flow. If the MAF sensor is faulty and under-reporting airflow at idle, the ECM could misinterpret this as excessive EGR flow. This would typically be accompanied by a MAF-specific code like P0101.
• Faulty Throttle Actuator / Position Sensor: In some rare cases, a faulty throttle body position sensor can send incorrect data to the ECU. The ECU sees a closed throttle but other sensors report high airflow, leading it to incorrectly flag a P0402 code for excessive flow.

Diagnosis Steps

1. Confirm the presence of code P0402 with an OBD-II scanner. Note any other codes present, especially P0401, P0404, or P0101.
2. Using a capable scan tool, monitor live data. At idle with the engine warm, the commanded EGR position should be 0% or closed. Observe the Mass Airflow (MAF) sensor reading. If it is significantly lower than the specified value for idle, it confirms un-commanded air (exhaust) is entering the intake.
3. Perform a visual inspection. Locate the EGR valve in the engine valley. This is a labor-intensive step that requires removing the air intake piping, turbo inlet pipe ('bat wing'), and other components.
4. Once accessible, remove the EGR valve. Inspect its pintle and internal passages for heavy carbon buildup. Attempt to move the valve mechanism by hand; it should move smoothly and not stick.
5. If the valve is heavily caked with carbon and stuck, you have found the likely cause.
6. If the valve appears clean and moves freely, inspect the wiring harness and connector to the EGR valve for any damage or corrosion.
7. Inspect the EGR cooler and associated pipes for cracks or leaks, though this is a less common cause.

Parts You'll Likely Need

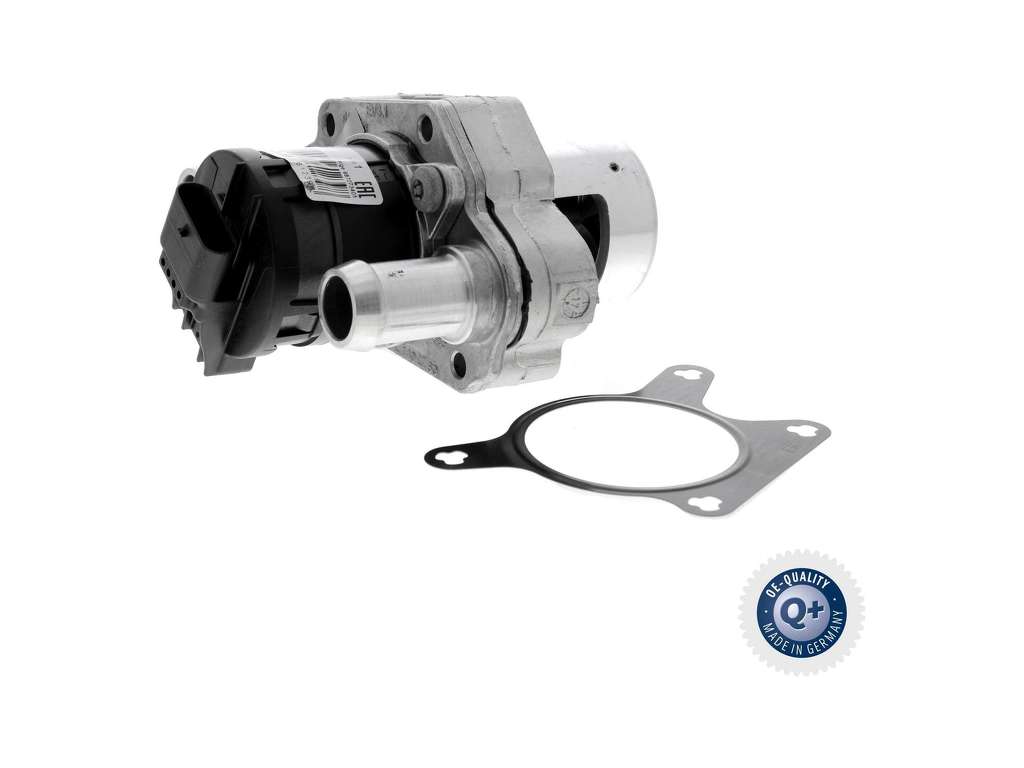

• Exhaust Gas Recirculation (EGR) Valve (OEM #A6421401760) — This is the component that almost always fails by sticking open due to carbon buildup, directly causing the P0402 code on the OM642 engine.
  Trusted brands: Wahler, Bosch, Genuine Mercedes-Benz, Pierburg
  OEM price range: $400-$550
  Aftermarket price range: $250-$450

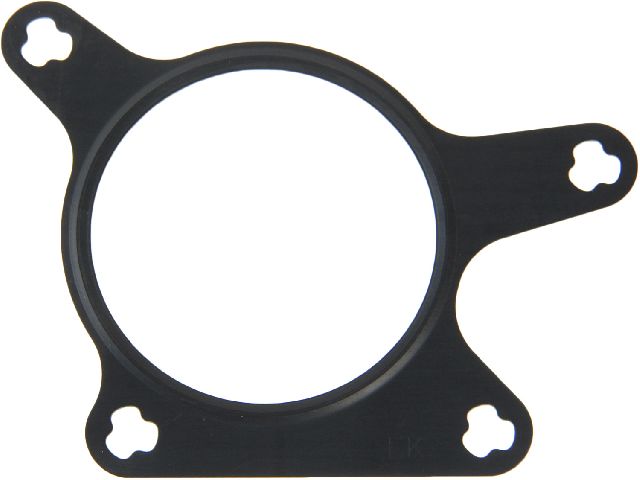

• EGR Valve Gasket (OEM #A6421420080) — A new gasket is required anytime the EGR valve is removed and reinstalled to prevent exhaust leaks.
  Trusted brands: Wahler, Victor Reinz, Elring
  OEM price range: $10-$20
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• P0401 — Insufficient EGR Flow. If the EGR valve is sticking intermittently, it can fail to open enough (P0401) at times and fail to close enough (P0402) at other times.
• P0404 — EGR Control Circuit Range/Performance. This code points directly to a problem with the valve's movement or its integrated position sensor, which is the root cause of P0402.
• P0101 — Mass Air Flow (MAF) Circuit Range/Performance. A stuck-open EGR valve allows unmetered exhaust into the intake, which the ECM sees as a conflict between expected and actual MAF sensor readings, triggering this code.

Technical Service Bulletins (TSBs) & Recalls

• For 2016-2018 models, owners should check with a Mercedes-Benz or Freightliner dealer regarding potential extended warranty coverage for emissions components, including the EGR valve, as part of the BlueTEC emissions settlement. This settlement extended the warranty for certain parts to 4 years or 48,000 miles after the modification was performed.
• Mercedes-Benz has also issued a separate warranty extension for the EGR valve on some Sprinter models to 15 years/150,000 miles due to issues with dimensional variations during engine valve seating that could cause the EGR to malfunction.

Platform-Specific Known Issues

• The OM642 engine is known for oil cooler seal leaks, which occur in the same engine valley as the EGR valve. If you are replacing the EGR valve, it is highly recommended to inspect the valley for signs of oil leakage from the cooler seals, as this is the perfect time to address that common and labor-intensive repair. The original orange seals were prone to failure and were later updated to more durable purple Viton seals.

Hidden / Shadow Codes Worth Checking

• 2511-001: Check component Y27/9 (left EGR positioner). Positioner signals fault. This is the Mercedes-specific code that often accompanies the generic P0402 and points directly to a mechanical or electrical fault in the EGR valve assembly. (see via A Mercedes-specific scanner like Xentry/DAS or a capable aftermarket scanner (iCarsoft, Autel) is required to read this code.)
• 2355-001: Check system 'Exhaust gas recirculation'. The exhaust gas recirculation rate is too low. While this seems to contradict P0402, it can be set in conjunction when the system is behaving erratically or if other components like swirl flaps are malfunctioning. (see via A Mercedes-specific scanner is needed to view this manufacturer-specific fault code.)

Scan Tool Commands That Help

• Xentry/DAS, Autel, iCarsoft MB: EGR Valve Adaptation / Reset — This function should be performed after replacing the EGR valve. It teaches the Engine Control Module (ECM) the new valve's closed and open positions. Failing to perform this adaptation can cause the P0402 code to return even with a new part, as the ECM may be operating on the learned values of the old, faulty valve.
• Xentry/DAS, Autel, iCarsoft MB: Forced DPF Regeneration — After fixing the P0402 fault, the Diesel Particulate Filter (DPF) is often heavily loaded with soot because the EGR issue prevented passive regeneration. A forced regeneration must be initiated with a scan tool to clean the DPF and prevent a DPF-specific fault code from appearing next.

Wiring & Ground Locations

• Engine-to-Frame Ground Strap — Runs from the engine block to the chassis rail. Accessible from underneath the van.. Corrosion on this main ground strap is a notorious issue on Sprinters, causing high resistance and leading to a host of phantom electrical faults and incorrect sensor readings. While not a direct cause of the EGR sticking, a bad ground can interfere with the EGR position sensor's readings, potentially complicating diagnosis.
• Body Builder Ground Terminals — There are two M6 ground points under the driver's seat and another ground point on the frame under the floor.. These are central grounding locations for various body and cabin electronics. While less likely to be the primary cause for P0402, ensuring they are clean and tight is a crucial step in diagnosing any electrical issue on a Sprinter.
• EGR Valve Connector — The electrical connector on the EGR valve assembly itself, located at the back of the engine valley.. The connector and its wiring should be inspected for corrosion, damage, or oil contamination (often from the nearby oil cooler leaks), which could disrupt the position sensor signal and trigger faults.

Real Owner Repair Stories

• Reddit user jajao555 on r/Sprinters (2007 Sprinter 2500 3.0 V6 Diesel with ~183,000 miles) — Van went into limp mode and threw codes 2511-001 (EGR Positioner Fault) and 2510-001 (Boost Pressure Regulator Fault).
  ❌ Tried (didn't work) Cleaning the EGR valve and replacing the gasket. The code returned after a 20-mile test drive.
  ✅ What actually fixed it The user ended up replacing the EGR valve, the turbo boost actuator, and the DPF pressure sensor. They noted that an internal plastic piece on the original EGR valve had failed, which is something cleaning could never fix.
• MHH Auto forum user (Mercedes W211 with OM642 engine) — Fault code 2511 (EGR mechanism fault) appeared.
  ❌ Tried (didn't work) Replacing the EGR valve with a brand new OEM Wahler part. The same error returned after ten minutes of driving.
  ✅ What actually fixed it The final solution was to update the engine ECU software. The forum discussion noted that new electronic parts are often designed and validated against the latest ECU software, and a mismatch can cause a brand new part to be flagged as faulty.

OEM Part Supersession History

• A6421400460, A6421401860 → A6421401760 (among others, check VIN) — Part revisions to improve reliability and handle soot buildup. Wahler is the OEM manufacturer, and there have been several iterations.
  Heads up: While many part numbers are physically interchangeable, later revisions are generally preferred for improved durability. Always verify the correct part number for your specific VIN with a dealer, as there are subtle variations.

Model Year Variations Within This Range

• 2010-onward: Starting in 2010, Sprinters with the OM642 engine were equipped with the BlueTEC system, which uses SCR (AdBlue/DEF) to treat NOx emissions. This allowed for a reduction in the amount of EGR needed compared to earlier non-BlueTEC OM642 engines. While the EGR valve still fails from soot, the overall system strategy changed.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Oil Cooler Seal Leak 🔴 High — Extremely common, especially on pre-2010 models with original orange seals. Failure can occur as early as 60,000 miles. Oil pools in the engine 'V' and leaks down the back of the engine.
• Intake Manifold Swirl Flap Failure 🟠 Medium → Shop Engine Intake Manifold — Common around 100,000 miles. The plastic actuator rods for the intake swirl flaps break or the flaps get stuck with carbon, causing performance loss and codes like P2006/P2007.
• Injector Seal Leak ('Black Death') 🔴 High — Common issue where the copper injector seal fails, allowing combustion gases to leak into the cylinder head area, forming a hard, tar-like carbon deposit. If not addressed, it can ruin the cylinder head.
• Diesel Particulate Filter (DPF) Clogging 🟠 Medium → Shop Diesel Particulate Filter (DPF) — Common on vehicles used for short trips that don't allow for proper DPF regeneration. Often a secondary effect of other issues like EGR or swirl flap problems.
• Swirl Flap Motor Failure 🟠 Medium — The motor itself can fail, often due to oil from the notorious oil cooler leak dripping onto it. This prevents swirl flap operation and causes a limp mode.
• NOx Sensor Failure 🟠 Medium — A frequent failure item on BlueTEC models. A failed sensor can prevent the vehicle from starting after a certain number of key cycles. (Ref: Often covered under the BlueTEC emissions settlement extended warranty.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific failure (P0402 on an OM642), buying a used EGR valve is NEVER a smart choice. The failure mode is wear and contamination from soot. A used part from a junkyard will have unknown levels of carbon buildup and a weakened internal mechanism, making it highly likely to fail quickly, if it works at all. Given the high labor cost to access this part, installing a used one is a significant gamble that is not worth the risk.

What to inspect on the donor part:

• Not applicable. Do not buy a used EGR valve for this engine.

OEM-only on this vehicle (don't cheap out):

• While not strictly 'OEM-only', it is critical to use a high-quality, reputable brand for the EGR valve. Cheap, unbranded aftermarket parts are known to have high failure rates.

Aftermarket brands forum-validated for this vehicle:

• Wahler (Original Equipment Manufacturer)
• Pierburg
• Bosch

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name parts from online marketplaces. These often fail prematurely, sometimes immediately after installation, forcing a repeat of the labor-intensive repair.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0401 — Often present alongside P0402; relates to EGR system flow malfunctions.
• P0404 — Typically triggered if the integrated EGR position sensor fails or if the valve is mechanically jammed.
• P0101 — A Mass Airflow (MAF) sensor code that may appear because a stuck-open EGR valve causes abnormally low MAF readings at idle.
• P2006 — Relates to intake manifold swirl flap failure, a common OM642 issue that can occur alongside EGR problems due to carbon buildup.
• P2007 — Indicates stuck intake manifold swirl flaps, often caused by the same soot/carbon issues that trigger P0402.
