P0402 on 1997-2006 Honda CR-V: EGR Flow Excessive Detected Causes and Fixes

What's Unique About the 1997-2006 Honda CR-V

The 1997-2006 CR-V spans two generations with different engines (1st Gen B-series, 2nd Gen K-series), but both are notoriously prone to EGR issues. Unlike some vehicles where a sensor or solenoid is the primary culprit, on these older Hondas, P0402 is very frequently caused by a mechanical problem: the EGR valve's pintle getting physically stuck open with carbon deposits. While the valve is the immediate problem, the root cause is often heavy carbon accumulation in the intake manifold's EGR passages, a well-documented maintenance issue for this era of Honda engines that requires thorough cleaning for a permanent fix.

Generation note: This range covers the first generation (1997-2001, B20 engine) and the second generation (2002-2006, K24 engine) Honda CR-V. While the EGR valve design and location differ slightly, the primary cause of P0402—a carbon-stuck EGR valve and clogged passages—is common to both generations. The fix almost always involves deep cleaning of both the valve and the intake manifold ports.

Symptoms You May Notice

• Rough or surging idle, especially when the engine is warm.
• Engine stalling when coming to a stop or at low speeds.
• Hesitation or stumbling during acceleration.
• Reduced fuel economy.
• Illuminated Check Engine Light.
• Engine knocking or pinging sounds (detonation).

Most Likely Causes

1. EGR Valve Stuck Open with Carbon 🔴 High Probability → Shop Exhaust Gas Recirculation (EGR) Valve Hondas from this era are famous for significant carbon buildup in the EGR system, which cakes onto the valve's pintle and seat, physically preventing it from closing. This allows exhaust gas to flow constantly, causing the excessive flow condition at idle. 🎬 Watch: A step-by-step guide to fixing the P0402 code.
   How to confirm: Remove the EGR valve (held by two 12mm nuts) and visually inspect it. The pintle (the moving part) should be seated and closed. If it's caked with black soot and you can see a gap or it's stuck open, this is the cause.
   Typical fix: Thoroughly clean the EGR valve with carburetor or throttle body cleaner and a small brush, ensuring the pintle moves freely. Soaking the valve for several hours can help dissolve hard deposits. If it cannot be cleaned or is mechanically damaged, replacement is necessary.
   Est. part cost: $10-$25 for cleaning supplies, $75-$250 for a replacement valve.
2. Clogged EGR Passages in Intake Manifold 🟡 Medium Probability → Shop Engine Intake Manifold This is a classic Honda issue. Carbon from the exhaust builds up and hardens inside the small passages of the intake manifold that distribute EGR flow. Many owners replace the EGR valve only to have the P0402 code return because these passages were not cleaned, which is the root of the problem.
   How to confirm: After removing the EGR valve, inspect the port on the intake manifold. Use a pick, small wire brush, or even a drill bit (turned by hand) to feel for hard, restrictive carbon deposits. On some models, a cover plate on the manifold can be removed for better access.

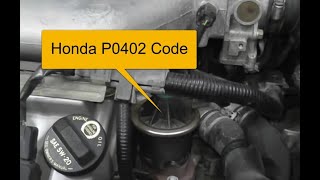

   Typical fix: For a permanent solution, the intake manifold must be removed for a thorough off-car cleaning of all EGR passages. 🎬 Watch: EricTheCarGuy shows how to deep clean clogged intake passages. This is labor-intensive but ensures all carbon is removed. Simply spraying cleaner into the ports with the manifold on the car is often insufficient.
   Est. part cost: $15-$30 for gaskets and cleaner.

Rare But Worth Checking

• Faulty EGR Control Solenoid or Vacuum Lines: On older, vacuum-operated systems (more common on 1st gen), a leaking vacuum line or a faulty control solenoid could incorrectly command the EGR valve to open, leading to excessive flow.
• Partially Clogged Catalytic Converter: A restriction in the exhaust system can create excessive backpressure, which can physically force the EGR valve open and trigger a P0402 code. This is uncommon but possible on high-mileage vehicles and would likely be accompanied by other performance issues.
• Faulty Manifold Absolute Pressure (MAP) Sensor: → Shop Manifold Absolute Pressure Sensor The PCM uses the MAP sensor to help determine EGR flow. A faulty MAP sensor can send incorrect data to the PCM, causing it to misinterpret the flow rate and set a P0402 code, even if the mechanical parts are working correctly.

Diagnosis Steps

1. Confirm the P0402 code is present using an OBD-II scanner and check for any other stored codes.
2. With the engine off, locate the EGR valve. On K24 engines (2nd gen), it's on the rear of the engine. Disconnect the electrical connector.
3. Remove the two 12mm nuts holding the EGR valve. A swivel socket and extension will likely be needed for the rear nut.
4. Visually inspect the valve. Is it heavily coated in black carbon? Is the central pintle stuck open? If so, you have found the primary cause.
5. Attempt to clean the valve thoroughly using carburetor cleaner and a small brush. Let it soak to dissolve heavy buildup.
6. Inspect the EGR port on the intake manifold. Scrape the opening with a pick or wire to check for hard carbon. If it is heavily clogged, the intake manifold itself will need to be removed and cleaned for a long-term fix.
7. If cleaning the valve resolves the issue, reinstall it with a new gasket to prevent leaks.
8. If the valve is clean and appears to function mechanically but the problem persists, inspect any vacuum lines connected to it for cracks or leaks (primarily on 1st gen models).
9. Clear the trouble code with the scanner and perform a test drive, including idling and stop-and-go driving, to see if the code or symptoms return.

Parts You'll Likely Need

• EGR Valve Gasket (OEM #18715-PB2-000) — A new gasket is required anytime the EGR valve is removed to ensure a proper seal and prevent vacuum or exhaust leaks.
  Trusted brands: Honda OE, Fel-Pro, Mahle
  OEM price range: $5-$15
  Aftermarket price range: $2-$10
• EGR Valve (OEM #18011-PPA-000 (2002-2006 K24), 18011-PAA-A00 (1998-2002 B20Z)) — This is the most likely part to fail by sticking open. While cleaning is often successful, if the valve is damaged or too clogged, replacement is necessary. Part number 18011-PAA-A00 is used across many Hondas of the era.
  Trusted brands: Honda OE, Standard Motor Products, Denso
  OEM price range: $180-$350
  Aftermarket price range: $75-$200
• Intake Manifold Gasket (OEM #17105-PPA-004 (2nd Gen K24), 17105-P3F-004 (1st Gen B20)) — Required if the intake manifold must be removed to clean the EGR passages properly, which is the definitive long-term fix.
  Trusted brands: Honda OE, Fel-Pro
  OEM price range: $20-$40
  Aftermarket price range: $10-$25

Related Codes That Often Appear With This One

• P0401 — P0401 (EGR Flow Insufficient) is the sister code to P0402. It's common to see one or the other, or even both, as carbon buildup can cause erratic EGR valve behavior—sometimes sticking open (P0402) and other times not opening enough or getting clogged (P0401).
• P030x (e.g., P0301, P0302) — Cylinder misfire codes can occur because the excessive, un-metered exhaust gas disrupts the air/fuel mixture, leading to incomplete combustion, especially at idle.
• P0172 — A 'Fuel System Too Rich' code can sometimes accompany EGR issues. The computer may try to compensate for the unexpected exhaust gas (which it sees as inert and lacking oxygen) by adjusting fuel trim, leading to an overly rich condition.

Platform-Specific Known Issues

• Honda engines of this period are widely known for carbon buildup in the EGR system, making P0401 and P0402 very common codes. The fix almost always involves cleaning rather than just replacing parts.
• A Reddit user on r/MechanicAdvice with a similar Honda issue highlighted the common mistake: 'The code is misleading, more than likely you have clogged EGR passages in the intake. It's a very common issue.' This reinforces that cleaning the manifold is critical.

Mechanic-Grade Diagnostic Values

• 2nd Gen (K24 Engine) EGR Valve Stepper Motor Coil Resistance — expected: 19.9 - 23.4 ohms between the center power pin and each of the four control pins.. Failure: A reading that is significantly higher (e.g., over 100k ohms) or an open circuit (OL) indicates a failed coil in the stepper motor.
• 1st Gen (B20 Engine) EGR Valve Lift Sensor Voltage — expected: Approximately 0.5V with the valve closed (no vacuum) and rising to ~4.5-5.0V with the valve fully opened by a hand vacuum pump.. Failure: Voltage that is stuck high (e.g., 5V) with no vacuum applied indicates a stuck-open sensor. Voltage that does not change when vacuum is applied indicates a failed sensor or stuck pintle.
• 2nd Gen (K24 Engine) EGR Valve Connector Voltage (Key On, Engine Off) — expected: 12V+ at the power supply pin (often YEL/BLK) and a solid ground (near 0V) at the ground pin (often GRN/BLK). The signal pins will show reference voltage from the PCM.. Failure: No voltage or low voltage at the power pin indicates a wiring or fuse issue. High resistance on the ground pin points to a bad ground connection.

Scan Tool Commands That Help

• Honda HDS (Honda Diagnostic System) or equivalent professional scanner: EGR System Test / Actuation Test — This is a powerful bidirectional test to use after initial cleaning fails to resolve the issue. The tool commands the EGR valve to open to a specific percentage (e.g., 25%, 50%, 100%) while the engine is idling. The technician monitors engine RPM and MAP sensor data. A functional system will show a distinct drop in RPM and a change in MAP pressure as the valve opens. If the engine does not stumble or stall, it confirms the passages are blocked. If the live data for 'EGR LIFT' does not match 'EGR L COMMAND', the valve itself is faulty.

Wiring & Ground Locations

• G101 — Bolted to the thermostat housing or nearby on the cylinder head/engine block on the left (driver's) side of the engine bay.. This is a primary engine and PCM ground point. Corrosion or a loose connection here can cause erratic voltage and incorrect readings for multiple sensors, including those the PCM uses to infer EGR operation, potentially leading to a false P0402 code or other sensor-related faults.
• EGR Valve Connector (2nd Gen K24) — Plugged into the EGR valve, located on the rear of the intake manifold.. This 5 or 6-pin connector provides power, ground, and control signals to the EGR valve's stepper motor and position sensor. Checking for power, ground, and signal integrity at these pins is a key diagnostic step. A corroded or damaged pin can mimic a failed EGR valve.

Real Owner Repair Stories

• Honda-Tech Forum Member (Honda with H22A1 engine (similar EGR passage design to CR-V)) — Failed smog test due to NOx, EGR valve tested good.
  ❌ Tried (didn't work) Replacing the EGR valve., Spraying cleaner into the EGR port with the manifold on the car.
  ✅ What actually fixed it The owner removed the intake manifold from the car. The small metal plugs covering the ends of the EGR runner passages were drilled out. This allowed a flexible drill bit and brushes to be run through the entire length of the passages, removing a large amount of hardened carbon that was inaccessible from the main EGR port. The holes were then tapped and sealed with threaded bolts. This is considered the most thorough method for cleaning these manifolds.
• Honda-Tech Forum Member (Honda CR-V with stalling issues) — Car would randomly die and not restart, especially in cold weather.
  ❌ Tried (didn't work) Cleaning the G101 ground connection at the thermostat housing.
  ✅ What actually fixed it The G101 ground wire itself was frayed and broken inside the wiring loom, though the terminal connection looked fine. The final fix was to run a new, temporary ground wire from the ECU's G101 pin directly to the chassis, which immediately solved the problem. The permanent fix was repairing the broken wire in the harness.

OEM Part Supersession History

• 18011-PAA-A00 → 18710-PAA-A01 (often used interchangeably) — Standard part evolution and consolidation.
  Heads up: This part number is widely used across 1998-2002 Accords and other Hondas with the B-series family, indicating good cross-compatibility for 1st Gen CR-Vs.

Model Year Variations Within This Range

• 1997-2001 (1st Gen): Uses the B20 series engine. The EGR system is typically vacuum-actuated with an electronic lift position sensor, rather than a full electronic stepper motor. Diagnosis involves testing vacuum lines, the control solenoid, and the lift sensor's voltage output.
• 2002-2004 (2nd Gen, Pre-Facelift): Uses the K24A1 engine with a cable-actuated throttle body and a 4-speed automatic transmission. The EGR valve is a 5 or 6-pin stepper motor design.
• 2005-2006 (2nd Gen, Facelift): Received a mid-cycle refresh. The K24A1 engine was updated with a drive-by-wire throttle system and a 5-speed automatic transmission. While the EGR principle is the same, the PCM's control strategy and interaction with the electronic throttle may differ. Also features different headlights and larger 16-inch wheels.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: An intake manifold is an excellent candidate for a used part. It is a non-wearing metal casting. Buying a used one allows you to have it professionally cleaned or clean it thoroughly on a workbench at your leisure, then swap it in, minimizing vehicle downtime compared to cleaning the original manifold on the car.

Donor-vehicle mileage cap: roughly under 150000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for any visible cracks, especially around mounting points.
• Ensure all threaded holes for sensors and the throttle body are clean and not stripped.
• If possible, look into the throttle body opening to gauge the level of carbon buildup; less is better.
• Verify it's from the correct engine generation (B-series vs K-series) as they are not interchangeable.

Aftermarket brands forum-validated for this vehicle:

• Denso (often the OEM supplier)
• Standard Motor Products (SMP)
• Fel-Pro (for gaskets)

Brands owners have reported issues with on this vehicle:

• Unbranded 'white-box' EGR valves from online marketplaces are frequently reported on forums to fail prematurely or have incorrect flow characteristics out of the box, causing the code to return.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0401 — This code for 'EGR Flow Insufficient' is the direct counterpart to P0402. Both are extremely common on this CR-V and are caused by the same root problem: carbon buildup in the EGR valve and intake passages, which can cause the valve to stick open (P0402) or closed (P0401).
• P0300 — A random misfire code can be triggered by P0402. The EGR valve being stuck open allows exhaust gas to constantly flow into the cylinders at idle, diluting the air-fuel mixture and causing symptoms like a rough idle, stumbling, and stalling, which can be registered as misfires by the ECU.
• P0171 — A 'System Too Lean' code can occur alongside P0402. The constant flow of inert exhaust gas displaces oxygen in the intake charge, which can be misinterpreted by the oxygen sensors. The ECU may try to compensate for this perceived lean condition, and if the required adjustment exceeds its limits, a P0171 code can be set.
• P0325 — This is a Knock Sensor circuit code. The context lists 'engine knocking or pinging' as a possible symptom. While a stuck-open EGR valve typically reduces detonation, a malfunctioning EGR system can lead to improper combustion temperatures under various loads, potentially causing knock that is detected by the sensor.
