P0404 on 2021 Jeep Gladiator 3.0L EcoDiesel: EGR Circuit Range/Performance Fixes

What's Unique About the 2021-2021 Jeep GLADIATOR

The 3rd Generation 3.0L EcoDiesel engine in the 2021 Gladiator is prone to significant carbon and soot buildup in the emissions system. This makes the EGR valve particularly susceptible to sticking or clogging, which is a primary trigger for the P0404 code. This engine platform features a complex emissions system with both a high-pressure and a low-pressure EGR valve, increasing potential failure points. Furthermore, this specific engine and vehicle combination has been the subject of multiple Technical Service Bulletins (TSBs) that involve software updates to correct sensitivities in the emissions monitoring system, which can sometimes be the root cause instead of a mechanical failure.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• Rough or unstable idle, sometimes leading to stalling.
• Hesitation during acceleration or a feeling of reduced power.
• Engine knocking or pinging sounds, especially under load.
• Decreased fuel economy.
• Possible engine stalling at low speeds.
• Sweet smell from the exhaust or white smoke, if the related EGR cooler is leaking coolant.

Most Likely Causes

1. Clogged or Sticking EGR Valve 🔴 High Probability → Shop Exhaust Gas Recirculation (EGR) Valve The 3.0L EcoDiesel produces significant soot which builds up in the EGR valve and associated tubes, restricting its movement. Forum users on Reddit have shared images of heavy soot buildup after as little as 87,000 miles.
   How to confirm: Remove the EGR valve and visually inspect for heavy, dry carbon deposits that prevent the pintle from moving freely. Use a scan tool to command the valve open and closed and check if it responds in the live data screen. A gooey, tar-like substance indicates a leaking EGR cooler, not just soot.

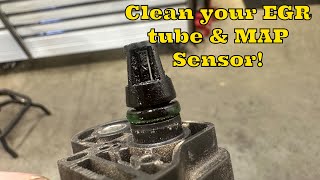

   Typical fix: Thoroughly clean the EGR valve and its passages with a suitable solvent like WD-40 specialist carb cleaner. 🎬 Watch: Step-by-step guide to cleaning your EcoDiesel EGR and MAP sensors. If cleaning doesn't restore function or the valve is heavily worn, replacement is necessary. Re-use of the gasket is not recommended.
   Est. part cost: $390-$600
2. PCM Software/Calibration Issue 🟡 Medium Probability Jeep has issued multiple TSBs for the 2021 Gladiator EcoDiesel that address various emissions-related codes, including P0404, with a PCM software update. This indicates the original software was overly sensitive and could set the code even without a mechanical fault.
   How to confirm: A Jeep dealership or a qualified shop with a wiTECH scan tool can check your vehicle's VIN against TSBs #18-060-24 and #18-002-22 REV. A to see if a software update is available and required. This should be a primary diagnostic step before replacing parts.
   Typical fix: Reprogramming the Powertrain Control Module (PCM) to the latest software version. This is a dealer-level repair that typically takes under an hour.
   Est. part cost: $0-$250
3. Faulty EGR Valve Position Sensor 🟡 Medium Probability → Shop Exhaust Gas Recirculation (EGR) Valve The position sensor reports the valve's location to the PCM. It can fail electronically, sending incorrect data even if the valve itself moves correctly. Cleaning a valve with a failed internal sensor will not resolve the P0404 code.
   How to confirm: Use a scan tool to monitor the EGR position sensor voltage or percentage as the valve is commanded to move. The value should change smoothly and correlate with the commanded position. An erratic, stuck, or non-responsive signal indicates a bad sensor.
   Typical fix: The position sensor is integrated into the EGR valve assembly, so the entire valve must be replaced.
   Est. part cost: $390-$600
4. Wiring or Connector Problems ⚪ Low Probability The wiring harness to the EGR valve is exposed to high engine bay temperatures, which can make wires brittle or damage the connector over time. A known chafe point exists where the transmission harness can rub against an EGR tube clamp under the front passenger fender well. Off-road use can also introduce dirt and moisture into connectors.
   How to confirm: Visually inspect the wiring and connector for signs of melting, corrosion, or loose pins, paying special attention to the harness routing near the passenger fender. Perform a 'wiggle test' on the harness while monitoring live data to see if the sensor reading fluctuates. Use a multimeter to check for proper voltage and continuity at the connector.
   Typical fix: Repair the damaged section of wiring or replace the pigtail connector. Secure the harness away from chafe points with zip ties.
   Est. part cost: $20-$50

Rare But Worth Checking

• Leaking EGR Cooler: → Shop Exhaust Gas Recirculation (EGR) Valve The 3rd Gen 3.0L EcoDiesel is known for EGR cooler failures where coolant leaks internally. This creates a gooey, tar-like substance instead of dry soot, which can cause the EGR valve to stick and trigger P0404. A key symptom is unexplained coolant loss with no visible external leak. A forum member on JeepGladiatorForum.com documented this exact issue, showing pictures of the 'gooey tar-like substance' on the EGR diffuser tube.

Diagnosis Steps

1. Connect an OBD-II scanner and confirm P0404 is present. Note any other codes, as they can provide critical context (e.g., P0524, P040F, P0401).
2. Check with a Jeep dealer or a professional service database for any open recalls or Technical Service Bulletins (TSBs) related to your VIN, specifically mentioning TSBs #18-060-24 and #18-002-22 REV. A. A software update may be the required fix and should be performed before replacing parts.
3. Using a capable scan tool like wiTECH, run the 'EGR Actuator Test'. Monitor the live data for Commanded EGR Position vs. Actual EGR Position. Command the valve to open and close (0-100%); the actual position should closely and smoothly follow the commanded one. A significant discrepancy, lag, or jumpy reading points to a problem with the valve or its sensor.
4. Inspect the electrical connector and wiring going to the EGR valve. Pay close attention to the harness under the front passenger fender well for chafing against the EGR tube clamp.

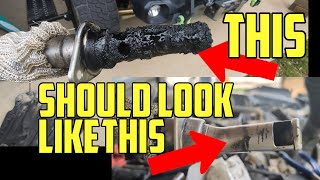

5. If the scan tool test fails and wiring appears intact, remove the EGR valve and EGR diffuser tube. 🎬 See how to properly remove and clean a soot-filled EGR tube. Inspect the valve and the passages for heavy carbon/soot buildup. A gooey, wet, tar-like substance indicates a likely EGR cooler leak, which is a more serious issue.
6. If the valve is clogged with dry soot, clean it and the passages thoroughly using an appropriate solvent and brushes. Reinstall with a new gasket and re-test.
7. If cleaning does not resolve the issue, or if the valve was clean but failed the scan tool test, the EGR valve assembly (which includes the sensor) is faulty and needs to be replaced.
8. If you are experiencing gradual coolant loss with no visible leaks, pressure test the cooling system and test for exhaust gases in the coolant to confirm a leaking EGR cooler.

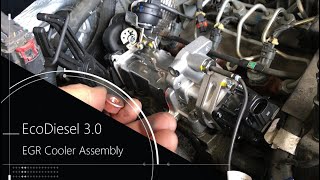

🎬 Watch: Professional walkthrough of the EcoDiesel 3.0 EGR cooler replacement process.

Parts You'll Likely Need

• High-Pressure EGR Valve (OEM #68490212AA) — This is the most common failure point for code P0404 on the 3.0L EcoDiesel, either due to sticking from soot buildup or internal electronic failure of the position sensor. It is often referred to as the 'High-Pressure' EGR valve.
  Trusted brands: Mopar
  OEM price range: $390-$595
  Aftermarket price range: $250-$450
• EGR Valve Gasket — A new gasket is required whenever the EGR valve is removed for cleaning or replacement to prevent exhaust leaks. It is not recommended to reuse the old gasket.
  Trusted brands: Mopar, Fel-Pro
  OEM price range: $10-$20
  Aftermarket price range: $5-$15

Related Codes That Often Appear With This One

• P040F — This code for EGR Temperature Sensor Correlation often appears with P0404 as part of a broader EGR system fault, as documented in Jeep TSBs.
• P0524 — This code for Low Oil Pressure on startup is also linked in TSBs for the 2021 Gladiator and is often resolved by the same PCM software update that addresses P0404.
• P0088 — Fuel Rail Pressure Too High can be triggered alongside P0404, pointing to a complex issue that may require a dealer-level software update to resolve.
• P0401 — This code for 'Insufficient EGR Flow' is closely related and often points to a clogged EGR cooler or passages, which can also cause the P0404 performance fault.
• P1404 — A similar code for 'EGR closed position performance' was reported by a Gladiator owner, pointing to the same component failure. The dealer repair was quoted as a thousand-dollar job but was covered under warranty.

Technical Service Bulletins (TSBs) & Recalls

• 18-060-24: Addresses P0404 along with other engine codes, often recommending a PCM software update.
• 18-002-22 REV. A: Also lists P0404 as part of a group of codes that may be fixed by a PCM reflash.

Platform-Specific Known Issues

• Jeep has issued Technical Service Bulletin #18-060-24, which lists P0404 as one of several codes that may be resolved with a PCM software update.

Mechanic-Grade Diagnostic Values

• EGR Valve 5-Pin Connector - 5V Reference Voltage — expected: Approximately 5.0 Volts with Key On, Engine Off (KOEO). Failure: Voltage that is significantly lower than 5.0V or 0V indicates an open/short in the reference circuit or a PCM issue.
• EGR Valve 5-Pin Connector - Sensor Ground — expected: Near 0V, with good continuity to chassis ground (< 5 ohms).. Failure: Voltage present on the ground line or high resistance to ground indicates a faulty ground circuit.

Scan Tool Commands That Help

• wiTECH or equivalent bidirectional scanner: EGR Actuator Test — This is a primary diagnostic step to command the EGR valve from 0-100% while monitoring the 'Commanded' vs 'Actual' position PIDs. It definitively tests if the valve is physically sticking or if the position sensor is failing to report correctly.
• wiTECH or equivalent bidirectional scanner: EGR System Routine / Reset — After replacing the EGR valve or thoroughly cleaning the system, this function should be used to clear the PCM's learned adaptive values for the old component, forcing it to relearn the flow and position characteristics of the new/clean part.

Wiring & Ground Locations

• EGR Valve Connector (E-15) — Located at the left rear of the engine, on the high-pressure EGR valve assembly itself.. This is the primary connection point for all power, ground, and signal wires for the EGR valve. All electrical tests for the valve's position sensor and control motor start here.
• Harness Chafe Point — The transmission wiring harness located under the front passenger side fender well area can be mis-routed and rub against the hot EGR tube clamp.. Over time, this rubbing can melt or fray the wiring insulation for the EGR circuits, causing a short or open that directly triggers P0404 or other related electrical codes. This should be inspected before replacing the EGR valve.

Real Owner Repair Stories

• jeepgladiatorforum.com user (2021 Jeep Gladiator EcoDiesel) — Check engine light with codes P0404 and P0401 (Insufficient Flow).
  ❌ Tried (didn't work) Cleaning the EGR valve., Dealer replaced the EGR valve under warranty.
  ✅ What actually fixed it The root cause was a completely clogged EGR cooler. After the dealer replaced the EGR cooler assembly, the codes were resolved.

OEM Part Supersession History

• 68490212AA → 68490212AB, then 68490212AC — Part revisions to improve reliability and address common failure modes like sticking or electronic faults.
