P0440 on 2014-2018 BMW X5: EVAP System Malfunction Causes and Fixes

What's Unique About the 2014-2018 BMW X5

Unlike many vehicles that use engine vacuum to test the EVAP system, BMWs from this era use a specific component called a Diagnostic Module Tank Leakage (DMTL) pump. This small electric pump pressurizes the system to check for leaks. While this provides accurate testing, the DMTL pump itself is a common failure point that frequently leads to EVAP-related codes like P0440 on the F15 X5 platform. The pump's internal motor can wear out, or the unit can fail to pressurize the system, leading to a failed self-test.

Symptoms You May Notice

• Check Engine Light is on
• A faint fuel smell may be noticeable around the vehicle, especially when parked in an enclosed space like a garage.
• In rare cases, difficulty filling the fuel tank (the pump nozzle clicks off repeatedly) can be a symptom if a vent path is blocked.

Most Likely Causes

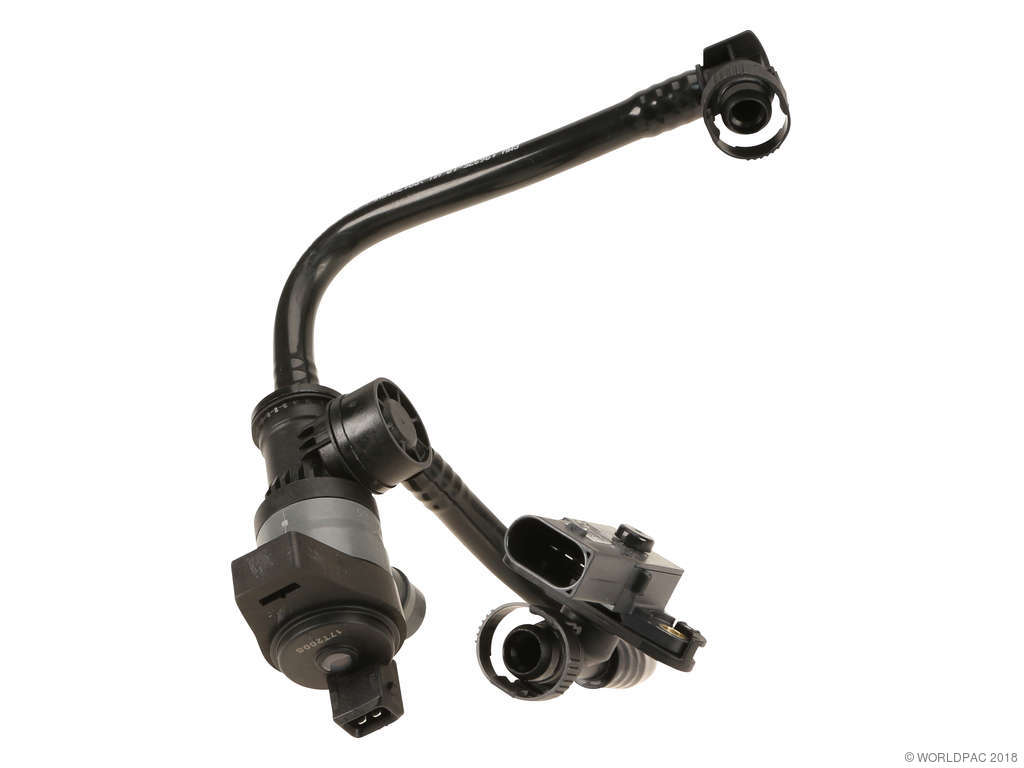

1. Faulty Fuel Tank Vent Valve (Purge Valve) 🔴 High Probability → Shop Fuel Tank Forum discussions for the F15 X5 and related platforms specifically point to this valve failing or not sealing properly, causing intermittent or persistent codes. It's a known wear item that can get stuck open or closed, disrupting the flow of vapors. Some sources indicate an extended warranty may exist for this part on 2015-2018 models.
   How to confirm: Listen for a clicking sound from the valve with the engine running; this is normal operation. A valve that is silent or excessively loud may be faulty. A technician can command the valve to open and close with a scan tool to test its function or perform a smoke test to see if it's leaking when commanded closed.
   Typical fix: Replacement of the fuel tank vent valve. On the N55 engine, this valve is located under the intake manifold, requiring its removal for access.
   Est. part cost: $60-$120
2. Faulty DMTL (Diagnostic Module Tank Leakage) Pump 🔴 High Probability → Shop Evaporative Emissions System Leak Detection Pump The DMTL pump is a known failure item on many BMW models of this era. It contains a small motor that wears out over time, preventing the system from being properly pressurized for the leak test. The part is made by Bosch and is used across a wide range of BMWs.
   How to confirm: The pump can sometimes be heard running a self-test briefly when the car is first unlocked or after being shut off. If it's unusually noisy or completely silent, it may be faulty. A diagnostic scan tool with BMW-specific functions can activate the pump on command to check its operation and current draw.
   Typical fix: Replace the DMTL pump and its sealing grommet. It is typically located near the charcoal canister, accessible after removing the rear passenger-side wheel and wheel well liner. 🎬 Watch: This walkthrough shows how to replace the DMTL pump.
   Est. part cost: $90-$180

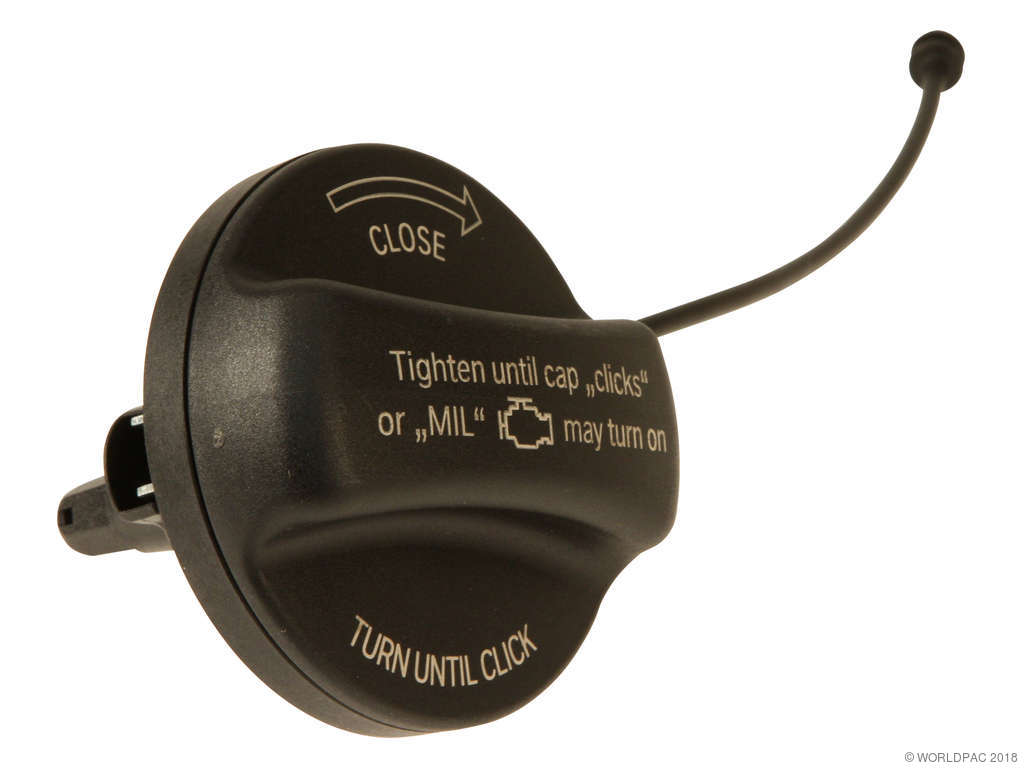

3. Loose, Damaged, or Incorrect Gas Cap 🟡 Medium Probability → Shop Fuel Tank Cap This is a common cause on all vehicles. The rubber O-ring on the cap can degrade, crack, or become dirty over time, preventing a proper seal. Owners frequently report this as a first-step fix, though it is often not the final solution on BMWs.
   How to confirm: Inspect the gas cap for cracks in the plastic or damage to the rubber O-ring. Clean any debris from the seal and the fuel filler neck. Ensure it is tightened until it clicks at least once. If the seal looks worn, replacement is an inexpensive first diagnostic step.
   Typical fix: Tighten or replace the gas cap.
   Est. part cost: $25-$50
4. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Over time, the plastic and rubber hoses in the EVAP system can become brittle from heat and vibration, leading to cracks. This is less common than component failure but should not be overlooked, especially on V8 models where under-hood heat is higher.
   How to confirm: A visual inspection may reveal obvious cracks or disconnected lines, particularly in the engine bay. However, small leaks are best found using a smoke machine, which fills the EVAP system with visible vapor to pinpoint the exact source of the leak.
   Typical fix: Replace the damaged section of hose or the specific line assembly.
   Est. part cost: $20-$100

Rare But Worth Checking

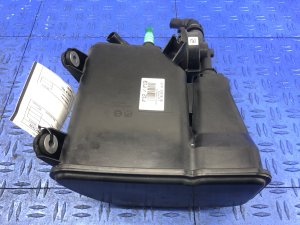

• Cracked Charcoal Canister: → Shop Vapor Canister The charcoal canister stores fuel vapors. While not as common, a physical crack in the canister housing will cause a major leak and trigger this code. Damage can occur from road debris or age.
• Faulty Fuel Tank Pressure Sensor: → Shop Fuel Tank This sensor reports the pressure within the EVAP system to the ECM. If it provides incorrect readings, the ECM may falsely believe there is a leak when there isn't one.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0440 is present. Note any other codes.
2. Inspect the gas cap. Remove it, check the seal for cracks or wear, and clean any debris from the cap and filler neck. Reinstall it, ensuring it clicks several times. Clear the code and drive for a few days to see if it returns.
3. If the code returns, perform a visual inspection of all accessible EVAP hoses between the engine bay and the fuel tank, looking for obvious cracks, damage, or disconnections.
4. Locate the fuel tank vent valve (purge valve) in the engine bay. With the engine running, listen for a steady clicking noise. The absence of noise or a very loud buzzing could indicate a problem.
5. Locate the DMTL pump, usually behind the rear passenger-side wheel well liner. Listen for it to run for a few seconds when the vehicle is unlocked or after it's shut off.
6. For a definitive diagnosis, a smoke test is the most effective method. A mechanic will inject smoke into the EVAP system's service port. Smoke will exit from any leaks, making them easy to identify, whether it's a hose, valve, or canister.
7. If no leaks are found via a smoke test, the issue is likely an electrical component like the DMTL pump, vent valve, or pressure sensor. These should be tested individually using a capable scan tool that can command them to actuate and monitor their response.

Parts You'll Likely Need

• Fuel Tank Vent Valve (Purge Valve) (OEM #13907618643) — This valve controls vapor flow and is a common failure point on the F15 platform, often getting stuck or failing to seal. It is frequently discussed in owner forums as the solution to P0440.
  Trusted brands: Bosch, Genuine BMW
  OEM price range: $90-$120
  Aftermarket price range: $60-$90
• DMTL Pump (OEM #16137193479) — The motor in this BMW-specific leak detection pump is a known weak point that wears out over time, causing a system test failure. It is a very common replacement part for EVAP codes on BMWs.
  Trusted brands: Bosch, Genuine BMW
  OEM price range: $120-$180
  Aftermarket price range: $70-$130
• Fuel Filler Cap (OEM #16117222391) — The seal can wear out, preventing the system from holding pressure. It's an inexpensive and easy first part to replace, although less likely to be the root cause than the valves or pump.
  Trusted brands: Genuine BMW, Blau
  OEM price range: $30-$50
  Aftermarket price range: $20-$35

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB was found for P0440 on the F15 X5, some forum users mention a possible extended warranty on the purge valve for 2015-2018 models, which would be dealer-specific information to confirm with a VIN.
• A related TSB, B160123, addresses the BMW-specific code 190302 (micro-leak) on other models, indicating a known issue with the EVAP system that dealers are aware of.

Platform-Specific Known Issues

• Intermittent Code Appearance: Owners have reported the P0440 code appearing, then disappearing on its own for months, only to return later. This intermittent behavior can be frustrating and often points to a component that is beginning to fail, like a sticky vent valve, rather than a constant hard leak.
• Confusion on Hybrid Models: On the X5 xDrive40e (the plug-in hybrid model), the EVAP system components and terminology can be slightly different, leading to confusion for mechanics. For example, discussions mention a 'non-return valve' and 'insulation valve' which complicated diagnosis.

Mechanic-Grade Diagnostic Values

• DMTL Pump Motor Current Draw — expected: A specific, stable amperage value after an initial spike. The DME compares this value to a reference for a 0.5mm or 1.0mm leak.. Failure: If the current is lower than expected, it indicates a large leak (less back-pressure). If the current is too high or erratic, it can indicate a restriction or a failing pump motor. A code like 2A17 indicates the test couldn't start, pointing to a pump or wiring failure.
• DMTL Pump Connector Voltage — expected: 12V (battery voltage) at the power supply pin (Pin 4, typically a Red/White wire) when the ignition is on or shortly after shutoff.. Failure: Significantly lower voltage (e.g., 4-5V) points to a wiring issue, such as corrosion in the power supply wire, which can prevent the pump from operating correctly.

Hidden / Shadow Codes Worth Checking

• 190302: Tank ventilation and purge air system, micro-leak: leakage more than 0.5 mm. This is a common BMW-specific code that often accompanies a generic P0440. (see via BMW-specific diagnostic software like ISTA, or advanced OBD-II scanners (Foxwell, Autel, etc.).)
• 190F08: Tank ventilation system, malfunction. Often points towards a faulty purge valve (tank vent valve). Seen on F15 Hybrid models. (see via BMW-specific diagnostic software (ISTA) or advanced scanners.)
• 2A17: DMTL, system fault. This code indicates the DMTL pump itself failed or the test routine could not be initiated, pointing directly at the pump or its wiring. (see via BMW-specific diagnostic software or advanced scanners.)
• 2A15: DMTL, minor leak. This indicates a smaller leak was detected by the pump's current draw analysis. (see via BMW-specific diagnostic software or advanced scanners.)

Scan Tool Commands That Help

• ISTA (Rheingold/ISTA-D): EVAP System Test Plan (ABL) — This is the primary guided diagnostic function. It will walk the technician through a full system check, including commanding the DMTL pump to run and interpreting the results to isolate the fault.
• ISTA (Rheingold/ISTA-D): Reset DME Adaptation Values — This is critical after replacing certain components or if a non-leak fault is suspected. For example, if sensor plugs were swapped, the adaptations must be reset for the DME to re-learn the correct sensor inputs and clear the fault.
• Advanced Scan Tool (e.g., Autel, Foxwell): Actuate EVAP Purge/Vent Solenoid — This bidirectional command allows you to manually open and close the purge valve to check for mechanical function (listening for a click) or to seal the system for a smoke test.

Wiring & Ground Locations

• DMTL Pump Connector (X1714 on similar models) — At the DMTL pump, located behind the rear passenger-side wheel well liner.. This 4-pin connector provides power and ground control to the pump, heater, and valve within the DMTL unit. Corrosion or damage to these wires is a known failure point. Pinout on similar E90 platform: Pin 1 (Pump Control, BRN/BLU), Pin 2 (Heater, BLK/RED), Pin 3 (Valve, BLK/GRN), Pin 4 (Power, RED/WHT).

Real Owner Repair Stories

• Bimmerpost user 'jobert' (2017 BMW X3 (F25) with N20 engine (similar EVAP components)) — Persistent Check Engine Light with code 190F08 after multiple purge valve replacements.
  ❌ Tried (didn't work) Replacing the purge valve with a used OEM part., Replacing the purge valve again with a brand new OEM part.
  ✅ What actually fixed it The electrical connectors for the two differential pressure sensors near the throttle body had been swapped. They have identical plugs. After swapping them back to their correct positions and, critically, resetting the DME adaptation values using ISTA software, the fault was resolved permanently.

"I Checked Everything" — The Actual Cause

• In one documented case, after replacing EVAP valves did not work, the root cause was found to be swapped electrical connectors on the two differential pressure sensors located near the throttle body. Because the sensors were providing incorrect (but still valid) data to the engine computer, the system falsely reported an EVAP malfunction. A smoke test would show no leaks in this scenario, as the fault was purely electrical/logical. The fix required correcting the plugs and resetting DME adaptations with ISTA.

OEM Part Supersession History

• 16136752551, 16136764191 → 16137193479 — Standard part evolution and consolidation for the DMTL Pump.
• 13904588396, 13907572234 → 13907618643 — Updated design/materials for the Fuel Tank Vent Valve (Purge Valve).

Model Year Variations Within This Range

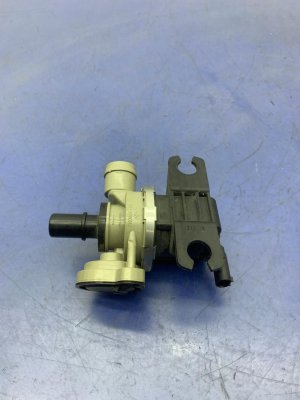

• 2016-2018: The X5 xDrive40e plug-in hybrid model was introduced. Its EVAP system uses slightly different terminology (e.g., 'insulation valve', 'non-return valve') which can cause confusion during diagnosis compared to the standard gasoline models.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• N55 Engine Oil Leaks (Valve Cover & Oil Filter Housing) 🟠 Medium — Very common, typically occurs after 50,000-70,000 miles. Gaskets become hard and brittle with heat cycles.
• N55 Electric Water Pump Failure 🔴 High — Common failure item, often between 50,000 and 80,000 miles. Can fail suddenly without warning, leading to engine overheating.
• N63/N63TU Engine High Oil Consumption 🔴 High — A well-documented issue, particularly on earlier N63 engines, often related to valve stem seals or piston rings. Can require frequent oil top-offs. (Ref: BMW initiated a 'Customer Care Package' (CCP) for early N63s to address some issues, but problems can persist.)
• N63/N63TU Timing Chain Stretch 🔴 High — Can occur past 100,000 miles, leading to rattling noises on startup. If the chain fails or jumps time, it can cause catastrophic engine damage.
• Air Suspension Failures 🟠 Medium — For models equipped with air suspension, leaks in the airbags (air springs) are a common problem, often requiring replacement every 45,000-60,000 miles.
• Diesel High-Pressure Fuel Pump (HPFP) Failure 🔴 High → Shop Fuel Pump — Affects diesel models (X5 xDrive35d). The HPFP can fail, causing the engine to stall while driving. (Ref: NHTSA Recall 22V-119)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific P0440 fault, using used parts is generally not recommended for the primary electronic culprits (DMTL pump, purge valve). A forum member reported a used OEM purge valve failed to fix the issue, requiring the purchase of a new one. Used parts might be considered for purely structural components like the charcoal canister or hoses, but only after a thorough visual inspection for cracks or damage.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for zero cracks or brittleness in plastic housings and hose connections.
• Inspect electrical connector pins for any signs of corrosion (green or white powder).
• Verify the part number on the used component is an exact match or an accepted superseded number.

OEM-only on this vehicle (don't cheap out):

• Fuel Tank Vent Valve (Purge Valve)
• DMTL Pump

Aftermarket brands forum-validated for this vehicle:

• Bosch is the Original Equipment Supplier (OES) for the DMTL pump and other EVAP components. Buying the Bosch-branded part is often identical to the Genuine BMW part at a lower cost.

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost parts from online marketplaces are a significant gamble, as BMW's leak detection system is highly sensitive and may reject parts that are not built to precise specifications.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• 190302 — A BMW-specific manufacturer code indicating an EVAP micro-leak, often associated with the same system failures as P0440.
• P0442 — Often triggered by the same faulty DMTL pump or a leaking gas cap O-ring when the system detects a small leak during the pressurized self-test.
• P0455 — A large leak code that can result from a fuel tank vent valve stuck open or a completely disconnected EVAP hose.
• P0441 — Related to incorrect purge flow, frequently caused by a failing fuel tank vent valve (purge valve) that is no longer sealing properly.
