P0440 on 2016 Fiat 500X: EVAP System Failure Causes and Fixes

What's Unique About the 2016-2016 Fiat 500X

For the 2016 Fiat 500X, this code can be more than just a simple part failure. Fiat issued several Technical Service Bulletins (TSBs) which included a PCM software update to address a list of potential trouble codes, including P0440. This suggests that in some instances, the code could be triggered erroneously. Therefore, if simple mechanical checks don't reveal a problem, verifying that the vehicle's software is up-to-date is a unique and important diagnostic step for this specific model. The issue is also prevalent on its platform-mate, the Jeep Renegade, which shares the same 2.4L Tigershark and 1.4L MultiAir engines and EVAP components.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• A faint smell of fuel, especially around the rear of the vehicle.
• Failure to pass an emissions test.

Most Likely Causes

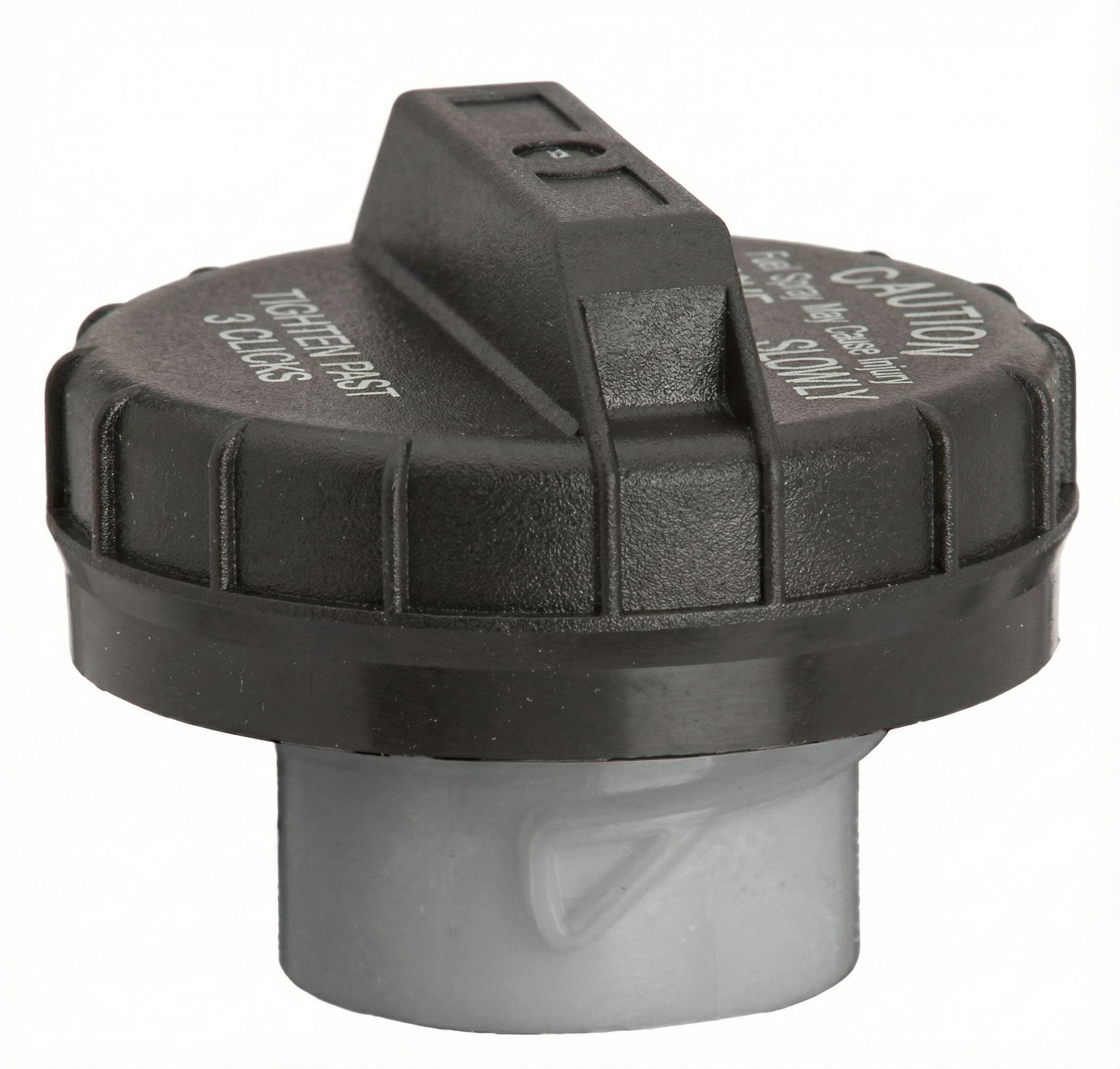

1. Loose or Faulty Gas Cap 🔴 High Probability → Shop Fuel Tank Cap This is the most common cause for a P0440 code on any vehicle due to its frequent use and simple seal design. On the 500X specifically, owners have reported the plastic clips on the fuel filler neck assembly breaking, which prevents the cap from seating and sealing correctly, triggering an EVAP code.
   How to confirm: Ensure the gas cap is tightened until it clicks. Inspect the cap's seal for cracks, brittleness, or damage. Check the filler neck opening for broken plastic clips that would prevent a tight seal. If the light returns after tightening, the cap may be faulty.
   Typical fix: Tighten or replace the gas cap. If the filler neck is broken, it may require replacement.
   Est. part cost: $15-$30
2. Faulty EVAP Purge Valve/Solenoid 🟡 Medium Probability → Shop Vapor Canister The purge valve is a frequently cycling electromechanical part that can stick open or closed over time, a common issue on many modern vehicles including the Fiat 500X and its platform-mate, the Jeep Renegade.
   How to confirm: The valve is located on the back side of the engine, near the intake manifold, and may be under a foam cover. It can be tested for function by checking for vacuum with the engine running or by applying voltage to see if it clicks open and closed. A stuck-open valve will allow vacuum suction at the port when the engine is running.
   Typical fix: Replace the purge valve.
   Est. part cost: $65-$100
3. Cracked or Disconnected EVAP Hoses 🟡 Medium Probability Rubber and plastic hoses become brittle with age and exposure to under-hood heat and road debris, leading to cracks and leaks. This is a frequently reported issue on the 500X/Renegade platform, especially the hoses connected to the purge valve.
   How to confirm: Visually inspect all accessible EVAP lines between the engine bay, charcoal canister, and fuel tank for obvious cracks, damage, or loose connections. A smoke test is the most definitive method to find small, hard-to-see leaks.
   Typical fix: Replace the damaged section of hose.
   Est. part cost: $10-$50
4. Outdated PCM Software ⚪ Low Probability Fiat specifically lists P0440 in multiple TSBs for the 2016 500X that were resolved with a software update, indicating the logic for setting the code could be overly sensitive. These TSBs also cover other EVAP codes like P0441, P0455, and P0456.
   How to confirm: A Fiat dealership or a properly equipped independent shop can check the current software version of the PCM against the latest available version referenced in TSBs like #08-010-16 REV. D.
   Typical fix: Update the Powertrain Control Module (PCM) software.
   Est. part cost: $0-$200 (Labor for flashing)

Rare But Worth Checking

• Leaking EVAP (Charcoal) Canister: → Shop Vapor Canister The canister itself can crack from physical damage or become saturated with fuel if the gas tank is habitually overfilled, which can trigger various EVAP codes. One owner on a forum reported needing to replace it along with the filler neck to solve an issue.
• Faulty EVAP Vent Valve: → Shop Vapor Canister Vent Valve Similar to the purge valve, this valve can fail, but it is generally less common. It's located near the EVAP canister by the fuel tank.

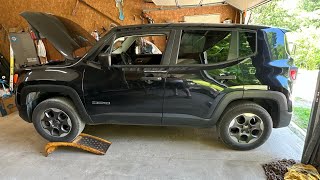

🎬 Watch: How to find and fix the ESIM vent valve.
• Leaking Fuel Filler Neck: → Shop Fuel Filler Neck The metal and plastic tube leading to the gas tank can rust, be damaged, or have its plastic components break, causing a leak that the system will detect. Owners have confirmed this failure on the 500X, sometimes requiring a full replacement of the neck assembly.

Diagnosis Steps

1. Read the code with an OBD-II scanner and check for any other related EVAP codes.
2. Inspect the gas cap. Remove it, check the seal for damage, and reinstall it, ensuring it clicks shut. Also inspect the filler neck for broken plastic clips. Clear the code and drive for a few days to see if it returns.
3. If the code returns, perform a visual inspection of all visible EVAP hoses in the engine bay and under the vehicle for any obvious cracks, disconnections, or damage.
4. Locate and test the EVAP purge valve on the back of the engine. With the engine running, you can sometimes feel for suction or listen for a clicking sound.
5. If the above steps do not reveal the issue, the most effective next step is to have a smoke test performed. This involves injecting smoke into the EVAP system to quickly and accurately locate the source of any leaks.
🎬 See how to perform a professional EVAP smoke test.
6. If no leaks are found, contact a dealership to inquire about the TSBs (#08-010-16 REV. D, #0801016, etc.) and determine if your vehicle requires a PCM software update.

Parts You'll Likely Need

• Gas Cap (OEM #68245042AA) — This is the most frequent and simplest cause of a P0440 code. The seal wears out or the cap isn't tightened properly. On the 500X, the entire filler neck assembly can also be a point of failure.
  Trusted brands: Mopar, Duralast, Gates
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• Vapor Canister Purge Valve (OEM #04627182AA) — This valve is a common failure point that gets stuck open or closed, disrupting the EVAP system's pressure management. This same part is used across many FCA vehicles, including the Jeep Renegade, Chrysler 200, and Dodge Dart, indicating it's a common service item.
  Trusted brands: Mopar, Standard Motor Products, Dorman
  OEM price range: $70-$95
  Aftermarket price range: $40-$75
• EVAP Vapor Canister (OEM #68445459AA) — Though less common, the canister can fail by cracking or becoming saturated with fuel from overfilling the tank.
  Trusted brands: Mopar
  OEM price range: $250-$360
  Aftermarket price range: $150-$250

Related Codes That Often Appear With This One

• P0441 — Incorrect Purge Flow. This code often appears with P0440 and points more directly to a problem with the purge valve or a blockage in the system. It is also mentioned in the same Fiat TSBs.
• P0455 — EVAP System Large Leak Detected. If the system detects a very large leak, such as a completely missing gas cap or a disconnected hose, this code may be set alongside P0440. It is also covered by the PCM update TSB.
• P0456 — EVAP System Small Leak Detected. This indicates a very small leak, like a pinhole in a hose or a bad seal on the gas cap, and can accompany the general P0440 code. It is also covered by the PCM update TSB.

Technical Service Bulletins (TSBs) & Recalls

• 08-010-16 REV. D: Lists P0440 - General EVAP System Failure as one of several codes addressed by a PCM software update.
• 0801016: Lists P0440 - General EVAP System Failure in a similar context to the other related TSBs.
• 08-010-16 REV. C: An earlier revision of the TSB that also includes P0440.
• 08-010-16 REV. B: An even earlier revision of the TSB that also includes P0440.

Platform-Specific Known Issues

• A series of Technical Service Bulletins, including #08-010-16 REV. D, #0801016, #08-010-16 REV. C, and #08-010-16 REV. B, were issued by Fiat for the 2016 500X. These bulletins address a group of diagnostic trouble codes, including P0440, that could be resolved with a PCM software update.
• The fuel filler neck assembly has been noted by owners to have weak plastic clips that can break, preventing the gas cap from sealing and causing a persistent EVAP leak code.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve Solenoid Resistance — expected: 15 to 30 Ohms. Failure: A reading far outside this range indicates a damaged internal circuit.
• EVAP Canister Vent Valve Solenoid Resistance — expected: 20 to 30 Ohms. Failure: A reading outside this range suggests the solenoid winding is damaged.
• EVAP Vent Valve Connector Voltage — expected: 12 Volts on one of the two wires with the key in the ON position.. Failure: No voltage indicates a wiring or fuse issue upstream of the valve.

Scan Tool Commands That Help

• Professional Scan Tool (e.g., Witech, Autel, iCarsoft): EVAP System Active Test / Leak Test — This function allows the technician to command the purge and vent valves to open or close, sealing the system to monitor pressure changes in real-time. It is used to confirm valve functionality and check for leaks without a smoke machine.
• Professional Scan Tool (e.g., Witech, Autel, iCarsoft): Vent Valve Actuation — This specific command cycles the vent valve on and off, allowing a technician to listen for an audible 'click' to confirm the solenoid is mechanically functioning, which is useful when the valve is in a hard-to-reach location.

Real Owner Repair Stories

• Reddit user on r/Fiat (2016 Fiat 500X) — Check engine light with EVAP leak code.
  ❌ Tried (didn't work) Ensuring gas cap was tight.
  ✅ What actually fixed it The entire fuel filler neck assembly had to be replaced because the plastic clips that hold the cap assembly in place were broken, preventing a proper seal. The user noted that simply gluing it is not a reliable fix.
• The FIAT Forum user 'Asantoro' (2016 Fiat 500X 2.4L AWD) — After being rear-ended, the fuel nozzle would constantly click off when trying to fill the tank, and EVAP system issues were present.
  ❌ Tried (didn't work) Using different gas station pumps., Turning the nozzle to the side.
  ✅ What actually fixed it The dealer replaced the fuel filler neck, the filler mechanism, and the charcoal canister to resolve the problem, suggesting damage from the accident kinked or blocked a vent path.

"I Checked Everything" — The Actual Cause

• If a smoke test passes and finds no leaks, the cause may be the Powertrain Control Module (PCM) software. Multiple Technical Service Bulletins (TSBs) for the 2016 500X indicate that an overly sensitive diagnostic logic for P0440 and related EVAP codes can be corrected with a software update.
• A faulty fuel tank pressure sensor can send incorrect data to the PCM, making the computer believe there is a leak when the system is actually sealed. This would result in a passed smoke test but a persistent P0440 code.

When the Usual Fixes Don't Work

• In several owner-documented cases, simply replacing the gas cap for a P0440 code was not sufficient. The root cause was a failure of the fuel filler neck assembly, where plastic clips had broken off, preventing any gas cap from forming a proper seal. This required the replacement of the entire filler neck, a more involved and costly repair than a simple cap replacement. Another complex case resulting from an accident required the replacement of the filler neck, the capless mechanism, and the charcoal canister to resolve persistent fueling and EVAP issues.

OEM Part Supersession History

• 04627182AA → 04627182AB — Part revision or update by the manufacturer.
• Unknown → 68604043AB — This part number is listed as a replacement fuel filler tube for the 2016-2022 Fiat 500X, suggesting it may be a revised design to address issues like the breaking clips.
