P0441 on 2005-2010 Pontiac G6: Incorrect Purge Flow Causes and Fixes

What's Unique About the 2005-2010 Pontiac G6

The Pontiac G6, like many other GM vehicles from this era built on the Epsilon platform (Chevy Malibu, Saturn Aura), has a well-documented history of the EVAP purge valve solenoid failing. The part is known to get stuck either open or closed, directly causing the incorrect flow condition that triggers the P0441 code. Fortunately, on all G6 engines (2.4L I4, 3.5L V6, and others), the purge valve is located in a very accessible spot in the engine bay, making this one of the easier and more common repairs for G6 owners.

Symptoms You May Notice

• Check Engine Light is on
• Slightly rough idle
• Difficulty starting the engine right after refueling (the engine may crank for an extended period before starting).
• Slight decrease in fuel economy
• Possible faint fuel smell
• Engine may surge after getting gas.

Most Likely Causes

1. Faulty EVAP Purge Valve Solenoid 🔴 High Probability → Shop Vapor Canister This is a very common failure point on many GM vehicles of this vintage, including the G6. The internal mechanism can get stuck open or closed over time, a widely reported issue in owner forums.
   How to confirm: With the engine off, remove the valve. You should not be able to blow air through it. If you can, it's stuck open. A more direct test with the valve on the car: start the engine, disconnect the EVAP hose leading from the valve to the charcoal canister, and place your finger over the valve's port. If you feel any suction, the valve is stuck open and is bad. A scan tool can also command the valve to open and close to check for an audible click.
   Typical fix: Replacement of the purge valve solenoid. It is typically mounted on the engine with one 10mm or 13mm bolt and has two hoses and one electrical connector.
   Est. part cost: $25-$60
2. Cracked or Disconnected EVAP Hoses 🟡 Medium Probability The plastic and rubber hoses in the engine bay become brittle over time due to heat and age, leading to cracks or loose connections.
   How to confirm: Visually inspect all EVAP lines connected to the purge valve and running towards the back of the vehicle. A smoke test is the most effective way to find small, hard-to-see leaks.
   Typical fix: Replace the damaged section of hose.
   Est. part cost: $10-$30
3. Loose or Faulty Gas Cap ⚪ Low Probability → Shop Fuel Tank Cap While more commonly associated with large leak codes (P0455), a gas cap that is not sealing properly can sometimes contribute to flow problems. However, for P0441 specifically, this is a less likely cause than the purge valve.
   How to confirm: Ensure the gas cap clicks several times when tightened. Check the rubber seal on the cap for cracks or damage. If it looks worn, replacement is a cheap and easy test. Many forum users recommend using an OEM gas cap for best results.
   Typical fix: Replace the gas cap.
   Est. part cost: $15-$25

Rare But Worth Checking

• Clogged Charcoal Canister: → Shop Vapor Canister This can happen if you frequently 'top off' your gas tank after the pump clicks off. Liquid fuel can saturate the canister, causing a blockage that restricts vapor flow.
• Faulty EVAP Vent Solenoid: → Shop Vapor Canister This valve, located near the charcoal canister by the gas tank, is normally open and closes to seal the system for testing. If it gets stuck closed, it can prevent proper purge flow, though it more commonly sets other codes like P0446 or P0449.
• Faulty Fuel Tank Pressure Sensor: → Shop Fuel Tank The ECM relies on this sensor to monitor the EVAP system. If it provides incorrect readings, the computer may falsely trigger a P0441 code. This will usually be accompanied by other pressure sensor-related codes.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0441 and check for any other related codes like P0496 or P0171.
2. Inspect the gas cap to ensure it is tight and the seal is in good condition.
3. Locate the EVAP purge valve solenoid in the engine bay. On both the 4-cylinder and V6 engines, it's on the engine and easily visible after removing the plastic engine cover.
4. Visually inspect the vacuum hoses connected to the purge valve for any obvious cracks, brittleness, or loose connections.
5. Test the purge valve. The simplest field test is to start the engine, disconnect the hose leading from the valve towards the gas tank, and feel for vacuum at the valve's port. If there is suction at idle, the valve is stuck open and must be replaced.
6. Alternatively, with the engine off, disconnect the valve and try to blow through it. A healthy, non-energized valve should be closed and not allow air to pass. If you can 🎬 See this quick guide on testing the valve without tools blow through it, it's stuck open and needs to be replaced.
7. If the valve seems okay, check the electrical connector for power with the key on.
8. If the valve and its immediate hoses are good, the next step is a smoke test to check the entire EVAP line for leaks.
9. If no leaks are found, further diagnosis would involve testing the vent valve and the fuel tank pressure sensor, which may require a professional mechanic.

Parts You'll Likely Need

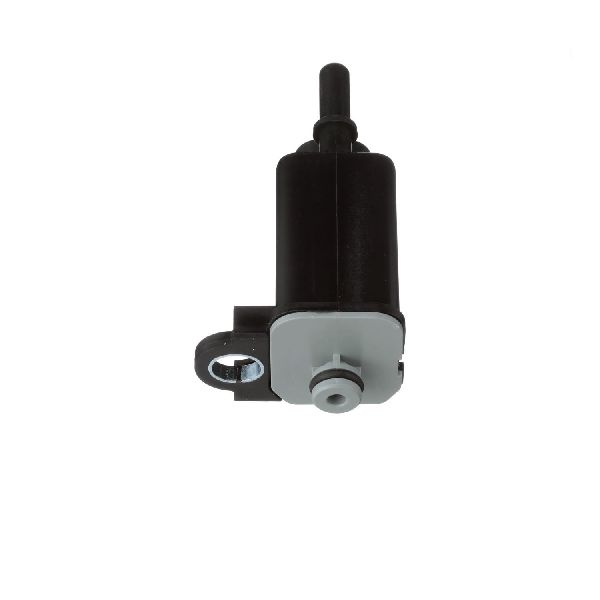

• Vapor Canister Purge Valve Solenoid (OEM #12581282 (later superseded by 12735398)) — This is the most common failure point for the P0441 code on the Pontiac G6. It controls the flow of fuel vapors, and when it fails, it directly causes the 'Incorrect Purge Flow' condition.
  Trusted brands: ACDelco (OEM), Delphi, Standard Motor Products, Dorman
  OEM price range: $40-$60
  Aftermarket price range: $25-$45

Related Codes That Often Appear With This One

• P0496 — This code indicates 'EVAP Flow During a Non-Purge Condition,' which is often caused by the same faulty purge valve being stuck open.
• P0171 — If the purge valve is stuck open, it creates a vacuum leak, allowing unmetered air (fuel vapor) into the engine. This can cause the engine to run lean, triggering a 'System Too Lean (Bank 1)' code.

Technical Service Bulletins (TSBs) & Recalls

• While no specific TSB for P0441 on the G6 is widely reported (indicating it's a standard component failure, not a design flaw requiring a special campaign), GM did issue Special Coverage Adjustment #10287 for 2006-2008 G6 models with the 2.4L engine for a different emissions part: the catalytic converter. This is unrelated to P0441 but shows a pattern of emissions component issues on the platform.

Platform-Specific Known Issues

• The most frequently reported symptom combination for this P0441 issue on the G6 is the check engine light accompanied by a hard-starting condition specifically after refueling. Owners on forums like Reddit describe having to crank the engine for an extended time or press the gas pedal to get it to start after filling the tank, a classic sign 🎬 Watch: How to fix a hard start after refueling of a stuck-open purge valve flooding the intake with vapor.

Mechanic-Grade Diagnostic Values

• EVAP Purge Solenoid Voltage Supply — expected: Battery voltage (~12V) with key on, engine off.. Failure: No voltage indicates an open circuit, blown fuse, or wiring issue upstream.
• EVAP Purge Solenoid Control Circuit (Test Lamp) — expected: With a test lamp connected between the power and control pins, commanding the solenoid to 50% with a scan tool should cause the lamp to flash or illuminate dimly. Commanding to 0% should turn it off.. Failure: If the lamp does not flash or stays on/off, it indicates a problem with the ECM driver or the wiring.
• Fuel Tank Pressure (FTP) Sensor Voltage — expected: Signal voltage between 0.1V and 4.9V. High voltage indicates low pressure/vacuum; low voltage indicates high pressure.. Failure: Voltage below 0.1V or above 4.9V for more than 5 seconds will set a sensor-specific code (like P0452/P0453), but inaccurate readings within the normal range can still cause incorrect flow calculations for P0441.

Scan Tool Commands That Help

• Tech2 / GDS2 (or equivalent professional scanner): EVAP Service Bay Test — This is a comprehensive, automated test sequence run by the scan tool to check the entire EVAP system for leaks and proper function, including purge and vent valve operation. It's the dealership-level first step after reading codes.
• Tech2 / GDS2 (or equivalent professional scanner): Purge Solenoid Control (% duty cycle) — Used to manually command the purge solenoid open to a specific percentage. This allows a technician to verify the solenoid clicks, check for flow with a vacuum gauge, or test the control circuit with a test lamp.
• Tech2 / GDS2 (or equivalent professional scanner): Vent Solenoid Control (On/Off) — Used to command the normally-open vent solenoid closed. This is essential for sealing the system to perform a leak test with a smoke machine or to check if the system can hold vacuum.

Wiring & Ground Locations

• G105 — On the left rear side of the engine compartment, on an engine-to-transmission stud, below the upper coolant hose.. This is a major ground for the engine and transmission control modules. While a failure here often causes more severe no-start or communication issues, a poor or intermittent connection can cause erratic behavior in any sensor or actuator controlled by the ECM, including the EVAP purge solenoid.
• G106 — On the front of the engine at a transmission stud for the 3.5L & 3.6L engines.. Similar to G105, this is a primary engine ground. Verifying that all major engine and transmission grounds are clean, tight, and free of corrosion is a critical step in diagnosing any electronic fault, as a bad ground can introduce voltage drops and unpredictable component behavior.
• EVAP Purge Solenoid Connector — On the purge solenoid itself, located on the intake manifold.. This is the direct connection point for testing. Pin A is the ignition voltage supply circuit, and Pin B is the control circuit that is pulse-width modulated (grounded) by the ECM. Testing for voltage and control signal at these specific pins confirms the integrity of the wiring and the ECM's command.

Real Owner Repair Stories

• Synthesized from multiple owner forums (g6ownersclub.com, Reddit) and Q&A sites. (2008 Pontiac G6 (engine not specified, but applies to all)) — Check Engine Light on with code P0441. The most frustrating symptom was severe difficulty starting the engine, but only immediately after refueling. The engine would crank for a long time unless the gas pedal was pressed. Otherwise, it started and ran fine.
  ❌ Tried (didn't work) Replacing the gas cap with a new one., Clearing the code, which would return within a day or two.
  ✅ What actually fixed it Replacing the EVAP purge valve solenoid located on the engine. The owner confirmed the old valve was stuck open by being able to blow air through it when it was removed. After replacing the valve (a 15-minute job), the hard-start-after-fueling issue was immediately gone and the P0441 code did not return.

"I Checked Everything" — The Actual Cause

• If a smoke test is performed and no leaks are found, it strongly suggests the P0441 code is not from a physical leak but from an 'incorrect flow' condition. The most likely cause in this scenario is a faulty EVAP purge solenoid that is not opening when commanded by the ECM, or is mechanically stuck closed. Another possibility is a restriction in the system, such as a charcoal canister clogged with fuel or debris from over-topping the fuel tank, which prevents vapors from flowing when the purge valve opens.

OEM Part Supersession History

• 12581282 → 12735398 (ACDelco Professional PN 214-1105) — Standard component revision and improvement over time.
  Heads up: A common mistake is ordering ACDelco part 214-2149. This part number is for the EVAP *Vent* Solenoid, which is located near the fuel tank. While it is part of the same system, it is not the correct part for the engine-mounted *Purge* Solenoid that is the typical cause of P0441. The parts are not interchangeable.

Model Year Variations Within This Range

• 2005-2010: No significant functional changes to the EVAP system relevant to diagnosing P0441 were made during the G6's production run. The primary difference a technician will encounter is the physical placement and mounting of the purge solenoid between the 2.4L I4 and the V6 engine options (3.5L, 3.6L, 3.9L), but the diagnostic procedure remains identical.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0496 — EVAP Flow During A Non-Purge Condition. This code frequently appears alongside P0441 on the G6 because both are directly caused by a stuck-open EVAP purge valve solenoid.
• P0171 — System Too Lean (Bank 1). A stuck-open purge valve can introduce unmetered air and fuel vapor into the intake manifold, throwing off the air/fuel ratio and triggering this lean code alongside P0441.
• P0455 — EVAP System Large Leak Detected. Often related to a loose or faulty gas cap, which can occasionally contribute to EVAP flow issues, or a stuck-closed purge solenoid as seen on similar GM platforms like the Pontiac Torrent.
• P0446 — EVAP Vent Control Circuit Malfunction. Reported by G6 owners alongside P0441 when dealing with broader EVAP system failures or multiple component issues.
• P0420 — Catalyst System Efficiency Below Threshold. While technically a separate emissions issue (noted in GM Special Coverage Adjustment #10287 for the 2.4L G6), owners have reported experiencing this code concurrently with P0441.
