P0442 on 2010-2014 GMC Savana: Causes and Fixes for Small EVAP Leaks

What's Unique About the 2010-2014 Gmc SAVANA

The GMC Savana from this era is part of the long-running GMT610 platform, shared with the Chevrolet Express. A specific issue noted by General Motors in TSB #PI0873 for these vans is the fuel cap tether binding, which can prevent the cap from sealing correctly and trigger a P0442 code. This makes the gas cap an even more likely culprit than on other vehicles. The EVAP components, like the vent and purge solenoids, are also common failure points on many GM trucks and vans of this generation due to their placement and exposure to the elements. The vent solenoid is located under the van, making it susceptible to road grime, while the purge valve on some engine configurations is located deep in the engine bay, requiring removal of the engine cover ('doghouse') for access.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on.
• A faint fuel smell may be noticeable in some cases.
• The vehicle will not pass an emissions inspection.
• Difficulty starting or a long crank time immediately after refueling (points towards a stuck-open purge valve).
• Gas pump nozzle clicks off repeatedly when trying to fill the tank (can indicate a blocked EVAP vent path, which may or may not be related to the P0442 leak).

Most Likely Causes

1. Loose, Worn, or Incorrect Gas Cap 🔴 High Probability → Shop Fuel Tank Cap A manufacturer TSB (#PI0873) specifically mentions the fuel cap tether binding and preventing a proper seal, making this the most likely cause. Rubber seals also degrade over time.
   How to confirm: Ensure the gas cap clicks at least three times when tightened. Inspect the rubber seal on the cap for cracks, tears, or excessive wear. Check that the tether is not twisted or interfering with the cap's ability to seat correctly. If you suspect a bad cap, some owners suggest using a plastic bag over the filler neck as a temporary seal to see if the code clears after a drive cycle, confirming the cap is the issue.
   Typical fix: Tighten the gas cap correctly. If the seal is damaged or the cap doesn't click, replace it with a new OEM-equivalent cap. Using a genuine OEM cap is often recommended as some aftermarket caps may not seal properly.
   Est. part cost: $15-$40
2. Faulty EVAP Vent Solenoid 🟡 Medium Probability → Shop Vapor Canister The vent solenoid is located under the van near the fuel tank, where it is exposed to road grime, moisture, and debris, which can cause it to stick open or fail. This is a common failure part on GM trucks and vans.
   How to confirm: The valve can be tested with a capable scan tool to see if it actuates (it is normally open and closes for the EVAP test). A more definitive test is to remove it and see if you can blow through it (you should be able to). When 12v is applied, it should close and you should not be able to blow through it. A smoke test is the most effective way to confirm a leak at the valve.
   Typical fix: Replace the EVAP vent solenoid. It is often located on or near the charcoal canister under the vehicle. 🎬 Watch: Step-by-step guide to replacing the vent solenoid.
   Est. part cost: $30-$100
3. Faulty EVAP Purge Solenoid/Valve 🟡 Medium Probability → Shop Vapor Canister This valve is located on the engine and cycles frequently, leading to eventual wear. It can get stuck slightly open, creating a small leak. On the Savana/Express vans, it can be difficult to access, located behind the alternator, often requiring removal of the interior engine cover. On V8 models, it is typically on top of the intake manifold.
   How to confirm: With the engine off, disconnect the hose from the purge valve that leads to the intake manifold and see if you can blow through it. It should be closed. You can also apply 12v power to see if it clicks open and closed. A symptom of a stuck-open purge valve is a long crank time after refueling.
   Typical fix: Replace the purge solenoid. On some engine configurations, this requires removing the 'doghouse' engine cover inside the van for access.
   Est. part cost: $25-$60
4. Cracked or Disconnected EVAP Hose ⚪ Low Probability Over time, the rubber and plastic hoses in the EVAP system can become brittle from heat and age, leading to small cracks, especially at connection points and elbows.
   How to confirm: Perform a thorough visual inspection of all EVAP lines from the fuel tank to the engine. A smoke test is the most reliable way to find a small crack in a hose that isn't visually obvious.
   Typical fix: Replace the cracked section of hose or the entire hose assembly.
   Est. part cost: $10-$50

Rare But Worth Checking

• Cracked Charcoal Canister: → Shop Vapor Canister The plastic housing of the canister itself can develop fine cracks from age or impact from road debris, creating a leak. A smoke test is the best way to identify this.
• Leaking Fuel Tank Pressure Sensor: → Shop Fuel Tank The seal for the fuel tank pressure sensor can degrade over time, causing a small leak at the top of the fuel tank. A faulty sensor can also incorrectly report pressure changes, triggering the code even without a physical leak.
• Leaking Fuel Filler Neck: → Shop Fuel Filler Neck The metal tube leading from the gas cap to the tank can rust and develop small holes, creating an EVAP leak. This is more common in areas with heavy road salt usage. A smoke test will quickly reveal a leak in this area.

Diagnosis Steps

1. Read the code with an OBD-II scanner and confirm P0442 is present. Note any other codes.
2. Inspect the gas cap. Remove it, check the seal for cracks, and ensure the tether isn't binding. Reinstall it, making sure it clicks several times.
3. Inspect the fuel filler neck sealing surface for rust or corrosion. Clean it with a wire brush if necessary. Clear the code and drive for a few days to see if it returns.
4. If the code returns, perform a thorough visual inspection of all accessible EVAP hoses and lines between the engine, charcoal canister, and fuel tank. Look for obvious cracks, damage, or loose connections.
5. Locate the EVAP purge valve on the engine. Test it to ensure it is not stuck open. Listen for a long crank after refueling, which is a strong indicator of a failed purge valve.
6. Locate the EVAP vent valve under the vehicle near the fuel tank. Test it to ensure it is not stuck open and functions correctly when voltage is applied.
7. If no obvious faults are found, the most effective next step is to have a smoke test performed. This involves injecting pressurized smoke into the EVAP system via a service port to quickly and accurately reveal the location of any small leaks. This is the professional method and removes all guesswork.

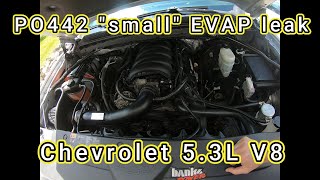

🎬 See how a professional smoke test finds hidden leaks.

Parts You'll Likely Need

• Fuel Tank Cap (OEM #22921366) — This is the most frequent cause, especially given the TSB regarding the tether binding. It's an inexpensive and easy first step.
  Trusted brands: ACDelco, Gates, Stant
  OEM price range: $20-$40
  Aftermarket price range: $15-$25
• EVAP Vent Solenoid (OEM #214-2149) — A very common failure point on GM vans, this valve gets stuck open due to exposure to dirt and moisture under the vehicle.
  Trusted brands: ACDelco, Dorman, Standard Motor Products (SMP)
  OEM price range: $50-$100
  Aftermarket price range: $30-$70
• EVAP Canister Purge Solenoid (OEM #12610560) — Located on the engine, this valve can fail from constant use, getting stuck slightly open and causing a small leak code. A stuck-open valve is also a primary cause of difficult starting after refueling.
  Trusted brands: ACDelco, Dorman
  OEM price range: $30-$50
  Aftermarket price range: $25-$40

Related Codes That Often Appear With This One

• P0455 — This code indicates a large EVAP leak. It often appears with P0442 because the same faulty component (like a very loose gas cap or stuck-open valve) can be interpreted by the ECM as either a small or large leak 🎬 Watch: Diagnosing common EVAP codes on a Chevy Express. depending on test conditions. Two of the cited TSBs (#21-NA-124, #PI0873) mention both codes occurring together.
• P0449 — This code points specifically to an electrical fault in the EVAP vent solenoid circuit. If the vent solenoid is failing electrically, it can also fail to seal properly, causing a P0442 leak code to appear at the same time.
• P0496 — This code indicates the EVAP system is flowing vapor when it shouldn't be, which is almost always caused by a purge valve stuck open. This creates a vacuum leak that can also be interpreted as a small leak under certain test conditions, triggering P0442.

Technical Service Bulletins (TSBs) & Recalls

• 21-NA-124: Provides diagnostic tips for finding EVAP leaks related to P0442 and P0455.
• PI0873: Details an issue with the fuel cap tether binding, causing a poor seal and setting P0442/P0455.
• PIT4943D: Directs technicians to use an Evaporative Emissions System Tester to diagnose a P0442 code.

Platform-Specific Known Issues

• TSB #PI0873 specifically calls out the fuel cap tether binding, which prevents the cap from seating and sealing correctly. This can be resolved by repositioning the tether.
• TSB #21-NA-124 and #PIT4943D provide dealers with advanced diagnostic tips for finding EVAP leaks, indicating that tracking down the source of P0442 can sometimes be complex and require special procedures like a smoke test.

Mechanic-Grade Diagnostic Values

• Fuel Tank Pressure (FTP) Sensor Voltage — expected: 1.3 - 1.7 Volts with the sensor at atmospheric pressure (disconnected from the tank).. Failure: A reading fixed at a low voltage (near 0V) or high voltage (near 5V) regardless of pressure indicates a failed sensor or wiring issue.
• FTP Sensor Connector Voltage (Key On, Engine Off) — expected: Approximately 5 Volts on the reference wire (often gray) and a good ground (near 0V) on the ground wire (often tan).. Failure: Absence of the 5V reference or a bad ground points to a wiring or ECM problem, not a sensor failure.

Scan Tool Commands That Help

• Tech2 / GDS2: EVAP Service Bay Test — Use this to force the EVAP monitor to run in the shop, sealing the system and checking for pressure changes without a full drive cycle. It's essential for verifying a repair is successful or diagnosing an intermittent leak that doesn't appear on a simple smoke test.

Wiring & Ground Locations

• G102 — On the left rear of the engine block for 4.8L, 5.3L, and 6.0L V8 engines.. This is a primary engine ground. A poor connection here can cause erratic behavior from the Engine Control Module (ECM), which operates the EVAP solenoids and interprets sensor data.
• G302 — Behind the left kick panel inside the cabin.. This is an interior/body ground point. A fault here could potentially affect modules or wiring that pass through the cabin, including circuits related to the Body Control Module (BCM) which communicates with the ECM.
• EVAP Canister Vent Solenoid — Near the front of the fuel tank, under the vehicle.. This solenoid must close to seal the system for the leak test. It is powered by a 10A fuse (Fuse 56 in some diagrams).
• Fuel Tank Pressure (FTP) Sensor Connector — On top of the fuel pump module, which is on top of the fuel tank.. This is the testing point for the sensor. Wire colors are typically Gray (5V reference), Dark Green (signal), and Tan (ground).

Real Owner Repair Stories

• Forum user on a Chevrolet forum (2007 Chevy Silverado 1500 (similar GM EVAP system)) — P0442 code kept returning after replacing the gas cap, purge valve, and charcoal canister. Also experienced slow fueling.
  ❌ Tried (didn't work) Replacing gas cap, Replacing purge valve, Replacing charcoal canister
  ✅ What actually fixed it The user was advised by a technician on the forum that if a smoke test passes with no leaks, the issue could be a faulty Fuel Tank Pressure (FTP) sensor that isn't detecting the pressure changes during the EVAP test cycle. The slow fueling was identified as a separate issue caused by a blocked vent path.
• Mechanic video and forum posts (General older GM vehicle, applicable to Savana) — Persistent P0442 code.
  ❌ Tried (didn't work) Replacing the gas cap
  ✅ What actually fixed it The sealing surface on the fuel filler neck was found to be rusted and corroded. The rust was cleaned off with a wire brush, creating a smooth surface for the gas cap's gasket to seal against. This resolved the leak and the code.

"I Checked Everything" — The Actual Cause

• In cases where a smoke test shows the system is sealed (the flow meter indicates no leak), a persistent P0442 can be caused by a faulty Fuel Tank Pressure (FTP) sensor. The EVAP self-test relies on this sensor to detect small pressure changes caused by temperature shifts in the sealed tank. If the sensor is defective and doesn't report this pressure change, the ECM will falsely conclude there is a leak.

OEM Part Supersession History

• 25932571 → 214-2149 (ACDelco) — Standard part number update and consolidation.
  Heads up: These part numbers are generally interchangeable for the EVAP Vent Solenoid on this platform.
• 12592015 → 12608378 — Part revision for the EVAP Purge Solenoid.
  Heads up: These part numbers are listed as interchangeable for many GM applications in this era.

Model Year Variations Within This Range

• 2010-2014: The physical location of the EVAP Canister Purge Solenoid varies based on the installed engine. On V8 models (4.8L, 5.3L, 6.0L), it is typically mounted on top of the engine's intake manifold and is relatively easy to access. On V6 models, the location can differ and may be harder to reach.
