P0442 on 2007-2014 Nissan Armada: EVAP Small Leak Causes and Fixes

What's Unique About the 2007-2014 Nissan ARMADA

The first-generation Nissan Armada (2004-2015) shares its F-Alpha platform and EVAP system design with other Nissan trucks of the era, like the Titan and Infiniti QX56. A common failure point on these vehicles is the EVAP canister vent control valve, located at the rear of the vehicle, above the spare tire and often behind a metal heat shield. This valve is highly susceptible to dirt, dust, and moisture, which can cause it to stick open or fail to seal, leading directly to a P0442 code. Nissan has issued multiple technical service bulletins acknowledging that EVAP leak codes are common and often start with a simple loose fuel cap.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• A faint fuel smell, particularly when parked in an enclosed space like a garage.
• A "Loose Fuel Cap" warning message on the instrument panel.
• Difficulty starting the engine immediately after refueling (this often points specifically to a stuck-open purge valve).

Most Likely Causes

1. Loose or Faulty Gas Cap 🔴 High Probability → Shop Fuel Tank Cap This is the most common cause across all vehicles, and Nissan specifically highlights it in TSBs NTB09020F and NTB13-097g. The rubber seal on the cap can degrade over time, preventing a proper seal. Owners and technicians strongly advise using a genuine OEM Nissan cap, as aftermarket versions are known to cause persistent leak codes.
   How to confirm: Ensure the cap is tightened until it clicks several times. Inspect the rubber O-ring on the cap for cracks, stiffness, or damage. Check the fuel filler neck for rust or debris that could prevent a good seal.
   Typical fix: Tighten or replace the gas cap. It is highly recommended to use an OEM (Original Equipment Manufacturer) cap from Nissan, as aftermarket caps can sometimes fail to seal correctly.
   Est. part cost: $20-$40
2. EVAP Canister Vent Control Valve Failure 🟡 Medium Probability → Shop Vapor Canister Vent Valve This valve is located near the rear axle, above the spare tire, where it is exposed to road dirt and moisture. This can cause the solenoid to stick open or closed, creating a leak path. This is a well-documented failure point on Nissan trucks like the Armada and Titan.
   How to confirm: A definitive method is a smoke test, which will show smoke leaking from the valve if it has failed. A DIY test involves removing the valve, applying 12v power to its electrical pins, and listening for a distinct 'click'. The valve is normally open, so when power is applied, it should close and you should not be able to blow through it. If it doesn't click or doesn't seal when powered, it has failed.
   Typical fix: Replace the EVAP canister vent control valve. The valve twists to lock into the charcoal canister; no special tools are typically needed 🎬 See this walkthrough for replacing the rear vent valve. for removal once accessed.
   Est. part cost: $40-$100
3. EVAP Canister Purge Volume Control Solenoid Valve Failure ⚪ Low Probability → Shop Vapor Canister This valve is located in the engine bay and controls the flow of stored vapors to the engine. While less common to fail than the rear vent valve, it can get stuck open, causing a constant small vacuum leak.
   How to confirm: With the engine off, disconnect the hose from the valve that leads to the intake manifold and apply vacuum with a hand pump; it should hold vacuum. Alternatively, try blowing through it; if air passes through, the valve is stuck open and is faulty. A hard start after refueling is a strong indicator this valve has failed.

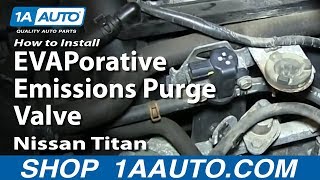

   Typical fix: Replace the purge valve solenoid. 🎬 Watch: How to test and replace the engine bay purge valve.
   Est. part cost: $70-$120
4. Cracked or Disconnected EVAP Hoses ⚪ Low Probability Rubber hoses throughout the EVAP system can become brittle and crack with age and exposure to heat and the elements, creating small leaks.
   How to confirm: Visually inspect all accessible EVAP lines from the engine bay to the charcoal canister in the rear. A smoke test is the most effective way to find a small crack in a hose that isn't easily visible.
   Typical fix: Replace the cracked section of hose.
   Est. part cost: $10-$30

Rare But Worth Checking

• Cracked Charcoal Canister: → Shop Vapor Canister The plastic housing of the charcoal canister can develop hairline cracks from impacts or age, creating a leak. This is usually found with a smoke test.
• Leaking Fuel Tank or Filler Neck: → Shop Fuel Tank Rust and corrosion, especially in areas with road salt, can perforate the fuel filler neck or the top of the fuel tank, causing an EVAP leak. The sealing surface of the filler neck where the gas cap sits can be cleaned with a wire brush or light-grit sandpaper to remove rust and ensure a good seal. This is a more serious issue and often presents with a strong fuel smell.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0442 is present.
2. Inspect the gas cap. Remove it, check the seal for cracks or damage, and reinstall it, ensuring it clicks multiple times. If the filler neck surface is rusty, clean it with a wire brush.
3. Clear the code with the scanner and drive for a few days to see if the light returns. If it doesn't, the gas cap was the issue.
4. If the light returns, perform a visual inspection of all accessible EVAP hoses and lines under the hood and around the charcoal canister at the rear of the vehicle. Look for obvious cracks, damage, or loose connections.
5. Locate the EVAP canister vent control valve above the spare tire. Check its electrical connector and hose connections. You may need to look behind a metal heat shield.
6. If no visual faults are found, the most effective next step is to have a smoke test performed. This involves injecting pressurized smoke into the EVAP system and watching for where it escapes. 🎬 Watch: How to perform a smoke test on your Armada. A scan tool can be used to command the vent valve shut to seal the system for the test. This will pinpoint the exact location of the leak, whether it's a valve, hose, or the canister itself.
7. Based on the smoke test results, test or replace the leaking component. The vent valve can be tested by applying 12V power and seeing if it clicks and seals.

Parts You'll Likely Need

• Fuel Filler Cap (OEM #17251-79960) — This is the most frequent cause of P0442. The seal wears out, preventing the system from holding pressure. An OEM cap is highly recommended.
  Trusted brands: Nissan (OEM)
  OEM price range: $25-$40
  Aftermarket price range: $15-$30
• EVAP Canister Vent Control Valve (OEM #14935-JF02C) — A very common failure item on Nissan trucks. It gets stuck open due to contamination from its location near the rear axle, causing a persistent small leak. This part number supersedes previous versions like 14935-JF00A, 14935-JF00B, 14935-JF00C, 14935-JF00D, and 14935-JF00E.
  Trusted brands: Nissan (OEM), Dorman, SKP
  OEM price range: $60-$90
  Aftermarket price range: $35-$65
• EVAP Canister Purge Valve (OEM #14930-Z800A) — Located in the engine bay, this valve can fail and leak internally. It's less common than the vent valve but still a possible cause, especially if you experience hard starting after fill-ups.
  Trusted brands: Nissan (OEM), Hitachi, Bosch
  OEM price range: $80-$120
  Aftermarket price range: $40-$70

Related Codes That Often Appear With This One

• P0455 — Indicates a large EVAP leak. If a component fails significantly, it may be detected as both a small and large leak at different times.
• P0456 — Indicates a very small EVAP leak. These three codes (P0442, P0455, P0456) are all related to the same system and often point to the same set of components.

Technical Service Bulletins (TSBs) & Recalls

• NTB13-097J: EVAP LEAK DTC P0442, P0455, P0456 INFORMATION
• NTB13-097g: ALL MODEL YEAR 2012 AND NEWER NISSAN VEHICLES; EVAP LEAK DTC P0442, P0455, P0456 INFORMATION
• NTB09020F: SERVICE INFORMATION If one or more of these EVAP leak DTCs are stored (P0442, P0455, P0456) on
• NTB10-125a: 2004-2010 QX56/ARMADA, 2004-2010 TITAN; EVAP DIAGNOSIS UPDATE

Platform-Specific Known Issues

• Nissan TSB NTB09020F specifically calls out that a loose fuel fill cap may be the cause for EVAP codes P0442, P0455, and P0456 on 2007-2011 models.
• Nissan TSB NTB13-097 series (J, G, D) provides general diagnostic information for these EVAP codes on all newer Nissan vehicles, emphasizing a structured diagnostic approach starting with the fuel cap and using a smoke machine.
• Nissan TSB NTB10-125a provides updated diagnostic procedures for the EVAP system, which can be helpful for technicians trying to pinpoint a stubborn leak.

Mechanic-Grade Diagnostic Values

• EVAP Canister Vent Control Valve Solenoid Resistance — expected: 20 - 50 Ohms (generic specification). Failure: A reading significantly outside this range (e.g., infinite for an open circuit, or near zero for a short) indicates a failed solenoid coil.
• EVAP Purge Volume Control Solenoid Valve Resistance — expected: 15 - 30 Ohms (generic specification). Failure: A reading far outside this range indicates a damaged internal electrical circuit in the valve.
• Fuel Tank Pressure (FTP) Sensor Voltage — expected: Approximately 1.5V with the gas cap off (atmospheric pressure). The normal operating range for the self-test to run is typically between 1.0V and 4.0V.. Failure: A voltage stuck at 0V or 5V suggests a wiring issue or a failed sensor. If the voltage doesn't change when a vacuum or pressure is applied during testing, the sensor is faulty.

Scan Tool Commands That Help

• Nissan CONSULT or advanced bidirectional scanner: EVAP System Leak Test / Vent Valve Control — This function is used to command the EVAP vent valve closed, sealing the system. This is a required step before performing a smoke test to ensure the system is not open to the atmosphere through the vent.
• Advanced bidirectional scanner: Test for stuck-open Purge Valve — To confirm if the purge valve is mechanically stuck open without removing it. With the engine idling, command the purge valve 'OFF' and the vent valve 'ON' (closed). Monitor the Fuel Tank Pressure sensor PID. If the pressure begins to drop (indicating a vacuum is being pulled), the purge valve is leaking, as it should be fully closed.

Wiring & Ground Locations

• C7 — At the EVAP canister vent control valve, located on the left rear underside of the vehicle, near the fuel tank.. This is the electrical connector for the vent control valve. Corrosion or a broken wire at this connector will cause a failure of the valve to operate, leading to EVAP codes. A common failure is a wire breaking inside the insulation near the connector.
• EVAP System Grounds — The Armada utilizes a complex ground distribution system with multiple ground points. Key grounds for engine and body control modules are located in the engine compartment (e.g., E9, E15) and under the front seats (e.g., B117).. A poor ground connection for the ECM or BCM can cause erratic behavior of any system they control, including the EVAP solenoids and sensors. While not a common cause for a single P0442 code, it should be considered if multiple, seemingly unrelated electrical issues are present.

Real Owner Repair Stories

• Commonly reported pattern on forums and in technician videos (2007-2014 Nissan Armada/Titan) — Check Engine Light with P0442, sometimes accompanied by a hard start after refueling.
  ❌ Tried (didn't work) Tightening the gas cap., Replacing the gas cap with an aftermarket version.
  ✅ What actually fixed it The hard-start symptom was resolved by replacing the EVAP Purge Valve in the engine bay. The valve was tested and found to be stuck partially open, allowing fuel vapors to flood the intake after refueling.
• Commonly reported pattern on forums and in technician videos (2007-2014 Nissan Armada/Titan) — Persistent P0442 Check Engine Light, no other symptoms.
  ❌ Tried (didn't work) Replacing the gas cap with a new OEM one., Replacing the EVAP canister vent control valve.
  ✅ What actually fixed it A professional smoke test revealed a small crack in a rubber EVAP hose near the charcoal canister. The hose appeared fine on visual inspection but would open up a pinhole leak under the slight pressure of the test. Replacing the small section of hose resolved the code.

"I Checked Everything" — The Actual Cause

• In some cases, a vehicle can pass a smoke test but still repeatedly set a P0442 code. This can occur if the Fuel Tank Pressure (FTP) sensor is faulty. The ECM relies on the FTP sensor's readings to determine if the system is holding pressure during its self-test. If the sensor provides incorrect voltage data, the ECM may falsely conclude there is a leak and set the code, even though the system is perfectly sealed.

OEM Part Supersession History

• 14935-AM60A, 14935-JF00A, 14935-JF00B, 14935-JF00C, 14935-JF00D, 14935-JF00E → 14935-JF02C — Design updates to improve durability and prevent sticking due to contamination.
  Heads up: The newest part number, 14935-JF02C, is the correct and most robust replacement for all previous versions on this vehicle.
